RIGd Supply UltraSwing Short-Fit Spare Tire Hitch Mount
RIGd Supply UltraSwing Short-Fit Spare Tire Hitch Mount
Couldn't load pickup availability

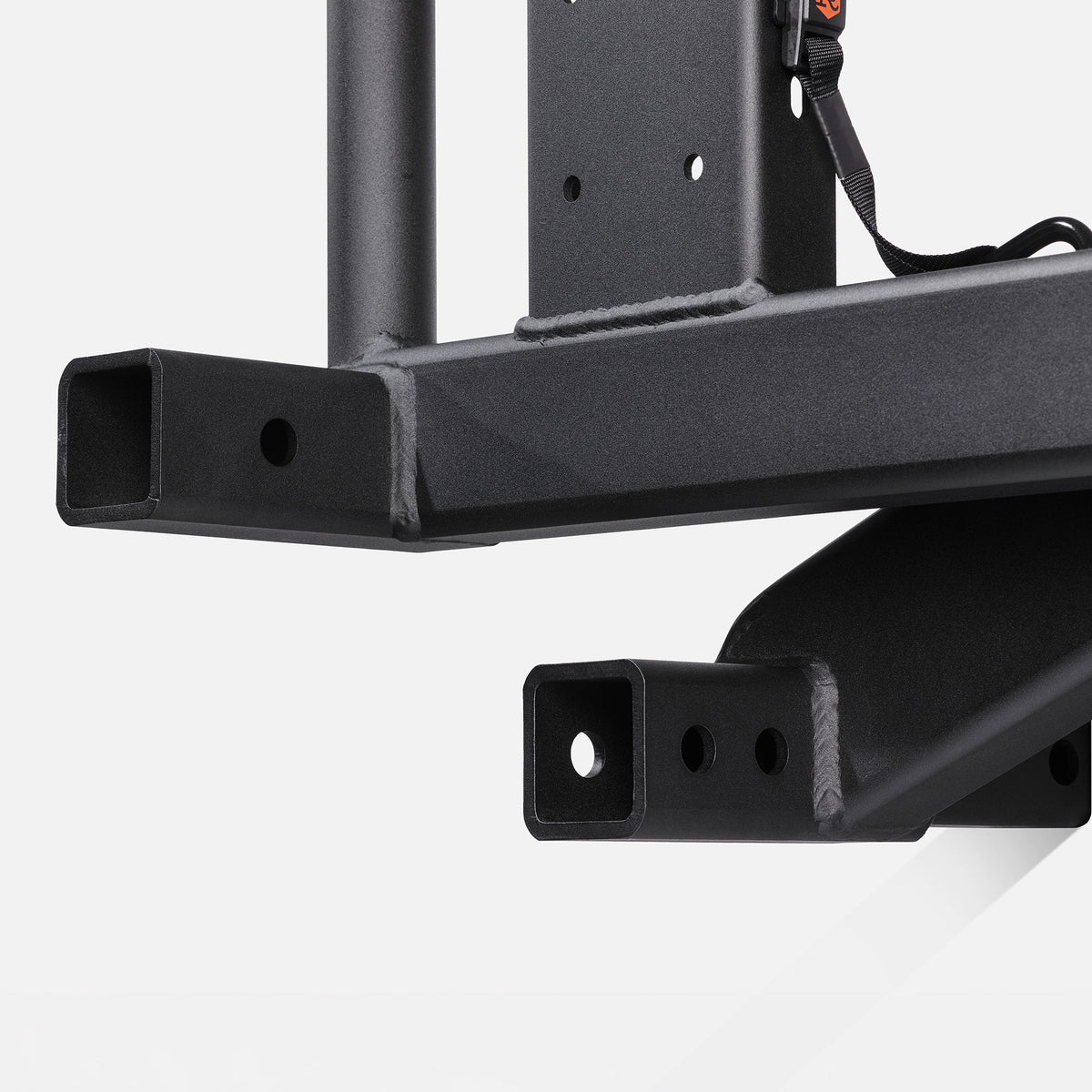

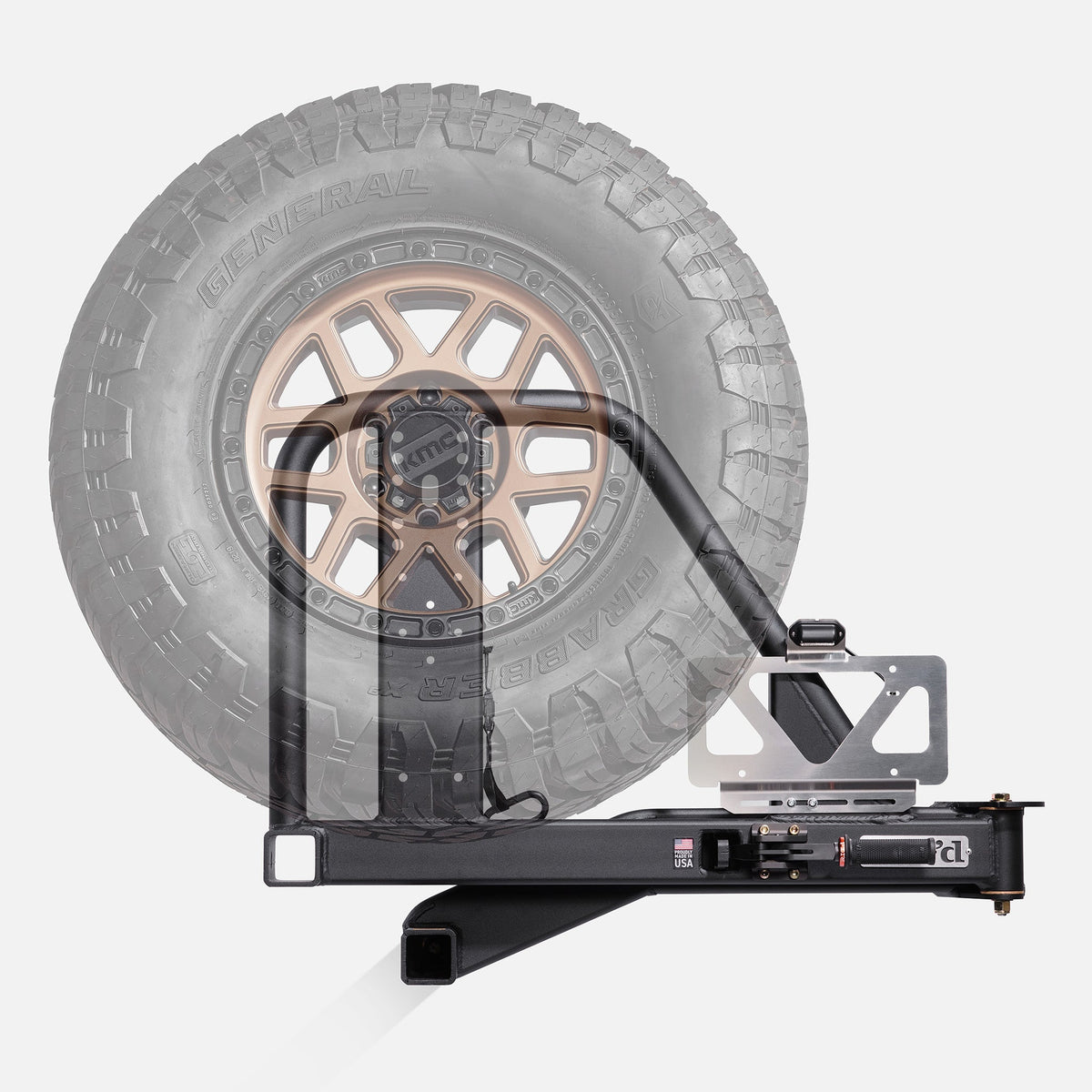

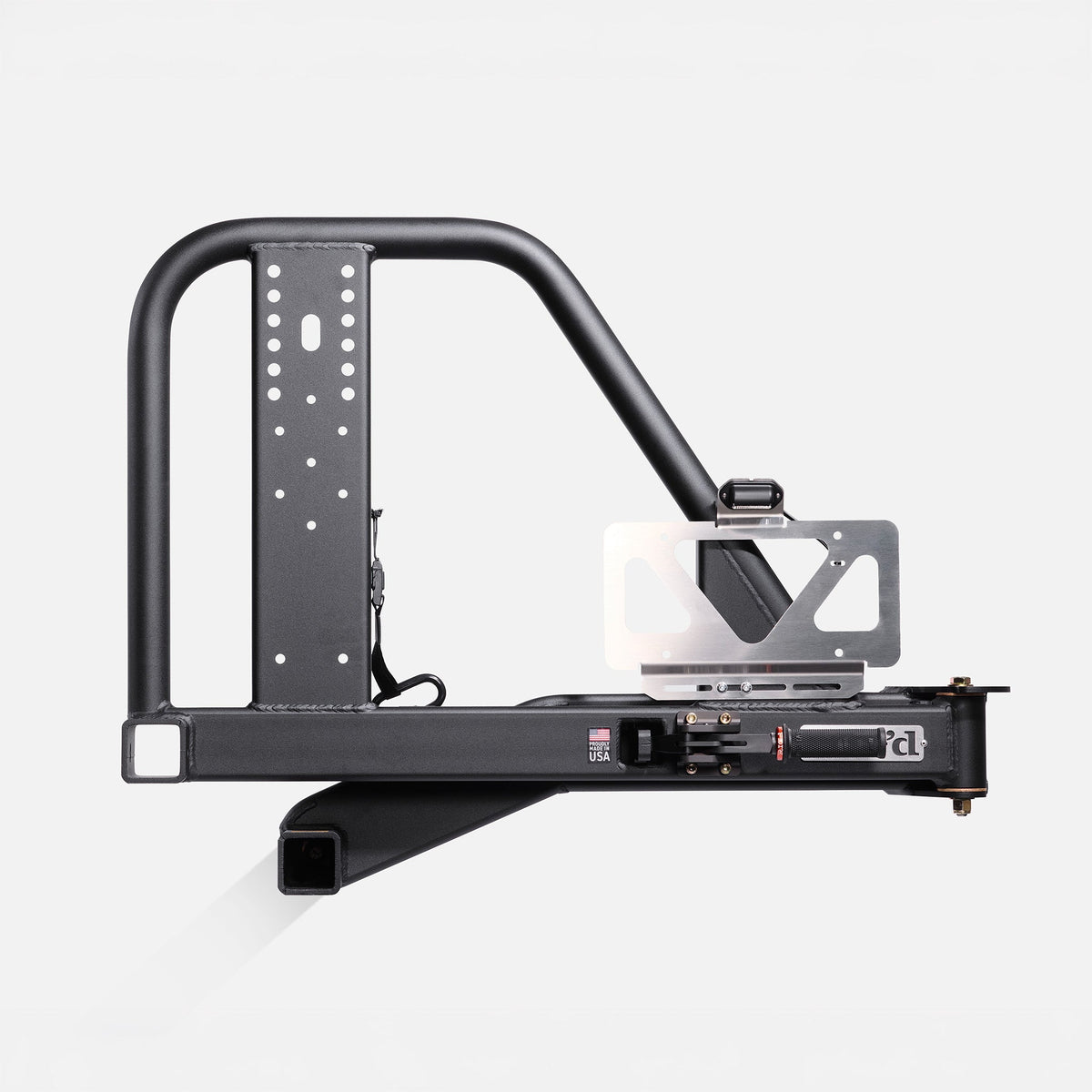

The RIGd Supply UltraSwing Short-Fit is a swing-out spare tire carrier that mounts in a receiver hitch. It is designed for vehicles with 2 inches or less from the center of the hitch pin hole to the face of the hitch, including the 4Runner, GX, and 2024 Tacoma. A shorter hitch tube and single hitch pin hole position allow it to follow the body lines of these shorter-hitch platforms. The adjustable wheel plate accommodates tires up to 35 inches, and an offset swing-out secondary hitch accepts bike racks and other accessories. Three wheel plate configurations are available to suit a range of bolt patterns and wheel offsets.
Features
- Swing-out access: tire and bike rack swing clear of the rear hatch without removal.
- Anti-wobble construction: designed for severe off-road use with a rock-solid anti-wobble system.
- Adjustable and removable wheel plate: carries tires up to 35 inches; removable when not in use.

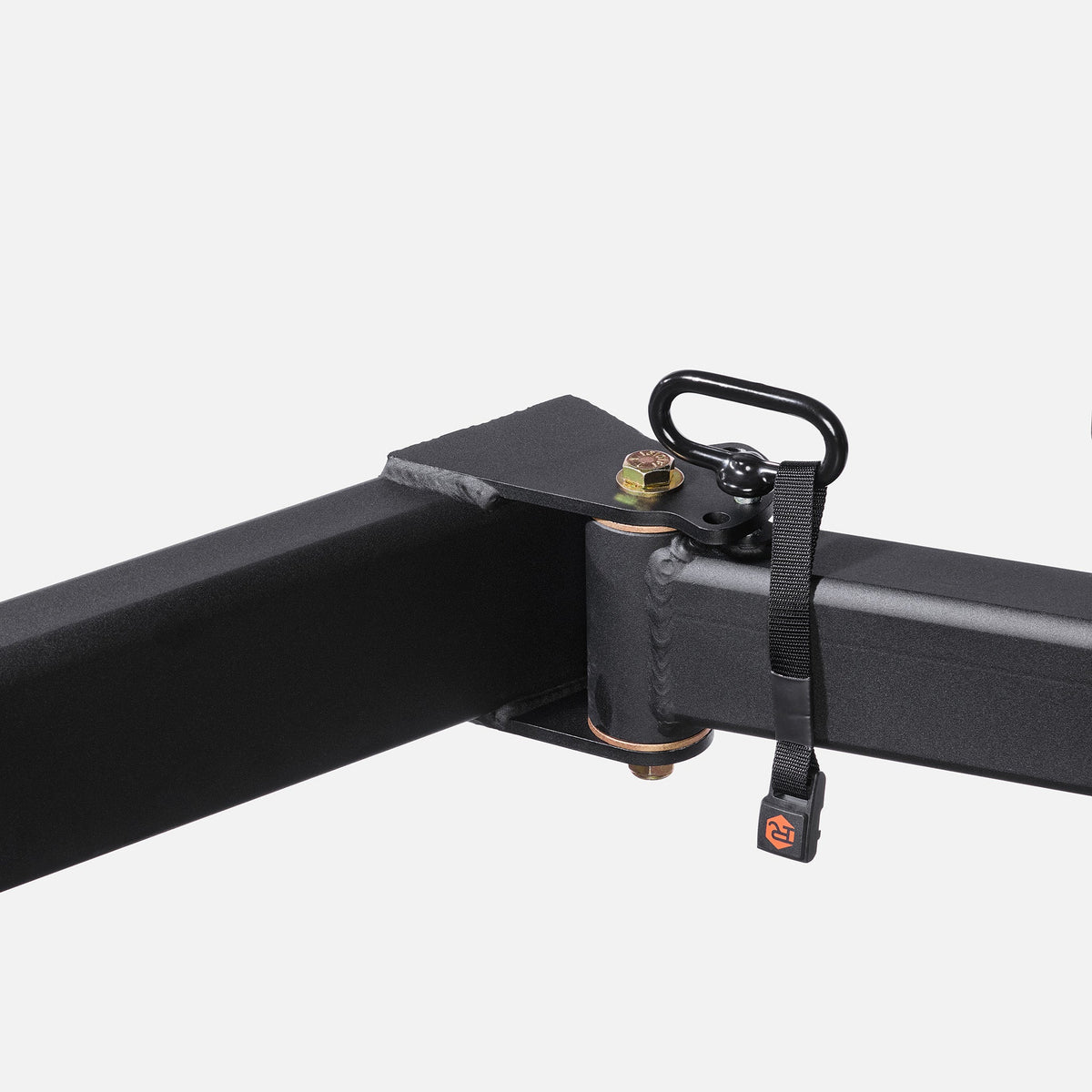

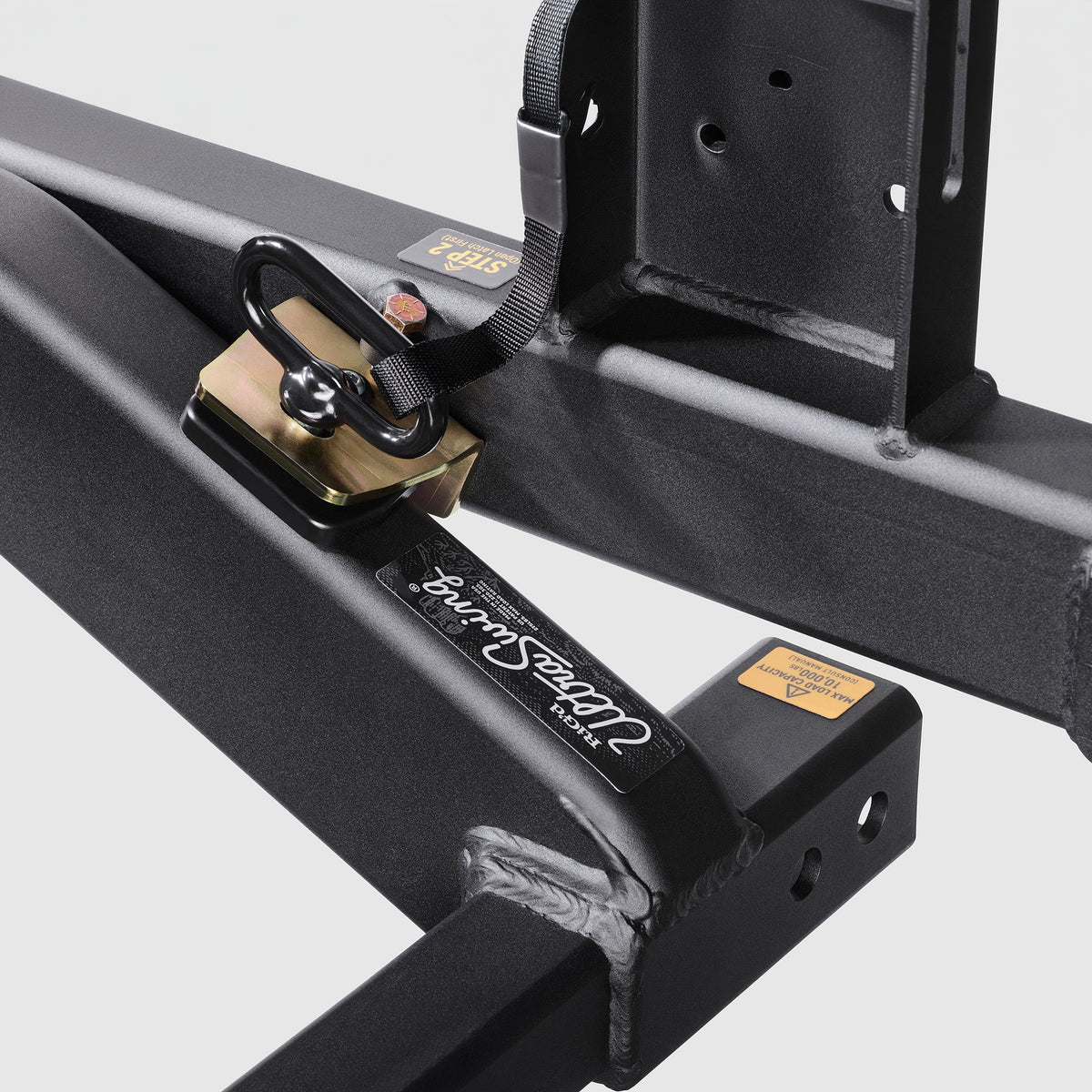

- UltraSwing Latch: RIGd Supply's patented UltraSwing Latch secures the arm in the closed position.
- License plate light kit included: a license plate light kit ships with every unit.
- Made in USA with a lifetime warranty.
Specifications
| Specification | Value |
|---|---|
| Weight (with wheel plate) | 65 lb |
| Combined load capacity | 250 lb |
| Max tongue rating, secondary hitch | 150 lb |
| Lower receiver rating | SAE J684-2014 Class 4 -- 10,000 lb / 1,000 lb tongue |
| Australia compliance | ADR Compliant AS4177.1, up to 3,500 kg ATM |
| Finish | Zinc prime, black powder coat |
| Hitch pin | 5/8 inch (not included) |
| Patent | U.S. Patent No. 11,220,303 |
Variants
- Multi-Fit wheel plate: fits bolt patterns 5x4.5, 5x5, 5x5.5, 6x4.5, 6x5.5, 5x100, 5x110, 5x120, 5x130, 5x150, 6x120, and 6x135. Shipping weight 76 lb.
- Multi-Fit L wheel plate: for positive-offset wheels, including Rivian and Tesla Model X/Y. Shipping weight 76 lb.
- Without wheel plate: carrier arm only, no wheel plate. Shipping weight 70 lb.
Care and use
- A 5/8-inch hitch pin is required for installation and is not included.
- When mounting both a tire and a bike rack simultaneously, a hitch extension is required (not needed when using the RambleRack).
- Not compatible with vertical racks -- the UltraSwing secondary hitch and tongue ratings are incompatible with vertical rack requirements. Consult your rack's specifications before combining.
California residents: WARNING: Cancer and Reproductive Harm. See www.P65Warnings.ca.gov.
