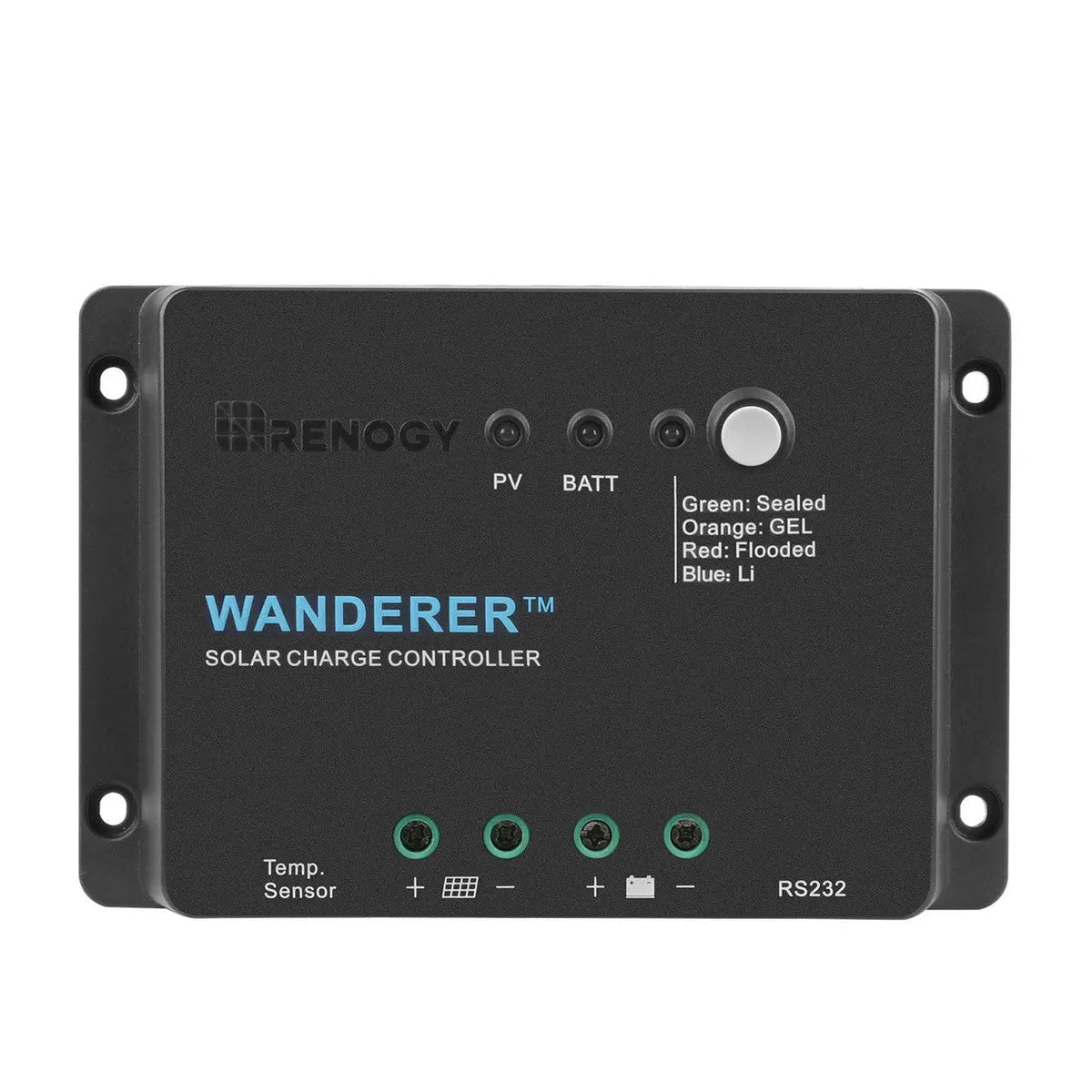

Renogy Wanderer Li 30A PWM Solar Charge Controller

The Renogy Wanderer Li 30A PWM Charge Controller is a 12V negative-ground solar charge controller rated for 30A of charge current and a maximum PV input of 25 VDC, designed for small off-grid systems in trailers, RVs, cabins, and boats. It supports Gel, Sealed, Flooded, and Lithium battery types, and ships as a single controller unit.

4-Stage PWM Charging Protects Battery Health

The Wanderer Li uses 4-stage PWM (Pulse-Width Modulation) charging, which continuously monitors battery voltage and adjusts pulse width to match the battery's actual state of charge. This approach avoids the overcharging that shortens battery life in simpler on/off controllers, and the boost stage runs for up to 120 minutes to ensure a thorough charge cycle before the controller steps down to float. For lithium batteries in particular, precise voltage management at each stage reduces cell stress and supports longer cycle life.

Eight Built-In Electronic Protections

The Wanderer Li includes eight built-in electronic protections: overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation are among those covered. For a system installed in a trailer or van where wiring mistakes are easy to make and hard to catch, reverse-polarity and reverse-current protection mean a miswired connection won't destroy the controller or the battery. The aluminum housing adds physical durability in environments where the controller may be exposed to vibration or temperature swings.

Dynamic Temperature Compensation and Low Self-Consumption

The Wanderer Li applies dynamic temperature compensation at -3mV/°C/2V, adjusting charge voltage as ambient temperature changes so the battery receives the correct voltage whether the system is sitting in a cold-morning desert or a hot afternoon. Self-consumption stays below 10mA, which matters in small systems where a parasitic draw of even a few hundred milliamps can meaningfully reduce overnight battery capacity. The controller operates across a working temperature range of -20°F to 113°F.

Features

• 30A rated charge current: supports 12V systems up to 25 VDC PV input
• Multi-battery compatibility: Gel, Sealed, Flooded, and Lithium battery types
• Five load control modes: configurable to match varied power-management needs
• LCD display: shows real-time charging parameters and error codes
• RS232 port: enables real-time monitoring; compatible with Renogy BT-1 Bluetooth module (sold separately)
• IP20 enclosure, aluminum housing: lightweight at 0.65 lbs with eight built-in electronic protections

Specifications

Who This Is For and Isn't

The Wanderer Li 30A is suited for small 12V off-grid solar systems in trailers, RVs, cabins, and boats where the PV array does not exceed 25 VDC input and the charge current requirement is 30A or less. Its lithium-optimized charging profile and five load modes make it a practical fit for builds using LiFePO4 or other lithium battery chemistries alongside conventional AGM or flooded batteries.

The Wanderer Li is a negative-ground, 12V-only controller and is not suited for 24V systems or positive-ground wiring configurations. The IP20 enclosure rating means it is not designed for direct exposure to moisture, dust, or outdoor installation without an enclosure. The Renogy BT-1 Bluetooth module required for wireless monitoring is not included and must be purchased separately.

Common Questions

Does the Wanderer Li 30A work with lithium batteries?

The Wanderer Li 30A PWM Charge Controller is optimized for 12V lithium batteries and also supports Gel, Sealed, and Flooded battery types. The lithium-specific charging profile manages voltage at each of the four charging stages to suit lithium chemistry, including LiFePO4 batteries commonly used in off-grid and overlanding builds.

What is the maximum solar panel input this controller can handle?

The Wanderer Li 30A accepts a maximum PV input voltage of 25 VDC and a rated charge current of 30A. Panels or arrays whose open-circuit voltage exceeds 25 VDC are not compatible with this controller; sizing the array within those limits is required for safe operation.

Is wireless monitoring included, or does it require additional hardware?

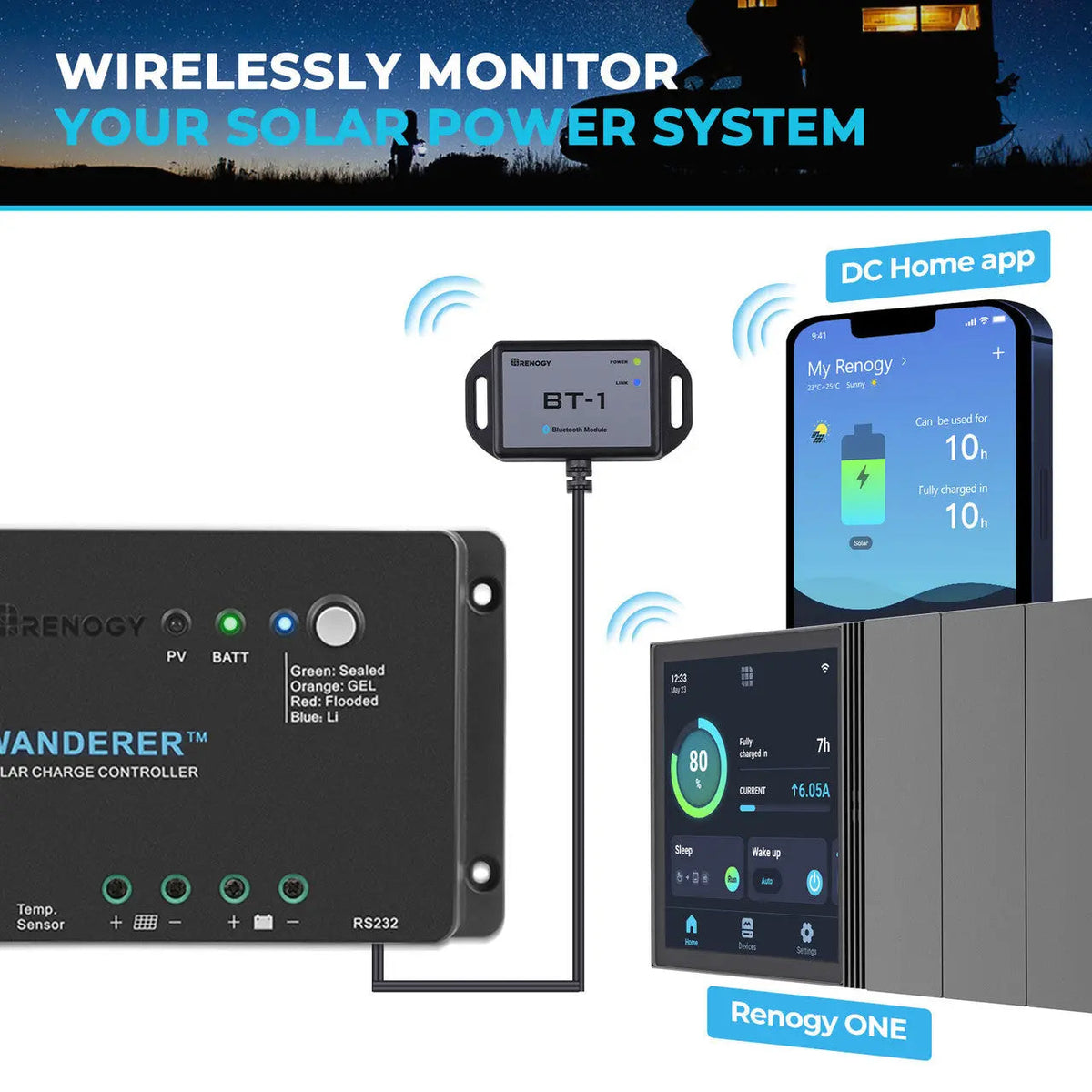

The Wanderer Li 30A has an RS232 port that supports real-time monitoring, but wireless Bluetooth monitoring requires the Renogy BT-1 Bluetooth module, which is sold separately. With the BT-1 connected, the controller can send data to the Renogy DC Home app. The BT-1 is not included in the box with this controller.

Can this controller be installed outdoors or in an exposed location?

The Wanderer Li 30A carries an IP20 enclosure rating, which provides protection against solid objects larger than 12mm but no rated protection against water or dust ingress. For installations in trailers, vans, or cabins, the controller should be mounted inside an enclosure or in a protected interior location rather than exposed directly to weather.

What wire gauge does the Wanderer Li 30A support?

The Wanderer Li 30A PWM Charge Controller accepts wire up to 8AWG on its terminals. Selecting wire gauge appropriate for the system's current load and run length, within that maximum, is the installer's responsibility; the controller does not include wiring in the package.
