Renogy Solar Panel to Charge Controller Adaptor Kit
Renogy Solar Panel to Charge Controller Adaptor Kit
Couldn't load pickup availability
The Renogy Solar Panel to Charge Controller Adaptor Kit is a matched pair of solar wiring cables designed to connect a Renogy solar panel directly to a charge controller in off-grid installations, whether roof-mounted or ground-level. Each kit includes solar connectors on one end and exposed wire on the other, and is rated IP 65 with a voltage rating of 600/1000V and an operating temperature range of -40°F to +185°F. Six variants are available, spanning lengths from 9 inches to 40 feet and conductor sizes of 10AWG or 12AWG.
Built for Outdoor Conditions
The Renogy Adaptor Kit uses weatherproof, insulated black cable with sunlight-resistant jacketing. An IP 65 protection rating means the cable and connectors resist dust ingress and direct water jets, which matters for roof-mounted panels exposed to rain, road spray, and UV over years of use. The tinned copper conductor resists corrosion at the strand level, maintaining conductivity in humid or coastal environments where bare copper would oxidize.
Secure, Tool-Free Connection at Both Ends
Hard plastic solar connectors at the panel end use interlocking male and female contacts that lock together without tools, reducing the chance of an accidental disconnect during travel or in high-vibration installations. The exposed wire at the charge controller end feeds directly into the controller's terminal block, so no additional adaptor is needed on that side. The kit also extends and locks the built-in cables already attached to Renogy panels, giving more routing flexibility when the panel and controller are not mounted close together.
Length and Gauge Options for Different Layouts

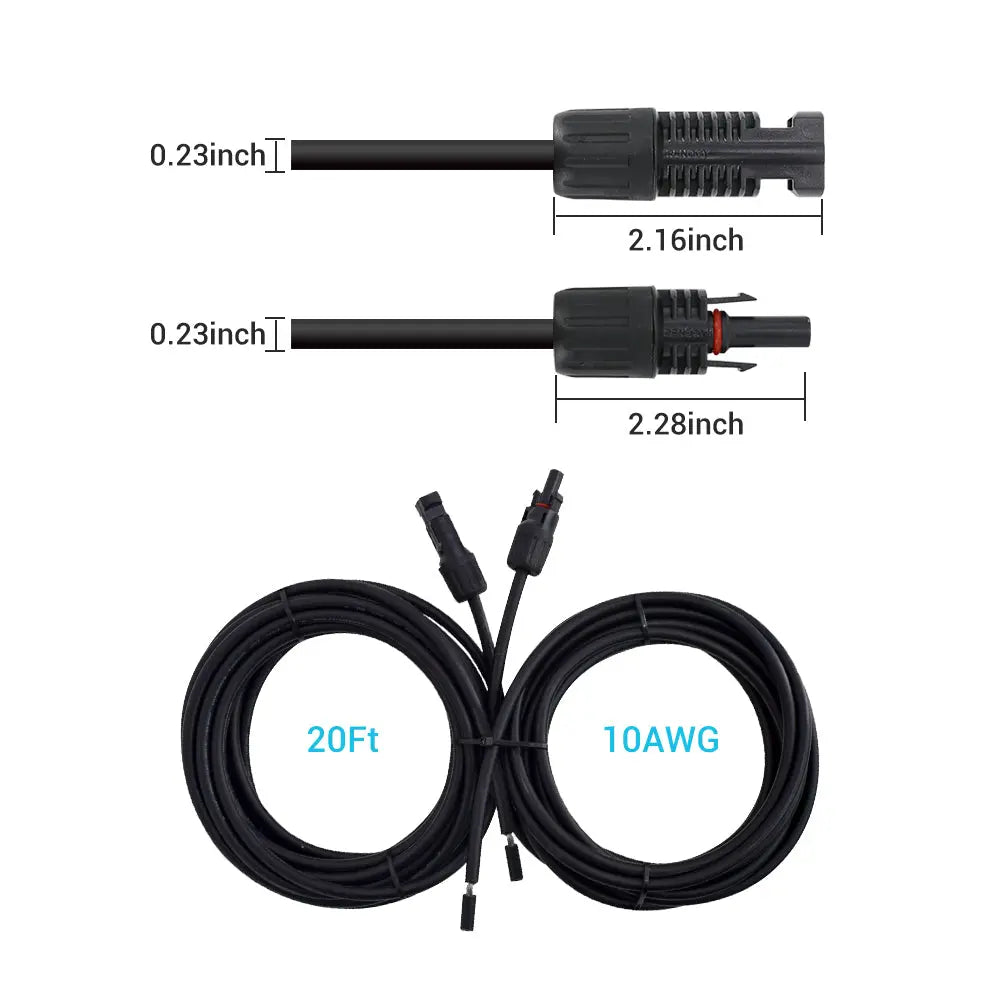

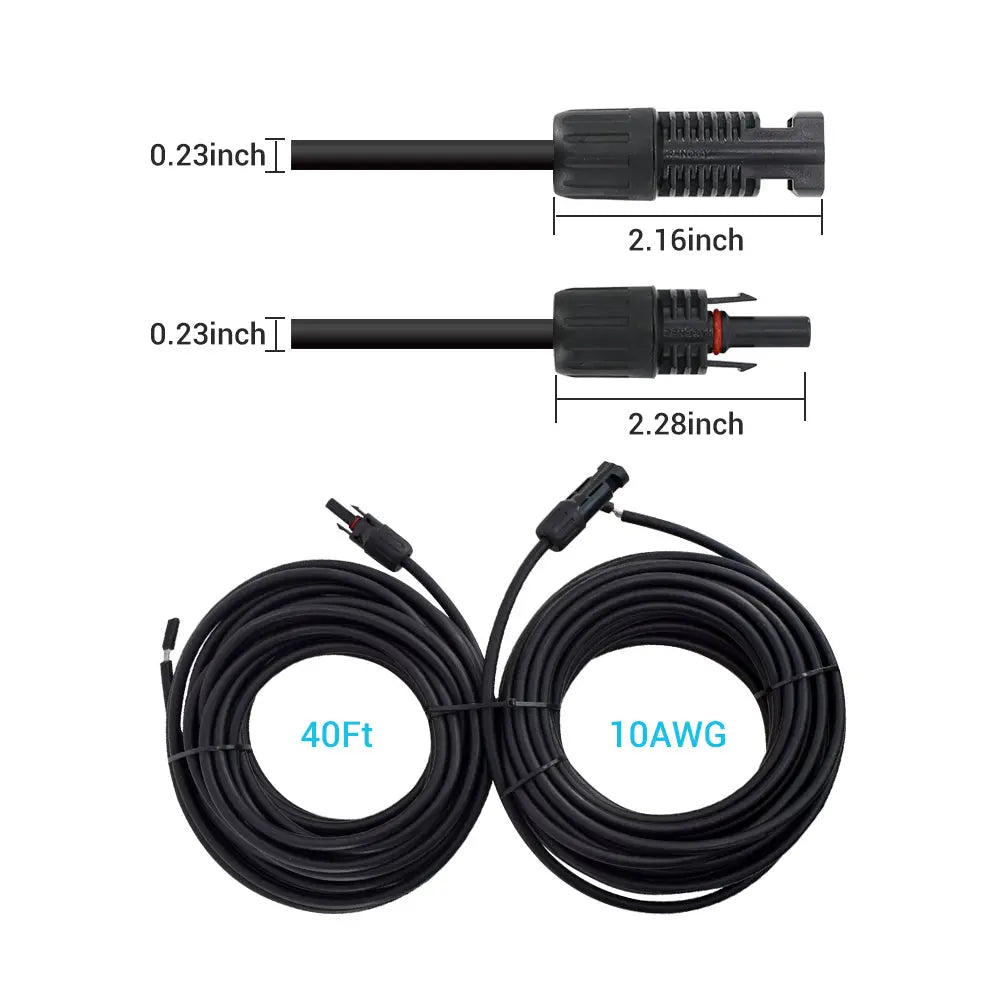

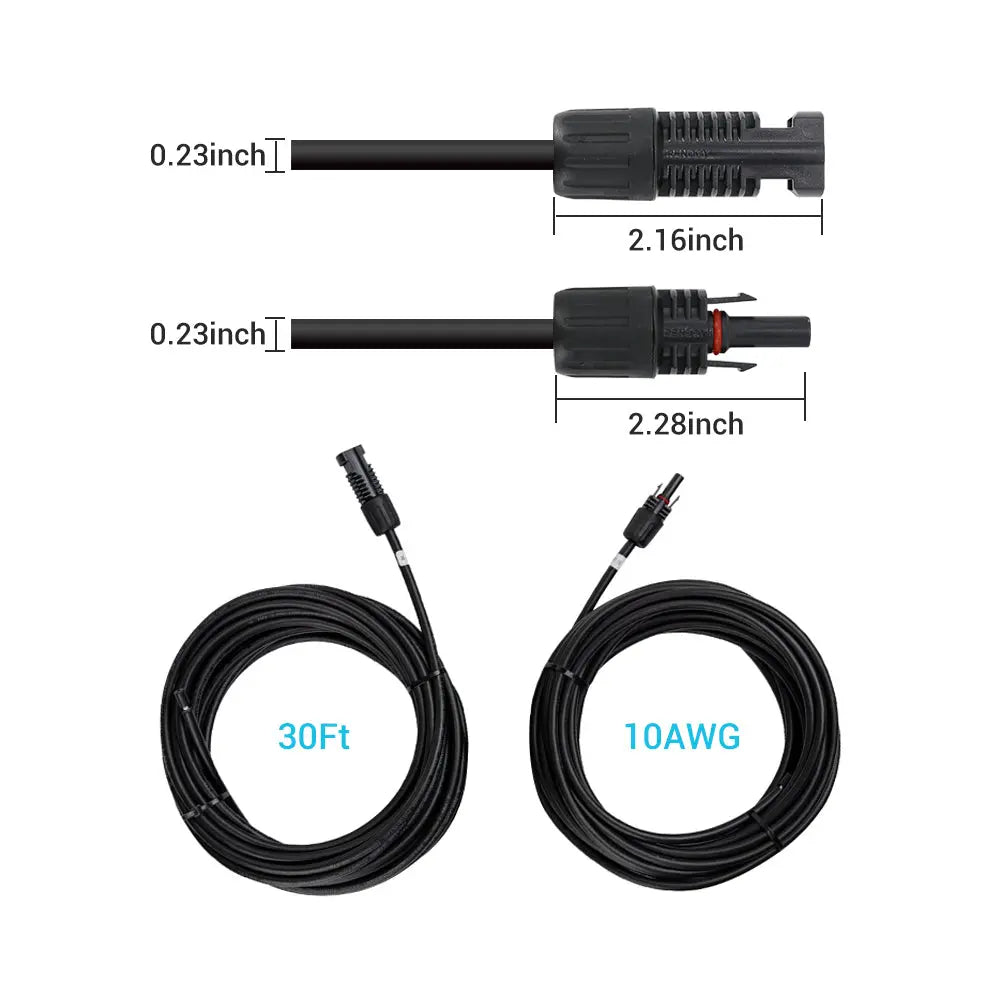

Choosing the right length keeps voltage drop in check without leaving excess cable to manage. The 9-inch variant suits installations where the panel and controller mount within the same enclosure or very close together. The 10AWG conductor (6.0mm² cross-section, 84 strands) carries more current with lower resistance than the 12AWG (4.0mm², 56 strands), making 10AWG the better choice for longer runs or higher-current panels. Renogy states this kit is suited for off-grid systems ranging from 100W to 400W.
Features
- Matched pair: each kit includes one positive and one negative cable
- Solar connectors at panel end: interlocking male and female hard plastic connectors for a secure, tool-free connection
- Exposed wire at controller end: feeds directly into charge controller terminal block
- IP 65 rated: weatherproof, insulated, sunlight-resistant black jacketing
- Tinned copper conductor: corrosion-resistant stranded wire rated 600/1000V
- Wide operating range: -40°F to +185°F
Specifications
| Specification | 10AWG Variants | 12AWG Variants |
|---|---|---|
| Available Lengths | 9 in, 10 ft, 20 ft, 30 ft, 40 ft | 9 in, 10 ft |
| Conductor | Tinned copper wire | Tinned copper wire |
| Cross-Sectional Area | 6.0 mm² | 4.0 mm² |
| Number of Strands | 84 | 56 |
| Conductor Diameter | 3.02±0.08 mm | 3.02±0.08 mm |
| Min. Insulation Wall Thickness | 0.85 mm | 0.78 mm |
| Min. Sheath Wall Thickness | 1.08 mm | 0.97 mm |
| Voltage Rating | 600/1000V | 600/1000V |
| Operating Temperature | -40°F to +185°F | -40°F to +185°F |
| IP Rating | IP 65 | IP 65 |
| Quantity per Kit | 1 pair (2 cables) | 1 pair (2 cables) |
Who This Is For and Isn't
The Renogy Solar Panel to Charge Controller Adaptor Kit suits builders wiring a Renogy solar panel to a charge controller in an off-grid system, whether in an overland rig, van, RV, cabin, or ground-mount installation. The range of lengths from 9 inches to 40 feet covers tight same-enclosure runs and longer roof-to-interior routes.
The adaptor kit does not include a charge controller, solar panel, or any other system component; each is sold separately. The 12AWG variants are available only in 9-inch and 10-foot lengths in the current lineup; longer 12AWG runs are not offered as a listed variant. This kit is designed for use with Renogy solar panels and may not be compatible with panels using different connector types.
Common Questions
How many cables come in one kit?
Each Renogy Solar Panel to Charge Controller Adaptor Kit includes one pair of cables (one positive and one negative), so a single kit is all that is needed to connect one solar panel to one charge controller input.
What connector type is on the solar panel end?
The solar panel end of the Renogy Adaptor Kit uses hard plastic solar connectors with interlocking male and female contacts. The charge controller end has exposed wire that connects directly to the controller's terminal block.
Is this cable rated for outdoor and rooftop use?
The Renogy Adaptor Kit carries an IP 65 protection rating and uses a black, sunlight-resistant jacket rated for operating temperatures from -40°F to +185°F, making it suitable for rooftop and ground-level outdoor installations exposed to weather and UV.
Which gauge should I choose, 10AWG or 12AWG?

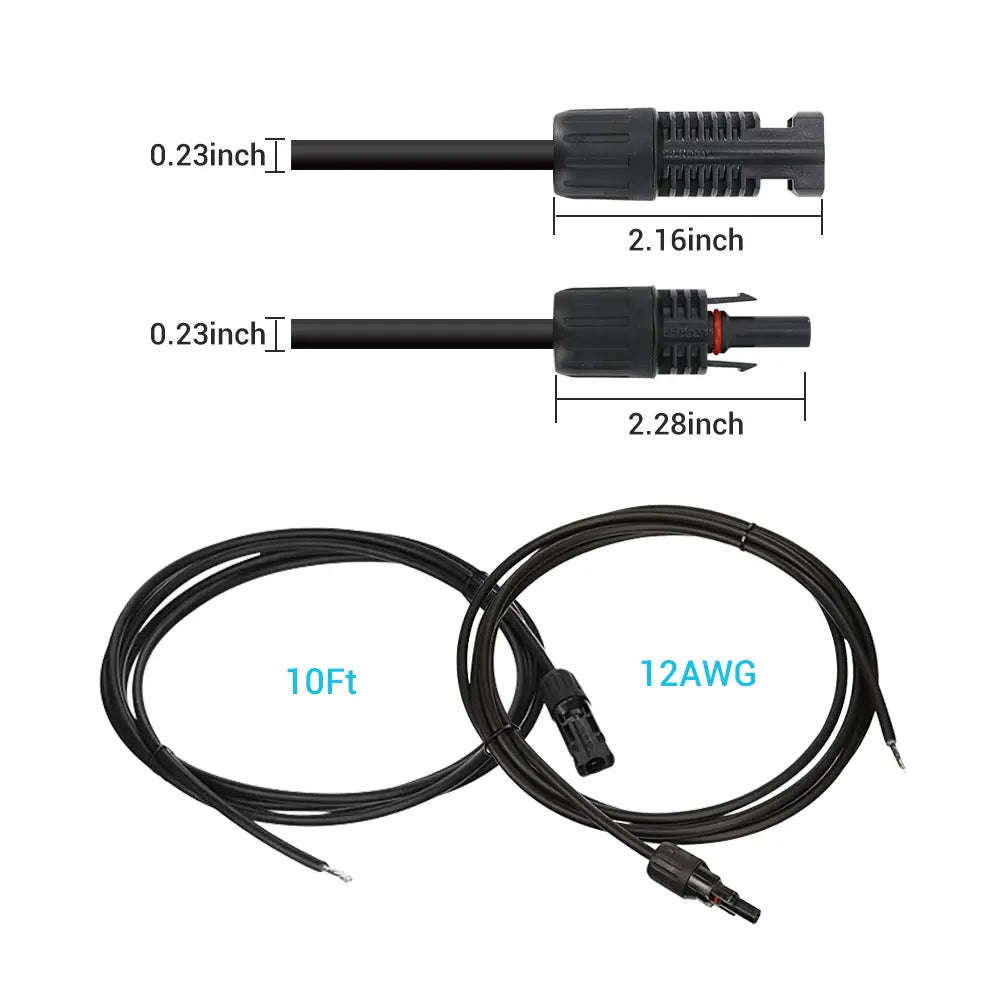

The 10AWG variant has a larger 6.0mm² cross-section with 84 strands and lower resistance, which is better suited for longer cable runs or higher-current panels. The 12AWG variant has a 4.0mm² cross-section with 56 strands and is available in 9-inch and 10-foot lengths. Both gauges share the same voltage rating and IP 65 weatherproofing.
What system sizes is this adaptor kit designed for?
Renogy states the Solar Panel to Charge Controller Adaptor Kit is suited for off-grid systems ranging from 100W to 400W. It is designed for use with Renogy solar panels and charge controllers.
