Renogy Solar Panel Flat Roof Tilt Mount

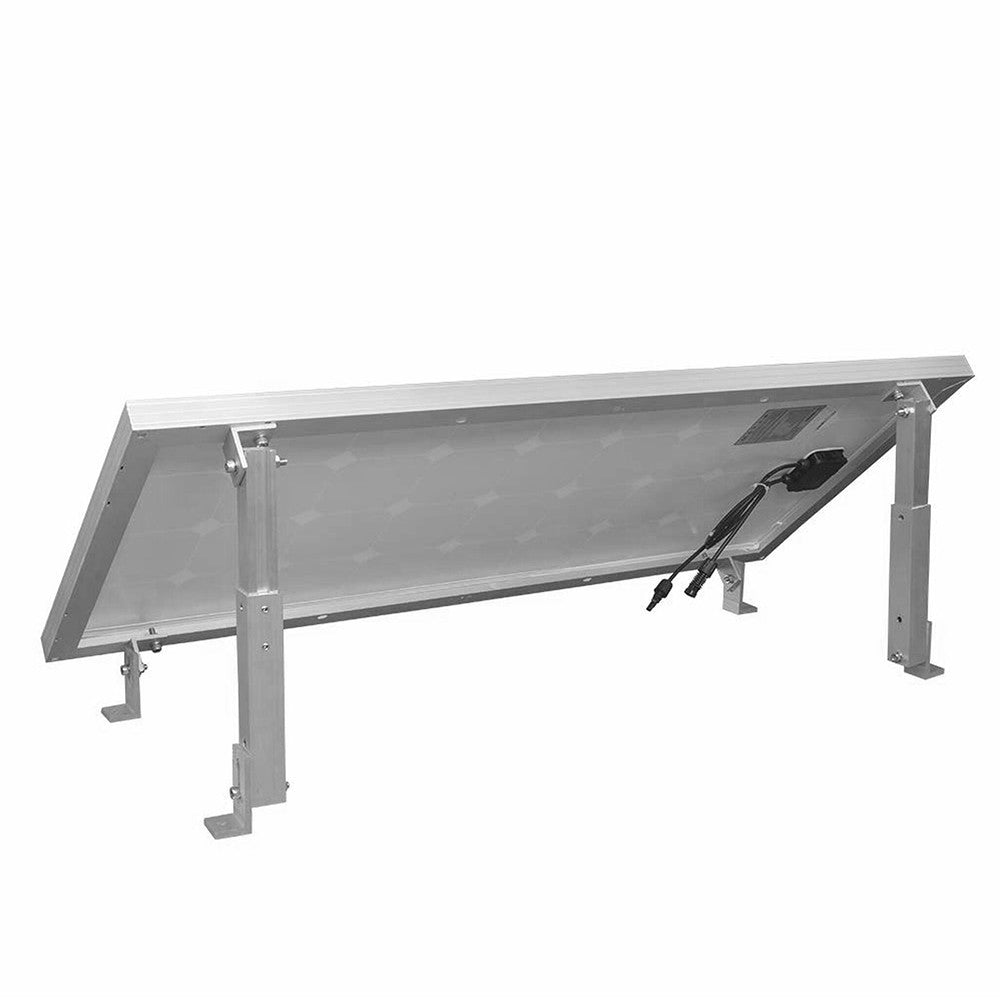

The Renogy Solar Panel Flat Roof Tilt Mount is an adjustable aluminum bracket designed to angle solar panels for improved sun exposure on flat rooftop surfaces, including RV roofs, van roofs, trailers, and cabin rooftops. Built from 5052-H32 aluminum alloy with stainless steel fasteners, the mount is corrosion-free and suited for both on-grid and off-grid installations. One mount is included per package.

Angle Your Panels, Capture More Sun

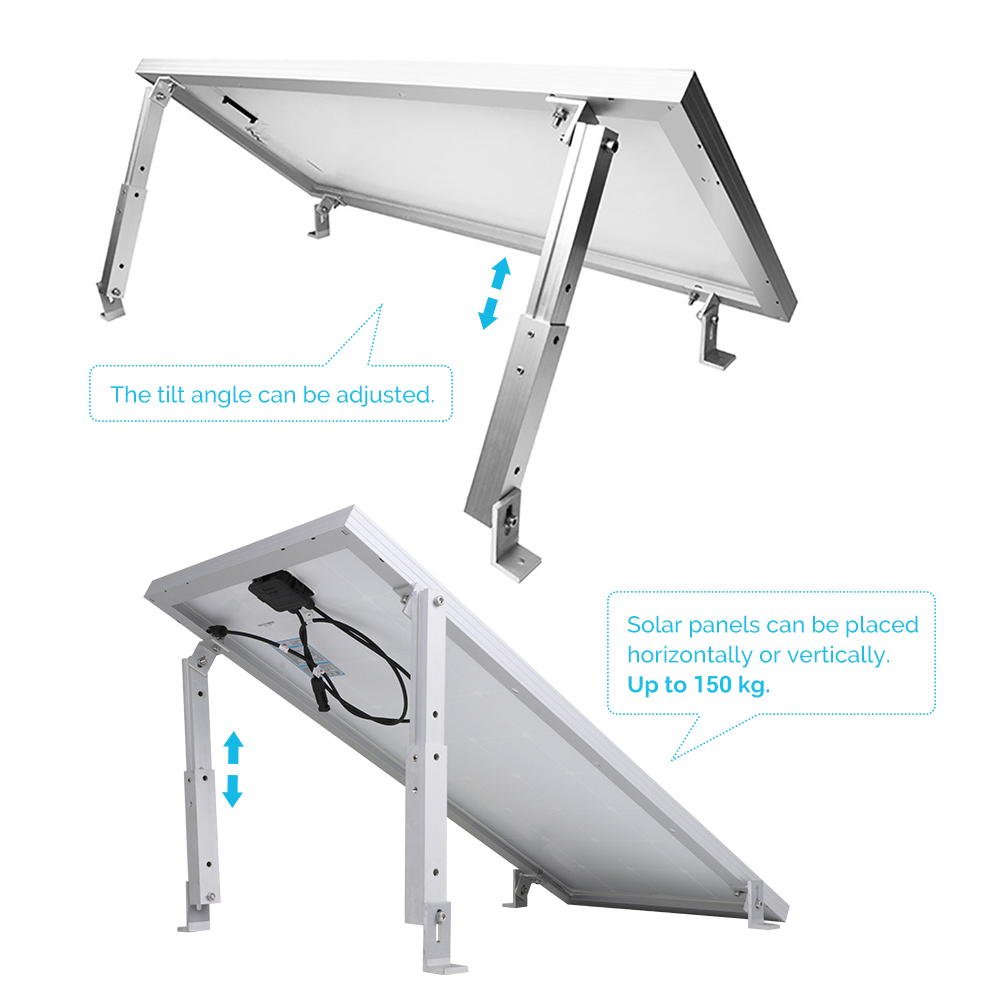

Flat rooftop installations often leave solar panels lying nearly horizontal, which reduces output whenever the sun is not directly overhead. The Renogy Flat Roof Tilt Mount raises one edge of the panel so it faces the sun at a more direct angle, increasing the energy a panel can produce across the day without relocating the array. The tilt angle is field-adjustable, so the mount can be repositioned as seasons change and the sun's path shifts. Note that the achievable maximum tilt angle decreases as panel size increases, so larger panels will have a narrower adjustment range than smaller ones.

5052-H32 Aluminum and Stainless Steel Hardware

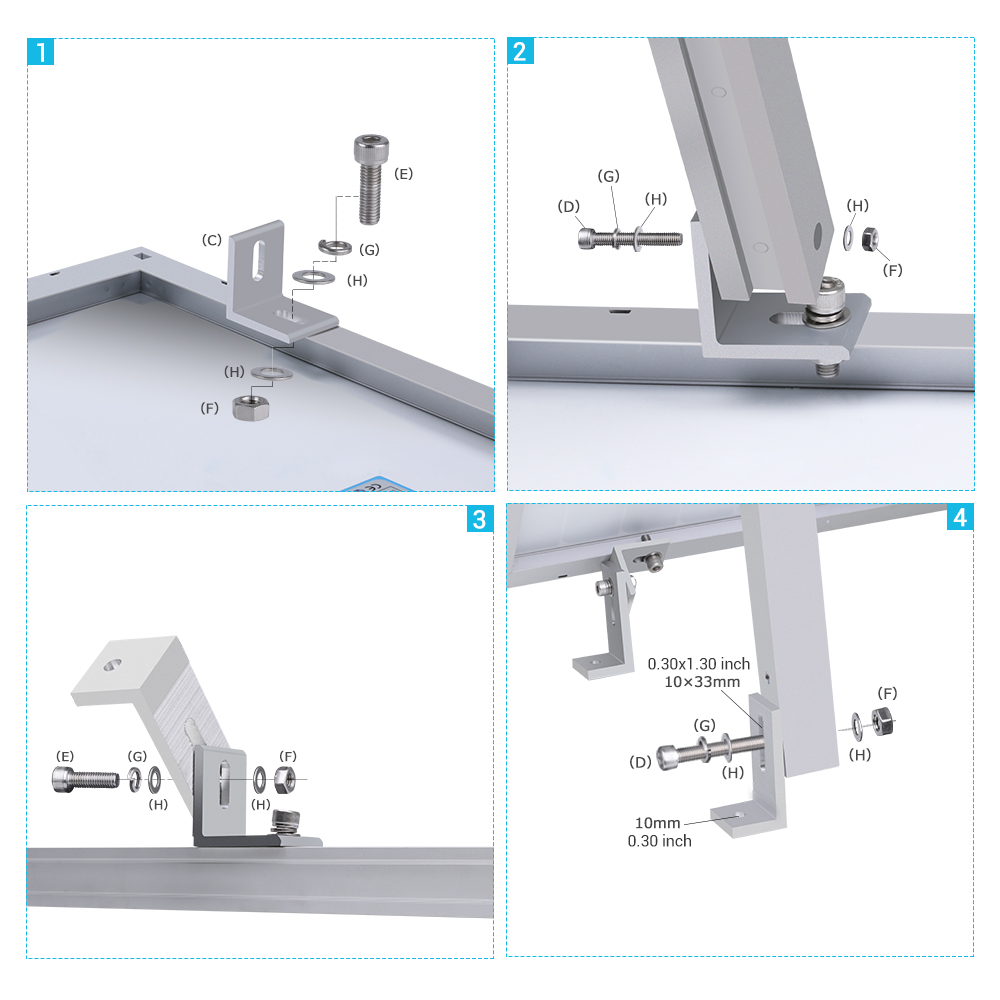

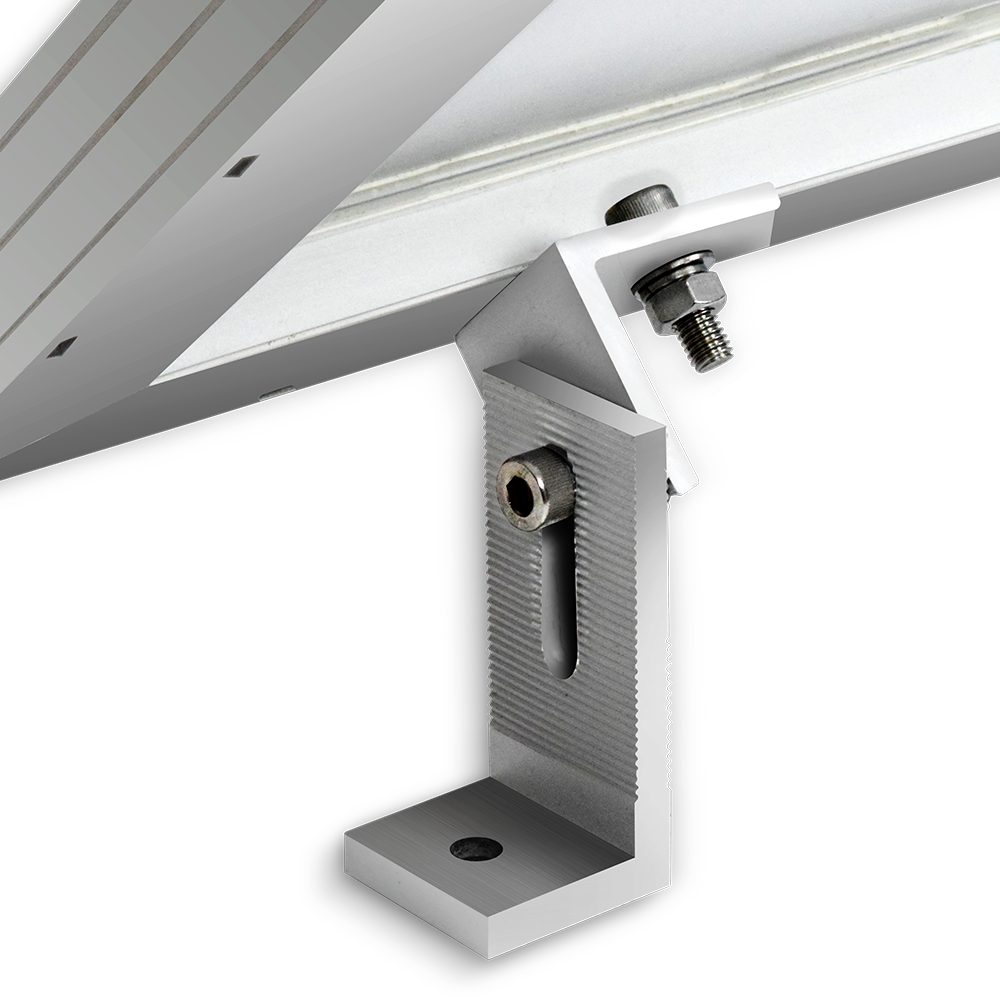

The mount's frame is formed from 5052-H32 aluminum alloy, a marine-grade material chosen for its corrosion resistance and strength-to-weight ratio. Stainless steel fasteners are used throughout, eliminating the galvanic corrosion that can occur when dissimilar metals contact each other in outdoor environments. Precision hole positioning and alignment simplify assembly and help ensure the panel sits square on the mount without shimming or field modification.

Flat-Surface Versatility

The Renogy Flat Roof Tilt Mount can be installed on any flat surface where appropriate fastening techniques are applied, making it usable on RV roofs, van tops, trailer decks, and stationary cabin or shed rooftops. The lightweight aluminum construction keeps added roof load low and simplifies handling during installation. Renogy recommends that installation be performed by qualified electrical maintenance personnel, that at least two people work together during mounting, and that appropriate fall-protection equipment be used when working at height.

Features

• 5052-H32 aluminum frame: corrosion-free alloy construction for long-term outdoor exposure
• Stainless steel fasteners: included hardware resists rust and galvanic corrosion
• Adjustable tilt angle: field-adjustable for optimum panel orientation; maximum angle decreases with larger panel sizes
• Flat-surface compatible: mounts on any flat roof or deck with correct fastening techniques applied
• Precision hole alignment: pre-positioned mounting holes simplify assembly and panel alignment

Specifications

Who This Is For and Isn't

The Renogy Flat Roof Tilt Mount suits overlanders, van builders, RV owners, and cabin or off-grid homeowners who want to angle solar panels on a flat roof surface for better sun exposure. It works with both on-grid and off-grid solar systems and is designed for qualified electrical maintenance personnel to install with at least two people on the job.

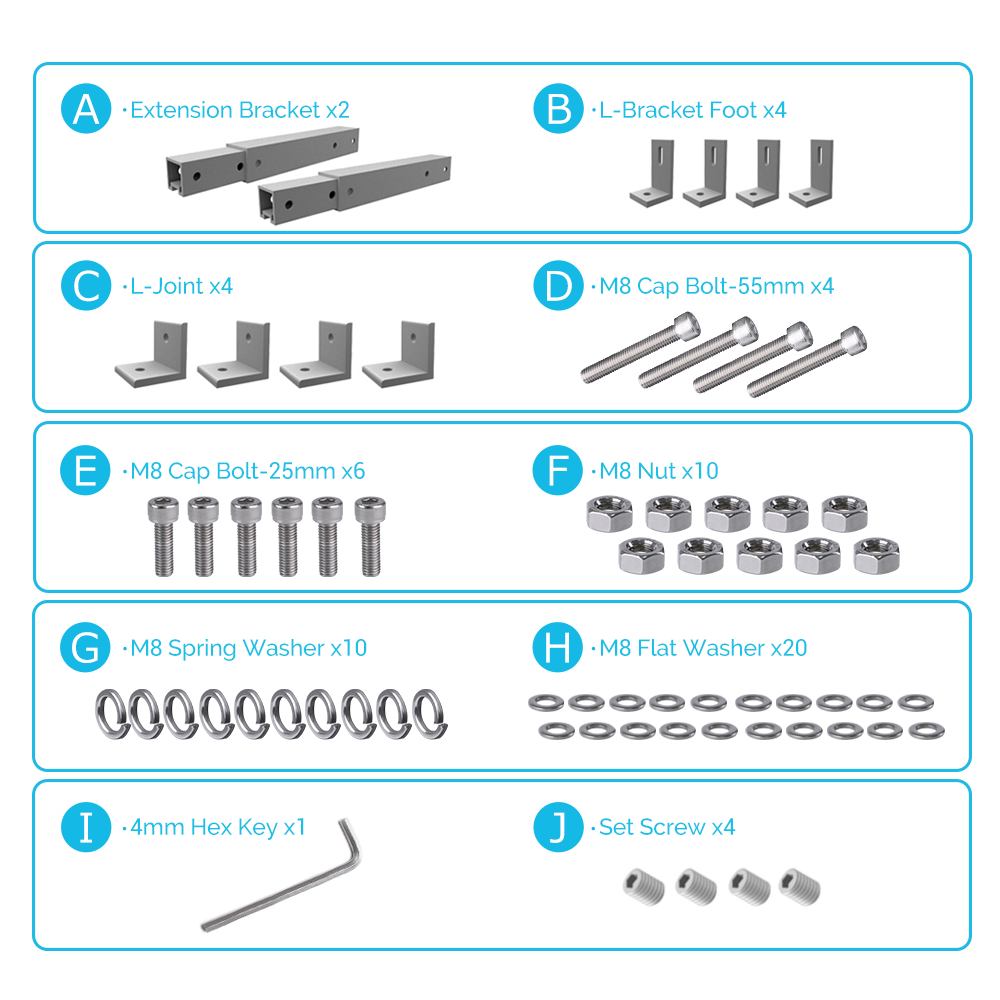

Solar panels, wiring, and all other system components are not included and are sold separately. The maximum achievable tilt angle decreases as panel size increases, so buyers with larger panels should confirm fit before purchasing. Recommended installation tools (socket wrench, torque extension, tape measure, 14mm wrench or socket, and 4mm hex key) are not included.

Common Questions

What surfaces can the Renogy Flat Roof Tilt Mount be installed on?

The Renogy Flat Roof Tilt Mount can be installed on any flat surface, including RV roofs, van tops, trailer decks, and stationary rooftops, provided that correct fastening techniques are applied for the specific surface material. The mount is not limited to a single roof type or system configuration.

What tilt angles does this mount support?

The Renogy Flat Roof Tilt Mount is field-adjustable to position solar panels at an angle for improved sun exposure. The maximum achievable tilt angle decreases as panel size increases, meaning smaller panels can be tilted more steeply than larger ones. Specific angle values are not published in the available product data.

What tools are needed to install the tilt mount?

Renogy recommends having a socket wrench, torque extension, tape measure, 14mm wrench or socket for the larger hex nut, and a 4mm hex key (Allen wrench) on hand for installation. None of these tools are included with the Renogy Flat Roof Tilt Mount and must be sourced separately. Renogy also recommends that installation be performed by at least two people.

What is included in the package?

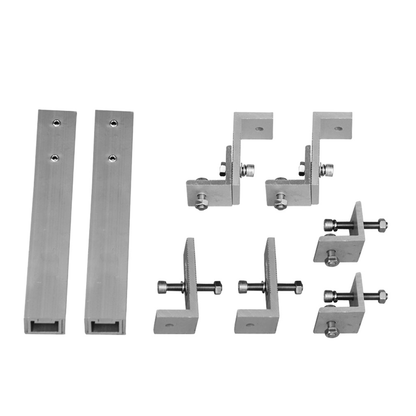

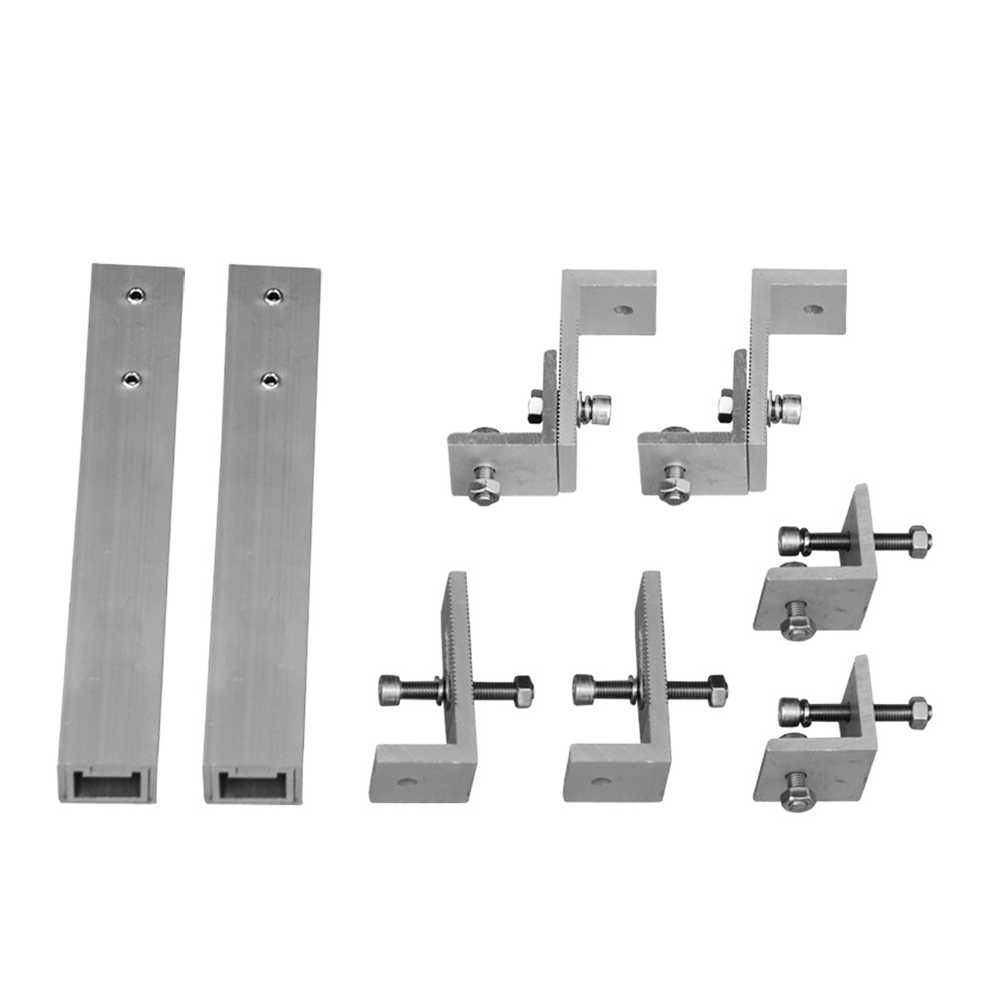

Each package contains one Renogy Solar Panel Flat Roof Tilt Mount. Solar panels, charge controllers, wiring, connectors, and all other system components are sold separately and are not part of this listing.

Which solar panel sizes does this mount fit?

The Renogy Flat Roof Tilt Mount is designed for solar panels on flat surfaces. Compatible panel sizes and wattages are not specified in the available product data. The maximum tilt angle decreases as panel size increases, so buyers with larger panels should confirm fitment with Renogy before purchasing.
