Renogy Solar Panel Cable Connectors 5 Pairs Male and Female

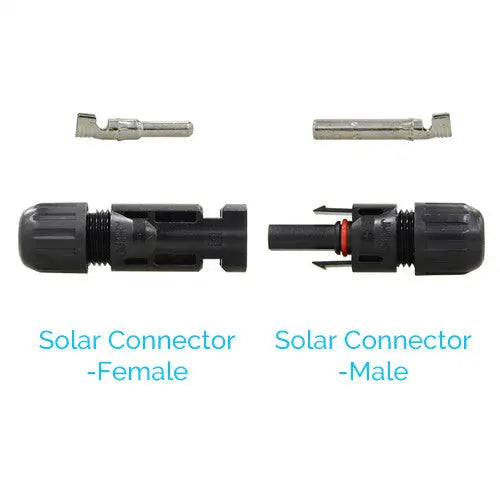

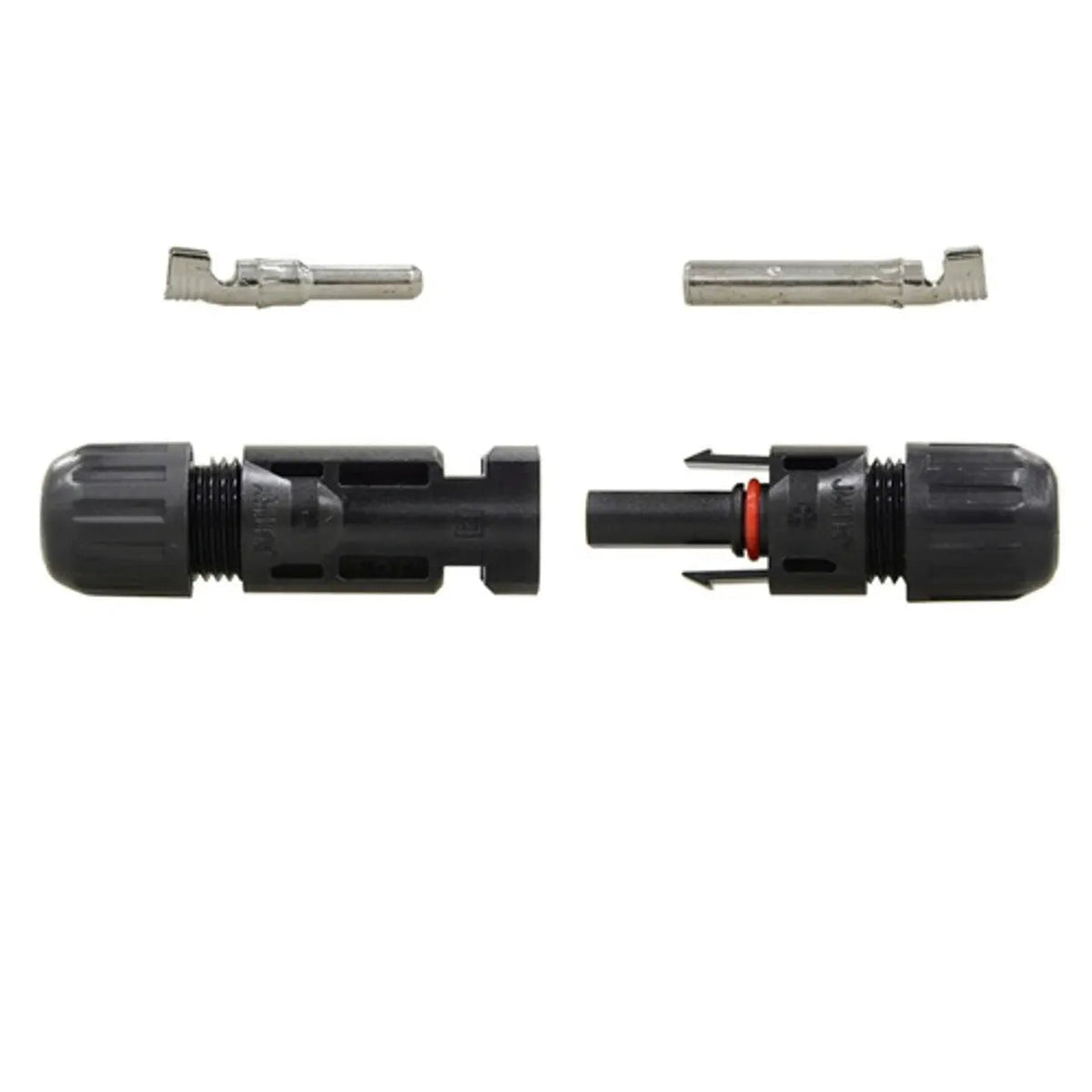

Renogy Solar Panel Cable Connectors are a set of 5 male and 5 female connectors rated for 30A continuous current and up to 1000VDC, built for permanent photovoltaic installations in demanding mechanical and weather conditions. The silver-plated copper contacts and PA/PC insulation housing carry an IP67 protection rating, making these connectors suitable for exposed outdoor wiring in solar arrays. Compatible with 10 AWG and 12 AWG solar cable.

Built for Permanent PV Installations

Solar array wiring is not a set-it-and-forget-it task where any connector will do. A connector rated to 30A and 1000VDC handles the current and voltage demands of residential and off-grid solar strings without becoming a weak point in the system. The 1000VDC maximum voltage rating accommodates series-wired panel strings common in larger arrays, so the connectors do not limit system design options.

IP67 Protection Against Water and Dust

An IP67 protection rating means the connectors are sealed against dust ingress and can withstand temporary water immersion, a meaningful spec for connectors mounted on a roof, a van, a trailer, or ground-mounted racking where rain, condensation, and debris are ongoing realities. The PA/PC (polyamide/polycarbonate) insulation housing resists UV and temperature extremes from -40°F to +194°F, covering cold-weather storage and hot rooftop surface conditions.

Low-Resistance Silver-Plated Copper Contacts

Contact resistance below 0.5mΩ per the specification keeps resistive losses at the connection point minimal, which matters in a DC system where every milliohm of added resistance translates directly to heat and lost efficiency. Silver-plated copper contacts maintain conductivity over repeated connection cycles better than bare copper, which oxidizes at the surface over time.

Features

• Rated current: 30A continuous
• Maximum voltage: 1000VDC
• Compatible wire gauges: 10 AWG and 12 AWG
• Contact material: silver-plated copper, contact resistance <0.5mΩ
• Protection rating: IP67 waterproof and dust-sealed
• Operating temperature: -40°F to +194°F

Specifications

Who This Is For and Isn't

These connectors suit builders wiring or expanding a photovoltaic solar array (rooftop, van, trailer, ground mount, or off-grid cabin) who need IP67-rated, 30A-rated connections for 10 AWG or 12 AWG solar cable in permanent outdoor installations. They are designed for parallel array applications.

These connectors are not suitable for wire gauges outside 10 AWG and 12 AWG, and are not intended for temporary or indoor-only wiring runs where weatherproofing is not a requirement. No compatibility is stated for any specific solar panel brand or charge controller brand beyond the standard PV connector form factor.

Common Questions

What wire gauges do these solar connectors accept?

The Renogy Solar Panel Cable Connectors are rated for 10 AWG and 12 AWG solar cable. These are the two most common gauges for residential and off-grid PV wiring runs. Wire gauges outside this range are not listed as compatible in the product specifications.

Are these connectors waterproof?

Yes. The Renogy Solar Panel Cable Connectors carry an IP67 protection rating, meaning they are sealed against dust and rated to withstand temporary water immersion. The PA/PC housing and silver-plated copper contacts are designed for permanent outdoor installations exposed to rain, condensation, and temperature swings from -40°F to +194°F.

How many connectors are included in this set?

This listing includes 5 pairs (5 male connectors and 5 female connectors), for a total of 10 individual connectors. The set is intended to complete or extend a photovoltaic solar panel array, typically in parallel wiring configurations.

What is the maximum voltage and current rating?

The Renogy Solar Panel Cable Connectors are rated for a maximum of 1000VDC and 30A continuous current. The contact resistance is specified at less than 0.5mΩ, which keeps resistive losses at the connection point low in DC solar systems.
