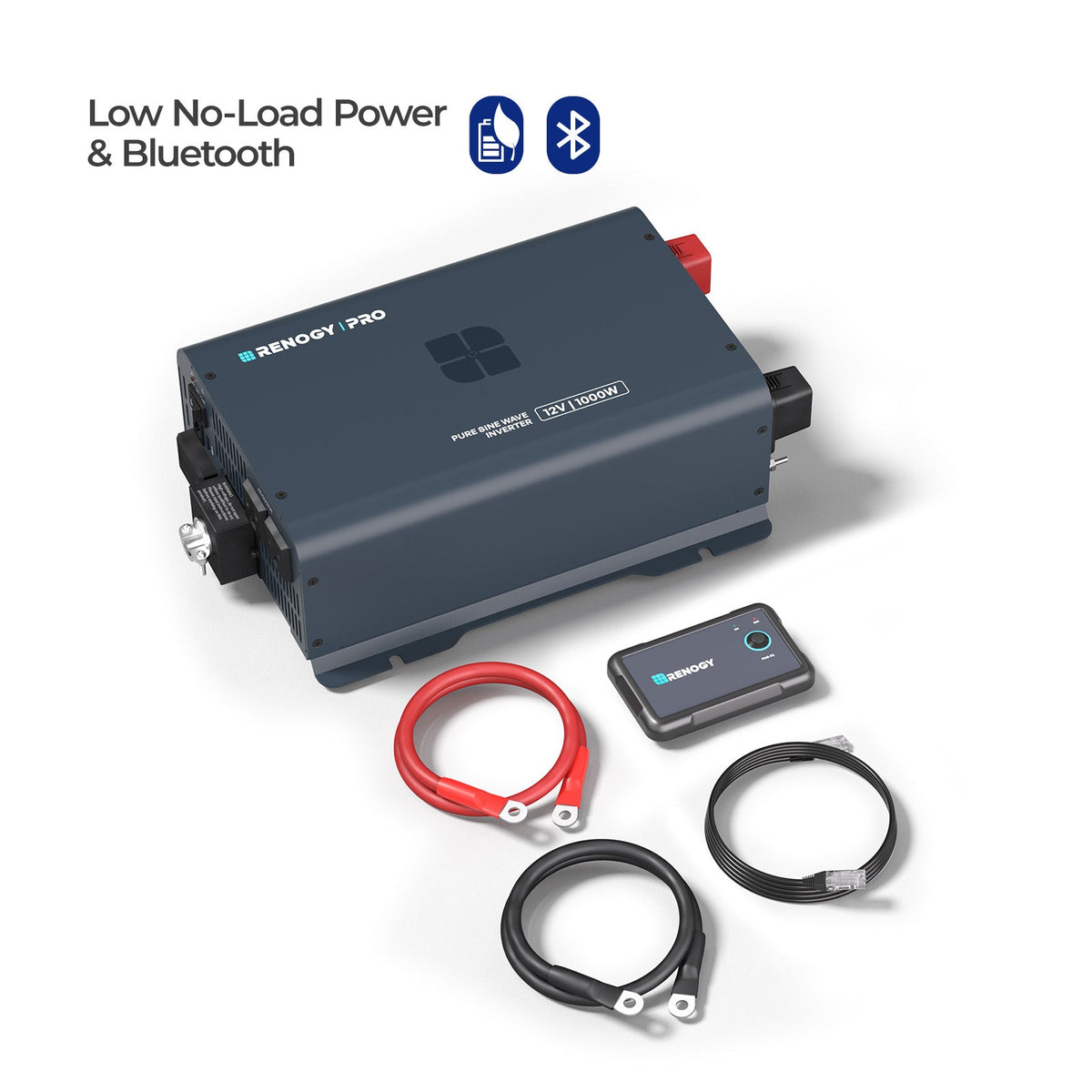

Renogy Pro 12V Pure Sine Wave Inverter with Bluetooth

The Renogy Pro 12V Pure Sine Wave Inverter converts 12V DC battery power to 120V AC household power with 92% efficiency and built-in Bluetooth monitoring, available in 1000W, 2000W, and 3000W continuous output ratings. Each size delivers a clean sine wave with total harmonic distortion under 4%, making it suitable for sensitive electronics including CPAP machines, laptops, and variable-speed motor loads. Select the wattage that matches your continuous load requirements; all three variants share the same core feature set.

Less Idle Draw, More Usable Power

The Pro series draws less than 9.6W at idle, so battery capacity is not quietly drained while the inverter waits for a load. For an overlander or van dweller running a battery bank through the night, that reduced standby draw translates directly into more amp-hours available for the refrigerator, lights, or CPAP. The 92% DC-to-AC conversion efficiency carries the same logic: less energy lost as heat during conversion means more of what the battery holds actually reaches the appliance.

Grid-Quality Output for Sensitive Devices

Pure sine wave output with THD under 4% means the AC waveform closely matches what comes from a household wall outlet. Devices sensitive to power quality, including variable-speed motors, audio equipment, and medical devices, run on this output without the hum, heat, or shortened service life that modified sine wave inverters can cause. Each variant also carries 2x surge capacity: 2000W peak for the 1000W model, 4000W for the 2000W, and 6000W for the 3000W (each at 150ms), handling the brief high-current draw that motors and compressors produce at startup.

Hardwire or Plug In: Both Output Options Are Built In

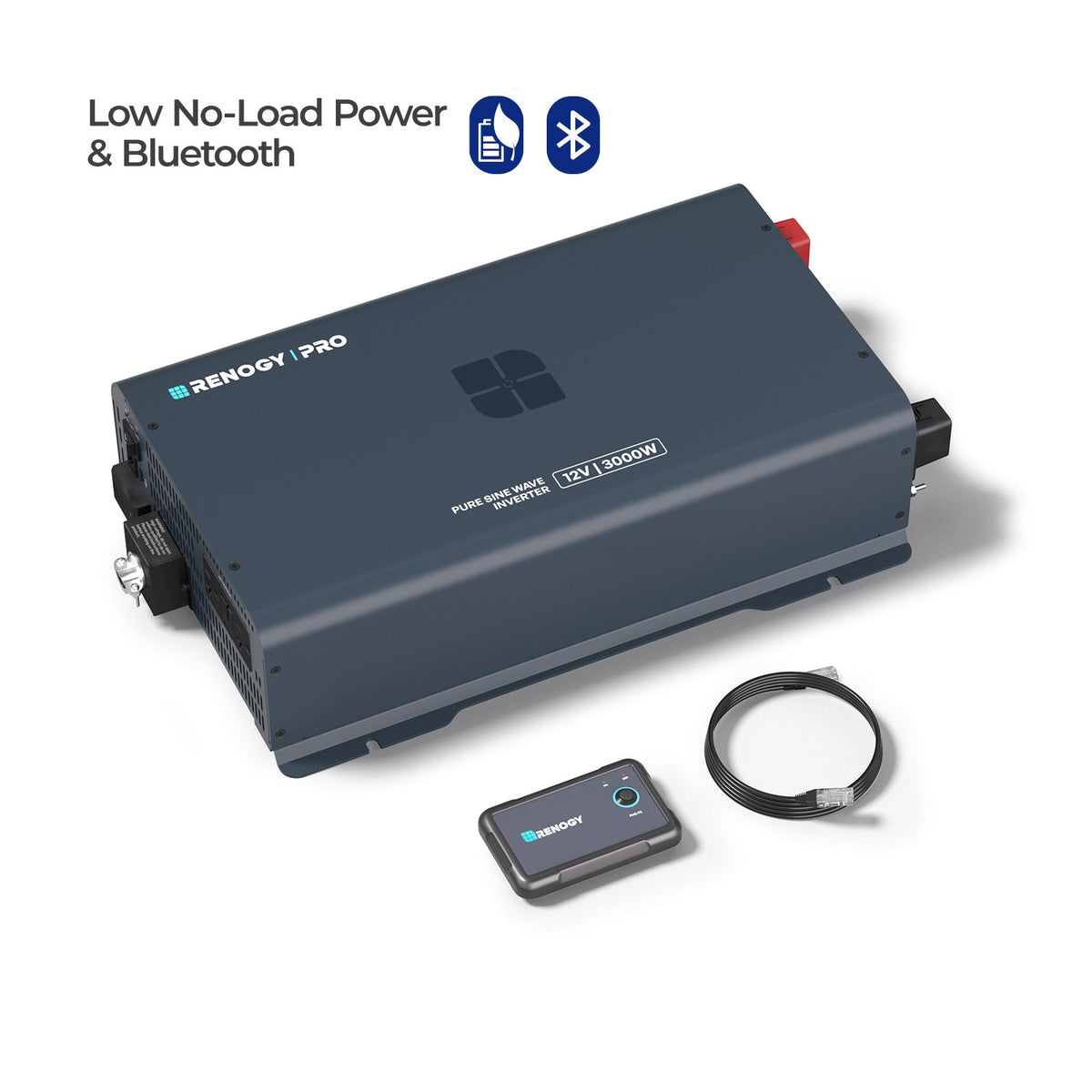

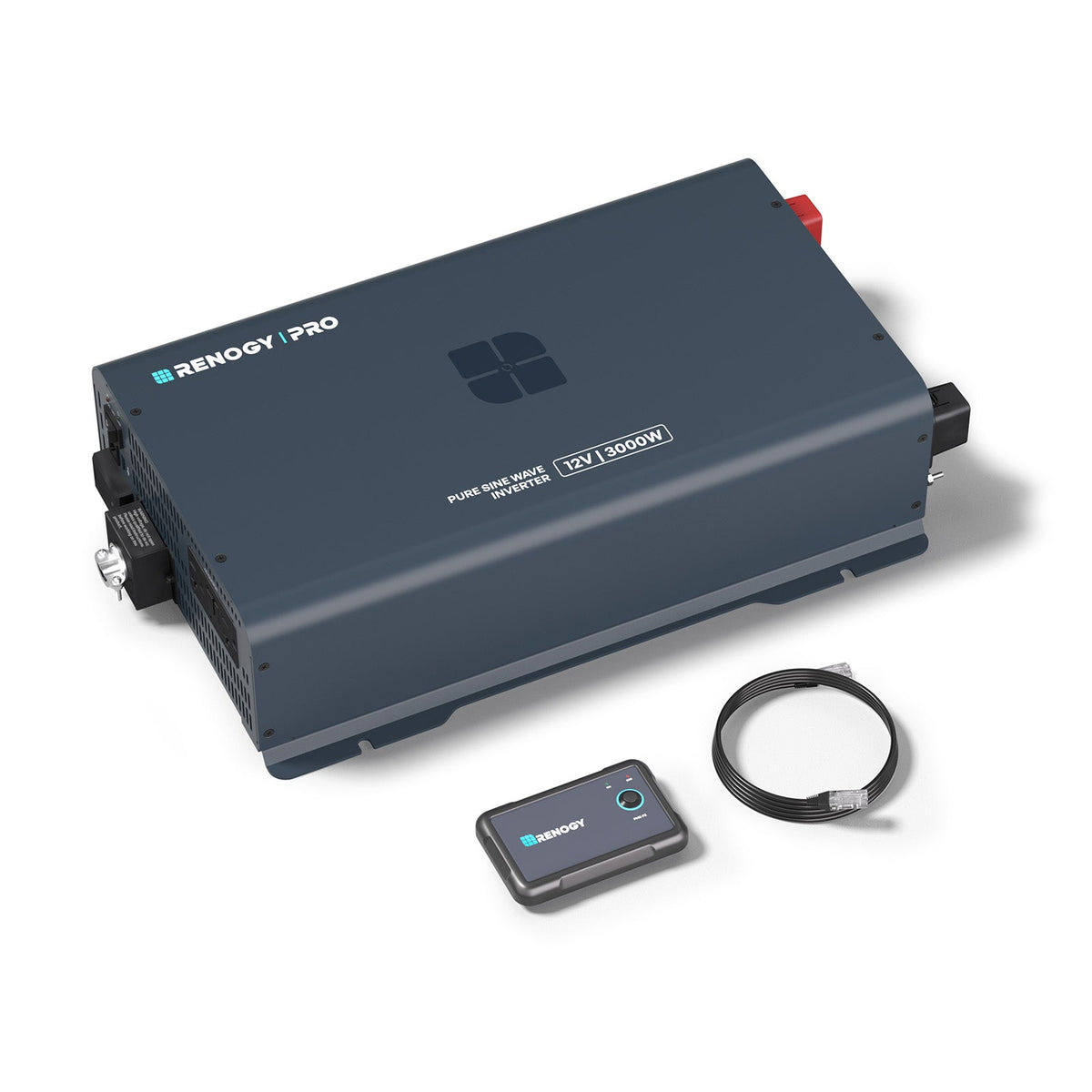

GFCI-protected AC sockets handle standard plug-in loads with the same ground-fault protection found in household outlets. The rotatable DIY AC terminal block lets the inverter be hardwired directly into a travel trailer's electrical panel or a van's distribution bus, delivering full-rated continuous power to every outlet on that panel rather than being limited to what a single socket can carry. An 18W USB port adds a direct charging path for phones and small devices without occupying an AC socket. Built-in Bluetooth connects to the Renogy App for real-time power monitoring and remote on/off switching from a phone; no separate module is required. A remote control and RJ12 cable are included in the 3000W package for wired remote switching as well.

Features

• 92% Conversion Efficiency: up to 13% more usable battery power compared to less efficient inverters
• Pure Sine Wave Output Under 4% THD: clean 120VAC ±3% at 50 or 60Hz (configurable) for sensitive electronics and motor loads
• 2x Surge Capacity: 2000W / 4000W / 6000W peak at 150ms for the 1000W / 2000W / 3000W models
• Built-In Bluetooth: real-time monitoring and remote on/off via the Renogy App, no add-on module needed
• GFCI-Protected AC Sockets and DIY Terminal Block: plug-in and hardwire outputs on the same unit
• Multi-Chemistry Battery Compatibility: works with AGM, GEL, flooded, and lithium 12V battery banks

Specifications

Who This Is For and Isn't

The Renogy Pro 12V Pure Sine Wave Inverter suits overlanders, van dwellers, RV owners, and off-grid cabin or workshop setups running a 12V battery bank who need clean AC power for sensitive electronics, motor loads, or a hardwired electrical panel. The 1000W, 2000W, and 3000W options cover load sizes from a single workstation or CPAP machine up to a full trailer electrical panel.

This inverter converts DC to AC only and does not charge batteries; a separate charger or inverter charger is required for battery recharging. The IP20 rating means the unit is not sealed against dust or water ingress and must be installed in a protected, ventilated enclosure. It accepts 12V DC input only and is not compatible with 24V or 48V battery systems.

Common Questions

Can this inverter be hardwired into a travel trailer's electrical panel?

The Renogy Pro 12V Pure Sine Wave Inverter includes a rotatable DIY AC terminal block that can be hardwired directly to a power strip or electrical panel, delivering full-rated continuous power to every outlet on that panel. This allows more appliances to run simultaneously than the two GFCI-protected AC sockets alone would permit.

What is the peak surge wattage for each model?

Each Renogy Pro inverter provides 2x surge capacity at 150ms: the 1000W model peaks at 2000W, the 2000W model peaks at 4000W, and the 3000W model peaks at 6000W. This surge headroom helps start motor-driven appliances such as refrigerators and power tools that draw higher current at startup than during normal operation.

Does this inverter also charge the battery bank?

The Renogy Pro 12V Pure Sine Wave Inverter converts DC battery power to 120V AC only and does not charge batteries. A separate battery charger or inverter charger is required to recharge the battery bank; this inverter does not perform that function.

Is a separate Bluetooth module required to use the app monitoring features?

No separate module is needed. The Renogy Pro inverter has Bluetooth built in, enabling real-time AC power monitoring and remote on/off switching through the Renogy App without any additional hardware purchase.

What battery types is this inverter compatible with?

The Renogy Pro 12V Pure Sine Wave Inverter is compatible with AGM, GEL, flooded (FLD), and lithium (LI) 12V battery banks. It requires a 12V nominal DC input and is not rated for 24V or 48V systems.

What causes the inverter to shut down or trip a connected appliance?

The Renogy Pro inverter includes built-in protections (undervoltage, overvoltage, overcurrent, overload, overtemperature, and short circuit) that shut the unit down when a connected load exceeds safe operating limits. Common causes include running multiple high-draw appliances simultaneously, inductive loads that spike current at startup, short circuits in a connected appliance, or loose DC wiring at the battery terminals.
