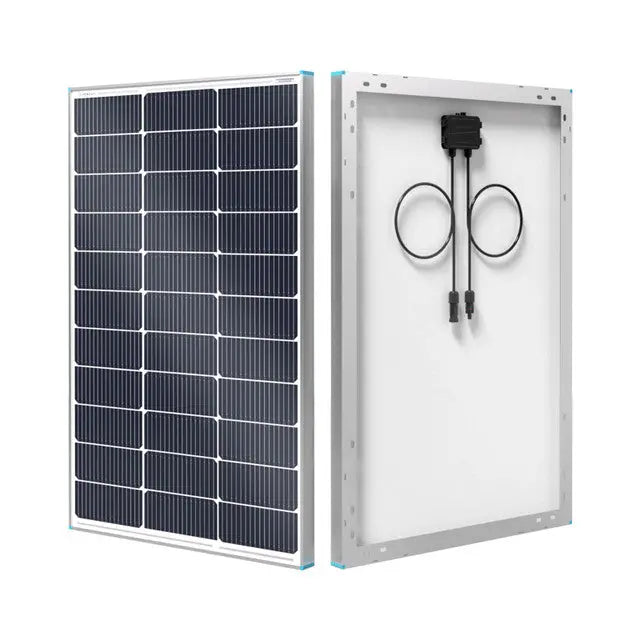

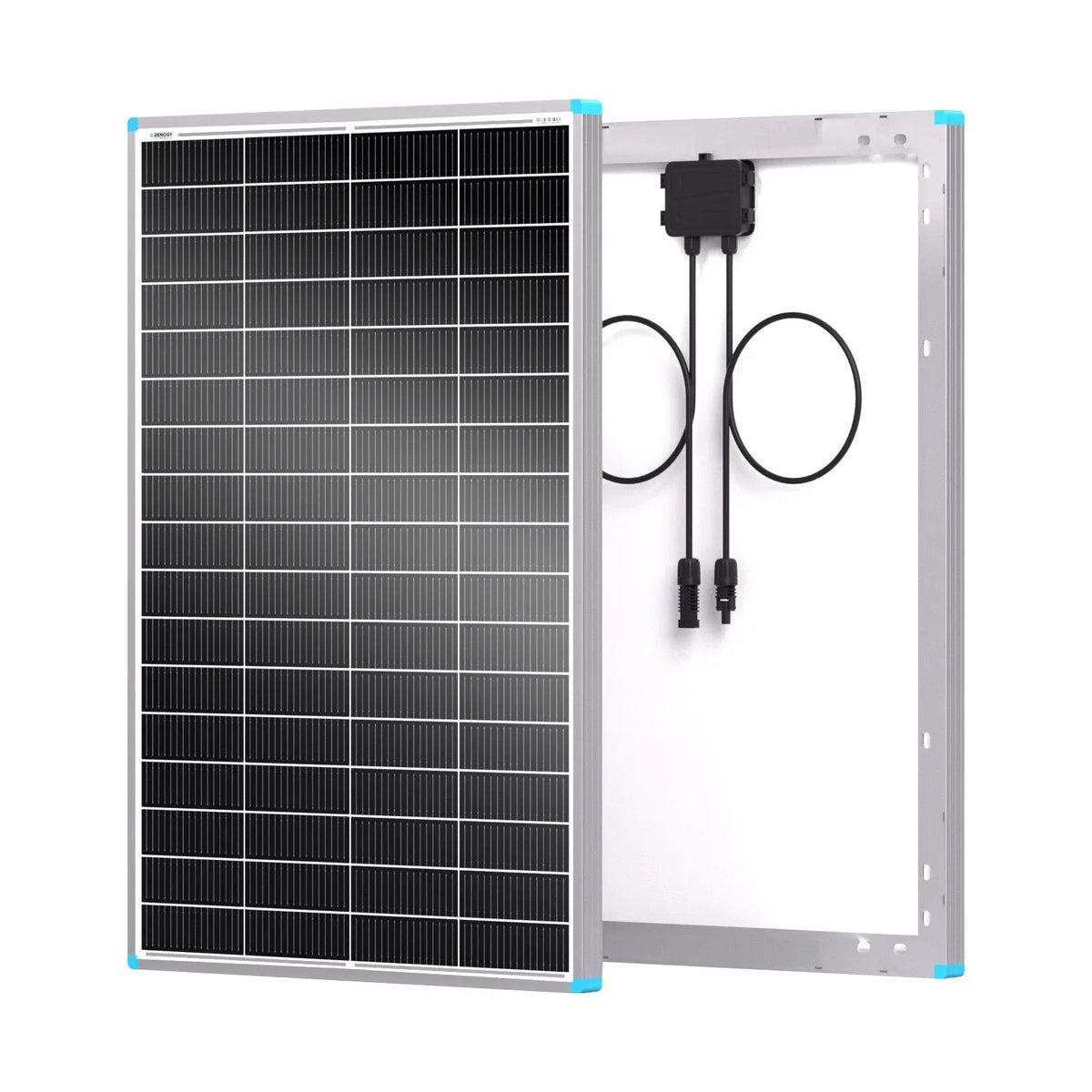

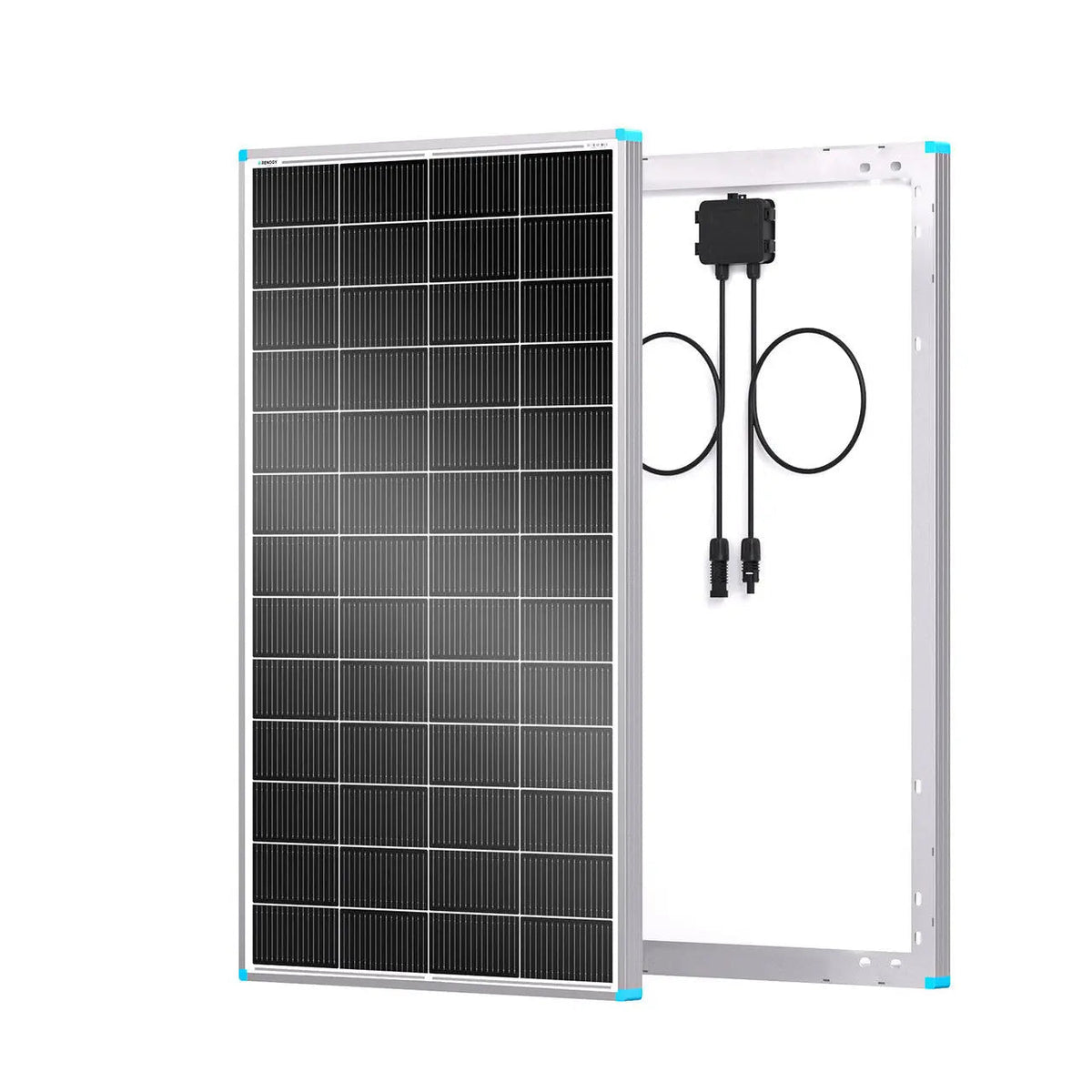

Renogy N-Type Monocrystalline Solar Panel 100W / 175W / 200W

The Renogy N-Type Monocrystalline Solar Panel is a rigid, aluminum-framed solar panel available in 100W, 175W, and 200W outputs, built for off-grid power systems in overlanding rigs, vans, RVs, and marine applications. N-Type monocrystalline cells with 9 busbars and PERC technology deliver a module efficiency of 19.2% (200W variant), with a guaranteed positive output tolerance of 0%–3% across all three wattage options.

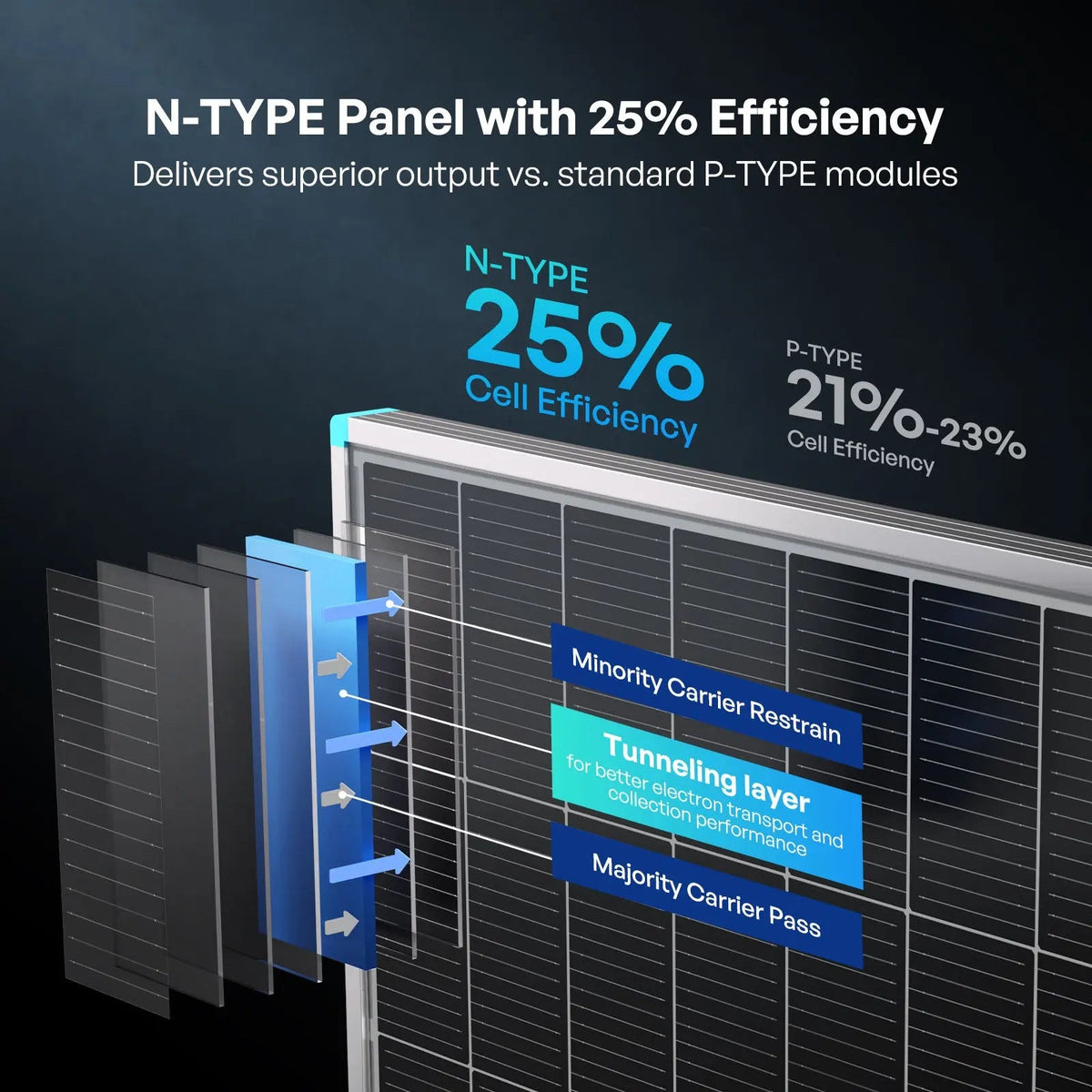

N-Type Cells: More Output from the Same Sunlight

N-Type monocrystalline cells outperform conventional PERC cells in heat tolerance and long-term output stability. For an overlander or van-dweller running a panel through years of sun, heat, and vibration, that translates to more usable energy per day and less degradation over the life of the system. Renogy states first-year power loss at 1% or less, which matters when sizing a battery bank for a multi-day trip far from a grid connection.

Half-cut cell construction and bypass diodes keep the panel producing even when part of its surface is shaded (by a roof rack crossbar, a vent, or a tree branch). Rather than losing output from the entire panel when one section is blocked, the bypass diodes route current around the shaded cells, so the rest of the panel continues converting sunlight normally.

Built to Stay Mounted Through Rough Conditions

The anodized aluminum alloy frame is rated to withstand wind loads of 2,400 Pa (approximately 50 psf) and snow loads of 5,400 Pa (approximately 550 kg/m²). For a panel mounted on a roof rack or van roof that sees highway speeds, trail vibration, and winter storms, those structural ratings mean the frame stays true and the glass stays sealed. Reinforced frame corners reduce impact damage during installation and transport.

The junction box carries an IP65 rating and the connectors carry an IP67 rating, providing protection against dust ingress and rain. The panel construction layers tempered low-iron glass over EVA and POE encapsulant layers, chosen for long-term durability through changing weather and UV exposure.

Fast Installation with Flexible Mounting Options

Pre-drilled holes on the panel back allow direct mounting to Renogy Z-Brackets, Pole Mounts, and Tilt Mounts without drilling the frame. The 200W panel ships with a 13 AWG output cable, 2.6 ft (0.9 m) long, terminated with solar connectors. A charge controller, battery, adapter kit cables, and tray cables are required to complete an off-grid system and are sold separately.

Features

• N-Type monocrystalline cells: 9 busbars and PERC technology for 19.2% module efficiency (200W)
• Half-cut cells with bypass diodes: maintain output under partial shading and protect against hotspot overheating
• Positive output tolerance: 0%–3%, ensuring rated power or better at standard test conditions
• Wind and snow rated: 2,400 Pa wind load and 5,400 Pa snow load resistance
• IP65 junction box / IP67 connectors: dust- and rain-resistant for all-weather outdoor use
• Pre-drilled mounting holes: compatible with Renogy Z-Brackets, Pole Mounts, and Tilt Mounts

Specifications

Who This Is For and Isn't

These panels suit overlanders, van-dwellers, RV owners, and boaters building or expanding a 12V or 24V off-grid solar system. The three wattage options let buyers match panel output to available roof space and power demand, and the pre-drilled frame makes roof mounting straightforward with compatible Renogy mounting hardware.

A charge controller, battery bank, adapter cables, and tray cables are not included and must be purchased separately to build a functioning system. Electrical specifications beyond weight are available for the 200W variant only; buyers sizing a charge controller or calculating string voltage for the 100W or 175W variants should obtain those panels' datasheets before selecting a controller.

Common Questions

What else do I need to build a working off-grid solar system with this panel?

The Renogy N-Type Solar Panel must be paired with a charge controller to regulate current, a deep-cycle battery to store power, adapter kit cables to connect the panel to the controller, and tray cables from the controller to the battery. None of those components are included with the panel and are sold separately.

What does the positive output tolerance mean for real-world performance?

A 0%–3% positive output tolerance means the panel is tested to produce at or above its rated wattage at standard test conditions. For the 200W variant, that means the panel delivers 200W to 206W under ideal conditions, never below its nameplate rating. This matters when sizing a charge controller or battery bank.

How do half-cut cells and bypass diodes help when part of the panel is shaded?

In a conventional panel, shading one section can drag down output from the entire string. The Renogy N-Type Solar Panel uses half-cut cells and bypass diodes so that shaded sections are routed around electrically, allowing the unshaded portion of the panel to continue producing power. This is particularly useful on vehicle roofs where a rack crossbar, vent, or antenna casts a partial shadow.

Can these panels be wired in series, in parallel, or both?

The Renogy N-Type Solar Panel supports series, parallel, and combined series-parallel wiring. Wiring panels in series adds their voltages while keeping current the same; wiring in parallel adds their currents while keeping voltage the same. The wiring method affects which charge controller is compatible, so the controller's maximum PV input voltage must be confirmed against the string voltage before connecting.

What mounting hardware is compatible with this panel?

Pre-drilled holes on the back of the Renogy N-Type Solar Panel are compatible with Renogy Z-Brackets, Pole Mounts, and Tilt Mounts. Mounting hardware is not included with the panel and is sold separately.
