Renogy Class T Fuse with Set 150A / 250A / 350A

The Renogy Class T Fuse with Set is a high-current overcurrent protection assembly available in 150A, 250A, and 350A ratings, designed to protect the connection between a battery and inverter or other high-draw loads in RV, marine, truck, and overlanding electrical systems. The V0-rated fireproof ABS polymer housing and arc-extinguishing fuse element are rated to 250V AC/DC with a 10kA maximum interrupt current. All three amperage variants share the same housing and screw-terminal design.

Built to Stop Overcurrent Before It Causes Damage

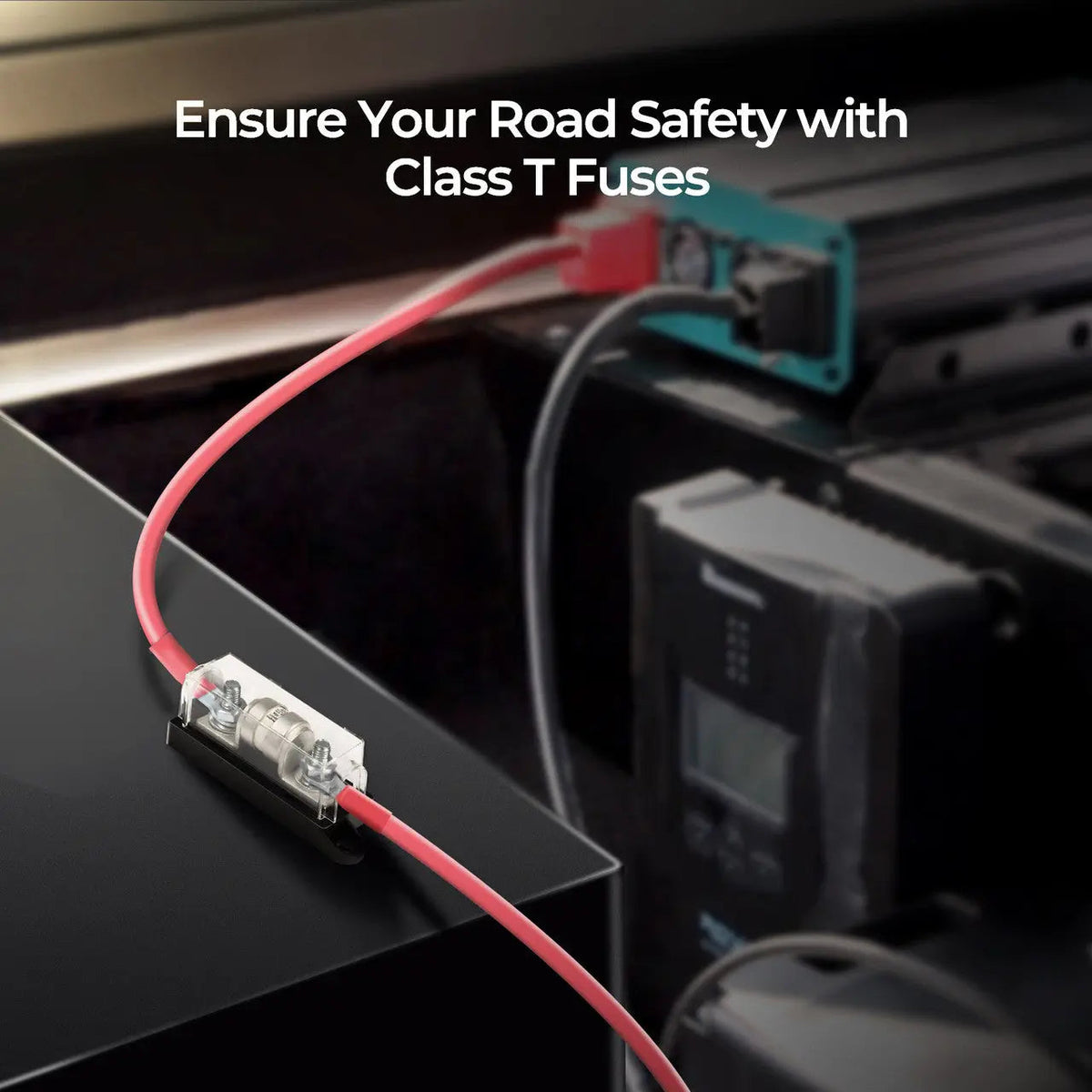

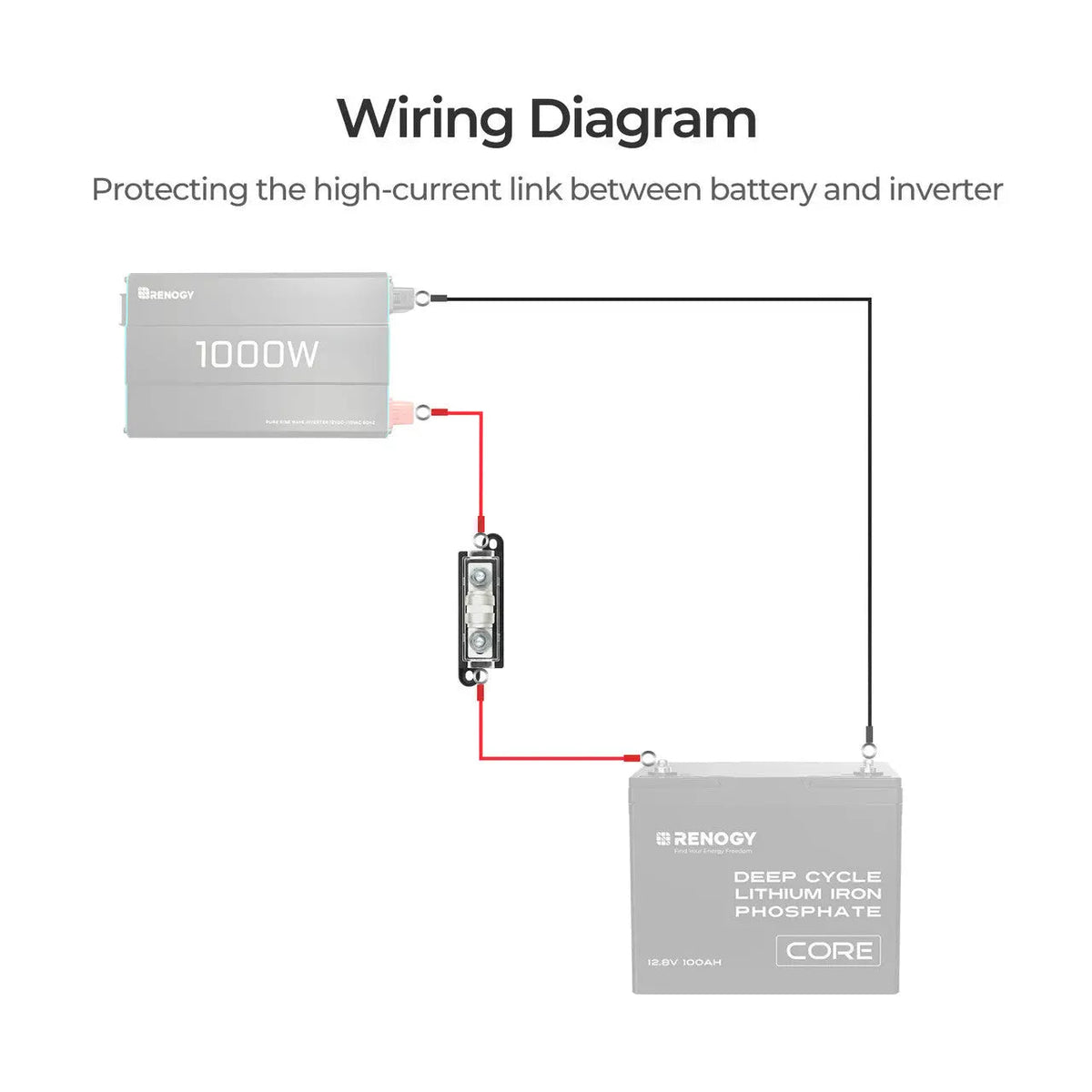

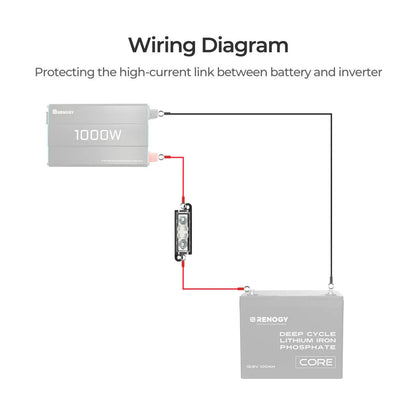

A Class T fuse sits at one of the most critical points in a 12V or 24V system: the short, high-current run between the battery bank and the inverter or main distribution point. When a fault occurs, the fuse must interrupt current fast enough to prevent damage to wiring, batteries, and connected equipment. The Renogy Class T Fuse with Set uses an arc-extinguishing fuse element rated to interrupt up to 10kA, which means it can safely break even a hard short-circuit current without the arc continuing to conduct after the element opens.

V0 Fireproof Housing for High-Stakes Installations

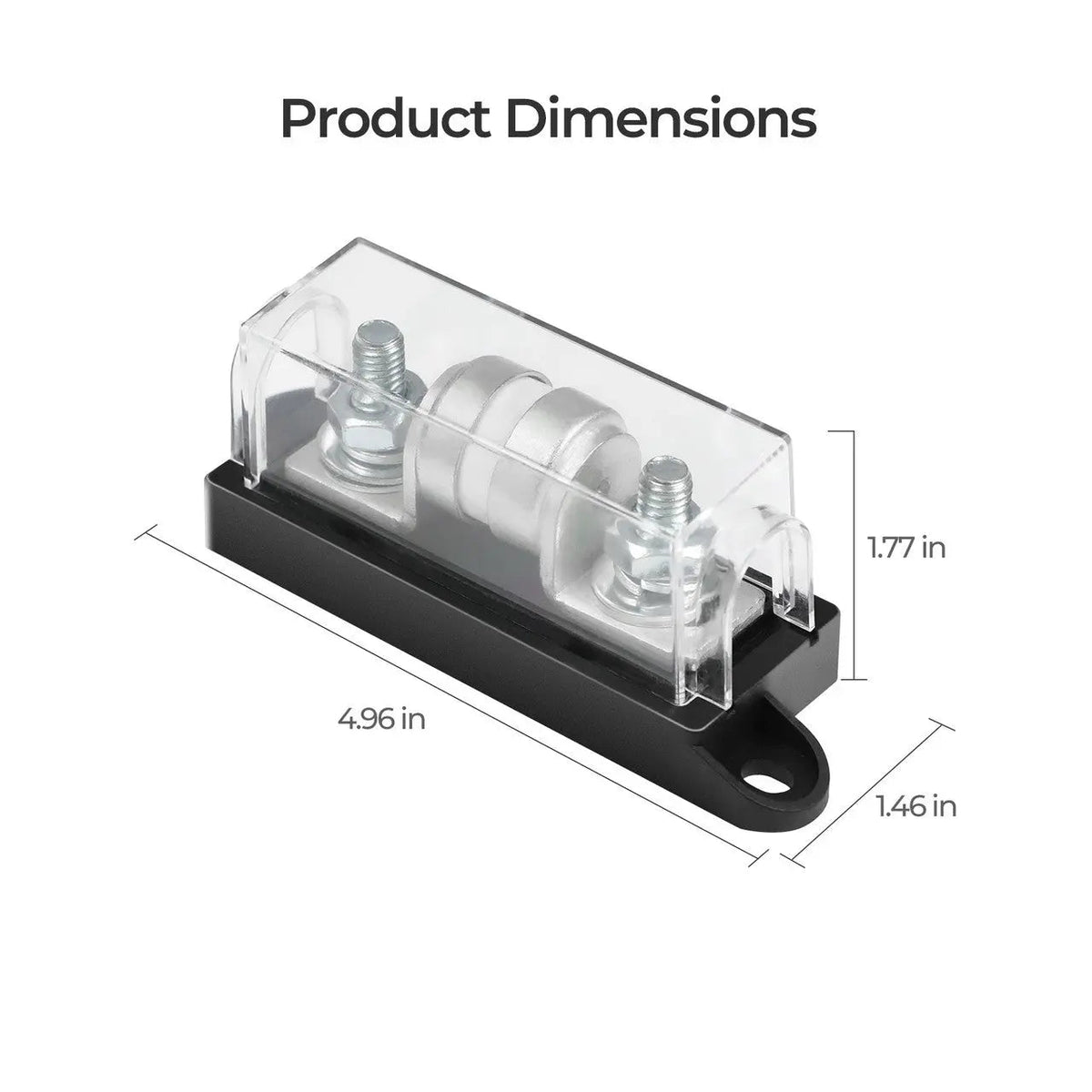

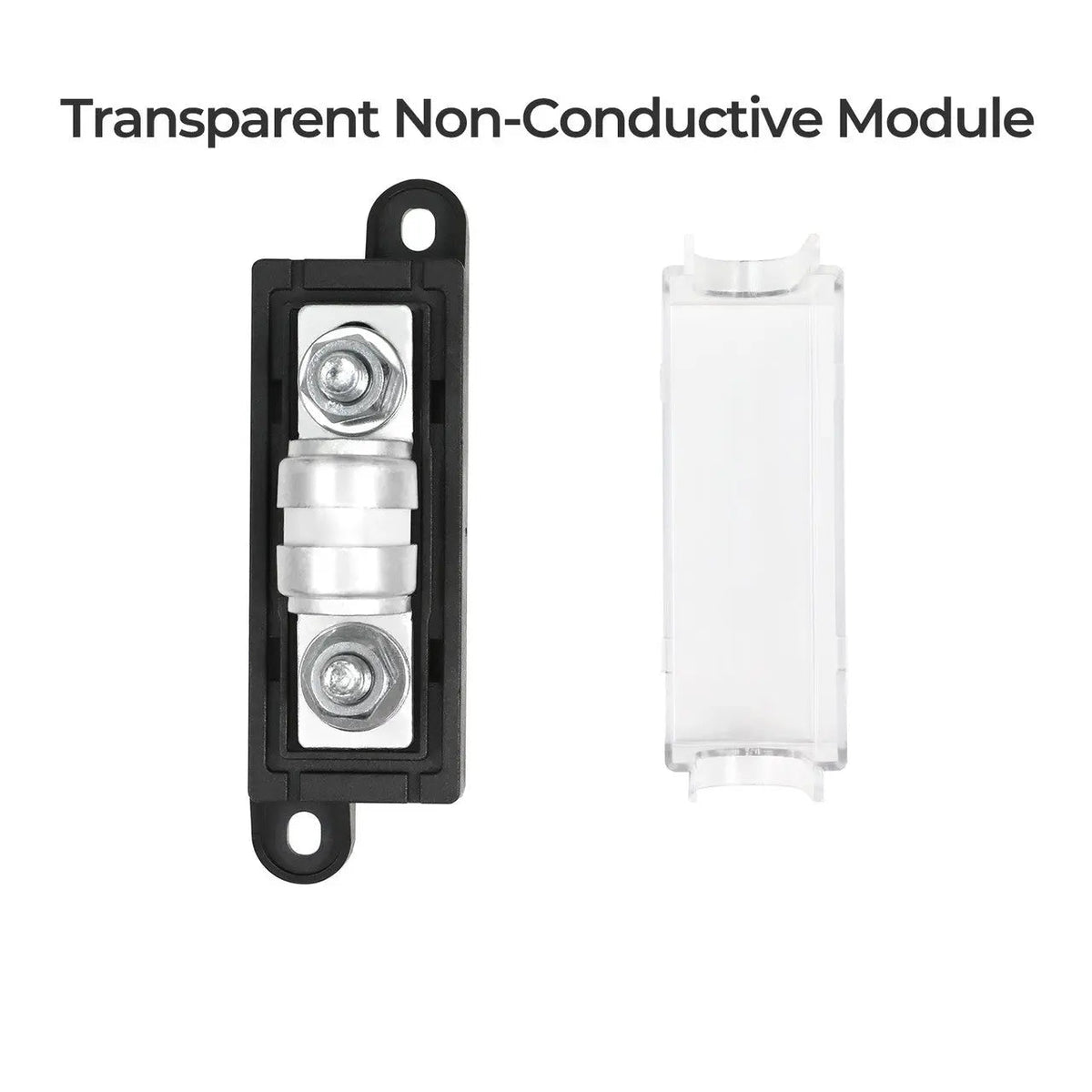

The housing is molded from V0-rated ABS polymer, the highest standard flammability classification for self-extinguishing plastics. In an enclosed vehicle or cabin installation where a fuse failure could otherwise ignite surrounding materials, V0 housing provides a meaningful layer of passive protection. The housing is also sized to accommodate larger cable packs and the M8 (5/16") stud hardware needed for high-current terminations.

Replaceable Fuse Element Reduces Long-Term Cost

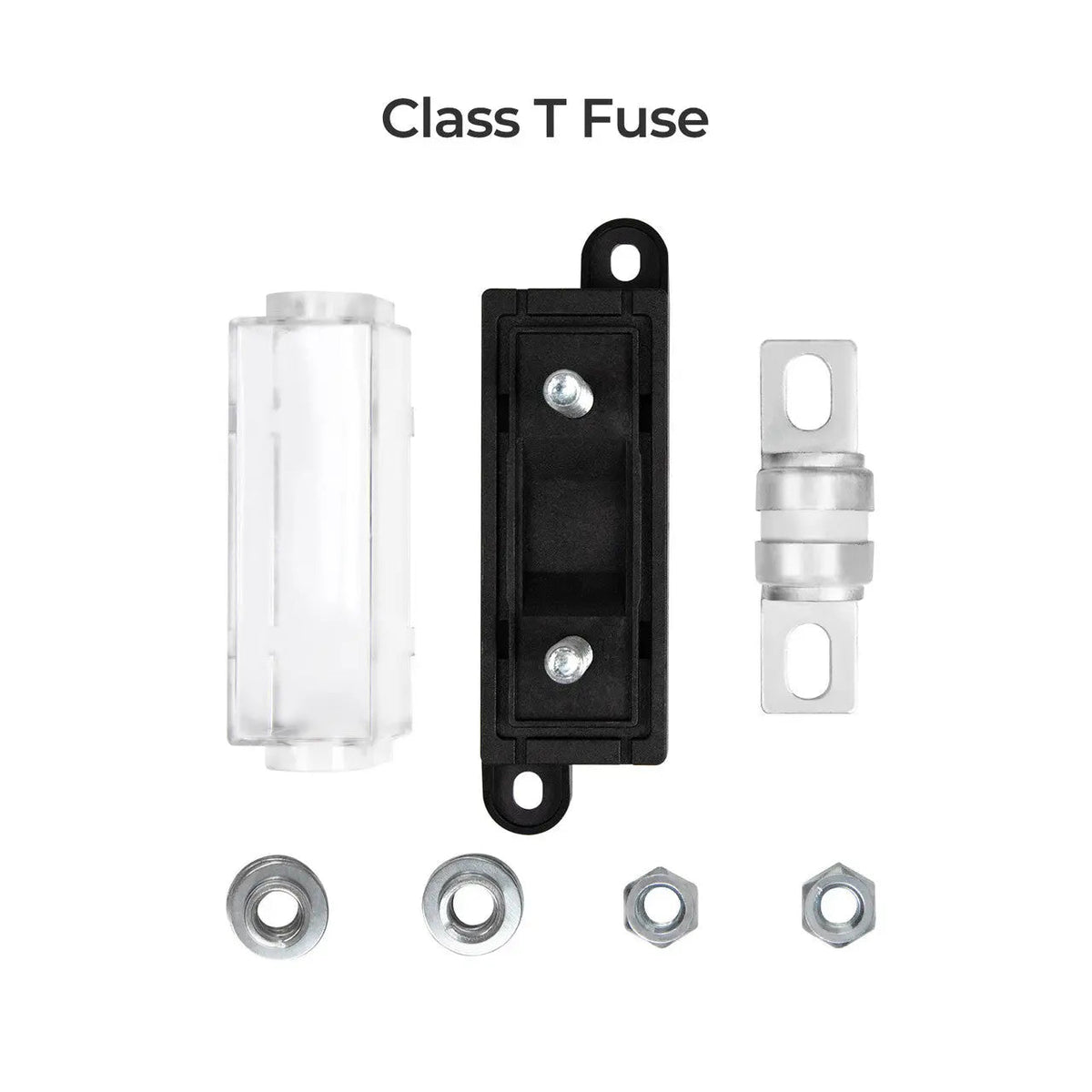

The fuse element inside the Renogy Class T Fuse with Set is field-replaceable. Loosening two bolts allows the fuse to be removed from the housing without replacing the entire assembly. For overlanding and off-grid installations where a blown fuse in a remote location would otherwise mean replacing a more expensive holder, keeping a spare fuse element on hand is a practical contingency.

Features

• 250V AC/DC voltage rating: suitable for 12V, 24V, and 48V DC systems as well as AC applications within the rated voltage
• 10kA maximum interrupt current: arc-extinguishing element safely breaks high fault currents
• V0 fireproof ABS polymer housing: self-extinguishing material rated to the highest standard flammability classification

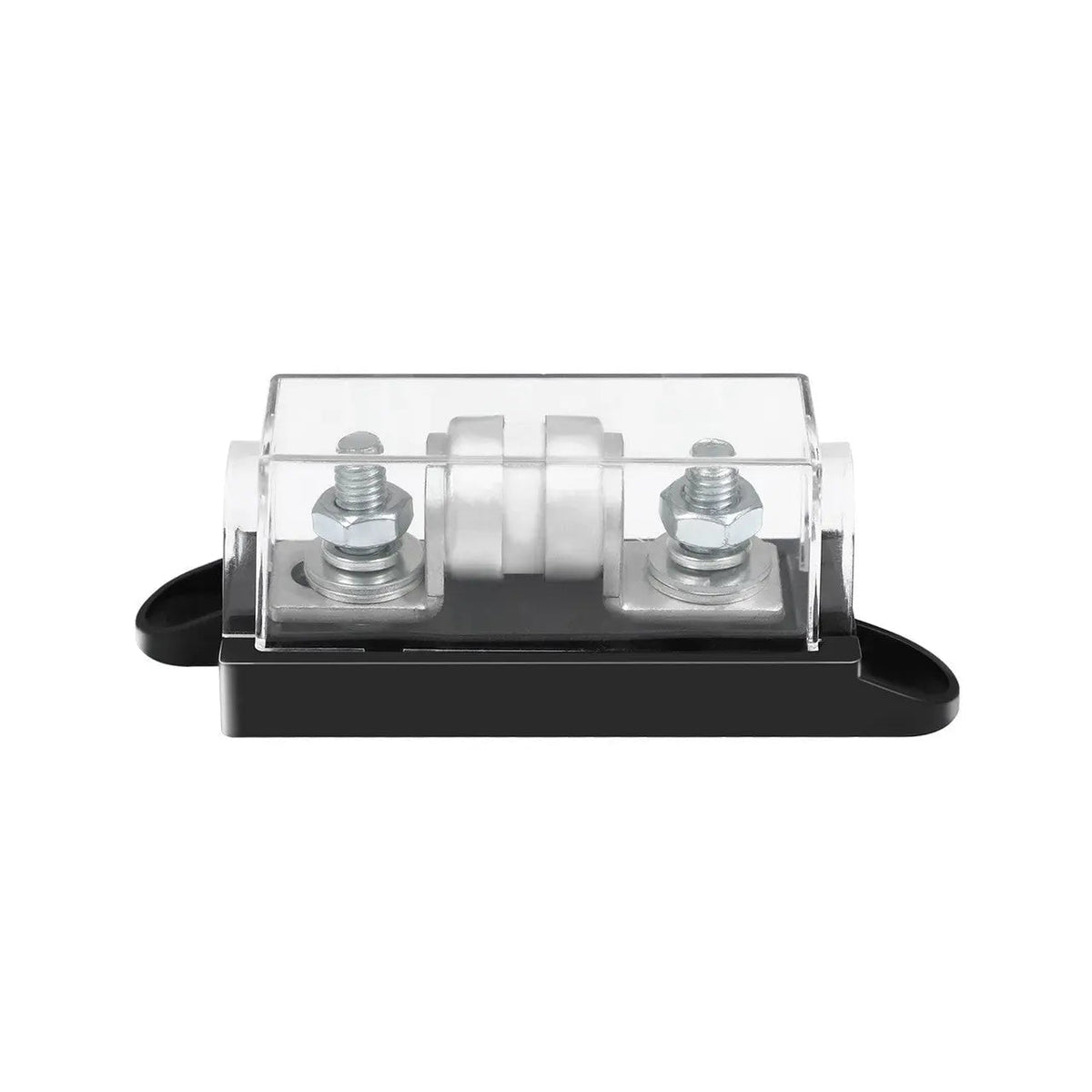

• M8 (5/16") stud terminals: screw-type connection accommodates large-gauge cable lugs for high-current runs
• Replaceable fuse element: two-bolt removal allows field replacement without discarding the housing
• Three amperage options: 150A, 250A, and 350A variants to match system load requirements

Specifications

Who This Is For and Isn't

The Renogy Class T Fuse with Set suits builders of 12V, 24V, and 48V DC electrical systems in RVs, overlanding rigs, boats, trucks, and off-grid cabins who need a rated, replaceable overcurrent protection device at the battery-to-inverter or main-distribution connection. The 150A variant is sized for 12V systems running up to 1000W inverters; the 250A for up to 2000W; and the 350A for up to 3000W.

No cable is included with the Renogy Class T Fuse with Set. Cable must be sourced separately. This fuse set does not include ANL-style or MIDI fuses and is not interchangeable with those form factors.

Common Questions

Can the fuse element be replaced without replacing the entire housing?

Yes, the fuse element in the Renogy Class T Fuse with Set is replaceable. Loosening two bolts allows the fuse to be removed from the housing, making field replacement straightforward. Keeping a spare fuse element on hand is recommended for remote or off-grid installations.

What stud or lug size does the fuse holder use?

The Renogy Class T Fuse with Set uses M8 (5/16") stud posts. Cable lugs sized for M8 studs are compatible with this holder.

Which amperage rating should I choose for my inverter?

For a 12V system, the 150A Class T Fuse with Set is sized for inverters up to 1000W, the 250A for inverters up to 2000W, and the 350A for inverters up to 3000W.

Does the Renogy Class T Fuse with Set include a cable?

No cable is included. The Renogy Class T Fuse with Set contains only the fuse and housing assembly. Cable must be sourced separately.
