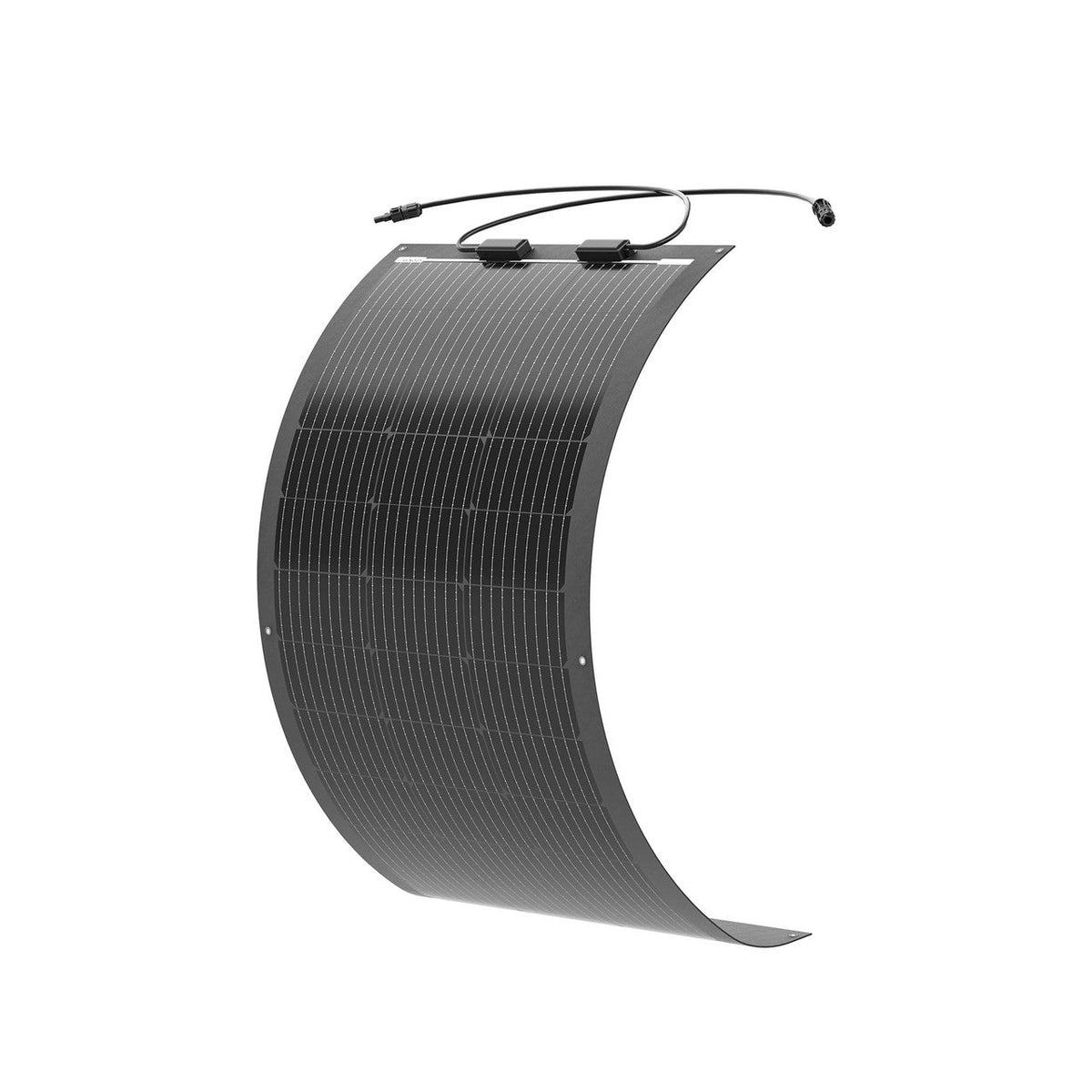

Renogy Black Division 100W Flexible Monocrystalline Solar Panel

The Renogy Black Division 100W Lightweight Flexible Solar Panel is a 100-watt monocrystalline panel built for off-grid systems on curved or irregular surfaces: RV roofs, boat decks, truck toppers, and overlanding rigs where a rigid framed panel will not lie flat. Half-cut PERC cell technology delivers 15.7% module efficiency at a shipping weight of 5.3 lb, roughly one-third the weight of a comparable rigid panel.

Fits Where Rigid Panels Cannot

The Renogy Black Division 100W panel bends up to 240 degrees, conforming to barrel-vaulted RV roofs, curved boat decks, and contoured truck caps without requiring a flat mounting surface or a raised racking system. That flexibility eliminates the wind-catching profile of a framed panel and keeps the installation low and aerodynamic. The low profile is a meaningful advantage at highway speeds or in exposed coastal and high-desert environments. Mounting is handled through pre-drilled holes or, where drilling is not an option, silicone adhesive or hook-and-loop fastener bonding directly to the surface.

Half-Cut PERC Cells Improve Output in Real Conditions

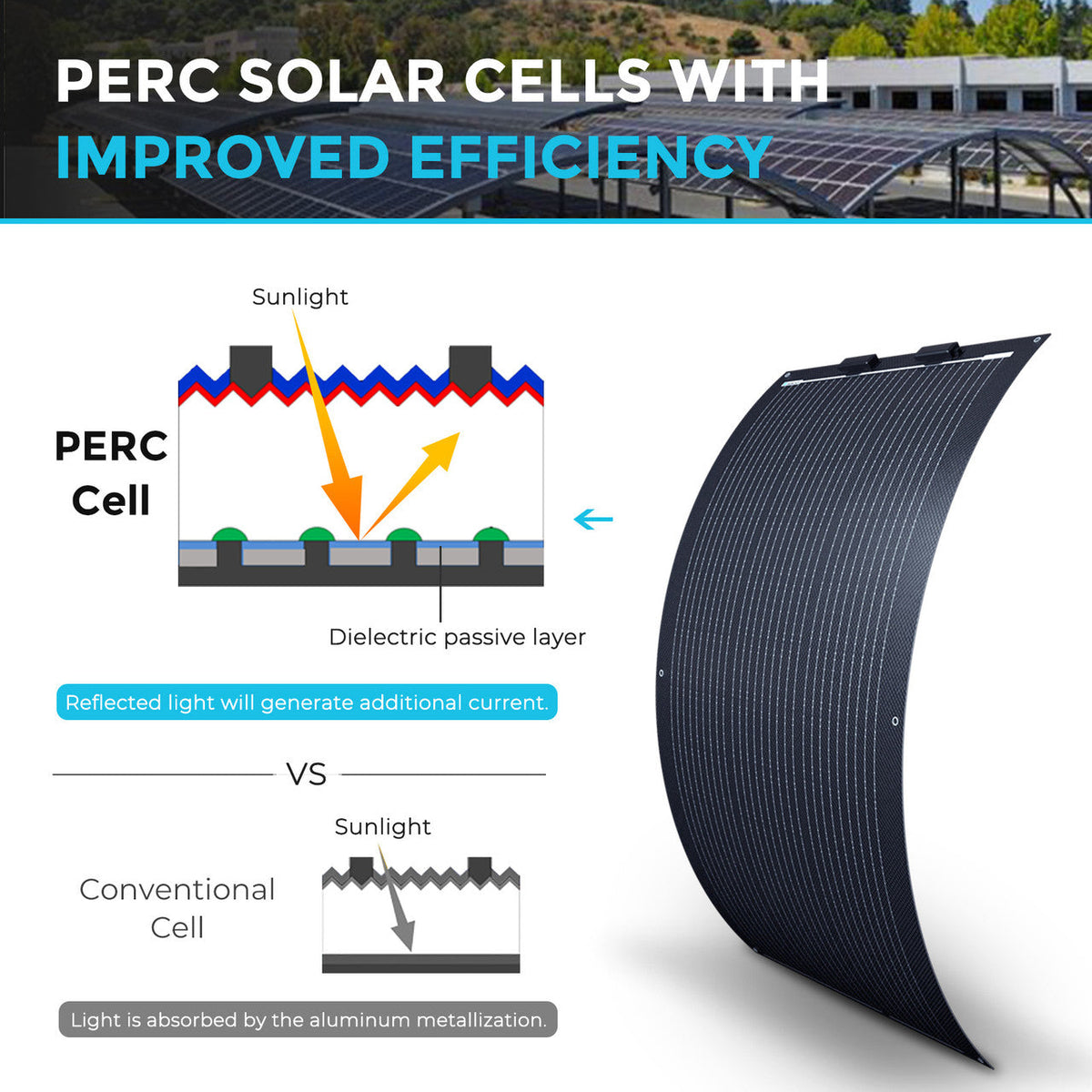

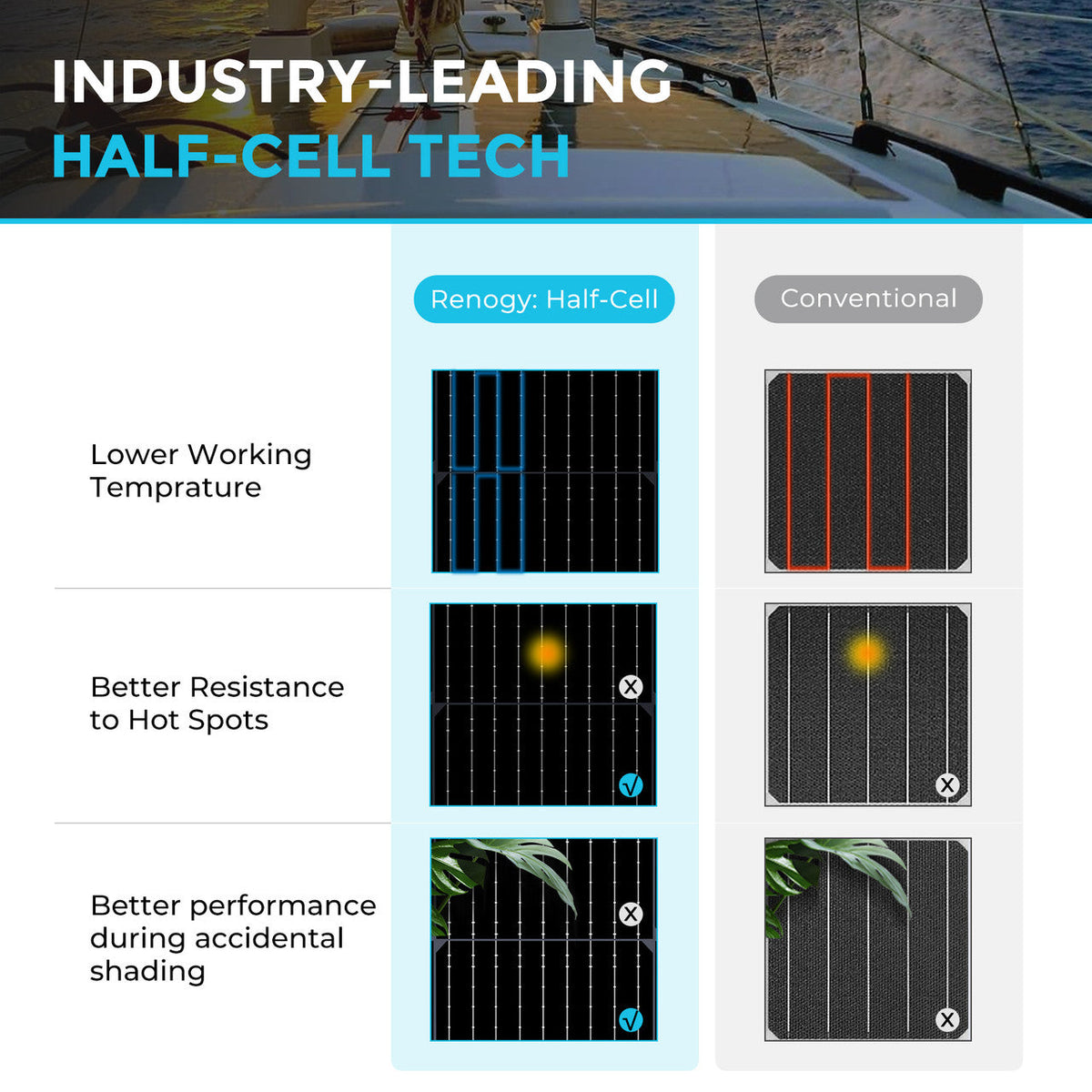

Half-cut PERC (Passivated Emitter and Rear Cell) technology splits each cell into two smaller halves, reducing resistive losses and limiting the impact of partial shading on overall output. The 36-cell array (12 x 3 configuration, each cell 6.5 x 3.3 in) produces a maximum of 100W at STC, with an optimum operating voltage of 19.4V and an optimum operating current of 5.20A. For a buyer comparing panels, the practical payoff is more consistent output when part of the panel is shaded by a roof vent, antenna, or tree canopy, conditions that disproportionately reduce output on conventional full-cell designs.

Built for Extended Outdoor Exposure

The IP67-rated junction box and solar connectors block water and dust ingress during extended outdoor use. A bypass diode prevents reverse current flow from the battery back into the panel when sunlight is absent, protecting the cells from thermal damage. The panel is rated to withstand up to 5400 Pa of snow load and up to 2400 Pa of wind load, and the operating temperature range spans -40℃ to 80℃ (-40℉ to 176℉). The all-black laminate surface eliminates glare. This matters on marine and overlanding applications where reflected light is a distraction or safety concern.

Features

• Half-cut PERC monocrystalline cells: 36-cell array (12 x 3), each 6.5 x 3.3 in, for improved shading tolerance and output efficiency
• 240-degree bend radius: conforms to curved surfaces including barrel-vaulted roofs and boat decks
• IP67 junction box and connectors: rated against water and dust ingress for extended outdoor use
• Pre-drilled mounting holes: panel can also be bonded with silicone adhesive or velcro where drilling is not practical
• 12 AWG output cables: 2.3 ft per cable, with solar connectors ready for connection and extension
• Class A fire rating: junction box meets Class A fire classification

Specifications

Who This Is For and Isn't

This panel suits RV owners, boaters, truck campers, overlanders, and cabin builders who need a lightweight, low-profile solar panel that can conform to curved or irregular mounting surfaces. It is a strong fit for mobile and transportation applications where a rigid aluminum-framed panel is too heavy, too tall, or cannot lie flat against the roof or deck.

This panel is not a complete power system. It requires a separate charge controller, battery, and appropriate cabling to function. Walking on the panel is not recommended, as concentrated foot pressure can crack the cells. A charge controller, battery, and adapter cables are not included.

Common Questions

What else do I need to use this panel in an off-grid system?

The Renogy 100W flexible panel must be connected to a charge controller to regulate current, and a battery to store the generated power. Adapter kit cables are needed to wire the panel to the charge controller, and tray cables connect the charge controller to a deep-cycle battery. None of these components are included with the panel.

Why might the panel produce less power than its 100W rating?

Output from the Renogy 100W flexible panel can be reduced by indirect sunlight, cloud cover, high operating temperatures, and dirt or debris buildup on the panel surface. The 100W rating reflects performance under Standard Test Conditions; real-world output varies with sun angle, weather, and how clean the surface is kept.

Can I walk on this flexible solar panel?

Walking on the Renogy 100W flexible panel is not recommended. Foot traffic concentrates pressure on a small area of the flexible substrate and can crack or damage the solar cells, reducing output or causing failure. Use the pre-drilled holes, silicone adhesive, or velcro for mounting rather than stepping across the panel surface during installation.

How do I clean and maintain this panel?

The Renogy 100W flexible panel can be cleaned with a non-abrasive sponge and water. Regular cleaning to remove dust, sand, and other debris is recommended, as buildup on the surface reduces power output over time. Avoid abrasive materials that could scratch the laminate.
