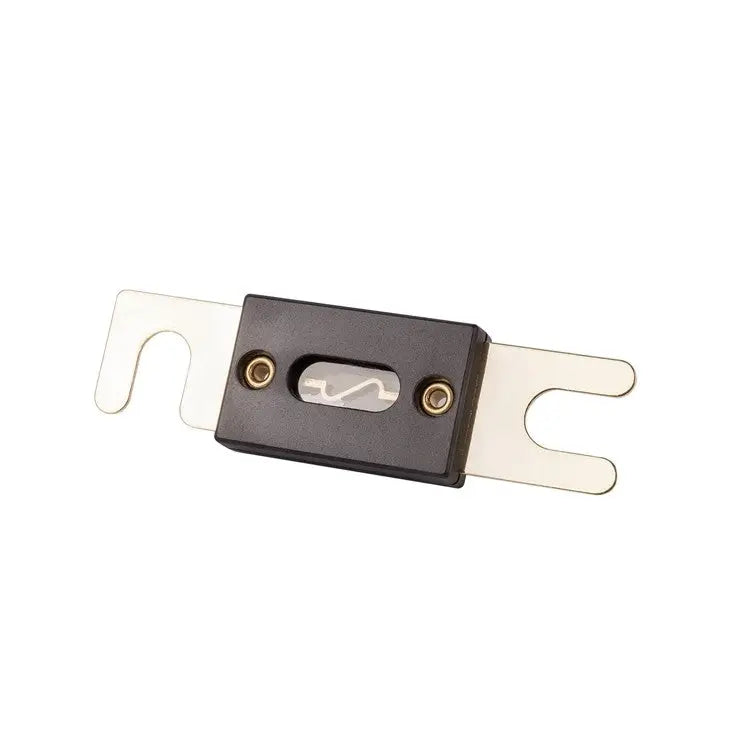

Renogy 72V ANL Fuse with Corrosion-Resistant Terminals

The Renogy ANL fuse protects batteries, wiring, and charge controllers from overcurrent damage in 12V, 24V, and 48V off-grid electrical systems. Built from alloy and brass copper with gold/nickel plated terminal contacts, each fuse is voltage-rated to 72V. A clear non-conductive cover lets you confirm open status at a glance without removing the fuse from the holder. Four ratings are available: 20A, 30A, 40A, and 100A.

Instant Visual Status Check

The ANL fuse element is visible through a clear protective non-conductive cover, so a blown fuse is identifiable without pulling the unit from the block. On an overlanding rig or van build where the fuse block may be tucked under a seat or inside a cabinet, confirming fuse status without disassembly saves real diagnostic time when something stops working on the road.

Corrosion-Resistant Contacts for Long-Term Reliability

Gold/nickel plated terminal contacts resist the oxidation that can develop on bare copper terminals in humid, dusty, or marine environments. Corroded fuse contacts increase resistance at the connection point, which can cause voltage drops or heat buildup even when the fuse element itself is intact. The plated contacts help maintain a clean, low-resistance connection over the life of the installation.

Ignition-Protected and RoHS-Compliant Construction

The ANL fuse carries ignition-protected status, meaning its construction is designed to prevent it from becoming an ignition source for flammable vapors. This matters in enclosed spaces such as van cargo areas, trailer battery compartments, and cabin battery banks where gases from batteries can accumulate. RoHS compliance confirms the fuse is manufactured without the restricted hazardous substances covered by that standard.

Features

• Clear status window: visible fuse element through non-conductive cover for quick open-status identification
• Gold/nickel plated terminals: corrosion-resistant contact surfaces for reliable long-term connections
• Ignition protected: construction designed to prevent ignition of flammable vapors
• 72V voltage rating: covers 12V, 24V, and 48V nominal battery systems across all four amp variants
• RoHS compliant: manufactured without restricted hazardous substances
• Renogy ANL Fuse Block compatible: designed for use with the Renogy ANL Fuse Block

Specifications

Who This Is For and Isn't

The Renogy ANL fuse suits builders of 12V, 24V, and 48V off-grid electrical systems (overlanding rigs, van conversions, travel trailers, and cabin battery banks) who need a rated overcurrent protection device on battery cables, charge controller outputs, or inverter feeds. The 20A and 30A ratings suit lighter circuits; the 40A and 100A ratings suit higher-current battery interconnects and inverter feeds.

The ANL fuse is designed for use with the Renogy ANL Fuse Block, which is sold separately and not included. Compatibility with fuse blocks from other manufacturers is not stated.

Common Questions

Which amp rating should I choose for my system?

The correct ANL fuse rating depends on the wire gauge and the maximum continuous current of the circuit being protected, such as a charge controller output, battery interconnect, or inverter feed. No wire-gauge recommendation per rating is specified; consult your system's wiring diagram or a qualified installer to match the fuse rating to your cable size and load.

What voltage systems is this fuse compatible with?

Each Renogy ANL fuse variant carries a 72V voltage rating, which covers 12V, 24V, and 48V nominal battery systems. The interrupt capacity figures are specified at 48V: 180A for the 20A fuse, 200A for the 30A, 240A for the 40A, and 500A for the 100A variant.

How do I know if the fuse has blown?

The Renogy ANL fuse element is visible through a clear non-conductive protective cover, allowing visual confirmation of open status without removing the fuse from the holder. A broken or discolored fuse element visible through the window indicates the fuse has opened and needs replacement.

What fuse block does this fuse work with?

The Renogy ANL fuse is designed for use with the Renogy ANL Fuse Block, which is sold separately. Compatibility with fuse blocks from other manufacturers is not stated, and a fuse block is not included with this listing.

What is the fuse made of?

The Renogy ANL fuse body is constructed from alloy and brass copper, with gold/nickel plated terminal contacts for corrosion resistance. A clear protective non-conductive cover is included with each fuse.
