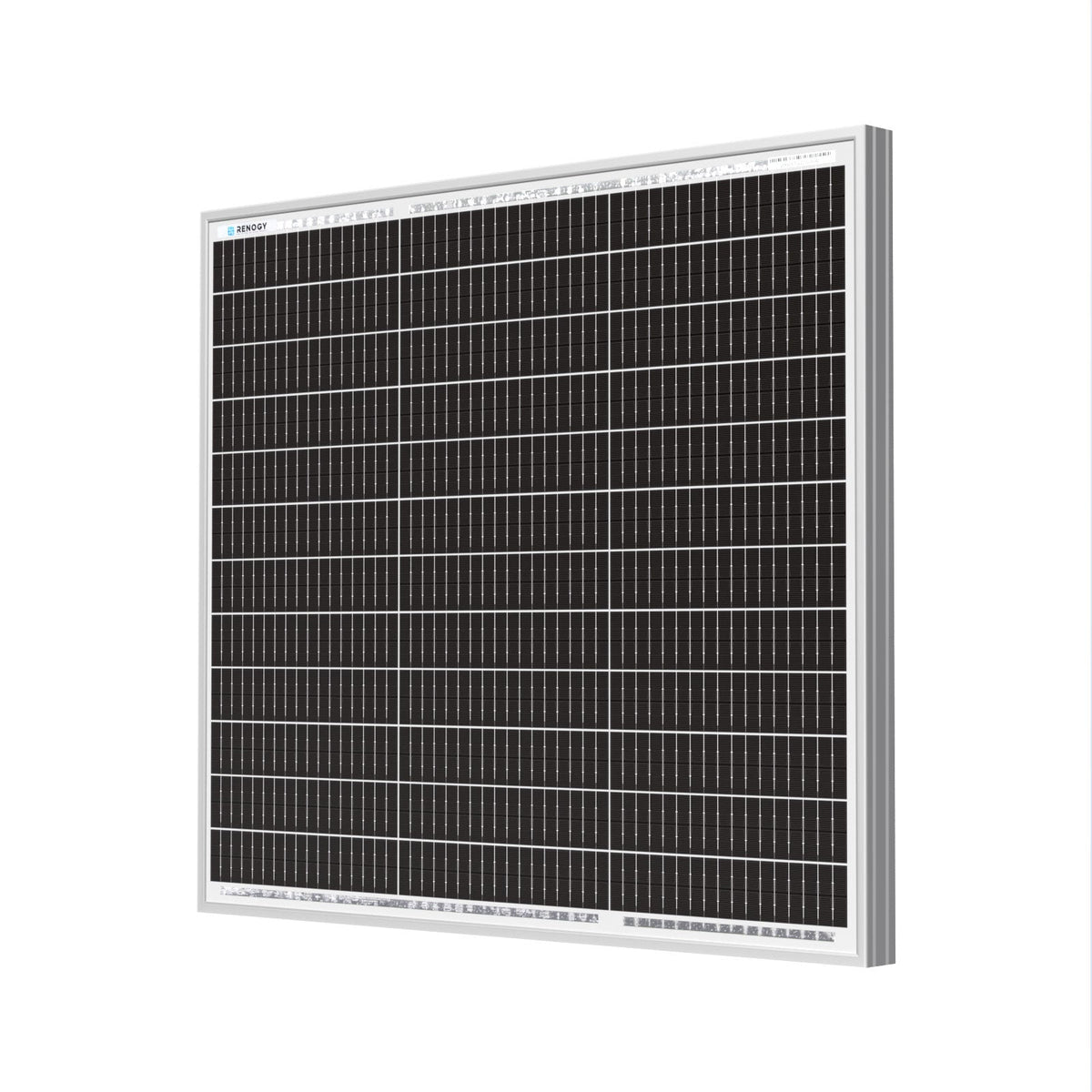

Renogy 50W N-Type Monocrystalline Rigid Solar Panel

The Renogy 50W N-Type Monocrystalline Rigid Solar Panel is a compact 12V-nominal rigid panel rated at 50 watts maximum power output, with a stated module efficiency of 17.20%, designed for small off-grid systems including dry camping, marine applications, backyard power, and overlanding rigs. The panel ships as a single unit and mounts via pre-drilled holes compatible with Renogy Z-Brackets, Pole Mounts, and Tilt Mounts, as well as ground-mount systems.

16BB Cell Technology for Stable Output

The 50W panel uses N-Type monocrystalline cells with 16-busbar (16BB) architecture. The additional busbars shorten the current path across each cell, which reduces resistive losses and helps maintain consistent output when a portion of the panel is shaded or develops a microcrack over time. For an overlanding or marine setup where partial shading from a rack, antenna, or rigging is common, this matters: the panel continues producing usable power rather than dropping sharply when one cell is compromised. Bypass diodes provide an additional layer of shade tolerance by routing current around shaded cell strings.

Built for Long-Term Outdoor Exposure

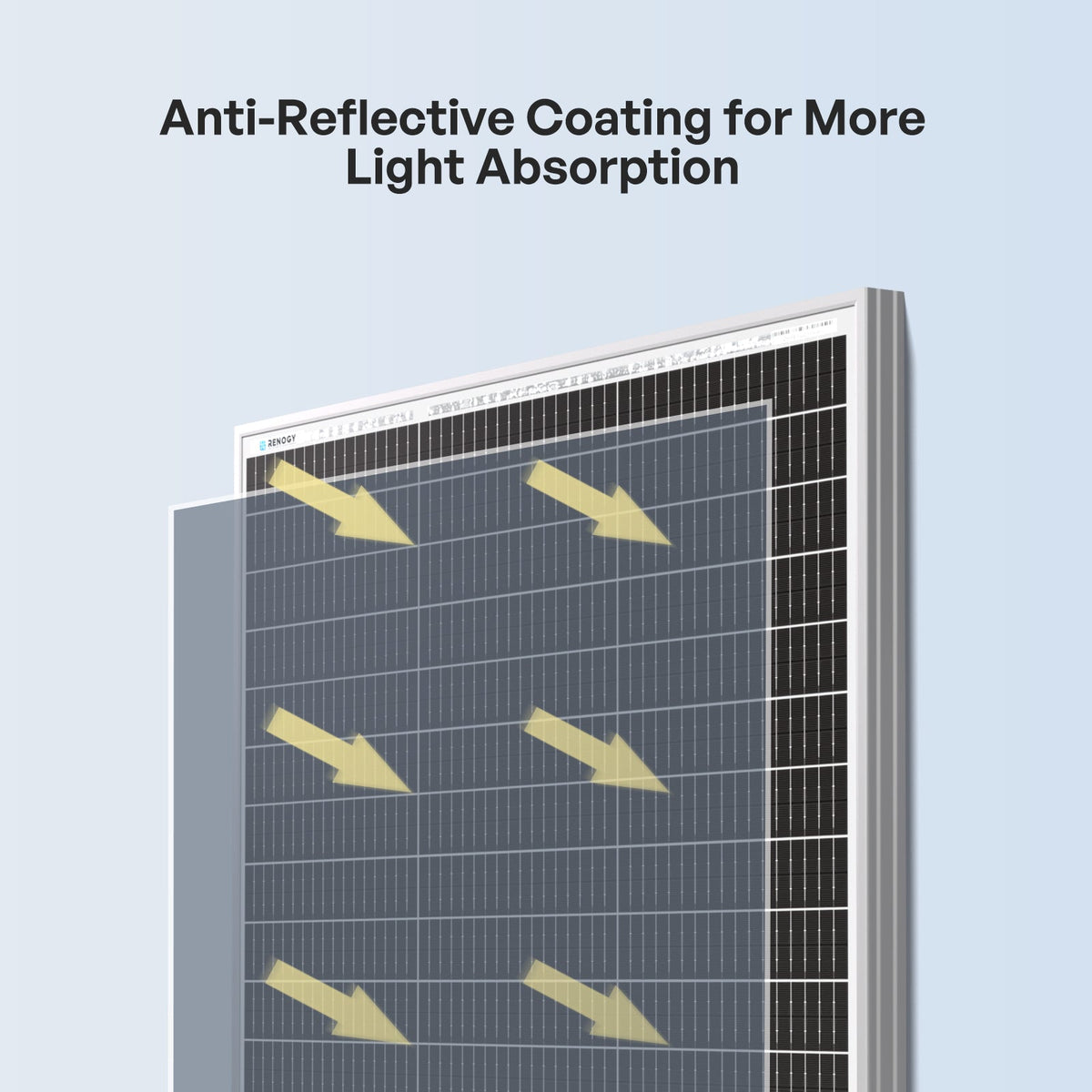

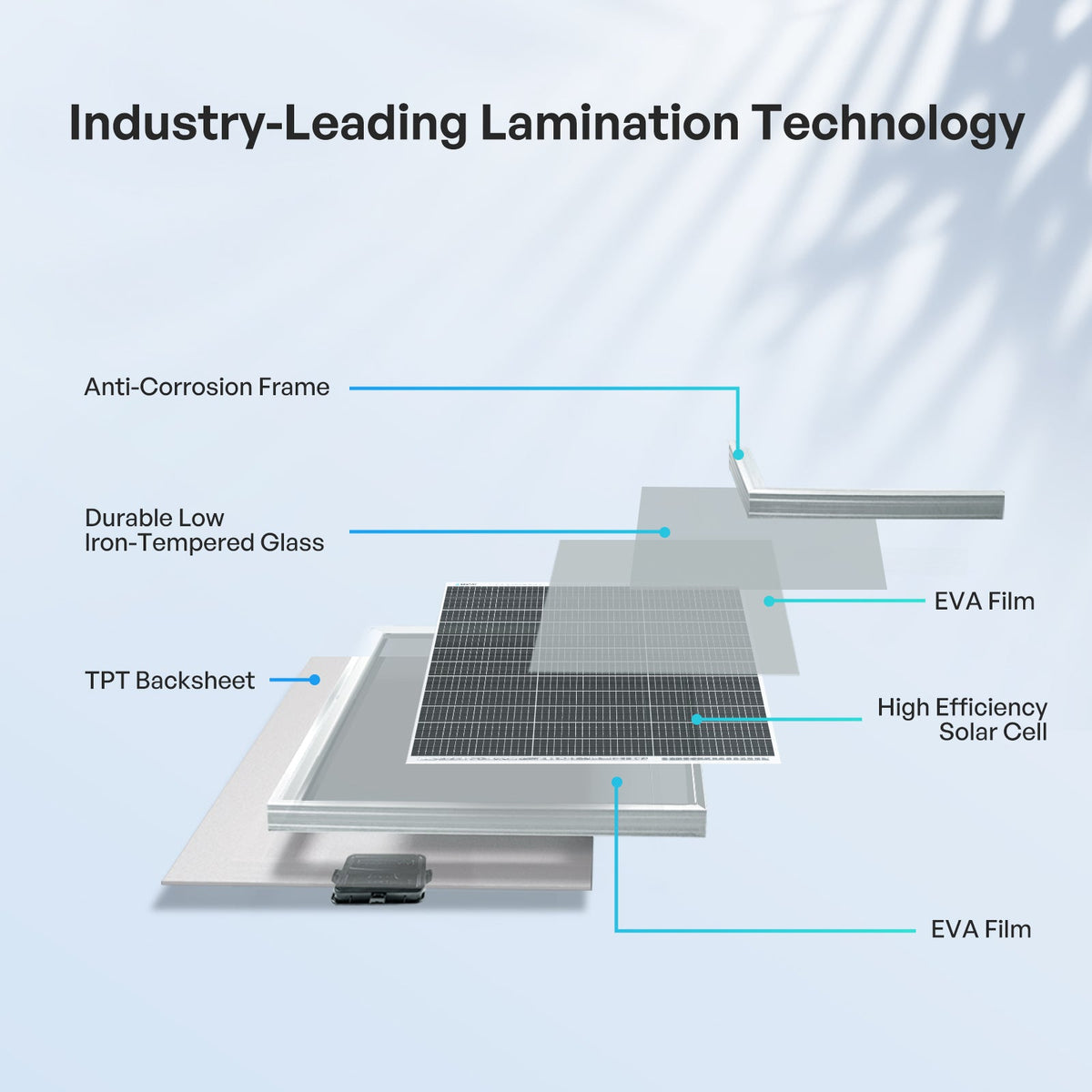

The aluminum frame is corrosion-resistant and rated to withstand wind loads of 2400Pa and snow loads of 5400Pa, giving the panel structural integrity in exposed roof or ground-mount positions through seasons of weather. The front surface is anti-reflective, low-iron tempered glass, which improves light transmission while resisting impact. The IP65-rated junction box provides complete protection against dust ingress and low-pressure water jets, keeping the electrical connections sealed in rain and wash-down conditions. The panel carries a guaranteed positive output tolerance of 0–3%, meaning it will produce at or above its rated 50W at standard test conditions rather than falling short.

Installation-Ready Hardware

Pre-drilled holes on the panel back allow direct attachment to Renogy Z-Brackets, Pole Mounts, and Tilt Mounts without additional drilling or fabrication. Separate pre-drilled holes are provided for system grounding. The panel arrives with MC4-compatible solar connectors and output cables, so it connects directly into an existing solar system or charge controller without additional adapters. The panel is also compatible with both on-grid and off-grid inverters, giving flexibility for cabin, van, and trailer builds that may combine grid-tie and battery-backup functions.

Features

• N-Type monocrystalline cells: 17.20% stated module efficiency with 16BB architecture for reduced resistive loss
• IP65 junction box: fully sealed against dust and low-pressure water jets
• Wind and snow rated: 2400Pa wind load and 5400Pa snow load tolerance
• Pre-drilled mounting and grounding holes: compatible with Renogy Z-Brackets, Pole Mounts, and Tilt Mounts
• Bypass diodes: minimize power drop under partial shading
• Positive output tolerance: guaranteed 0–3% above rated power at standard test conditions

Specifications

Who This Is For and Isn't

The Renogy 50W N-Type Rigid Solar Panel suits overlanders, van builders, boaters, and cabin owners who need a compact, entry-level panel to trickle-charge a 12V battery bank, power small off-grid loads, or expand an existing Renogy solar array. Its pre-drilled mounting holes and MC4 connectors make it a straightforward addition to any system already using Renogy mounting hardware.

This panel does not include a charge controller, mounting brackets, or cables beyond the output leads; those components are sold separately. At 50W, the panel is not sized for high-demand loads or large battery banks without additional panels in series or parallel. The rigid frame is not suited for curved or flexible mounting surfaces.

Common Questions

Does this panel come with a charge controller or mounting brackets?

The Renogy 50W N-Type Rigid Solar Panel ships with the panel and a warranty card only. A charge controller, mounting brackets (such as Renogy Z-Brackets, Pole Mounts, or Tilt Mounts), and additional cabling are sold separately and are not included in this listing.

What connectors does the panel use?

The 50W rigid panel uses MC4-compatible solar connectors.

Can this panel be connected to other panels to increase output?

The Renogy 50W N-Type Rigid Solar Panel supports series and parallel connections with compatible panels up to a maximum system voltage of 600VDC, with a maximum series fuse rating of 15A. Consult your charge controller's specifications to confirm compatibility before wiring multiple panels.

How does the panel hold up in rain, dust, and extreme temperatures?

The 50W rigid panel's junction box carries an IP65 rating, providing full protection against dust ingress and low-pressure water jets. The corrosion-resistant aluminum frame is rated for wind loads of 2400Pa and snow loads of 5400Pa. The panel operates across a temperature range of -40°F to 185°F (-40°C to 85°C).

Is this panel compatible with on-grid inverters as well as off-grid systems?

The Renogy 50W N-Type Rigid Solar Panel is compatible with both on-grid and off-grid inverters, making it usable in hybrid cabin or van builds that combine battery storage with grid-tie functionality.
