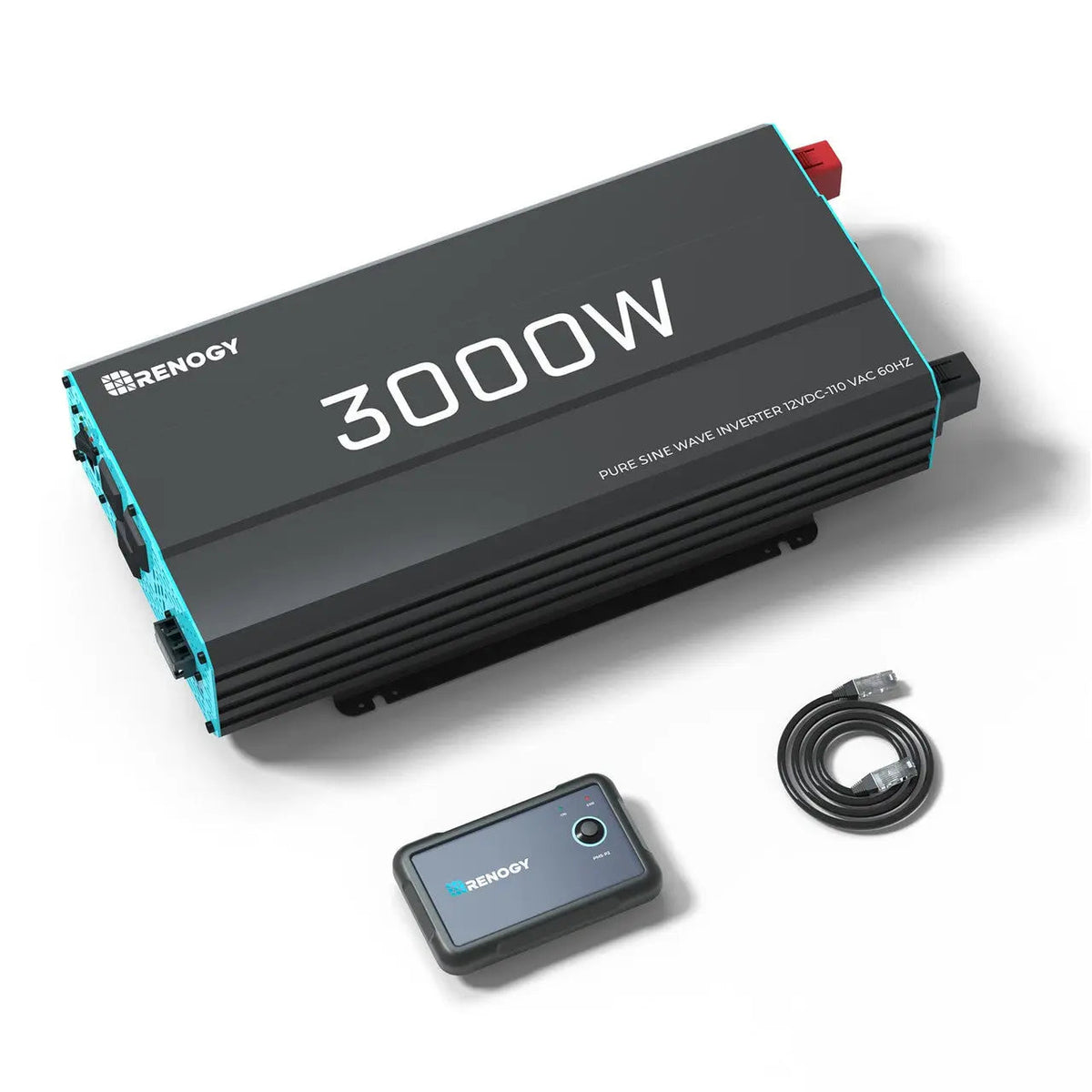

Renogy 3000W 12V Pure Sine Wave Inverter with Remote Control

The Renogy 3000W 12V Pure Sine Wave Inverter converts 12V DC battery power into 3000W of continuous 120V AC output, with a 6000W peak surge rating, making it suited for running high-draw appliances in vans, RVs, cabins, boats, and off-grid rigs. Pure sine wave output matches the waveform of utility grid power, protecting sensitive electronics and allowing inductive loads such as motors and microwave ovens to run cooler and quieter than they would on a modified sine wave inverter. A wired remote control and three AC outlets are included; battery cables are not included and must be sourced separately.

3000W Continuous, 6000W Peak

The Renogy 3000W inverter delivers 3000 watts of continuous AC power and handles surge demands up to 6000 watts, which matters when starting motors, compressors, or refrigerators that draw two to three times their running wattage at startup. Sizing to that headroom means the inverter does not trip under normal inductive-load startup conditions. Nominal efficiency exceeds 90%, so the draw on the battery bank stays close to the actual load rather than being lost as heat.

Clean Power for Sensitive Electronics

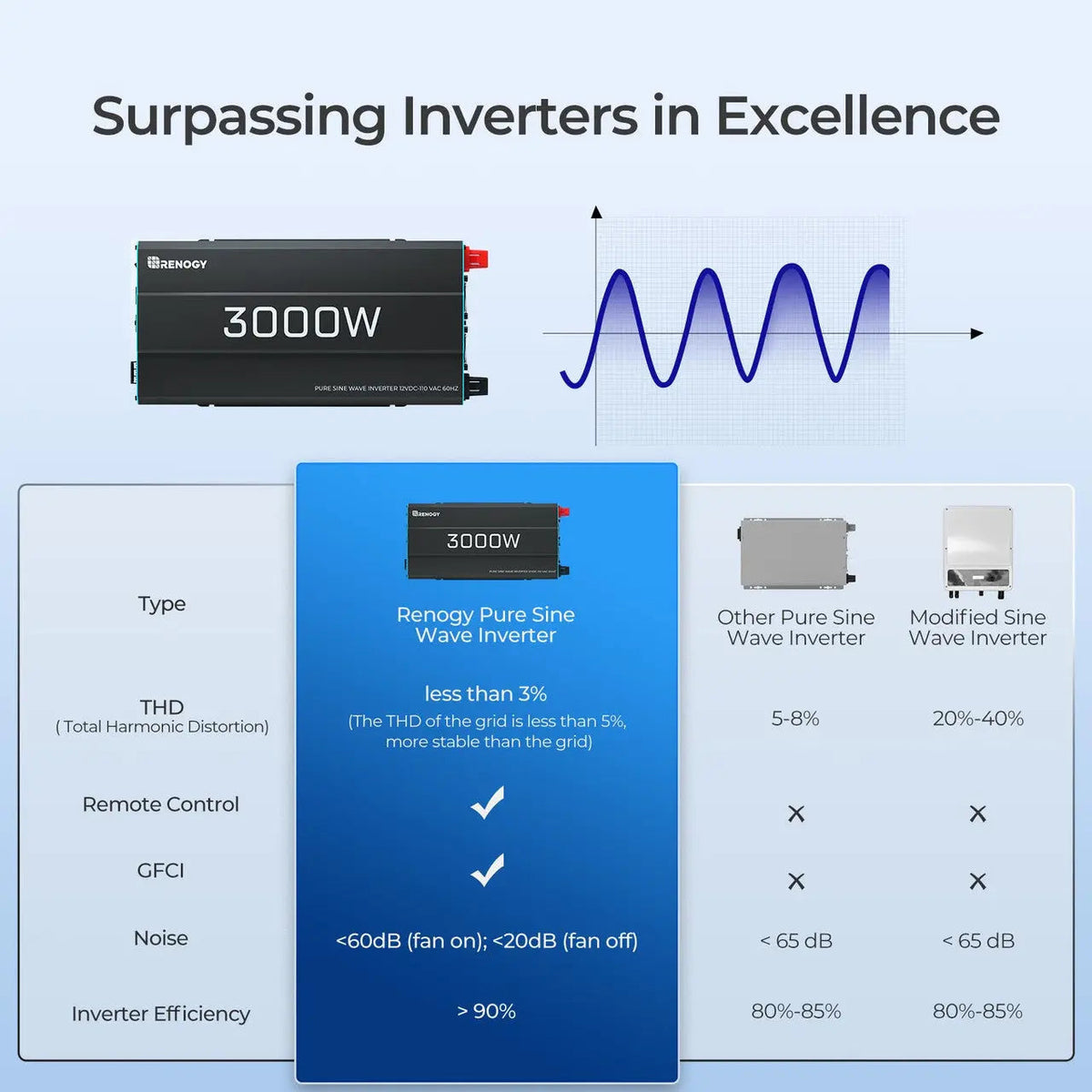

Pure sine wave output keeps total harmonic distortion below 3% for linear loads and below 5% for non-linear loads. That level of waveform quality is what audio equipment, variable-speed motors, medical devices, and modern electronics with switching power supplies expect. Modified sine wave inverters can cause audible hum in speakers, erratic behavior in some chargers, and excess heat in motor windings; the Renogy 3000W avoids those failure modes by producing a waveform that closely replicates utility power.

Thermal Management and Safety Features

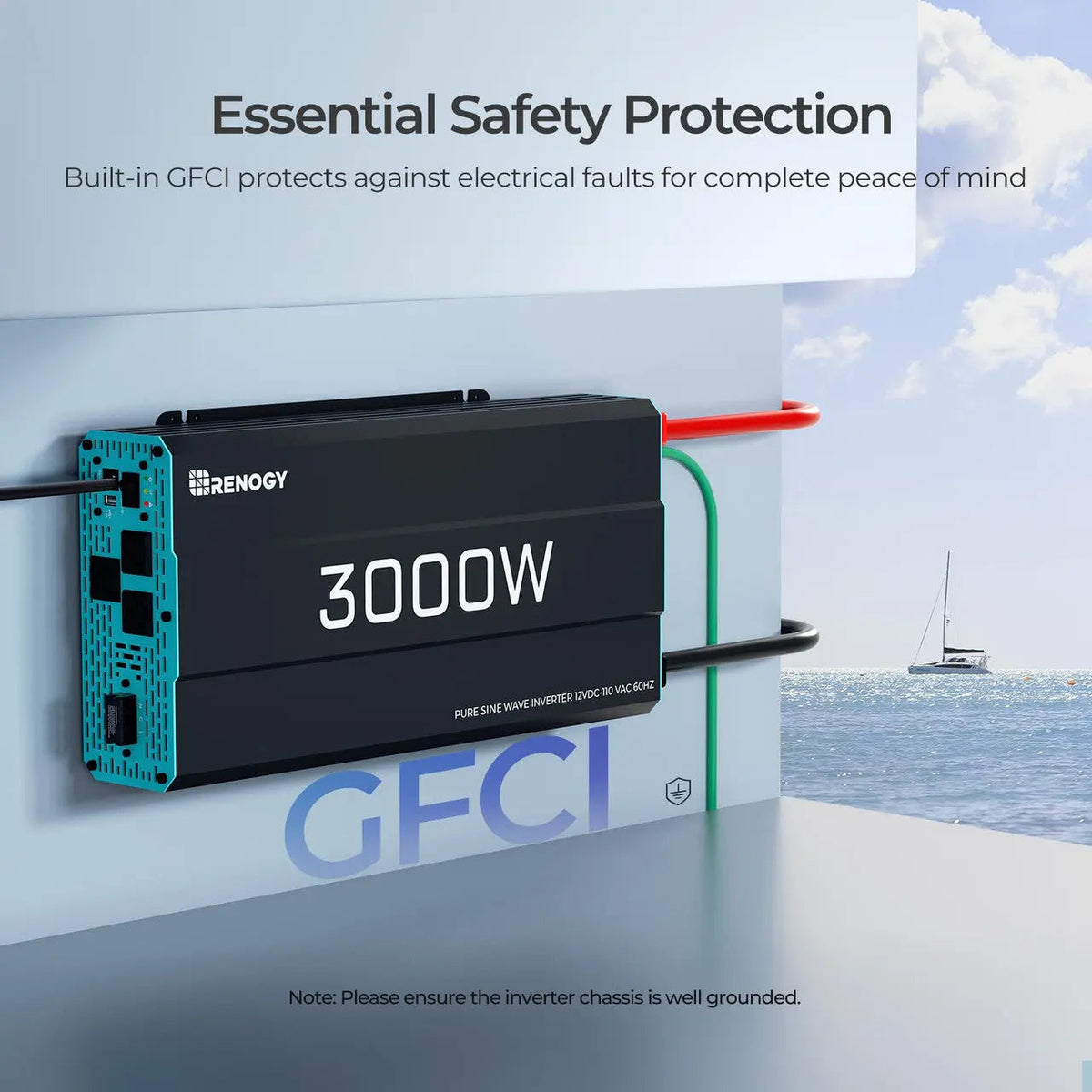

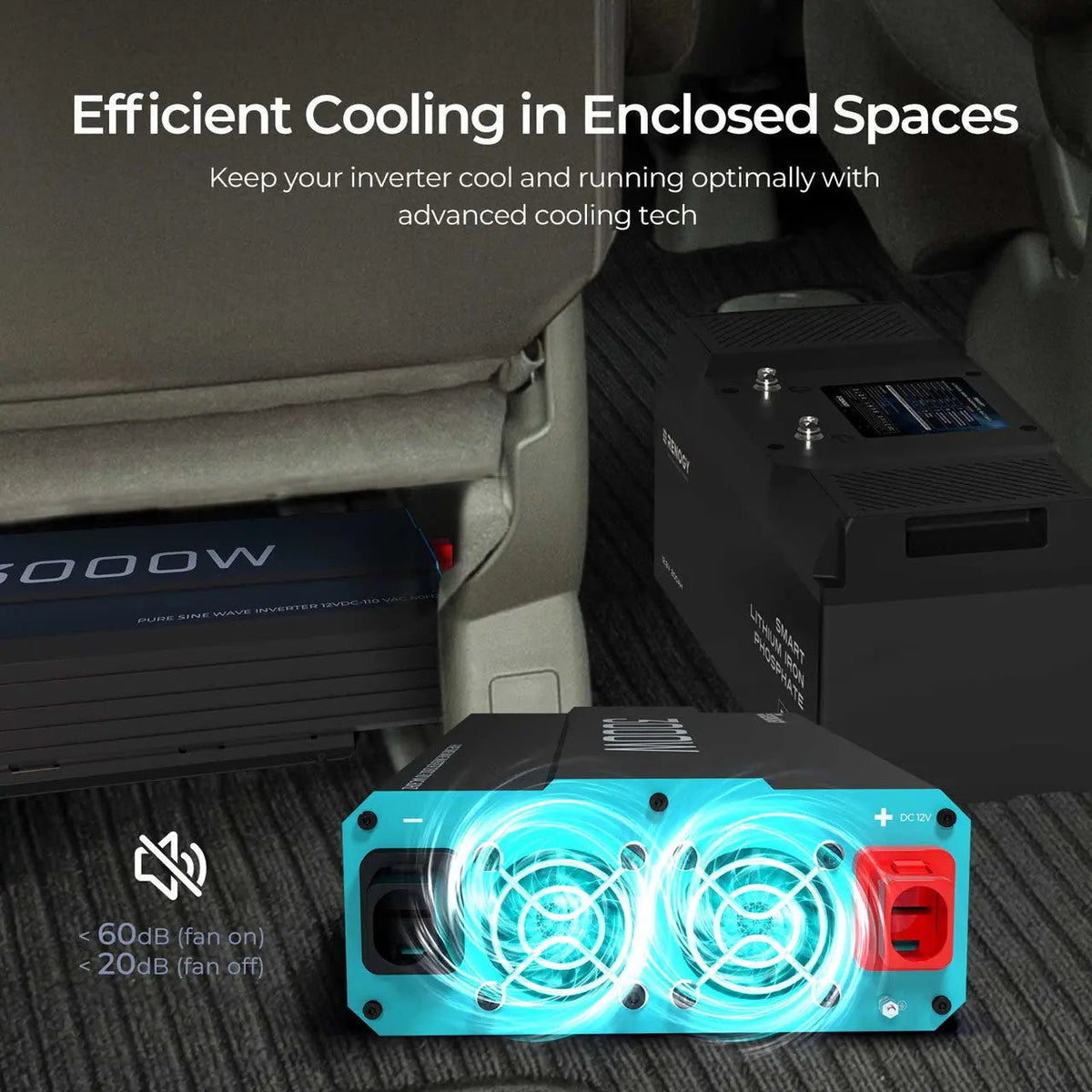

A thermally controlled cooling fan runs only when internal temperature requires it, reducing noise during light loads and extending fan life. The inverter includes GFCI protection and a full suite of electronic safeguards: low battery alarm at 11.0V, automatic shutdown at 10.0V, high voltage alarm at 16V, and over-voltage shutdown at 16.5V. Proper chassis grounding, described in the included user manual, is required for safe operation. The unit is ETL listed to UL 458 and CSA 22.2 No. 107.1-01.

Remote Control and Output Connections

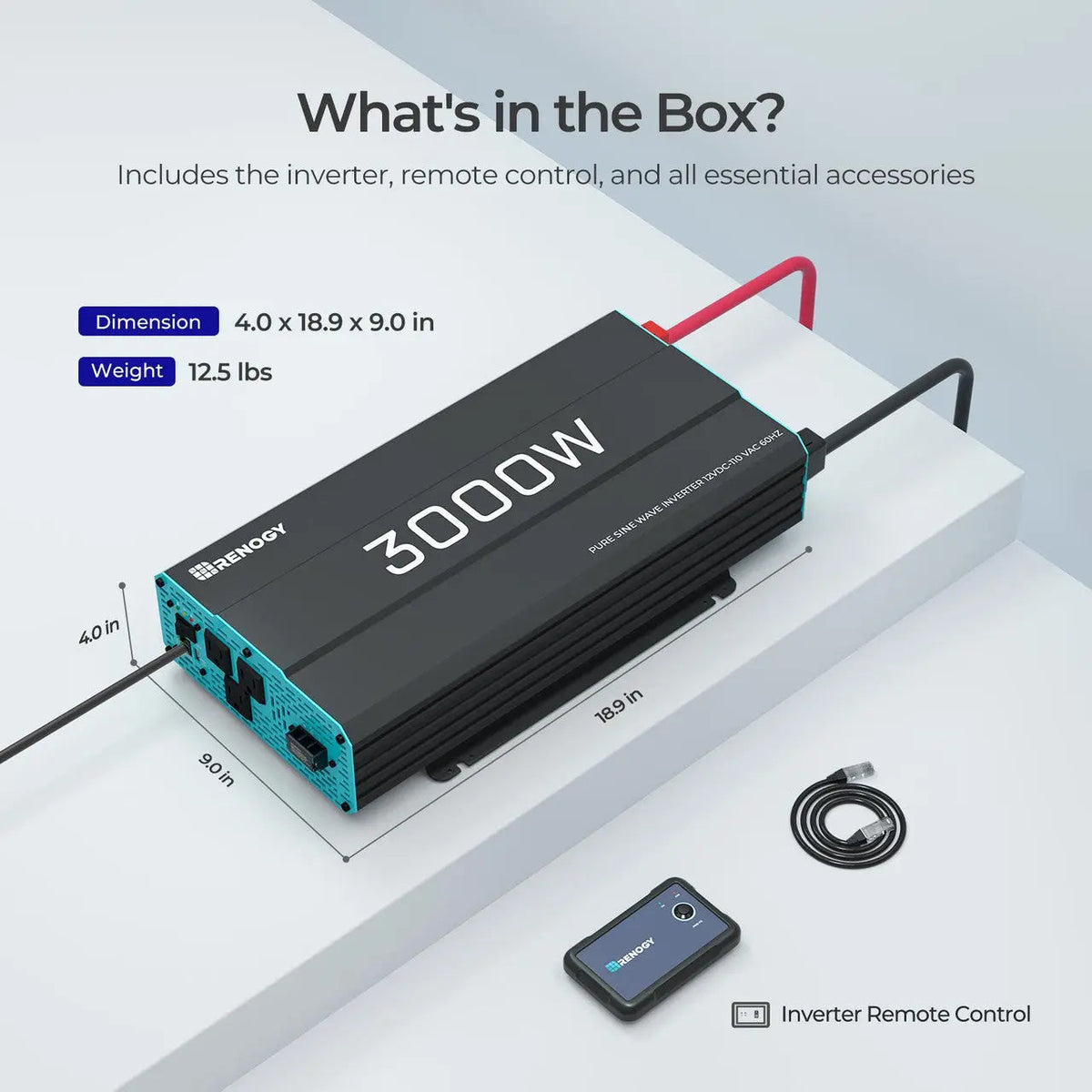

The included wired remote control connects via an RJ11 cable (16.4 ft / 5 m) and allows the inverter to be switched on or off without reaching the unit directly, which is useful when the inverter is mounted in a compartment or under a seat. Three AC outlets and one AC terminal block provide connection options for both standard plugged devices and hardwired loads. A 5V/2.1A USB port handles phone and small device charging. No Bluetooth module is compatible with this inverter.

Features

• 3000W continuous / 6000W peak: handles high-draw appliances and inductive startup surges
• Pure sine wave output: THD below 3% (linear) / 5% (non-linear), compatible with sensitive electronics and 12V lithium batteries
• GFCI and multi-stage protection: low battery alarm, low voltage shutdown, high voltage alarm, over-voltage shutdown
• Thermally controlled fan: runs only when needed, reducing noise at light loads
• Wired remote control included: 16.4 ft RJ11 cable for operation from a distance
• ETL listed: certified to UL 458 and CSA 22.2 No. 107.1-01

Specifications

Who This Is For and Isn't

The Renogy 3000W 12V Pure Sine Wave Inverter suits off-grid builds running on a 12V battery bank: vans, RVs, boats, cabins, and overland rigs where the load includes sensitive electronics, inductive appliances such as refrigerators or microwave ovens, or any device that requires clean, stable AC power. It also works with 12V lithium battery systems.

This inverter does not work with 24V battery systems. It converts DC to AC only and does not charge batteries; a separate inverter charger is required for charging. Battery cables are not included and must be purchased separately; 4/0 AWG cables are recommended. No Bluetooth module is compatible with this unit.

Common Questions

Will this inverter work with a 24V battery bank?

The Renogy 3000W Pure Sine Wave Inverter is designed for 12V DC input only and is not compatible with a 24V battery system. Connecting it to a 24V bank will damage the unit.

Can this inverter charge my batteries?

No. The Renogy 3000W inverter converts 12V DC battery power to 120V AC output only. It does not have a charging function. A separate inverter charger is required if battery charging from AC is needed.

Are battery cables included, and what gauge is recommended?

Battery cables are not included with the Renogy 3000W Pure Sine Wave Inverter. For optimal performance, use the shortest practical cable run and the thickest wire available; 4/0 AWG cables are recommended for this unit.

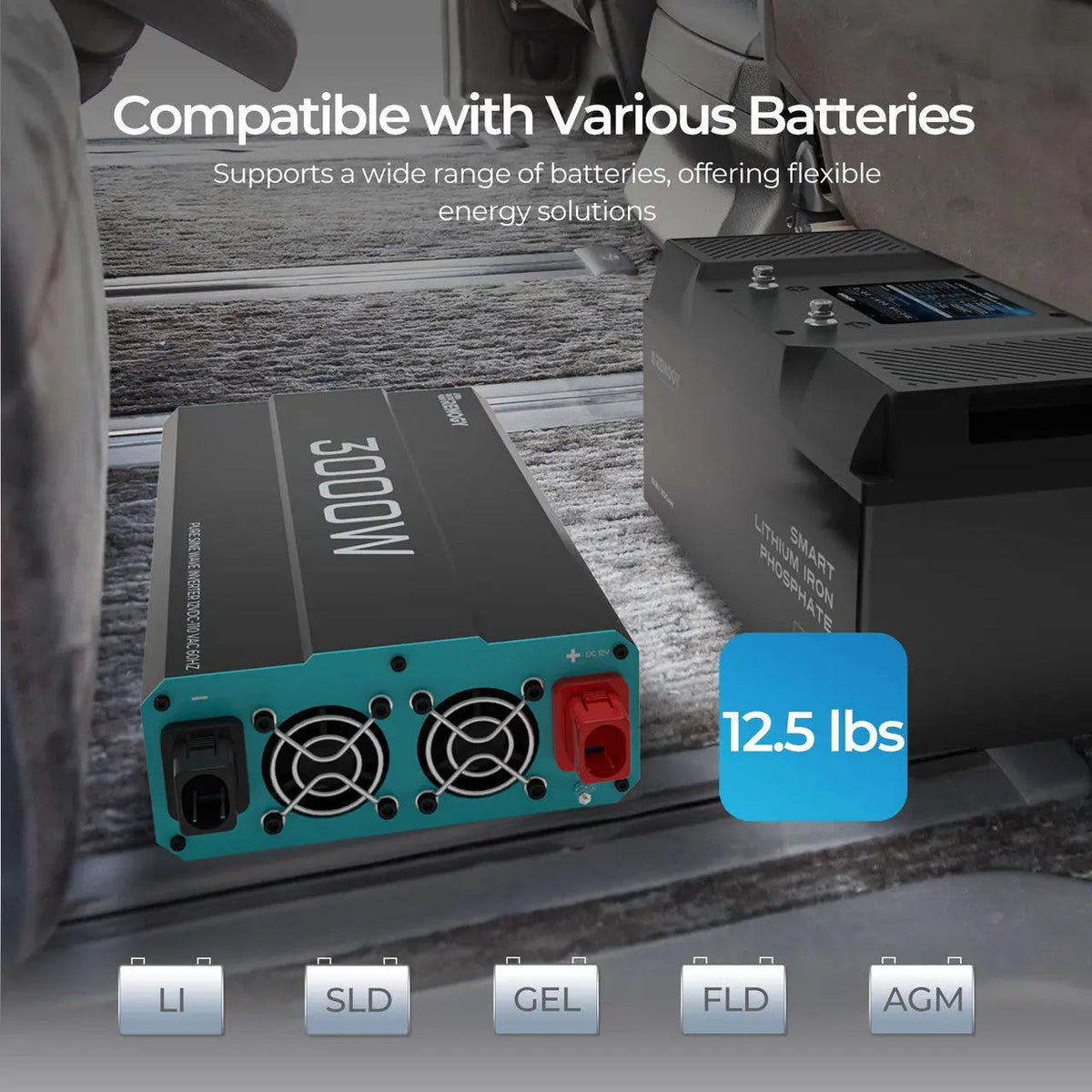

Does this inverter work with lithium batteries?

Yes. The Renogy 3000W Pure Sine Wave Inverter is compatible with lithium batteries rated for 12V applications, in addition to AGM and other 12V battery chemistries.

Can I monitor or control this inverter from my phone via Bluetooth?

No Bluetooth module is compatible with the Renogy 3000W Pure Sine Wave Inverter. The unit can be switched on and off using the included wired remote control, which connects via the 16.4 ft RJ11 cable.

How much clearance does the inverter need for ventilation?

Before mounting the Renogy 3000W inverter, allow at least 1.97 inches of clearance above the unit and at least 4 inches on the side with the busbars to ensure adequate airflow and prevent overheating.
