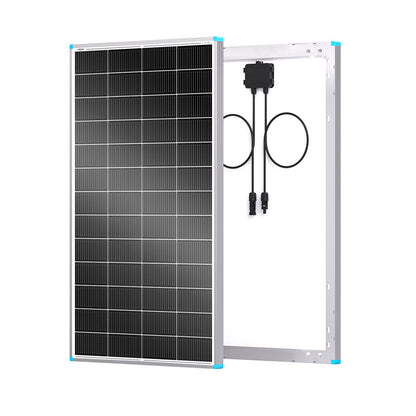

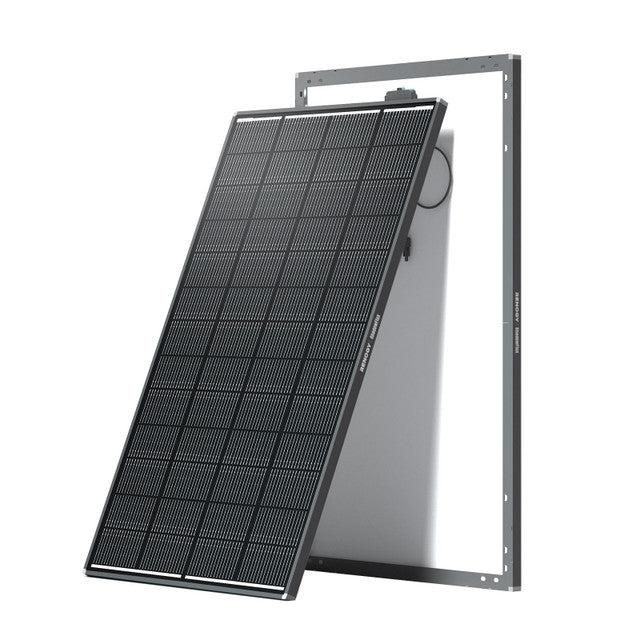

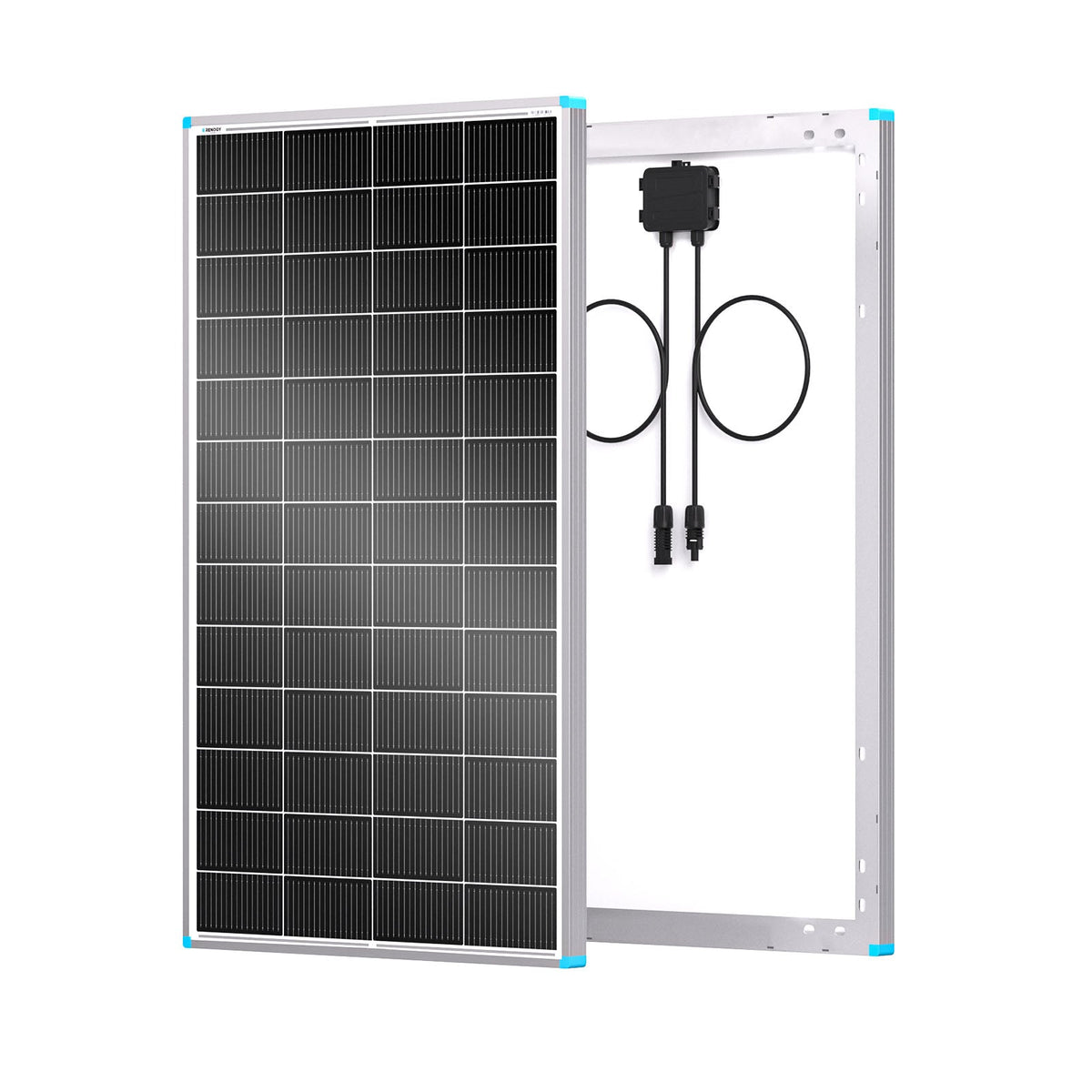

Renogy 200W N-Type High Efficiency Solar Panel

The Renogy 200W N-Type High Efficiency Solar Panel is a 200-watt rigid solar panel built for off-grid use in overlanding rigs, vans, RVs, trailers, and cabins. N-Type cells deliver conversion efficiency up to 25%, outperforming comparable P-type panels by 15% power generation in the same footprint. Two variants are available: the standard N-Type and the ShadowFlux™ N-Type, which adds Renogy's proprietary anti-shading cell interconnection technology for significantly reduced power loss under partial shade.

Higher Efficiency in the Same Footprint

N-Type cells in the Renogy 200W panel reach up to 25% conversion efficiency, which means more usable power from the same roof or rack space compared to conventional P-type panels. For overlanders and van builders working with limited mounting area, that efficiency gap translates directly into more charging capacity without adding panels or expanding the array. The 16-busbar ultra-fine gridline design minimizes internal shading loss and maximizes current collection, contributing to both higher output and longer cell lifespan. N-Type cells also carry a lower temperature coefficient (-0.27%/°C) than P-type cells, so output holds steadier on hot summer days when panels are working hardest.

Low-Light and All-Weather Reliability

LECO (Low-light Enhanced Cell Output) technology improves efficiency in overcast conditions while extending module durability, making it useful on cloudy travel days or in climates where full sun is not guaranteed. The panel's reinforced structure is rated for 5,400 Pa of snow load and 2,400 Pa of wind load, covering heavy accumulation and high-wind environments. A thickened frame and extra-strong glass provide resistance to hail, falling branches, and accidental impact, so the panel holds up through the conditions an overlanding or rooftop installation actually encounters.

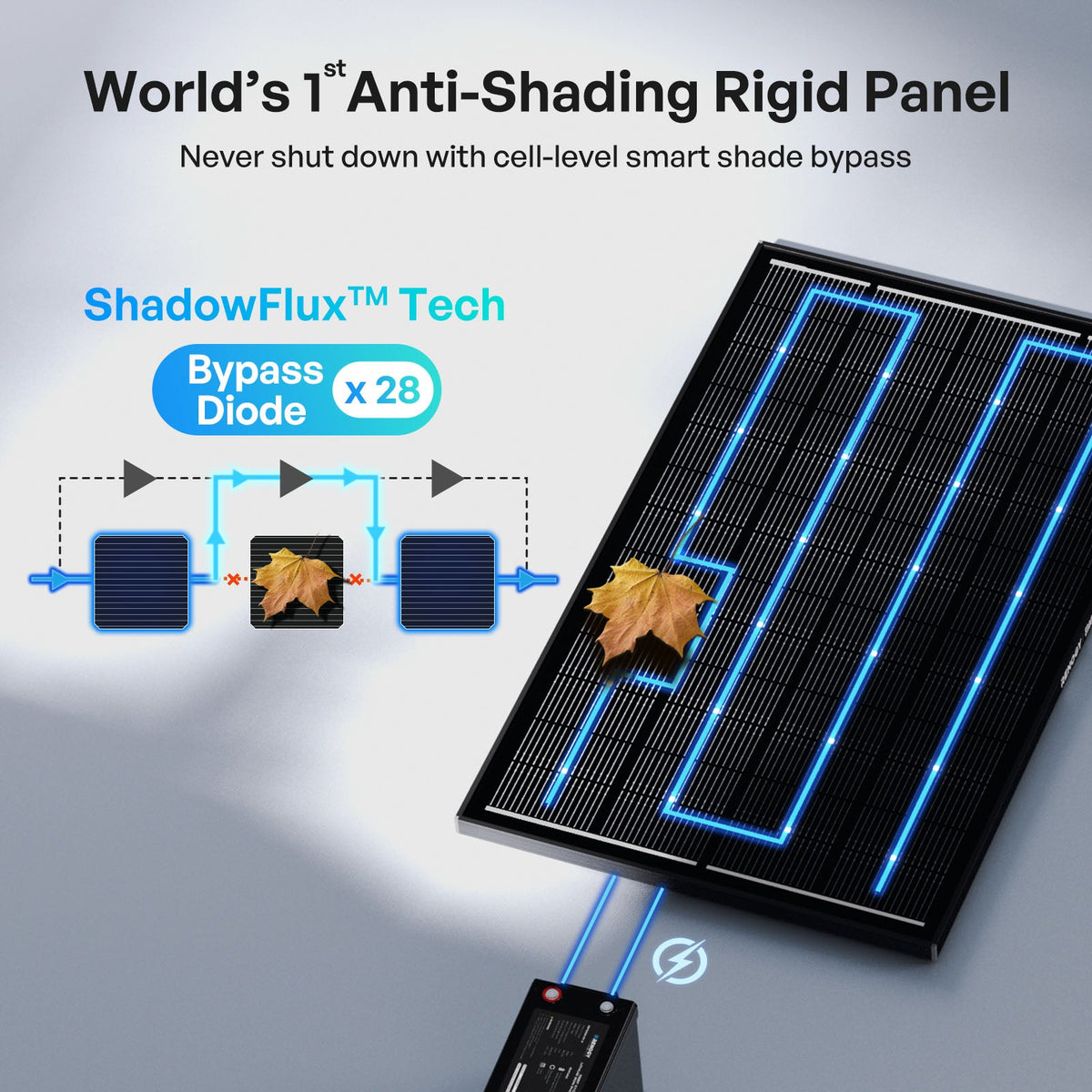

ShadowFlux™ Anti-Shading Technology (ShadowFlux Variant)

The ShadowFlux™ N-Type variant uses advanced cell interconnection technology engineered specifically to reduce power loss when part of the panel is shaded. Conventional panels can lose most or all output from a single shaded cell; ShadowFlux is designed to keep generating at significantly higher wattage under the same shaded conditions. The technology addresses a wide range of real-world shading: small point shadows such as bird droppings, leaf litter, and mud; linear shadows from power lines, antenna wires, and boat rigging; partial and patchy shadows from chimneys, vents, and tree branches; and dynamic shadows from moving clouds or shifting objects. ShadowFlux also prevents shaded areas from overheating into hot spots, which protects the panel's long-term output and lifespan. The ShadowFlux™ N-Type variant has an open-circuit voltage of 36.5V and is compatible with both 12V and 24V battery systems; for installations with frequent long-duration partial shading (such as from trees, roof racks, or boat masts), a 12V system generally provides more stable charging performance when running a single panel. An MPPT charge controller is strongly recommended for the ShadowFlux variant; the controller should support a maximum input voltage of at least 50V and a charging current above 10A. Some third-party PWM controllers may not operate correctly with this panel.

Features

• N-Type cells, up to 25% efficiency: outperforms P-type cells by 15% power generation in the same panel size.
• 16-busbar ultra-fine gridlines: minimize internal shading loss and maximize current collection for higher output and longer lifespan.
• LECO low-light technology: boosts efficiency in overcast conditions and extends module durability.
• ShadowFlux™ anti-shading (ShadowFlux variant only): advanced cell interconnection significantly reduces power loss under partial shade and prevents hot-spot overheating.
• Structural ratings of 5,400 Pa snow load and 2,400 Pa wind load: reinforced frame and extra-strong glass for hail, impact, and harsh-weather durability.
• Compact sizing for vehicle installations: panel dimensions are matched to Class B van roof coverage.

Specifications

Who This Is For and Isn't

The Renogy 200W N-Type Solar Panel suits overlanders, van builders, RV owners, and off-grid cabin or trailer setups that need high-efficiency solar charging in a compact rigid panel. The ShadowFlux™ N-Type variant is the right choice for installations where partial shading from roof racks, trees, rigging, or debris is a regular condition. Both variants are compatible with off-grid 12V and 24V battery systems using an MPPT charge controller.

This panel is not designed for on-grid or grid-tied systems. The ShadowFlux™ N-Type variant requires an MPPT charge controller with a maximum input voltage rating of at least 50V; PWM-only charge controllers may not operate correctly with it. Panel dimensions are not published for either variant; verify measurements before ordering if roof or rack space is constrained.

Common Questions

How does ShadowFlux™ technology reduce power loss under shade?

The Renogy 200W ShadowFlux™ N-Type panel uses advanced cell interconnection technology designed to keep generating power when part of the panel is shaded. Conventional panels can lose most or all output from a single shaded cell; the ShadowFlux variant is engineered to maintain significantly higher wattage output under the same shaded conditions. It also prevents shaded cells from overheating into hot spots, which protects long-term panel performance.

What types of shading does ShadowFlux™ handle?

The ShadowFlux™ variant of the Renogy 200W N-Type panel is designed to minimize power loss across a wide range of shading scenarios: small point shadows such as bird droppings, leaf litter, and mud; linear shadows from power lines, antenna wires, and boat rigging; partial and patchy shadows from chimneys, vents, and tree branches; and dynamic shadows from moving clouds or shifting objects. For best results, Renogy recommends keeping more than half the panel surface in direct sunlight when possible.

Is this panel compatible with 12V and 24V battery systems?

The ShadowFlux™ N-Type variant of the Renogy 200W panel is confirmed compatible with both 12V and 24V battery systems, with an open-circuit voltage of 36.5V. For installations with frequent long-duration partial shading (such as from trees, roof racks, or boat masts), a 12V system generally provides more stable charging performance when running a single panel.

What charge controller does this panel require?

Renogy strongly recommends an MPPT charge controller for the 200W N-Type panel. MPPT controllers make full use of the panel's voltage and perform better under variable or low-light conditions than PWM controllers. For the ShadowFlux™ variant, the charge controller should support a maximum input voltage of at least 50V and a charging current above 10A. Some third-party PWM controllers may not operate correctly with this panel.

What else is needed to build a complete off-grid solar system?

The Renogy 200W N-Type Solar Panel generates power but requires additional components to form a complete off-grid system: an MPPT charge controller to regulate current, a deep-cycle battery to store energy, adapter kit cables to connect the panel to the controller, and tray cables to connect the controller to the battery. These components are sold separately.

Can solar panels be connected in series or parallel?

Multiple Renogy 200W N-Type panels can be wired in series, parallel, or a combination of both to match a system's voltage and current requirements. In a series connection, voltages add while current stays the same as a single panel. In a parallel connection, currents combine while voltage stays the same as a single panel. For the ShadowFlux™ variant, the charge controller's maximum input voltage rating should be sized as at least 50V multiplied by the number of panels wired in series.
