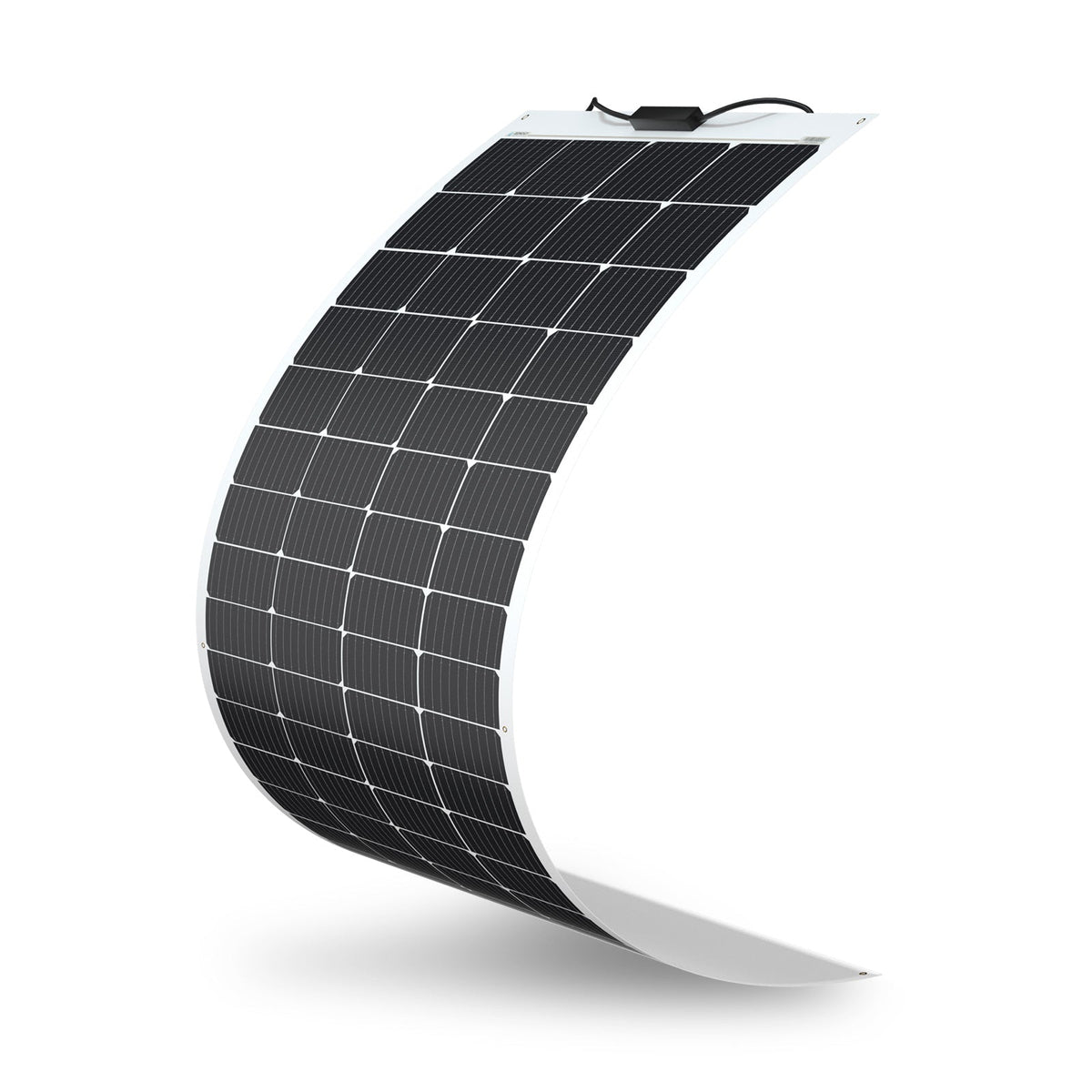

Renogy 200W Flexible Monocrystalline Solar Panel

The Renogy 200W Flexible Monocrystalline Solar Panel is a 10.8 lb, 200-watt solar panel built for curved and irregular mounting surfaces: RV roofs, van tops, boat decks, and overlanding rigs where a rigid framed panel will not conform. Monocrystalline PERC cells with half-cut technology and a 9 bus-bar layout deliver 16.7% module efficiency, and the panel bends up to 240° to follow the contour of the surface it mounts to.

Designed for Surfaces That Aren't Flat

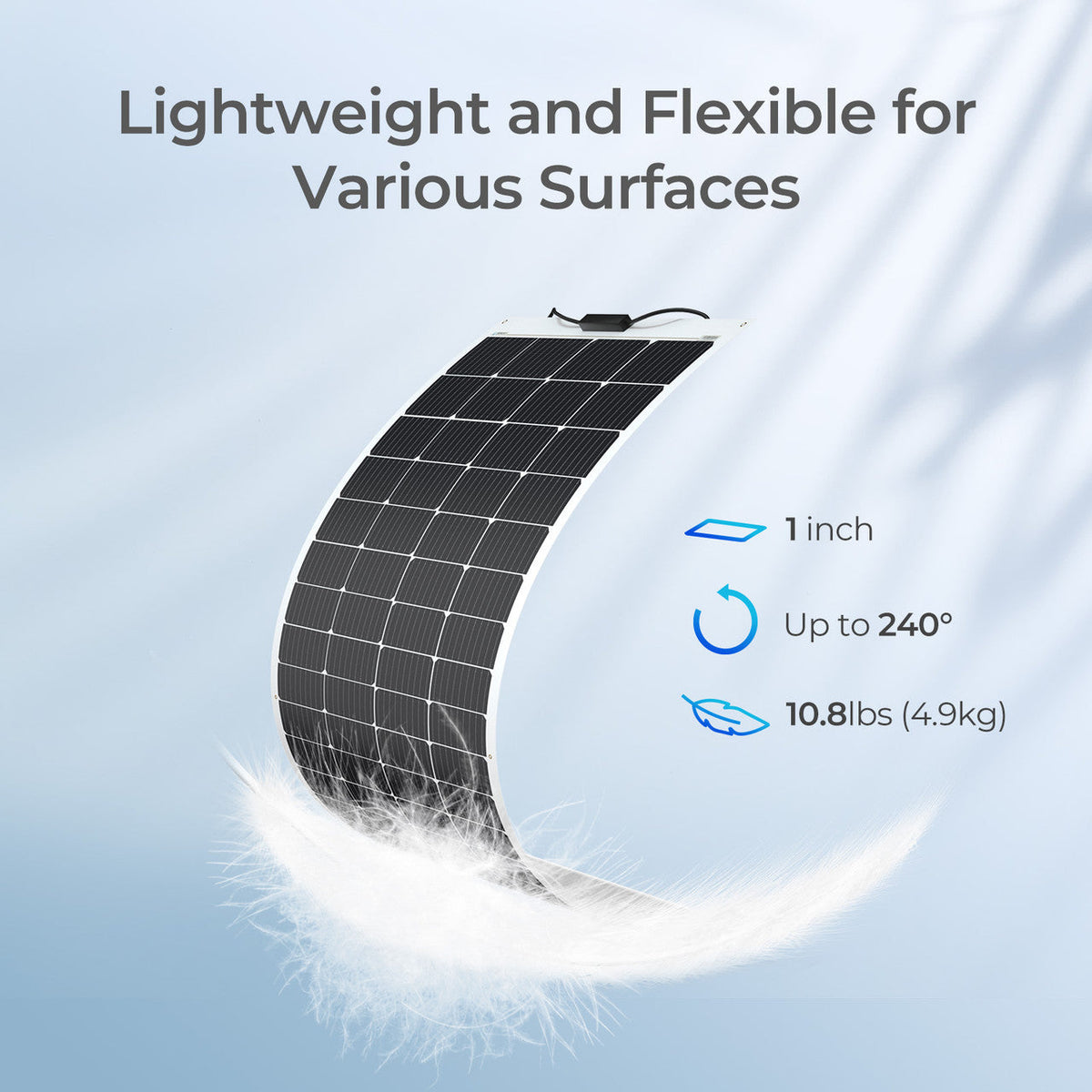

The Renogy 200W Flexible Panel bends up to 240°, letting it follow the curve of an RV cap, the crown of a van roof, or the deck of a boat without requiring a flat mounting plane. An internal composite material layer reinforces the flexible substrate so the panel holds its shape and resists fatigue through repeated flexing. At 10.8 lbs, the panel weighs roughly half what a comparably rated rigid glass panel would, which matters on a roof or rack where every pound affects handling and fuel economy.

Half-Cut PERC Cells Reduce Shading Losses

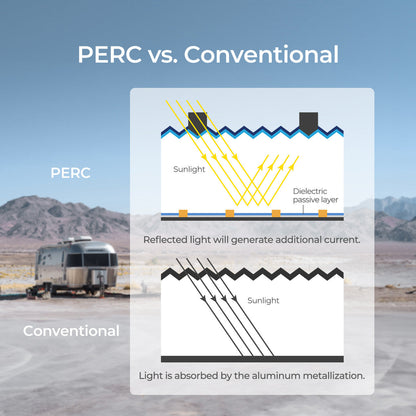

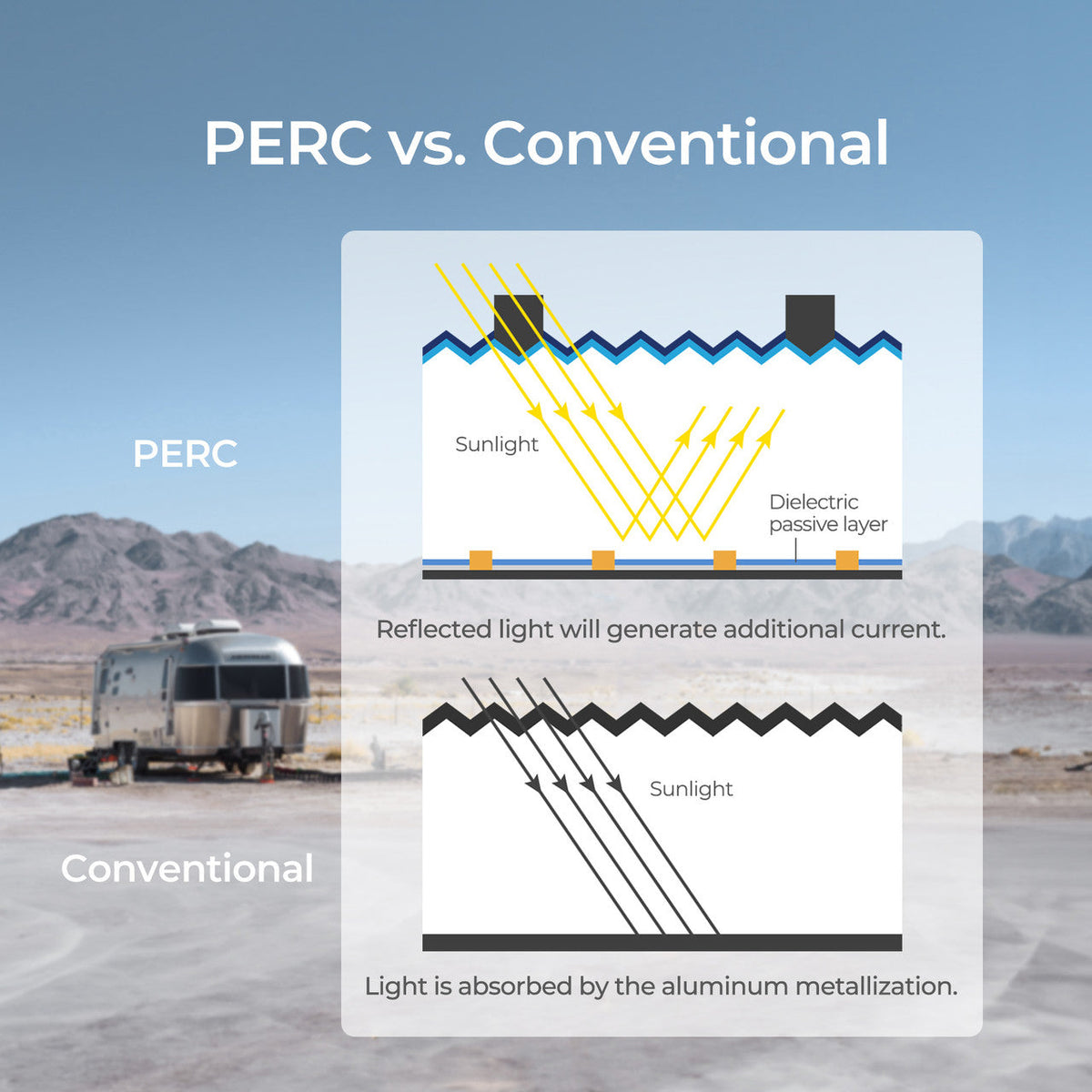

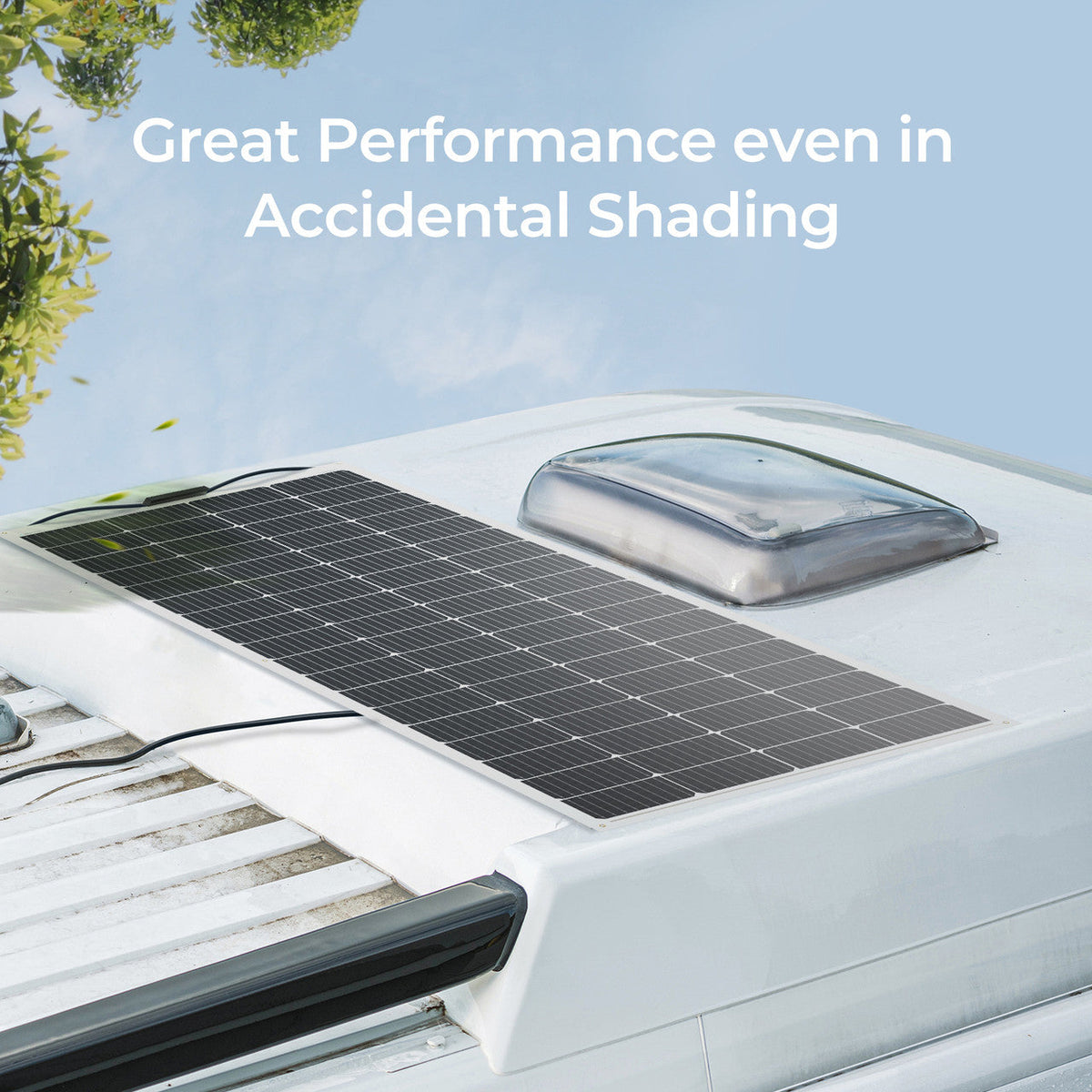

Half-cut cell construction splits each monocrystalline PERC cell in two, reducing internal resistance and raising wattage output compared to full-cell designs. Bypass diodes work alongside the half-cut layout to route current around shaded or underperforming cells rather than letting one shaded cell drag down the entire string. This is a meaningful advantage on a vehicle roof where an antenna, vent, or rack leg may cast a partial shadow. The ETFE surface layer enhances light transmittance into the cells and resists UV degradation over time.

Rated for Outdoor Operating Conditions

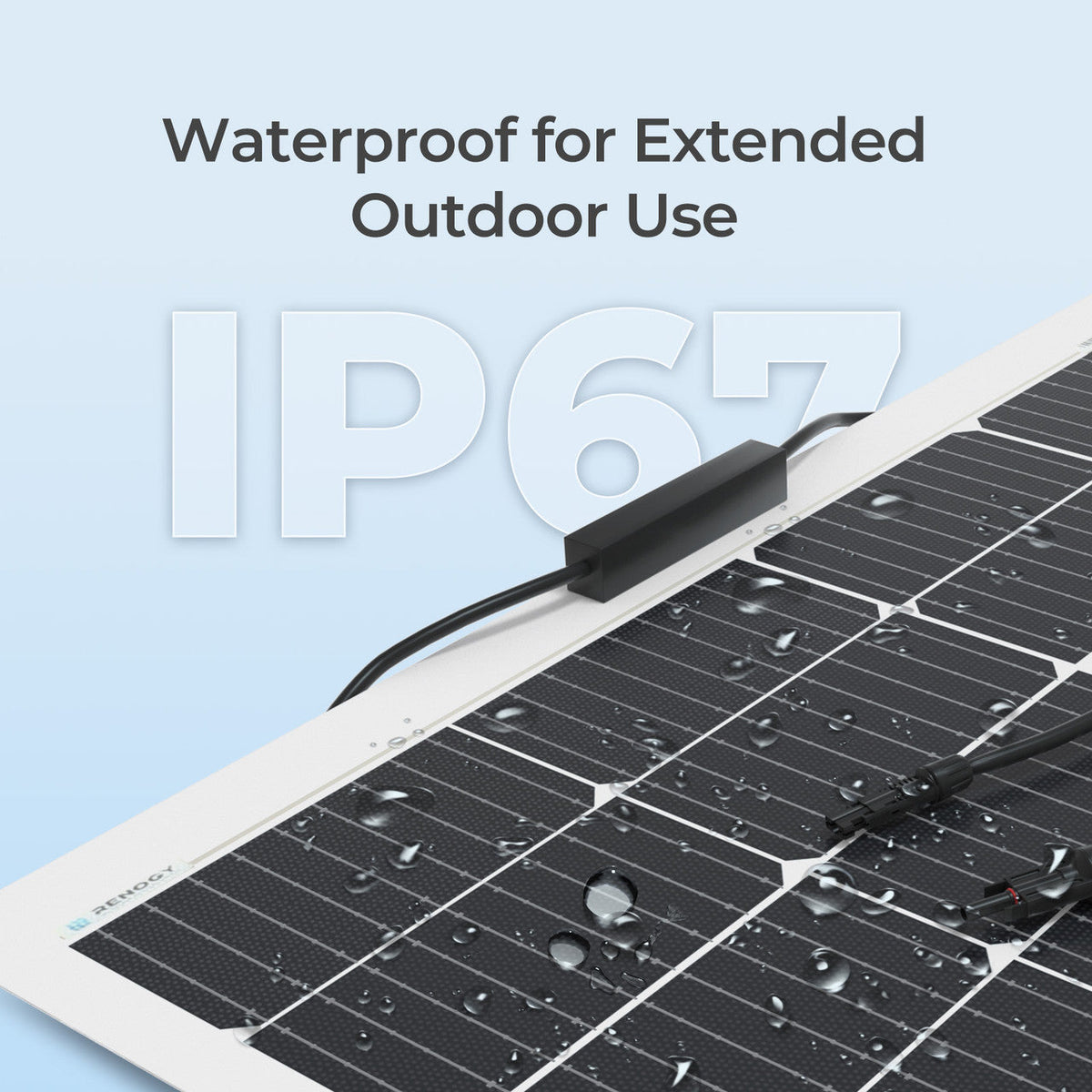

The junction box carries an IP68 ingress-protection rating and the solar connectors carry IP67, so both are sealed against rain, spray, and dust. The panel operates across a temperature range of -40°F to 176°F (-40°C to +80°C), covering cold-weather overlanding and high-desert summer conditions. Output cables are 12 AWG at 2.3 ft, and the maximum system voltage is 600V DC with a maximum series fuse rating of 15A.

Specifications

Who This Is For and Isn't

The Renogy 200W Flexible Solar Panel suits overlanders, van builders, RV owners, and boaters who need to mount solar on a curved or non-flat surface where a rigid framed panel cannot conform. Its low profile (0.1 in thick) and light weight make it a practical choice for weight-sensitive builds or surfaces that cannot support the load of a glass-and-aluminum panel.

This panel is not designed to be walked on; foot traffic can crack the cells. No charge controller, mounting hardware, or additional cables are included; the package contains the panel only. The panel is not intended for permanent ground-mount or fixed-tilt racking applications where a rigid framed panel would be the appropriate choice.

Common Questions

How does this flexible panel differ from a rigid solar panel?

The Renogy 200W Flexible Solar Panel uses a thin, bendable substrate instead of a glass-and-aluminum frame, so it can conform to curved surfaces like an RV roof cap or van top where a rigid panel would not lay flat. The flexible panel weighs roughly half what a comparably rated rigid panel weighs, which reduces roof load. The trade-off is that it cannot be walked on and is not suited for fixed ground-mount racking.

Can this panel be combined with rigid solar panels in an existing system?

The Renogy 200W Flexible Solar Panel can be wired in parallel with other panels that share the same voltage, including rigid panels, without issue. Panels with the same voltage but different wattage can be combined in a parallel configuration. Confirm that your charge controller is sized for the combined current of all panels before wiring them together.

Can I walk on this flexible solar panel?

No. Walking on the Renogy 200W Flexible Solar Panel concentrates pressure on a small area of the flexible substrate and can crack the cells beneath the surface. The panel is designed to conform to a curved mounting surface, not to support foot traffic.

Will this panel produce power in overcast or cloudy conditions?

The Renogy 200W Flexible Solar Panel will generate output in overcast conditions, though at a lower level than in direct sunlight. The stated average daily output of 1000 Wh is based on 5 hours of direct sunlight; actual output on cloudy days will be lower depending on cloud density and sun angle.

How do I wire multiple panels together, series or parallel?

Wiring Renogy 200W Flexible Solar Panels in series adds the voltage of each panel while keeping current the same as a single panel. Wiring them in parallel adds the current while keeping voltage the same as a single panel. Both configurations can be combined to match the input requirements of your charge controller. Consult your controller's specifications for maximum input voltage and current before wiring.
