Renogy 2000W 24V Pure Sine Wave Inverter

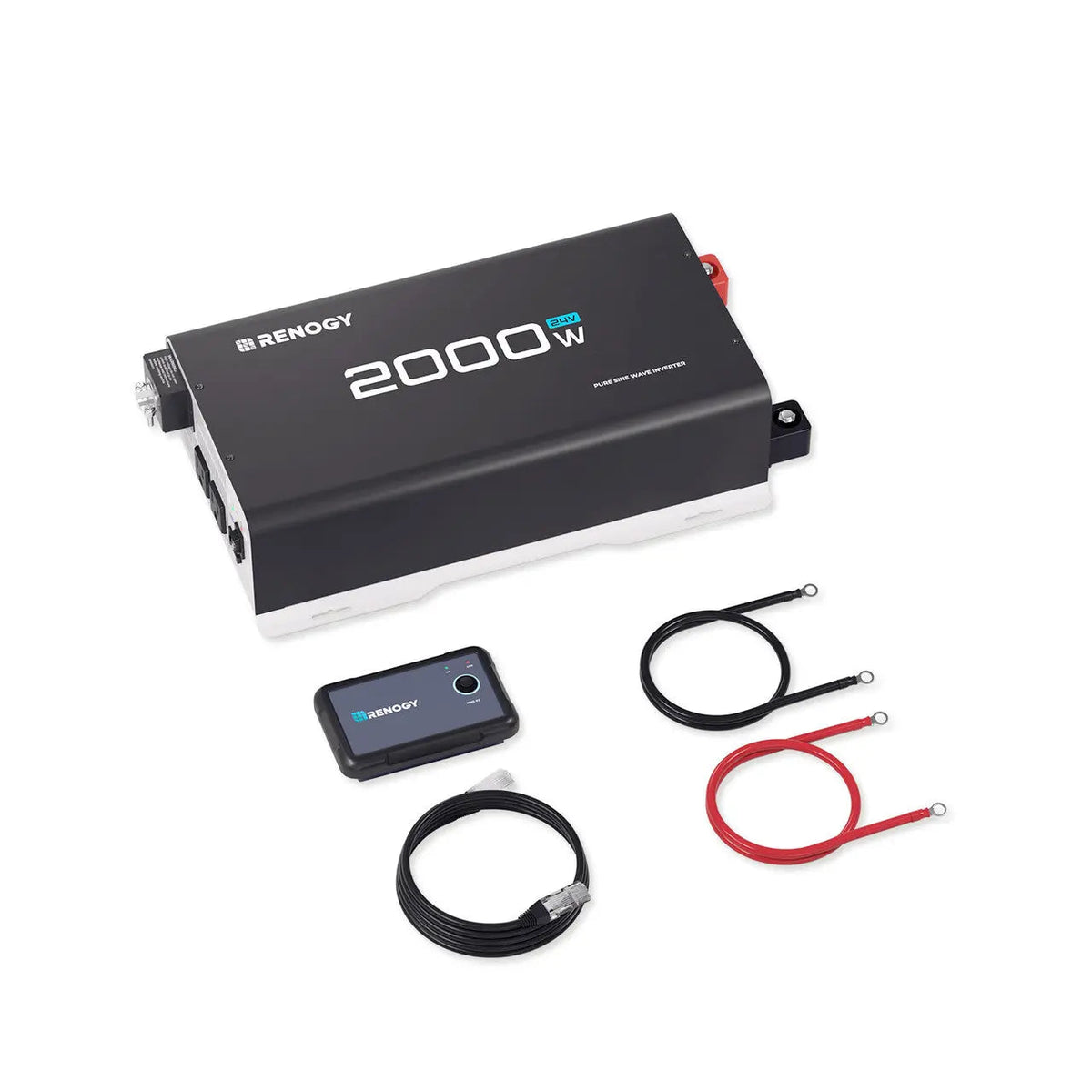

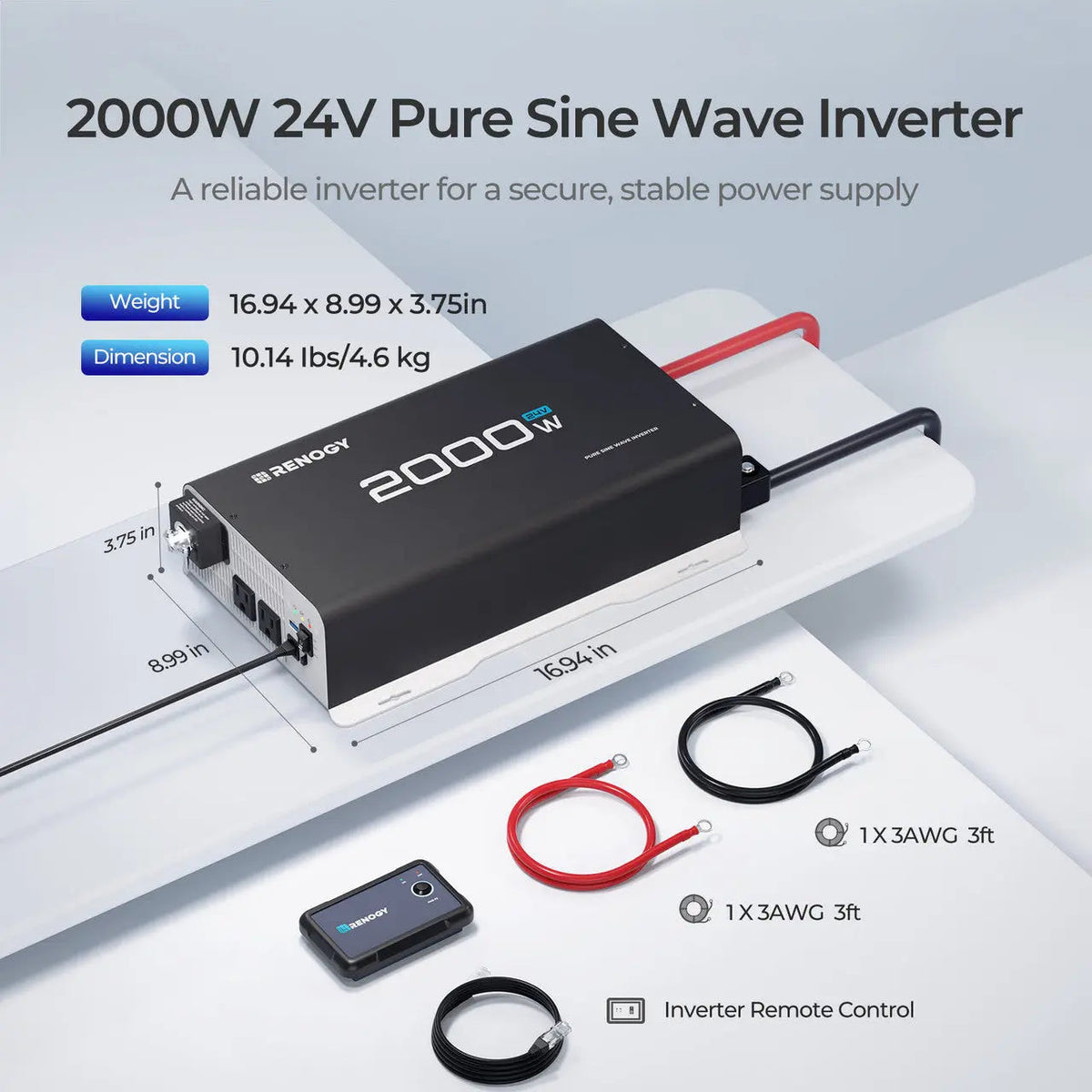

The Renogy 2000W 24V Pure Sine Wave Inverter converts 24V DC battery power to 120V AC at up to 2000 watts continuous, with a 4000W surge rating for inductive loads, making it suited to overlanding rigs, vans, boats, and off-grid cabins running 24V house battery banks. It ships with a wired remote control and two inverter cables. Two AC sockets plus a terminal block provide connection flexibility for a range of AC loads.

Clean Power for Sensitive Electronics and Motor Loads

A pure sine wave output keeps total harmonic distortion below 3%, which matters when running laptops, audio equipment, medical devices, or any load that reacts poorly to the stepped waveform of a modified sine wave inverter. Motors and compressors run cooler and draw less current on a clean sine wave, which reduces wear and lowers the risk of nuisance trips during extended use.

4000W Surge Headroom for Inductive Loads

Inductive loads (refrigerator compressors, air conditioner motors, power tools) draw several times their running current at startup. The Renogy 2000W 24V inverter handles surge demands up to 4000W for two seconds, giving motors enough headroom to spin up without tripping the inverter's protection. Starting the highest-draw inductive load first, before switching on additional appliances, keeps total startup current within the inverter's surge window.

Efficiency and Thermal Management

The inverter reaches up to 92% conversion efficiency, meaning less energy is lost as heat during conversion and more of the stored battery capacity reaches the AC load. Thermally controlled fans run only as needed, reducing noise during light loads and extending fan life. Idle power consumption stays below 19.2W, which limits parasitic draw when loads are light or the inverter is on standby.

Features

• Pure sine wave output: 120V AC ±3%, THD below 3%, Power Factor 1
• 4000W surge rating: handles inductive load startup surges for up to 2 seconds
• Wired remote control included: 16.40 ft cable lets you switch the inverter on or off from a distance
• Two AC outputs plus terminal block: M8-1.25×25 DC terminals; 2 × AC sockets and a terminal block for wired AC runs
• Thermally controlled cooling fans: fans activate based on temperature rather than running continuously
• Battery protection thresholds: low-voltage alarm at 22.4VDC, shutdown at 21.8VDC, overvoltage shutdown at 33.3VDC

Specifications

Who This Is For and Isn't

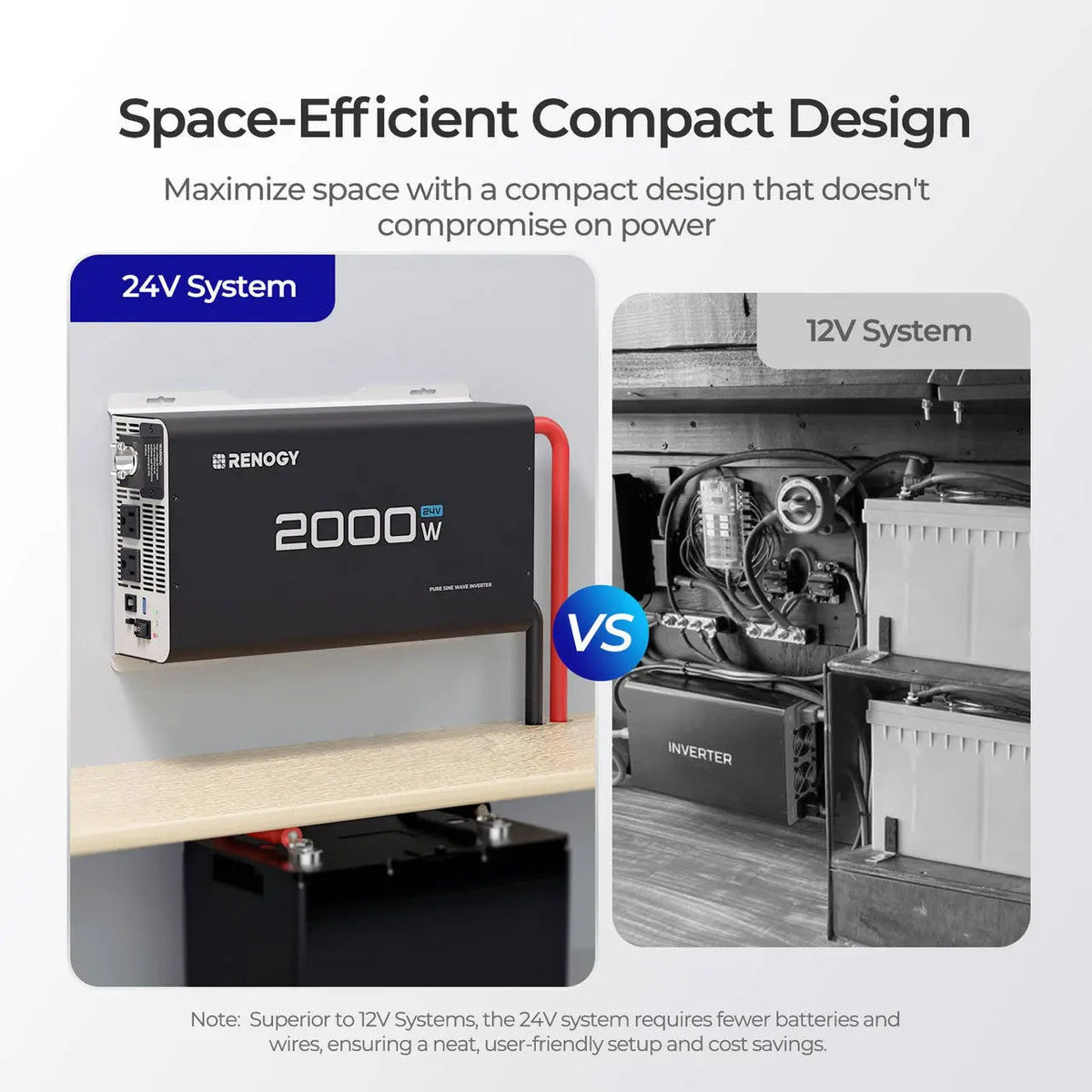

The Renogy 2000W 24V Pure Sine Wave Inverter suits overlanders, van builders, boaters, and off-grid cabin owners who have built or are building a 24V house battery bank and need clean AC power for sensitive electronics, motor-driven appliances, or both. The UL458 Marine supplement certification makes it a documented choice for marine DC electrical systems.

This inverter requires a 24V DC source within the 23–30.7VDC input range; it is not compatible with 12V or 48V battery banks. The IP20 enclosure rating does not protect against water ingress, so the inverter must be installed in a dry, ventilated interior location away from rain, spray, and condensation. It does not include a battery, charge controller, or solar panels.

Common Questions

What is the difference between a pure sine wave inverter and a modified sine wave inverter?

The Renogy 2000W 24V Pure Sine Wave Inverter produces a smooth AC waveform with total harmonic distortion below 3%, closely matching utility grid power. A modified sine wave inverter produces a stepped waveform that can cause noise, heat, and reduced efficiency in motors and may cause glitches or shortened lifespan in sensitive electronics such as computers and audio equipment.

Can this inverter handle appliances with high startup current, like a refrigerator compressor or air conditioner?

The Renogy 2000W 24V inverter has a 4000W surge rating for up to two seconds, which provides headroom for the high inrush current inductive loads draw at startup. Starting the highest-draw inductive load first, before switching on other appliances, helps keep total startup current within the inverter's surge capacity and reduces the risk of a protection trip.

Is this inverter suitable for use on a boat?

The Renogy 2000W 24V Pure Sine Wave Inverter carries UL458 certification including the Marine supplement, which covers its use in marine DC electrical systems. The IP20 enclosure rating does not protect against water spray or splash, so the inverter must be installed in a dry, ventilated interior location. Grounding the inverter to the boat's electrical ground and using GFCI outlets on the AC side are standard safety practices for marine installations.

How many appliances can run simultaneously?

The Renogy 2000W 24V inverter supports a combined continuous AC load of up to 2000 watts across its two AC sockets and terminal block. Running loads whose combined wattage exceeds 2000W will trigger the inverter's overload protection. Checking the running wattage of each appliance before connecting multiple loads helps avoid tripping the protection.

What does the wired remote control do, and how far does the cable reach?

The included wired remote control lets you switch the Renogy 2000W 24V inverter on or off from a distance without reaching the inverter itself, which is useful when the unit is mounted under a seat, in a cabinet, or in another out-of-reach location. The remote cable is 16.40 ft long.
