Renogy 12-Way Battery Terminal Distribution Block Pair

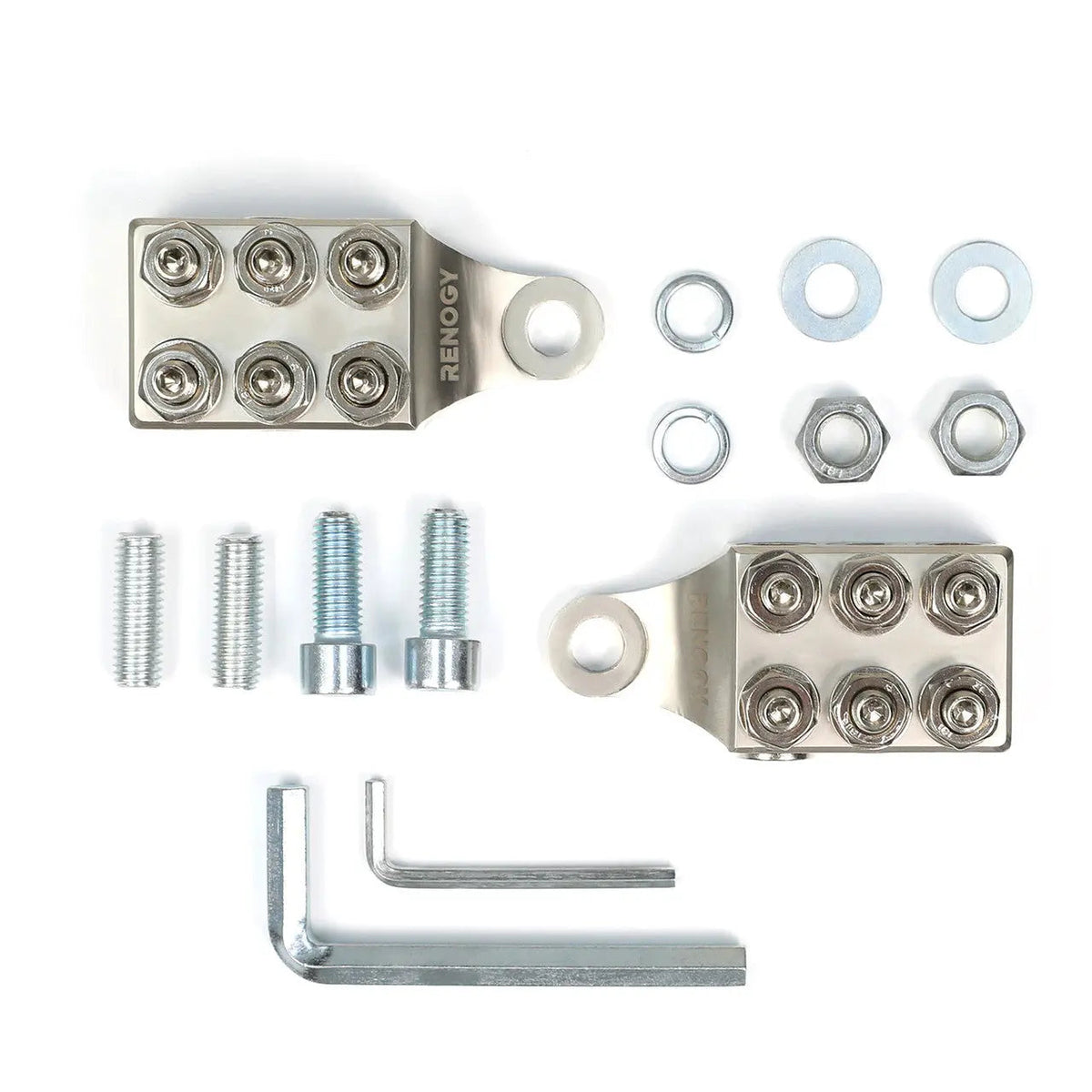

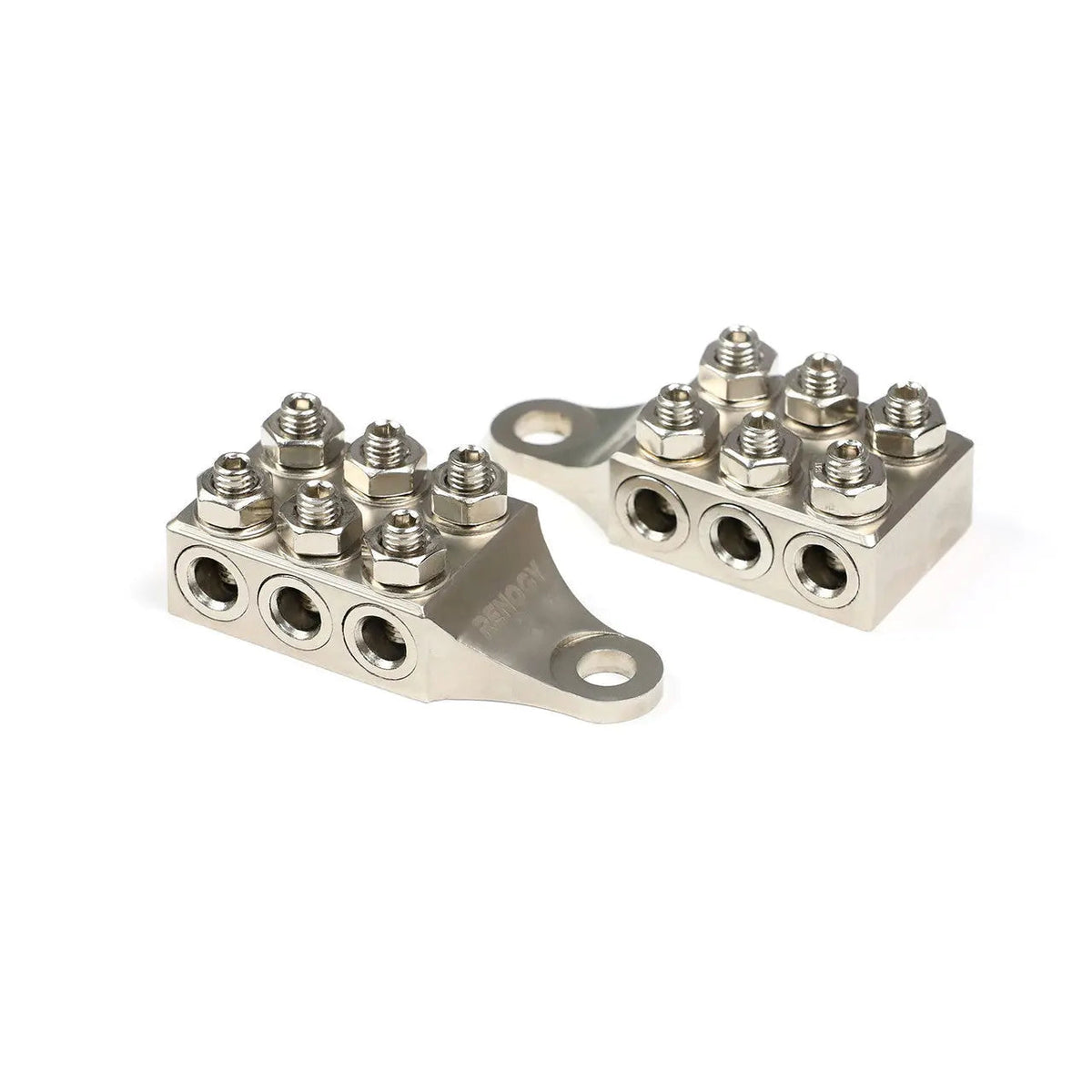

The Renogy 12-Way Battery Terminal Distribution Block is a zinc alloy bus bar designed to expand a single battery post into 12 connection points: 6 hole-holders and 6 threaded studs, with a 400A current carrying capacity per terminal. It accepts wire sizes from 8 AWG through 4/0 AWG and is compatible with lithium, AGM, MF, GEL, WET, and CA/CA lead-acid batteries. This listing is sold as a pair of terminal blocks.

Flexible Connections for Complex Builds

Running multiple loads or batteries off a single terminal creates crowded, unreliable connections. The 12-way layout gives each cable its own dedicated seat: hole-holders for ring-terminal lugs and threaded studs for nut-secured connections, so every circuit gets a clean, mechanically secure attachment point. For overlanding rigs, vans, or trailer builds where a house battery feeds a charge controller, inverter, DC-DC charger, fuse block, and auxiliary loads simultaneously, having 12 discrete connection points per terminal removes the need for daisy-chaining or stacking ring terminals on a single stud.

Built to Handle High-Current Loads

Zinc alloy construction gives the terminal block corrosion resistance alongside the structural rigidity needed to handle large-gauge cable terminations up to 4/0 AWG without deforming under torque. The 400A continuous current carrying capacity per terminal means the block itself is not the limiting factor in most 12V house-battery systems, leaving headroom for the wiring and fusing to do their jobs without the terminal becoming a bottleneck or heat source.

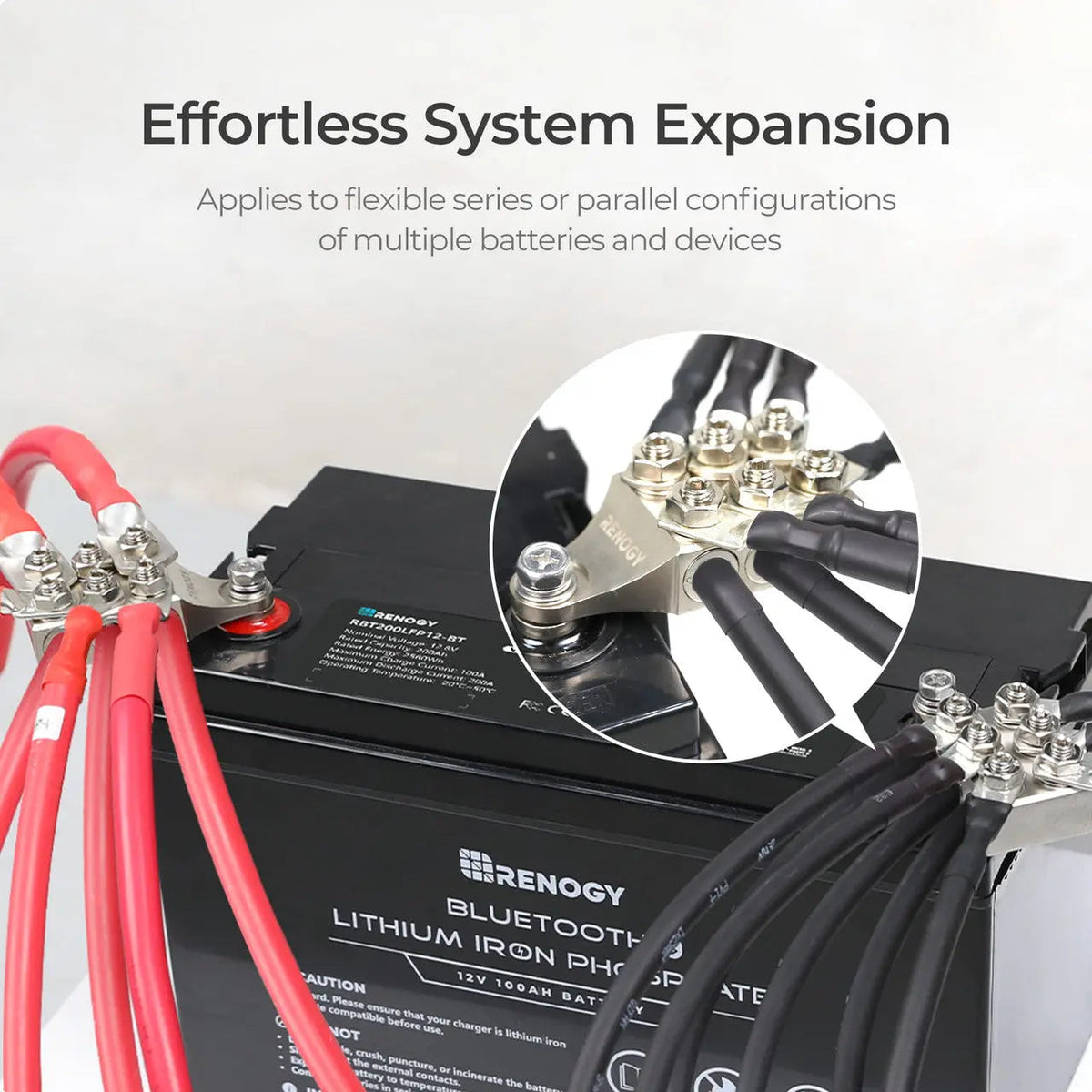

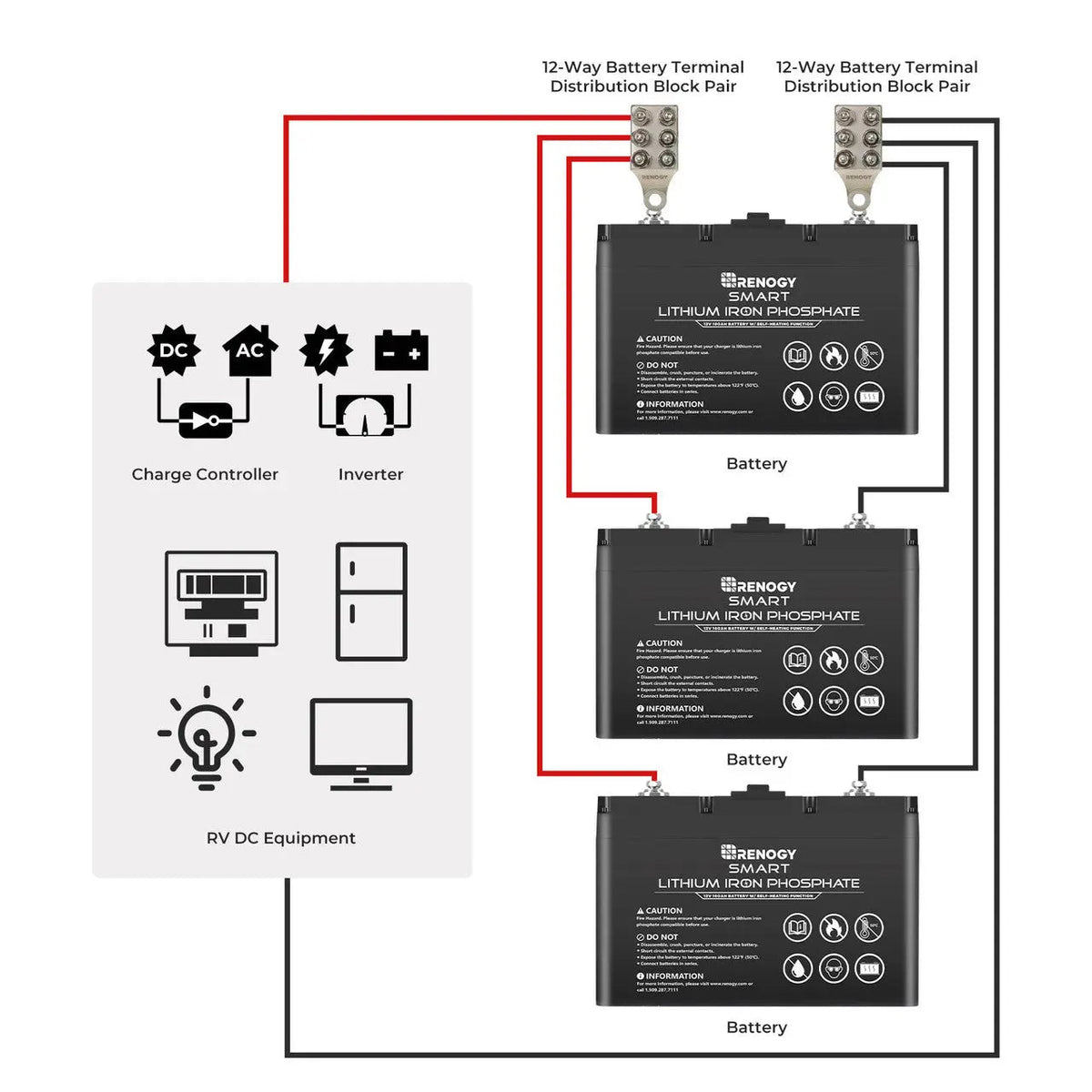

Series and Parallel Battery Configurations

The 12 connection points per block support both series and parallel battery wiring arrangements, making the terminal blocks useful whether a build uses a single large-capacity battery or a multi-battery bank. The pair format means both the positive and negative sides of a battery bank can be terminated with matching hardware, keeping the installation symmetrical and the current paths balanced.

Features

• Zinc alloy construction: corrosion-resistant material suited to mobile and marine environments
• 12 connection points per block: 6 hole-holders and 6 threaded studs on each terminal
• 400A current carrying capacity: per terminal block
• Wide wire range: accepts 8 AWG through 4/0 AWG cable sizes
• Multi-chemistry compatible: works with lithium, AGM, MF, GEL, WET, and CA/CA lead-acid batteries

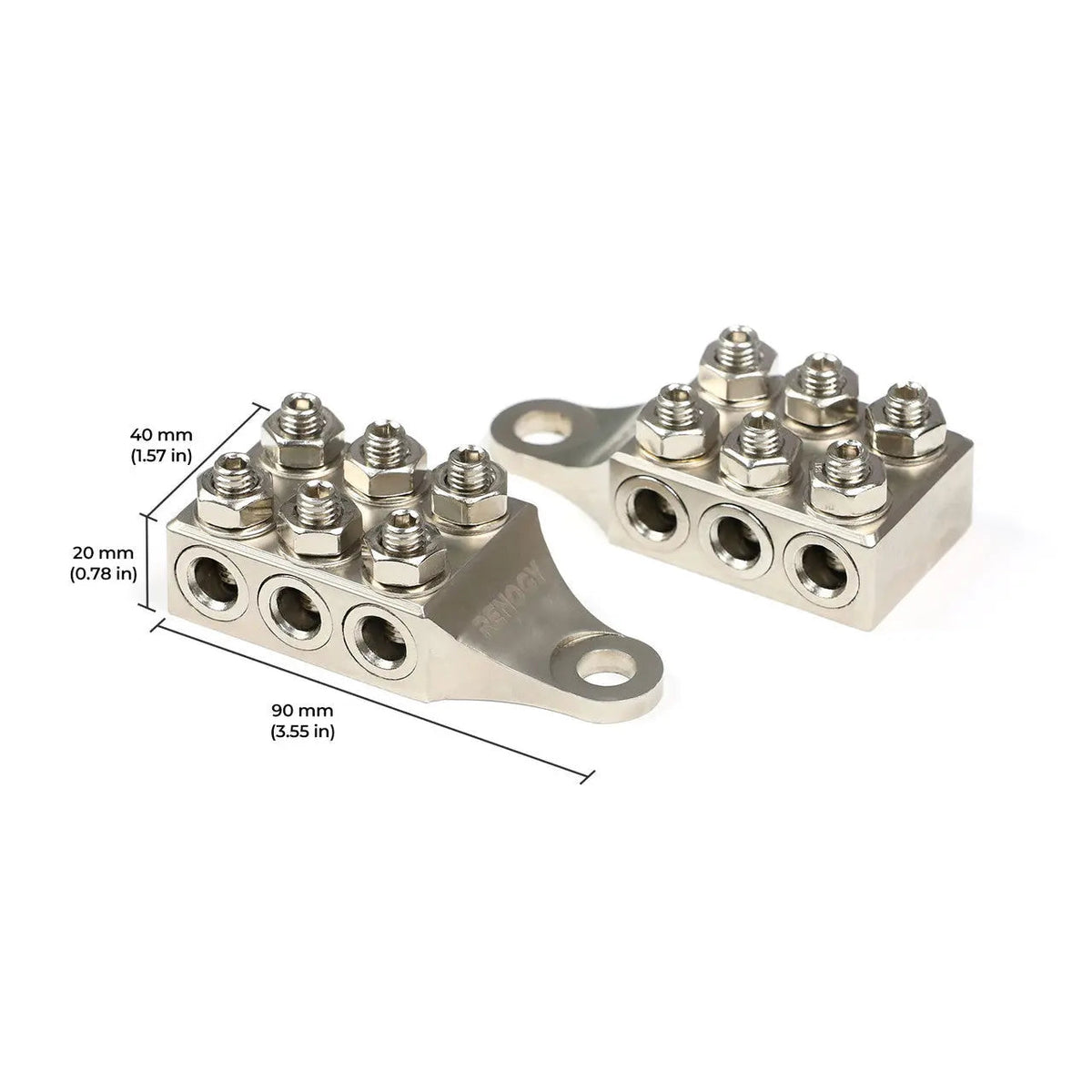

Specifications

Who This Is For and Isn't

These terminal distribution blocks suit overlanders, van builders, RV owners, and marine or trailer installers who need to connect multiple large-gauge cables to a single battery post cleanly and securely. They work with any 12V system using lithium or lead-acid chemistry where the wiring demands more connection points than a standard battery terminal provides.

These blocks do not include fusing. They are distribution points only, not a fused bus bar. Wire sizing, fusing, and system protection remain the installer's responsibility. No IP or ingress-protection rating is stated for this product, so suitability for fully exposed or submerged installations cannot be confirmed.

Common Questions

How many cables can each terminal block accept?

Each Renogy 12-Way Battery Terminal Distribution Block accepts up to 12 cables per block (6 through hole-holders and 6 via threaded studs) with a current carrying capacity of 400A per terminal. Both connection types accommodate wire sizes from 8 AWG through 4/0 AWG.

What wire gauges fit the hole-holders and threaded studs?

Both the hole-holders and the threaded studs on the Renogy terminal distribution block accept wire sizes ranging from 8 AWG to 4/0 AWG. Detailed torque and installation specifications are provided in the included instructions.

Is this terminal block compatible with lithium batteries?

Yes. The Renogy 12-Way Battery Terminal Distribution Block is compatible with lithium batteries as well as lead-acid types including AGM, MF, GEL, WET, and CA/CA. It functions as a passive distribution point and does not interact with battery chemistry directly.

Does this block include built-in fusing?

No. The Renogy 12-Way Battery Terminal Distribution Block is a passive distribution terminal. It does not include fuses, circuit breakers, or overcurrent protection. Fusing must be installed separately in the wiring between the battery and the distribution block, per standard electrical installation practice.

What applications is this terminal block designed for?

The Renogy 12-Way Battery Terminal Distribution Block is suited for RVs, SUVs, trucks, cars, houseboats, motorcycles, cranes, and forklifts. It is designed for any installation where a single battery post needs to feed multiple large-gauge cable runs simultaneously.
