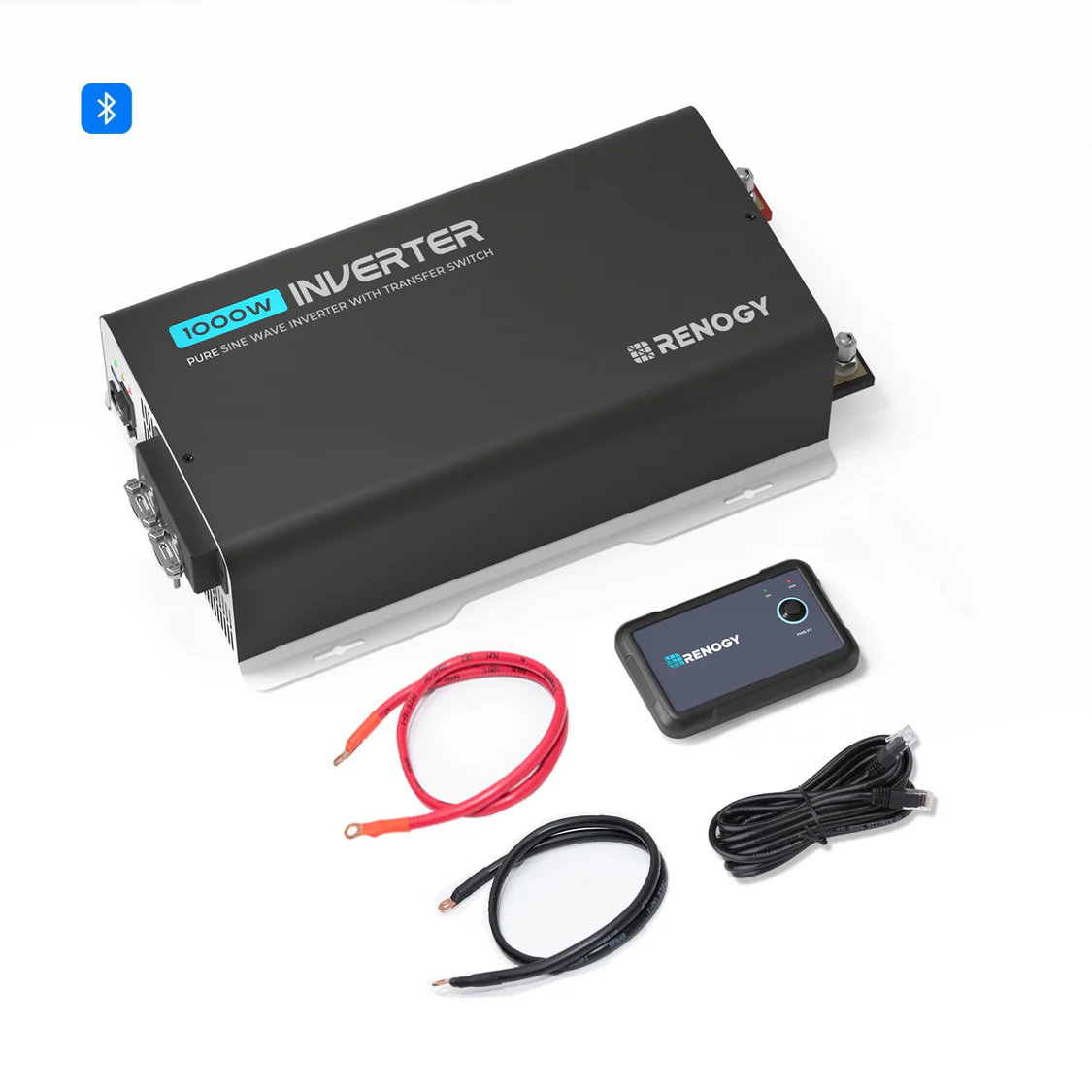

Renogy 1000W 12V Pure Sine Wave Inverter with UPS and Bluetooth

The Renogy 1000W 12V Pure Sine Wave Inverter converts 12V DC battery power to 120V AC at 1000W continuous output (2000W surge for 2 seconds), with a built-in UPS transfer switch that automatically switches between shore power and battery-backed inverter output to keep connected devices running without interruption. Built-in Bluetooth pairs with the DC Home app for real-time monitoring of voltage, current, and power, and an included wired remote control with a 16.40-foot cable allows operation from up to 16 feet away. Thermally controlled cooling fans, over-voltage, over-current, and short-circuit protection, and a noise level below 51dB complete the package.

Uninterrupted Power with the UPS Transfer Switch

The UPS transfer switch automatically switches between shore power and battery-backed inverter output when the AC source is interrupted or restored. For an RV connected to a campground pedestal, a van plugged into a garage outlet, or a semi-truck at a rest stop, this means sensitive electronics (laptops, CPAP machines, small refrigerators) keep running through the transition rather than shutting down abruptly. The transfer switch is rated at 10A, which sets the ceiling for the shore-power pass-through load; plan connected loads accordingly when sizing the shore connection.

Pure Sine Wave Output at Over 92% Efficiency

The inverter's pure sine wave output carries total harmonic distortion at or below 3%, which is cleaner than grid power (up to 5% THD) and substantially cleaner than modified sine wave inverters (20–40% THD). Inductive loads such as motors, compressors, and microwave ovens run cooler, quieter, and more efficiently on a pure sine wave, and sensitive electronics such as audio equipment and variable-speed tools operate without the interference or buzzing that a modified sine wave can introduce. Inverter efficiency exceeds 92%, full-load efficiency exceeds 87%, and idle power consumption stays below 12W, which matters when the system is on standby for extended periods.

Monitor and Control from Your Phone or the Wired Remote

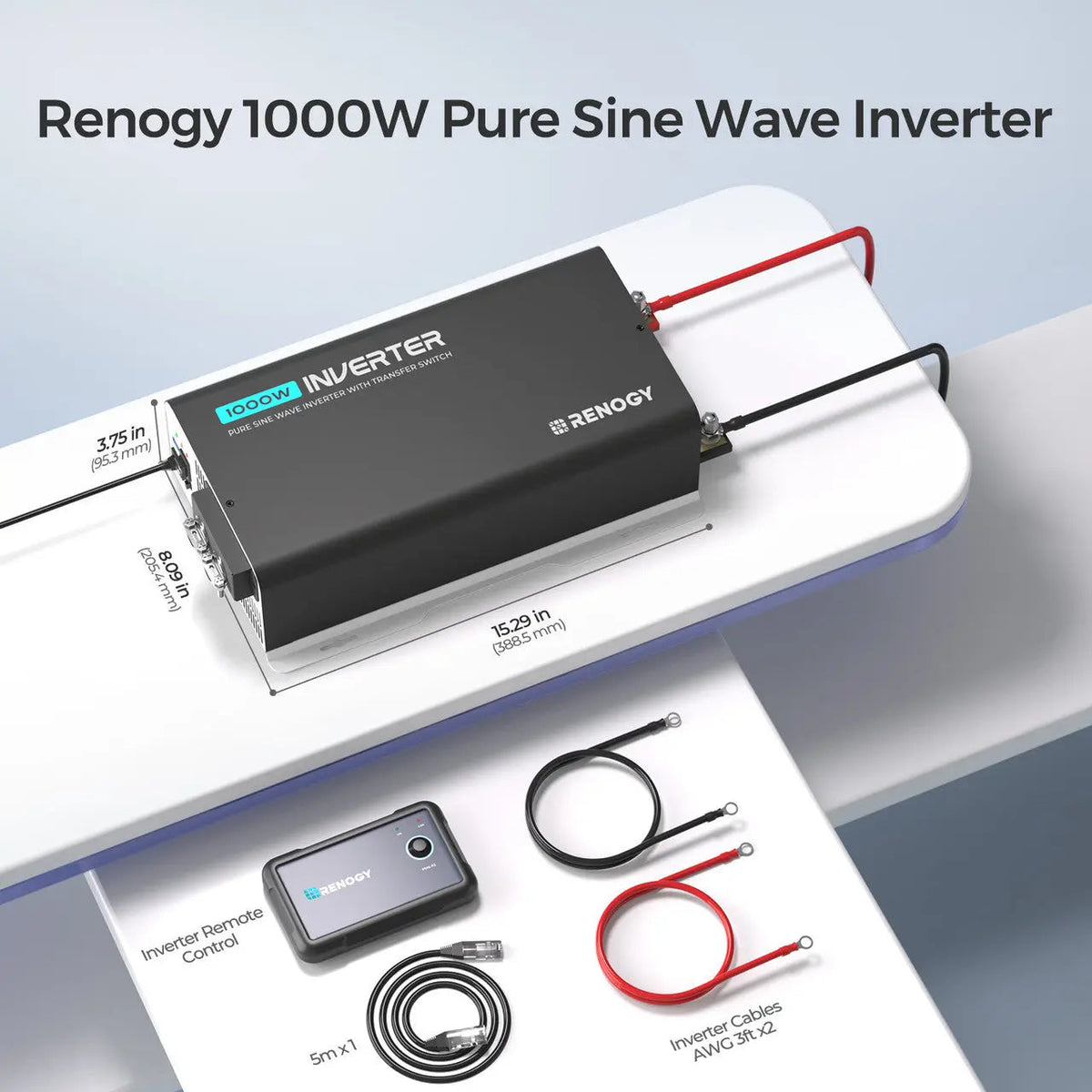

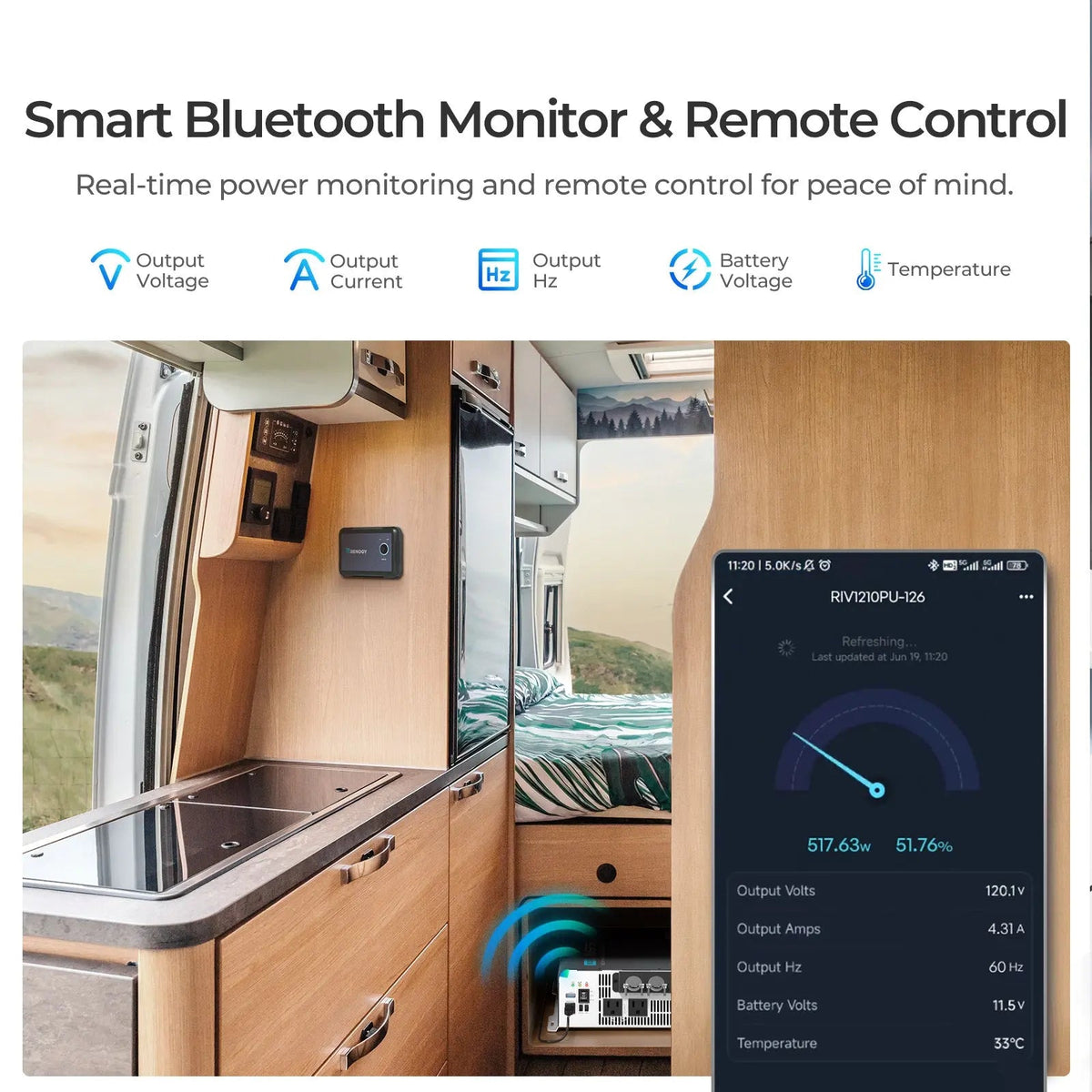

Built-in Bluetooth connects the inverter to the DC Home app on a smartphone, providing real-time data on output power, voltage, and current levels without opening an enclosure or reading a panel display. The included wired remote control has a 16.40-foot cable and a front plate measuring 4.3 × 2.6 × 1.3 inches, so the inverter can be mounted in a compartment or under a bed platform while the on/off switch and status display remain accessible at a convenient location in the cabin or cab.

Features

• 1000W continuous / 2000W surge: handles sustained loads up to 1000W and brief startup surges up to 2000W for 2 seconds
• UPS transfer switch (10A rated): automatically switches between shore power and battery-backed inverter output without interrupting connected loads
• Pure sine wave output: THD ≤3%, 120V AC ±3%, selectable 50/60Hz output frequency
• Built-in Bluetooth: pairs with the DC Home app for real-time voltage, current, and power monitoring

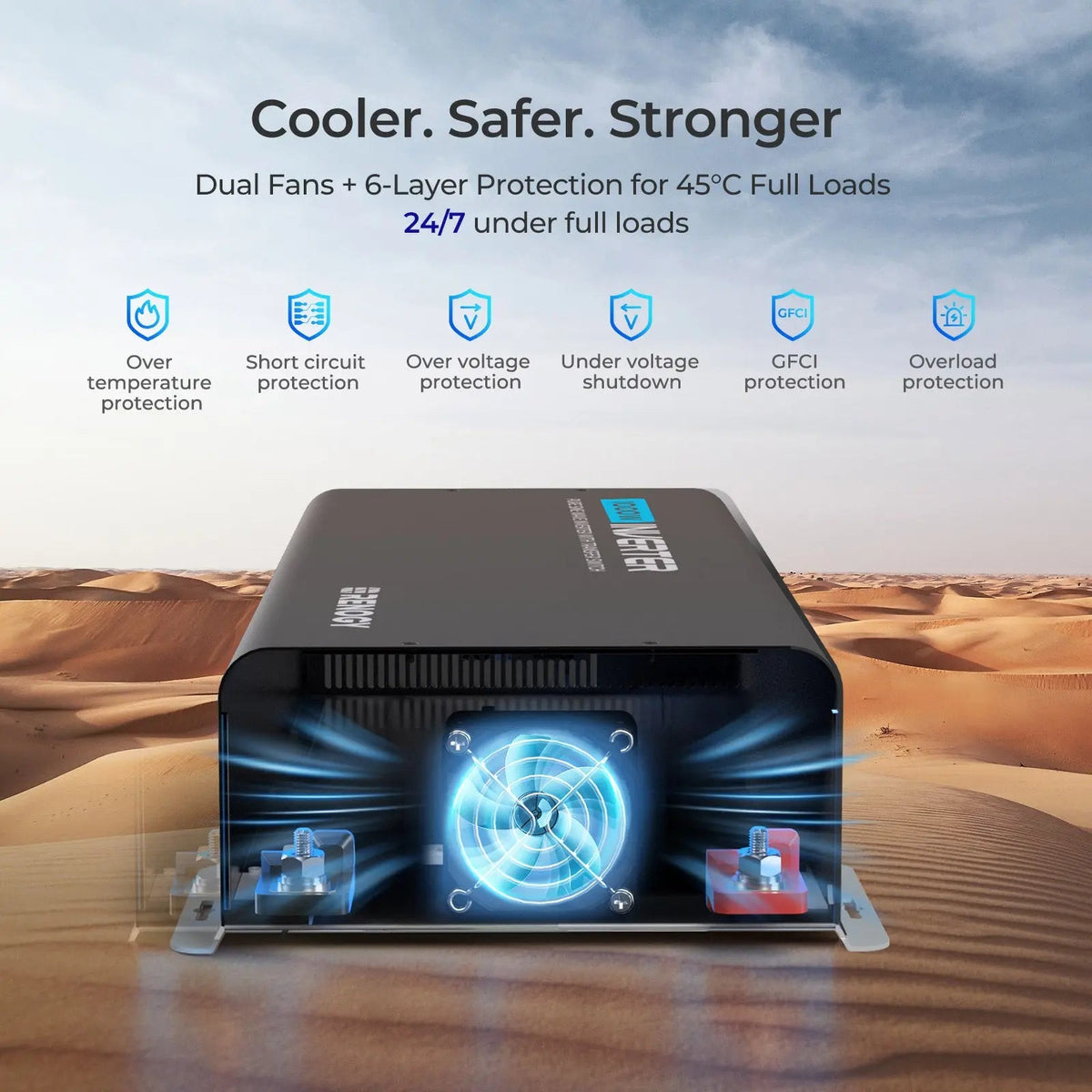

• Thermally controlled cooling fans: fan speed adjusts to internal temperature; operating noise below 51dB
• Multi-layer protection: over-voltage, over-current, and short-circuit protection with automatic shutdown and alarm thresholds

Specifications

Who This Is For and Isn't

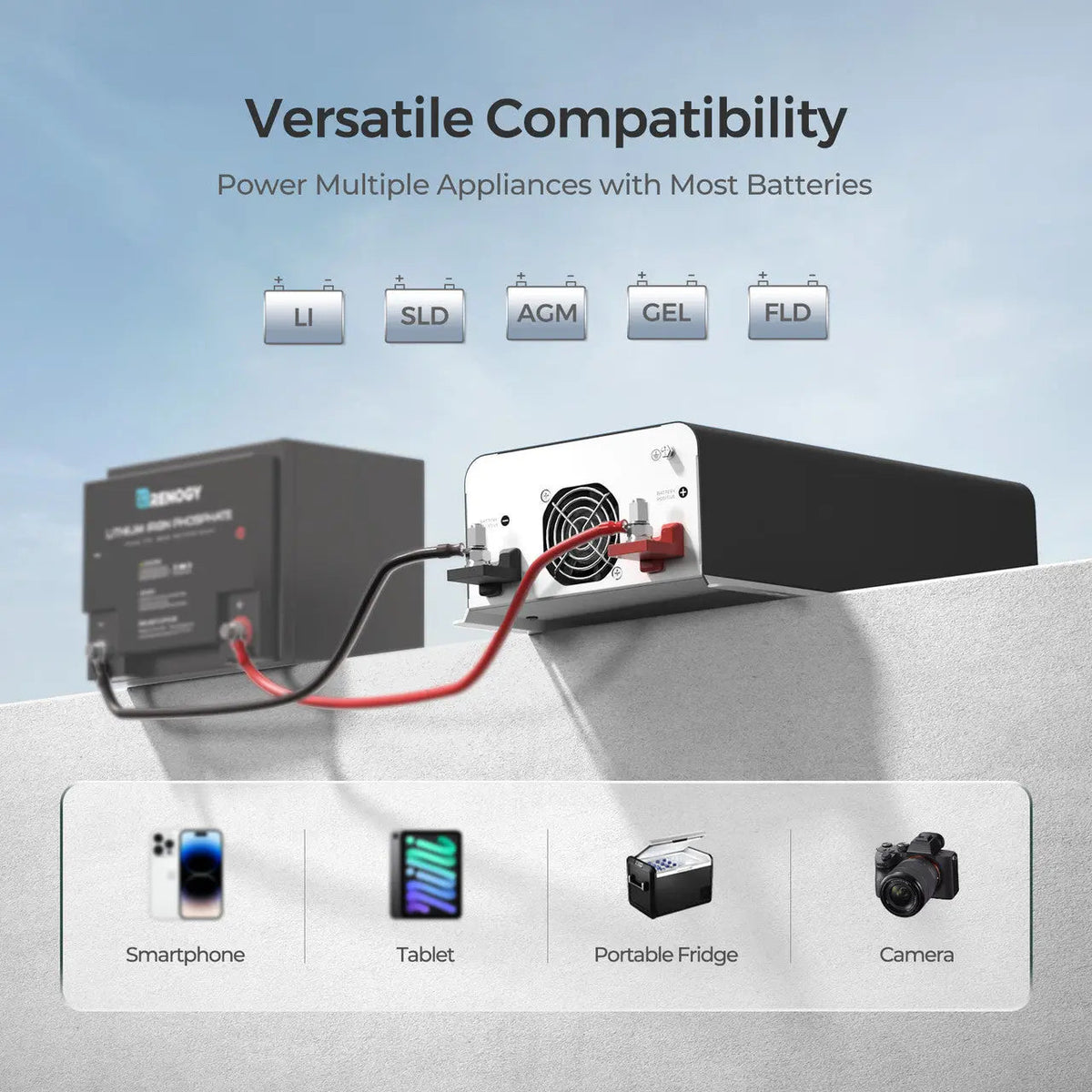

This inverter suits overlanders, van builders, RV owners, and semi-truck operators running a 12V house battery bank who need clean AC power for laptops, CPAP machines, power tools, small appliances, or audio equipment up to 1000W continuous. The UPS transfer switch makes it a practical fit for anyone who alternates between shore power and battery power and needs connected devices to remain on through the transition.

The IP20 enclosure rating means this inverter requires a dry, enclosed installation with adequate ventilation clearance (at least 1.97 inches above the top and 4 inches on the busbar side) and is not rated for outdoor or exposed mounting. The UPS transfer switch is rated at 10A, so it is not suited for passing through high-amperage shore loads. Total connected AC load must not exceed 1000W; inductive appliances with high startup currents such as large air conditioners may trip the inverter if their peak demand exceeds the 2000W surge rating.

Common Questions

What is the difference between a pure sine wave inverter and a modified sine wave inverter?

The Renogy 1000W pure sine wave inverter produces an AC output with total harmonic distortion at or below 3%, which is cleaner than grid power (up to 5% THD). Modified sine wave inverters typically produce 20–40% THD, which can cause motors and inductive loads to run hotter and noisier and can interfere with sensitive electronics. The pure sine wave output is compatible with a broader range of appliances, including variable-speed tools and audio equipment.

Can this inverter operate both on-grid and off-grid?

The Renogy 1000W 12V pure sine wave inverter supports both on-grid and off-grid operation. When shore power is available, the UPS transfer switch passes it through to connected loads. When shore power is interrupted or unavailable, the inverter automatically switches to battery-backed AC output, keeping connected devices running through the transition without manual intervention.

How does the built-in Bluetooth work with this inverter?

The Renogy 1000W inverter's built-in Bluetooth connects to the DC Home app on a smartphone, providing real-time monitoring of output power, voltage, and current levels. This allows the inverter to be mounted in a compartment or enclosure while the operator checks system status from a phone, without needing physical access to the unit.

What installation clearance does this inverter need?

The Renogy 1000W inverter requires at least 1.97 inches of clearance above the top of the unit and at least 4 inches of clearance on the side with the busbars. The IP20 enclosure rating means the inverter must be installed in a dry, enclosed space with adequate airflow and is not rated for outdoor or exposed mounting.

Why might appliances trip when connected to this inverter?

Tripping on the Renogy 1000W inverter can result from exceeding the 1000W continuous load limit when multiple appliances run simultaneously, from inductive loads such as refrigerators, air conditioners, or microwave ovens drawing high startup currents that exceed the surge rating, from a short circuit in a connected appliance, or from loose wiring connections. Keeping total connected load below 1000W and accounting for inductive startup peaks reduces the likelihood of nuisance trips.
