Power Tank Quick-Release Bracket for Fire Extinguisher and CO2 Jack

The Power Tank Quick-Release Bracket is a 6061 billet aluminum mount that holds a 2.5 lb ABC dry chemical fire extinguisher and a Pro Eagle Phoenix CO2 jack in a single bracket. Machined to tight tolerances and finished with a matte anodized coating, it installs to flat surfaces, PALS/MOLLE panels, roll cage tubes, or the side of a Power Tank 10 lb or 15 lb Super Bracket (BKT-2260 purchased 2021 or later).

One-Handed Emergency Access

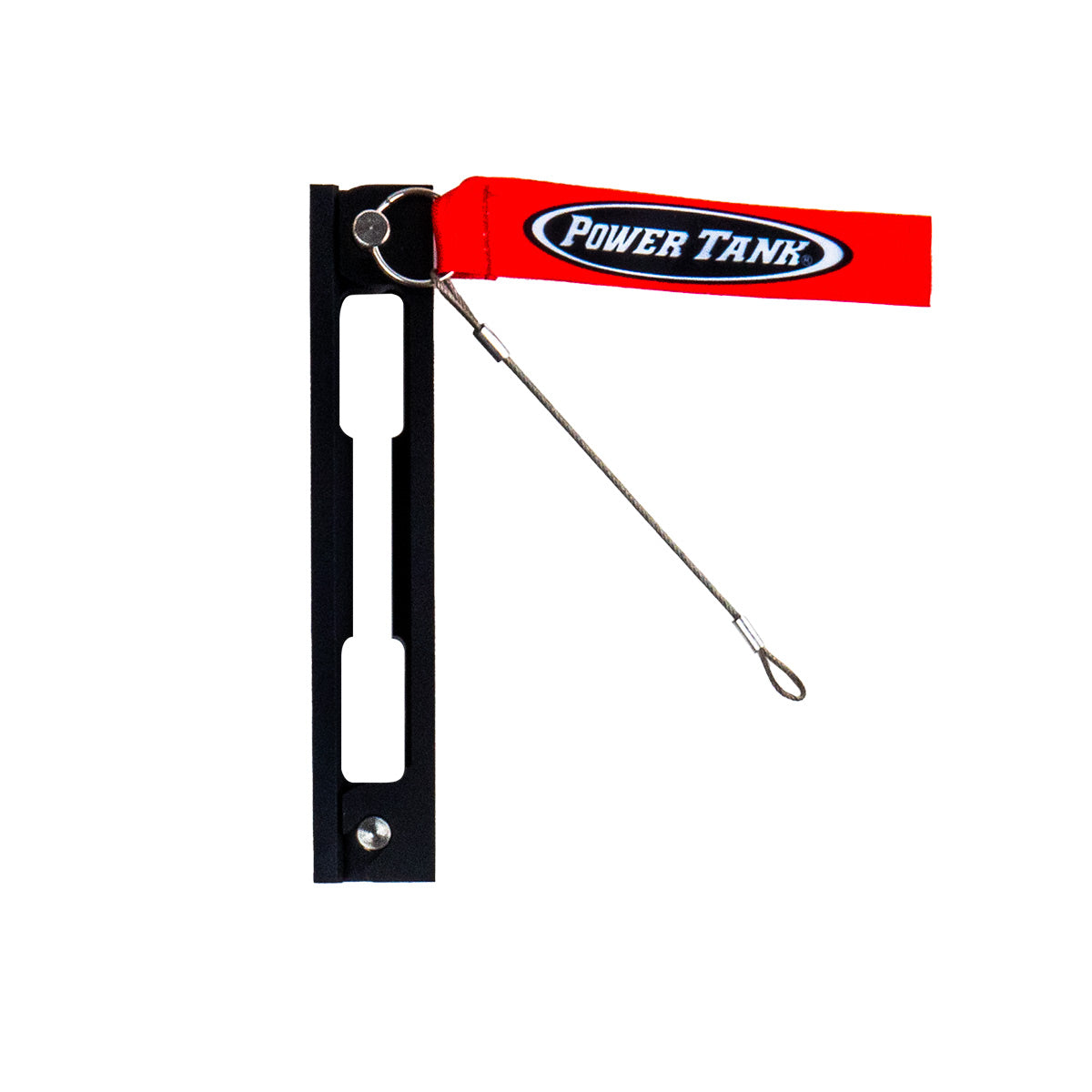

The Quick-Release Bracket uses a pull-pin release with a bright red fabric pull attached to a steel lanyard. In an emergency, the pin stays tethered to the bracket so it cannot be lost, and the design allows a user to pull the pin and grab the extinguisher as two separate movements when only one hand is free. That combination of a high-visibility pull and a tethered pin reduces fumbling time when seconds matter on a trail.

Vibration-Dampened Billet Construction

The bracket is machined from 6061 billet aluminum with tight tolerances that minimize play between the extinguisher and the mount. Less play means less rattle over washboard roads and rocky terrain. After machining, each bracket is sandblasted and anodized in a matte, textured finish that resists corrosion and abrasion in the field.

Flexible Mounting for Any Rig Layout

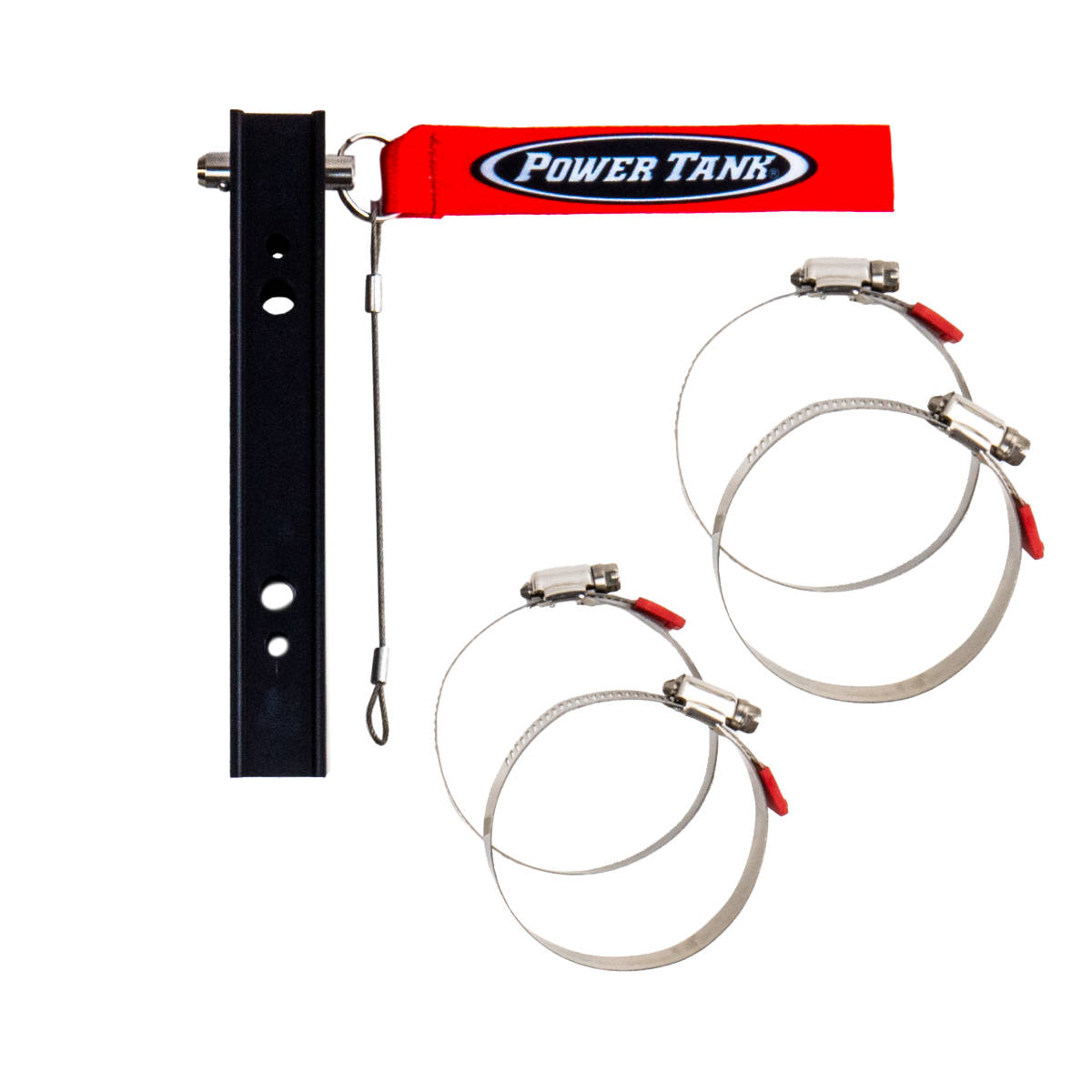

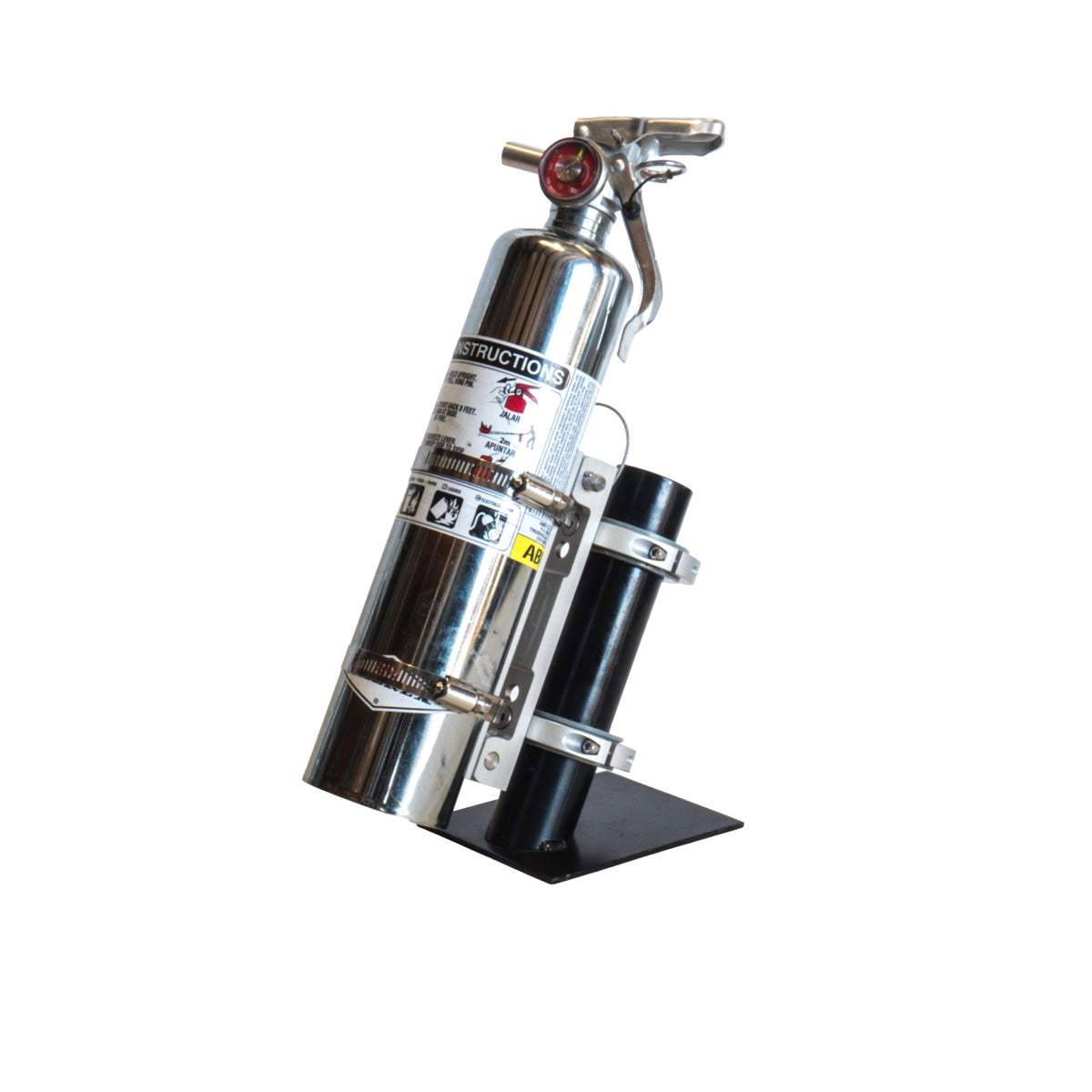

The Quick-Release Bracket flush-mounts to any flat surface using the included 1/4-20 bolts, attaches to PALS or MOLLE panels with an optional backing plate, clamps to roll cage tubes from 1.5" to 2.0" diameter with optional roll bar clamps, or bolts directly to the side of a Power Tank Super Bracket (BKT-2260, 2021 or later). Two sets of hose clamps are included: one sized for the fire extinguisher (2.06"–3.0" ID) and one for the Pro Eagle Phoenix CO2 jack (2.56"–3.5" ID), so both can be staged in the same bracket without additional hardware.

Features

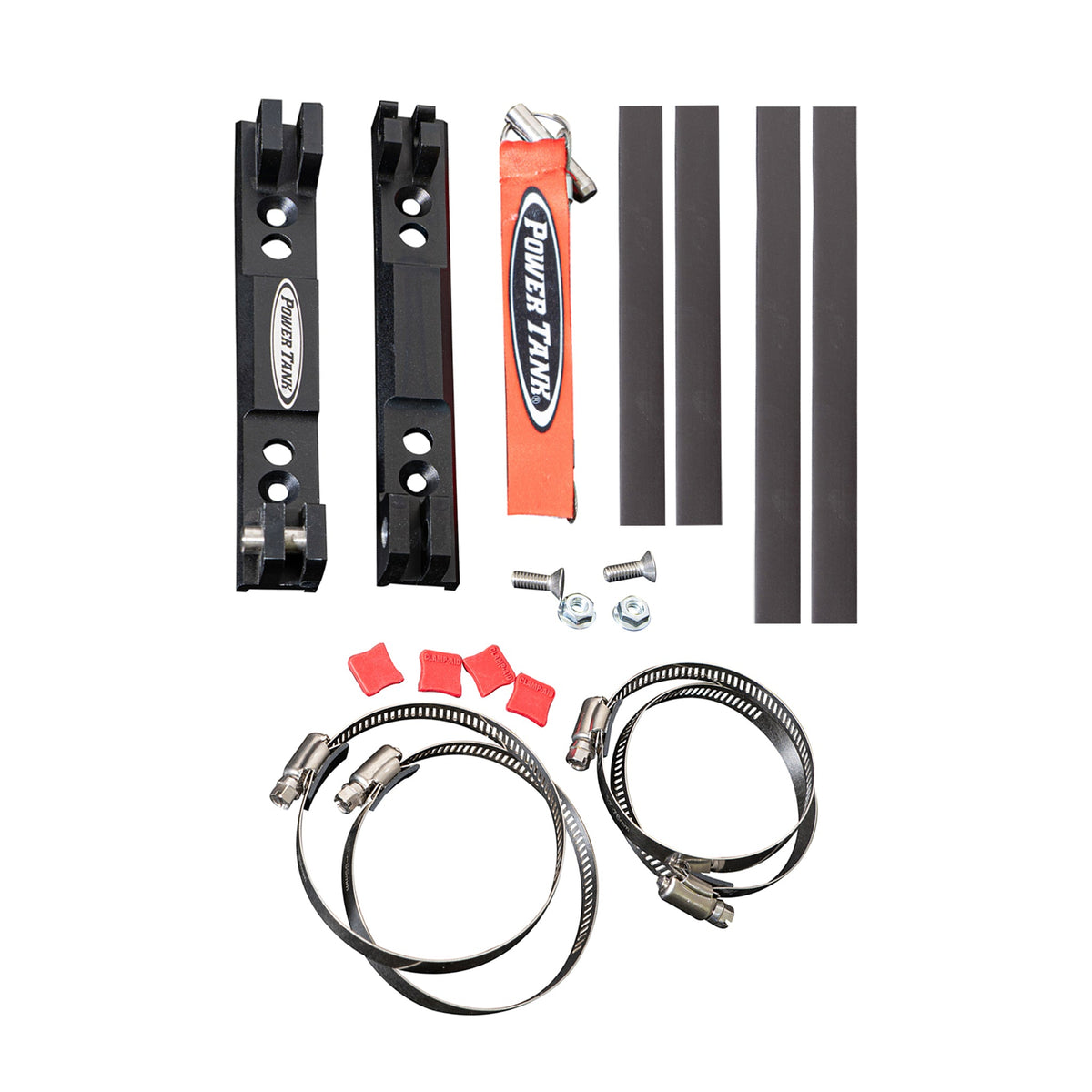

• 6061 billet aluminum construction: sandblasted and anodized in a matte, textured finish (silver or black)
• Dual hose clamp sets included: 2.06"–3.0" ID for the fire extinguisher and 2.56"–3.5" ID for the CO2 jack
• Red fabric pull pin on steel lanyard: high-visibility, tethered release for one- or two-handed operation
• Four mounting options: flat surface, PALS/MOLLE panel (optional backing plate), roll cage tube (optional roll bar clamps), or Power Tank Super Bracket BKT-2260 (2021 or later)
• Two 1/4-20 bolts included for flat-surface installation

Specifications

Who This Is For and Isn't

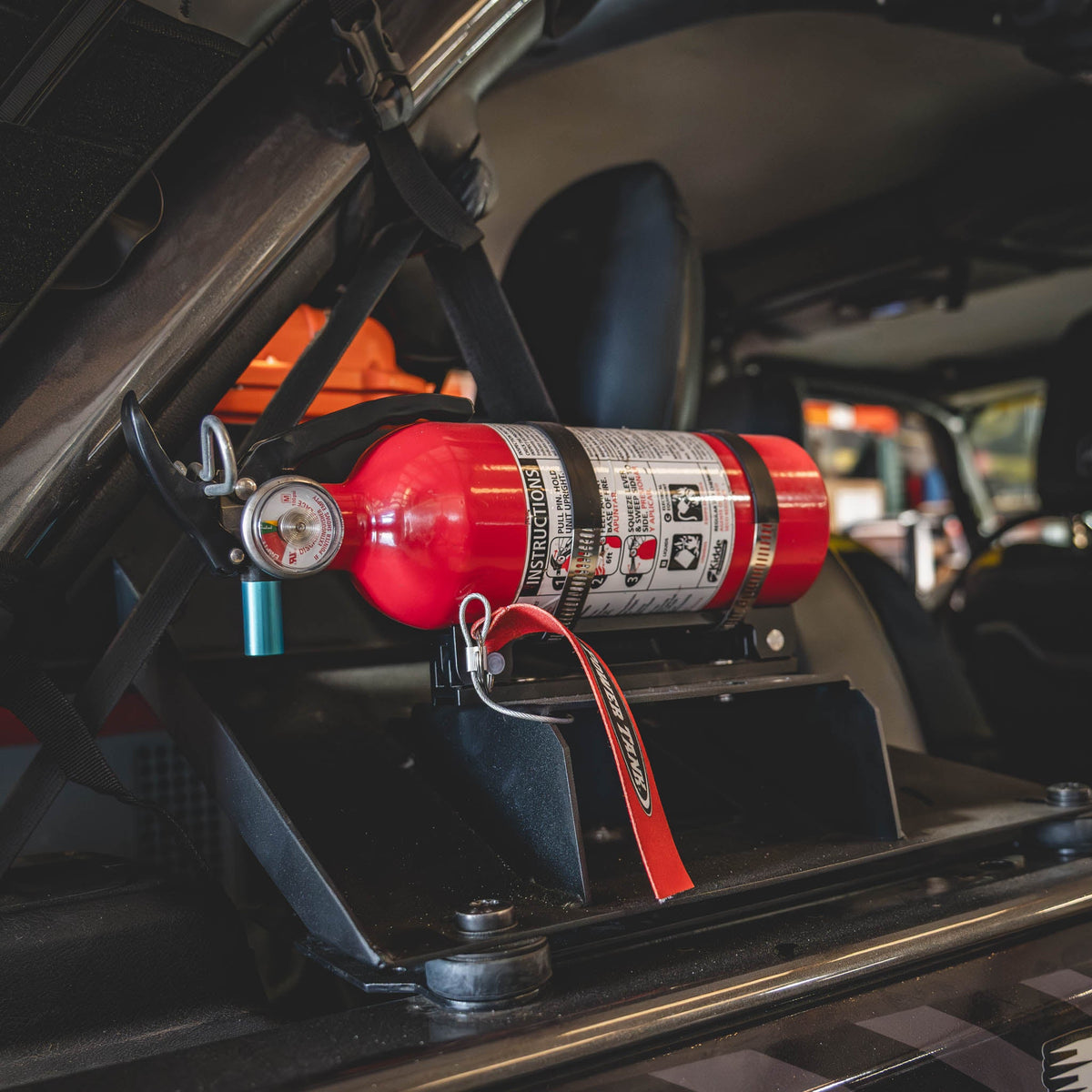

The Power Tank Quick-Release Bracket suits overlanders, 4x4 enthusiasts, and side-by-side riders who need a durable, quick-access mount for a 2.5 lb ABC dry chemical fire extinguisher (particularly those running organized group 4x4 events where a fire extinguisher is required) and who also carry a Pro Eagle Phoenix CO2 jack and want both staged in one accessible location.

The fire extinguisher and Pro Eagle Phoenix CO2 jack are sold separately and are not included. The bracket is designed for fire extinguishers in the 3" diameter range; other extinguisher sizes are not supported. Mounting to a MOLLE panel requires the optional backing plate, and mounting to a roll cage requires the optional roll bar clamps. Neither accessory is included with the bracket.

Common Questions

What size fire extinguisher does this bracket fit?

The Power Tank Quick-Release Bracket is designed for fire extinguishers in the 3" diameter range. A 2.5 lb ABC dry chemical extinguisher is the recommended size. ABC dry chemical extinguishers address combustible, fluid, and electrical fire sources: the three types most relevant to a vehicle fire. The fire extinguisher is sold separately.

What mounting options are available, and what hardware is included?

The bracket includes two 1/4-20 bolts for flush-mounting to any flat surface. It also attaches to PALS or MOLLE panels using an optional backing plate (sold separately) and to roll cage tubes from 1.5" to 2.0" diameter using optional roll bar clamps (sold separately). It can also bolt to the side of a Power Tank Super Bracket (BKT-2260 purchased in 2021 or later) without additional hardware.

Can the fire extinguisher be released with one hand?

Yes. The Quick-Release Bracket's pull-pin design allows the pin to be pulled and the extinguisher to be grabbed as two separate movements, so a user with only one hand available can still access it. The pull pin has a bright red fabric pull for visibility and is attached to a steel lanyard so it stays tethered to the bracket rather than being dropped or lost.

Does this bracket also hold a CO2 jack?

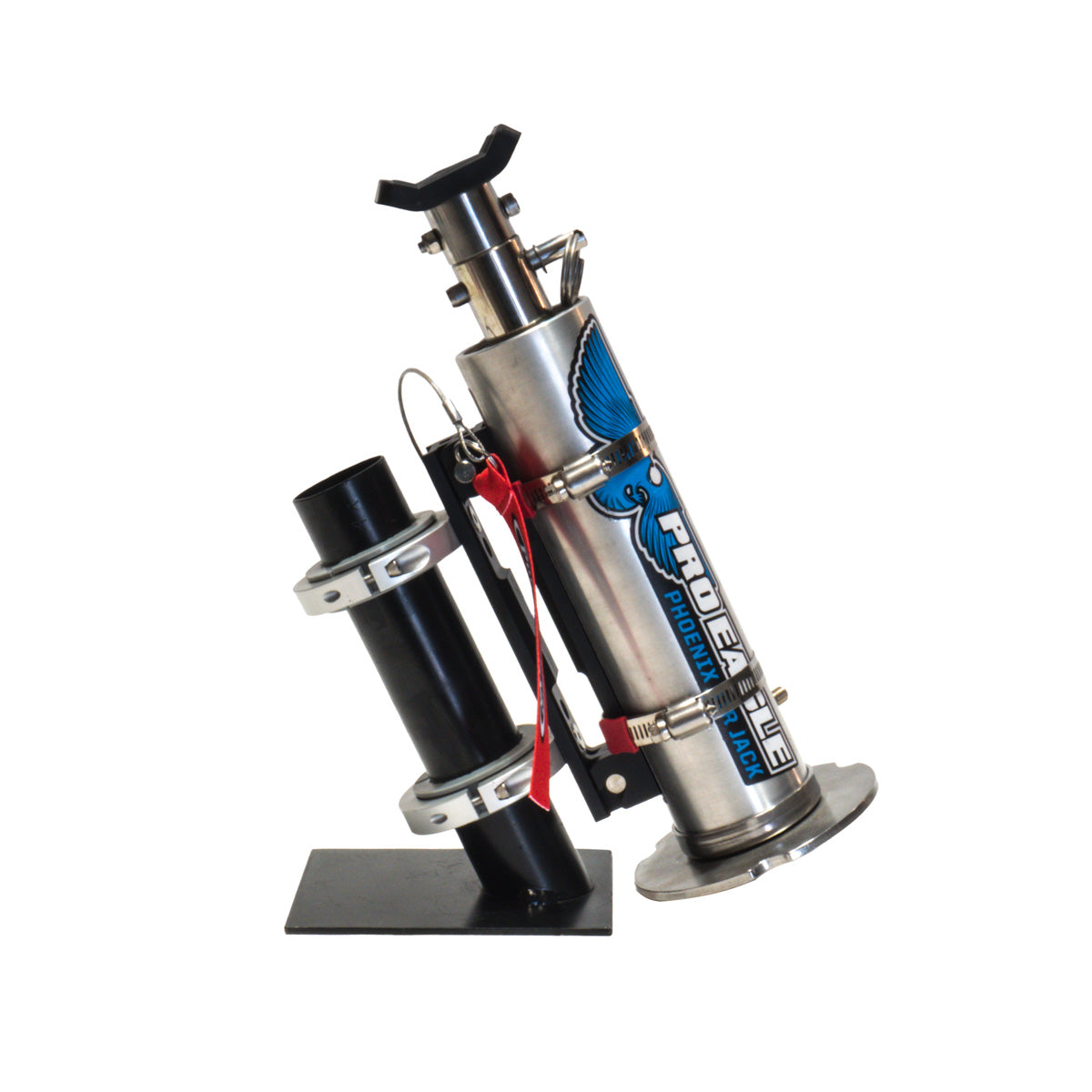

The Power Tank Quick-Release Bracket includes a second set of hose clamps (2.56"–3.5" ID) sized for the Pro Eagle Phoenix CO2 jack, so both the fire extinguisher and the CO2 jack can be mounted in the same bracket. The Pro Eagle Phoenix CO2 jack is sold separately and is not included with the bracket.
