Power Tank Double Barrel Pro Eagle Edition SxS CO2 Inflation Kit

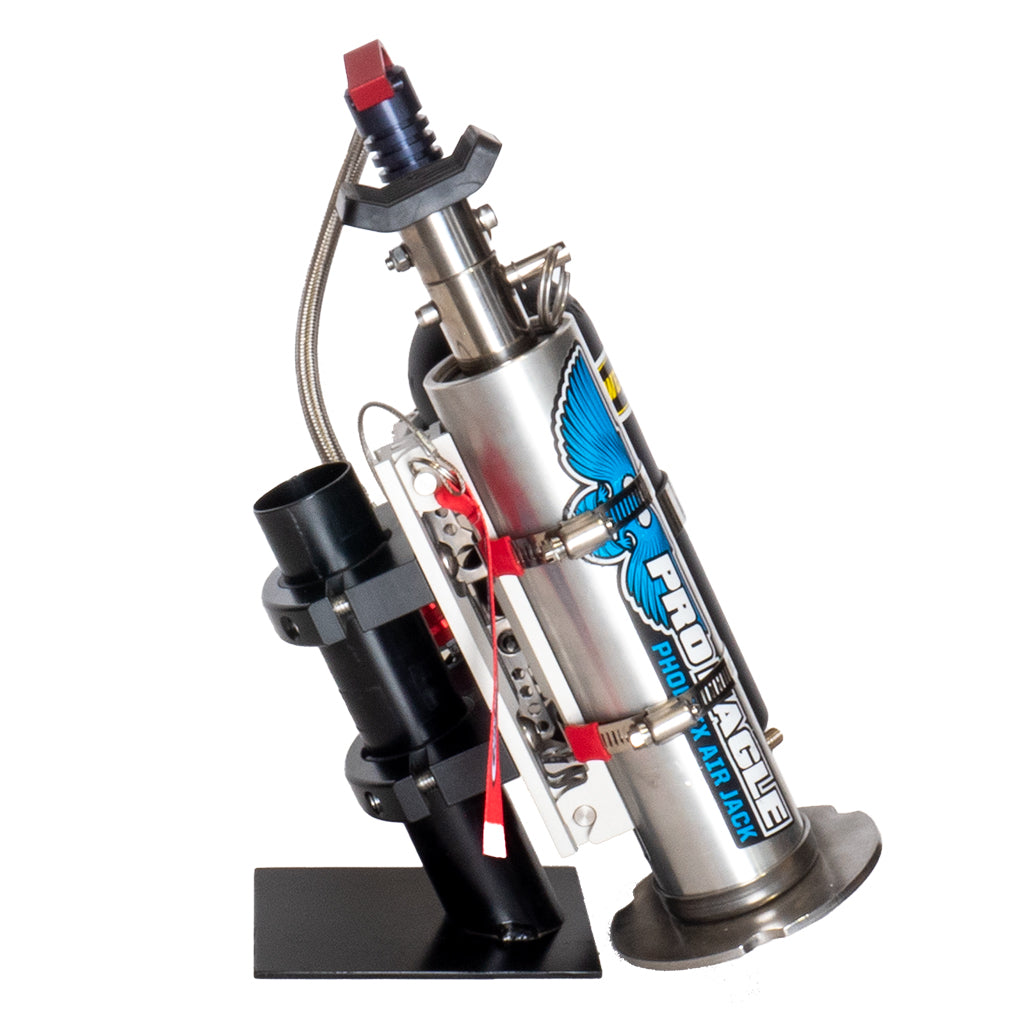

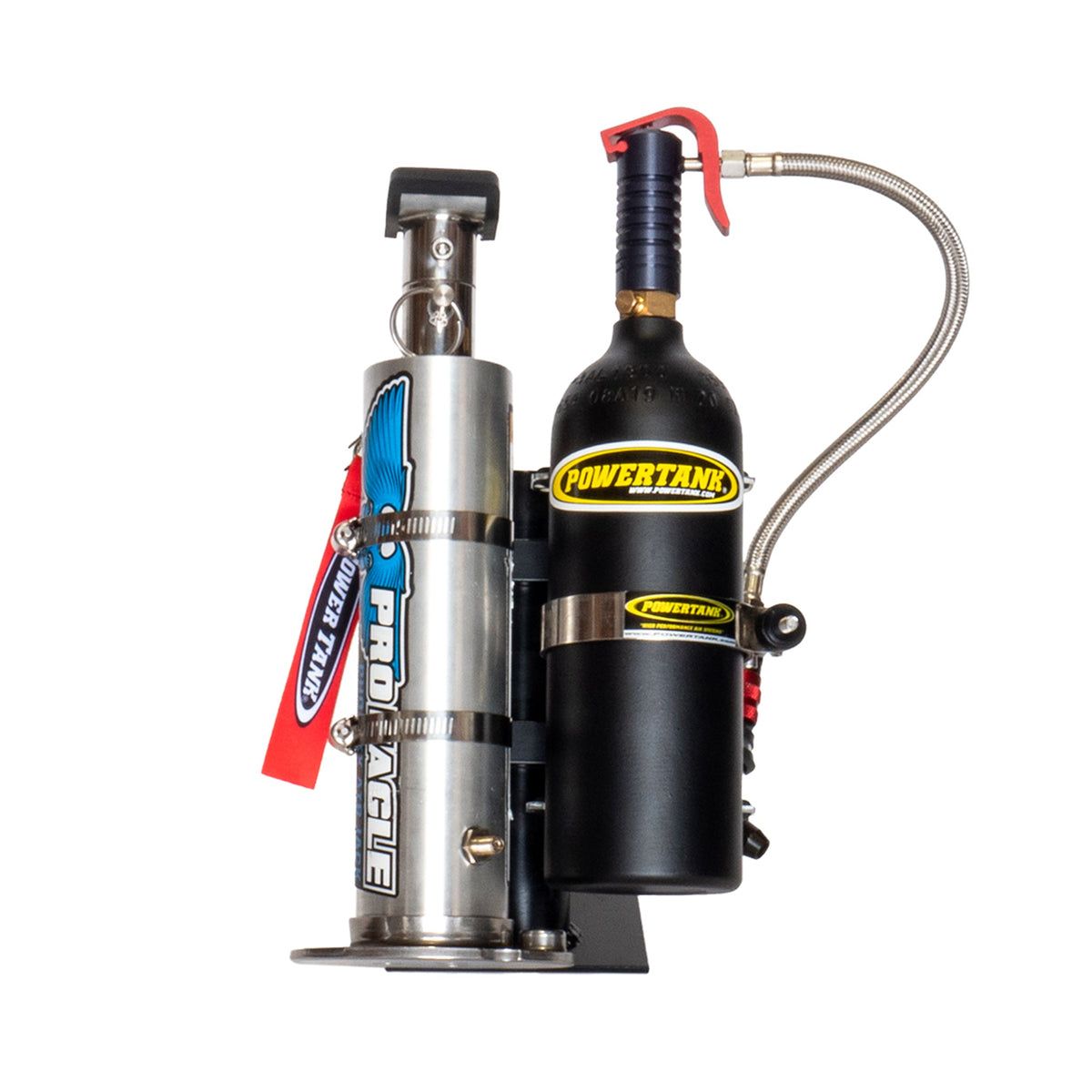

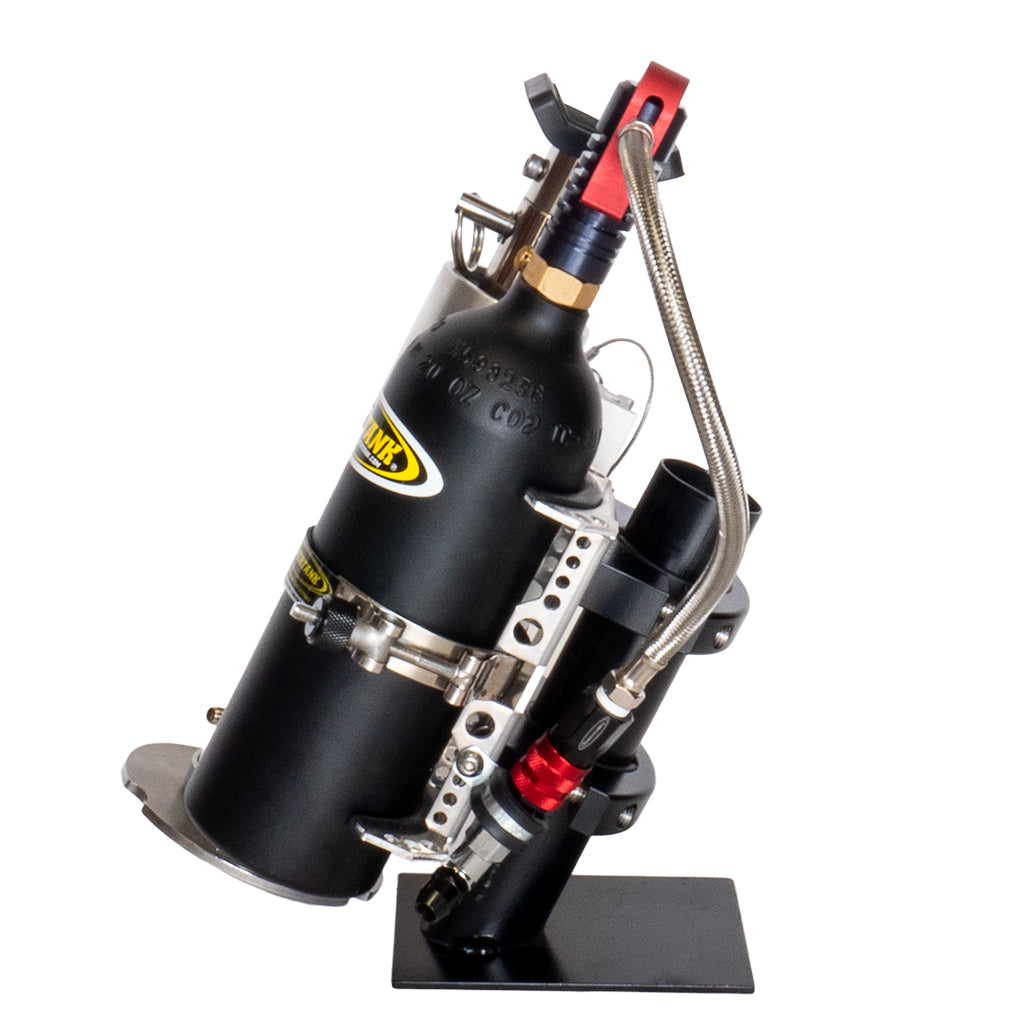

The Power Tank Double Barrel Pro Eagle Edition is a roll-bar-mounted CO2 air-up system designed for Side-by-Side vehicles used in sport, racing, hunting, and property work. The kit combines a complete 20 oz. Power Shot Trigger system with a Quick Release Bracket that accepts a Pro Eagle Phoenix CO2 Jack or a 2.5 lb. fire extinguisher (both sold separately), mounting both tools on a single compact roll-bar clamp assembly. Roll bar clamp size (Small: 1.5"–2.0"; Large: 2.25"–2.5") and Quick Release Bracket color (Silver or Black) are selectable at checkout.

Ships empty: CO2 tanks cannot be shipped filled, so the CO2 bottle in this package arrives empty. Have it filled with liquid CO2 at a local refill source (fire extinguisher service, welding gas supplier, beverage carbonics shop or paintball store) before first use.

Two Recovery Tools, One Roll Bar Mount

Mounting recovery gear on a SxS roll bar keeps both tools within arm's reach without consuming cargo space or requiring a separate bag. The Double Barrel kit positions the Power Shot Trigger and the Quick Release Bracket side by side on a single billet roll-bar clamp assembly, so a rider can grab the air system or the jack adapter in one motion rather than digging through a storage box mid-trail. Billet Roll Bar Clamps fit round tubing from 1.5" to 2.5" in diameter across both size options.

Instant Air for Tires, Beads, and the Pro Eagle Jack

The Power Shot Upgrade Kit included here adds three attachments to the Power Trigger Regulator: a Tire Air Chuck for airing up tires and reseating beads, a Blow Gun for clearing sand and dirt from the cabin and CVT housing, and a Pro Eagle Adapter for running the Pro Eagle Phoenix CO2 Jack directly from the 20 oz. bottle. A single 20 oz. CO2 bottle can air up seven 29 in. UTV tires, adding 10 psi to each. The Phoenix Jack's built-in pressure release lets a rider lift a punctured tire, safely disconnect the Power Shot while the tire is in the air, plug the puncture with the included Mini Tire Plug Kit, and re-air the tire before riding out.

One-Hand Emergency Access

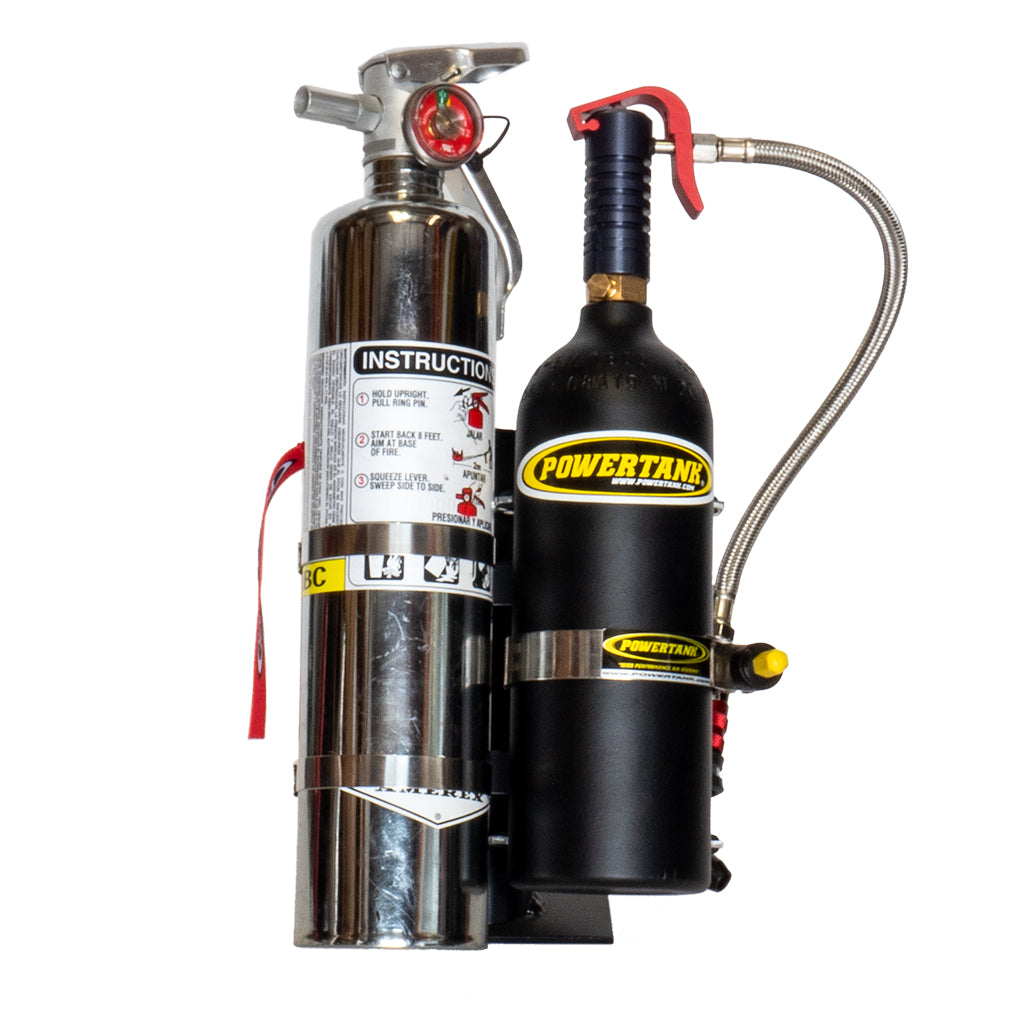

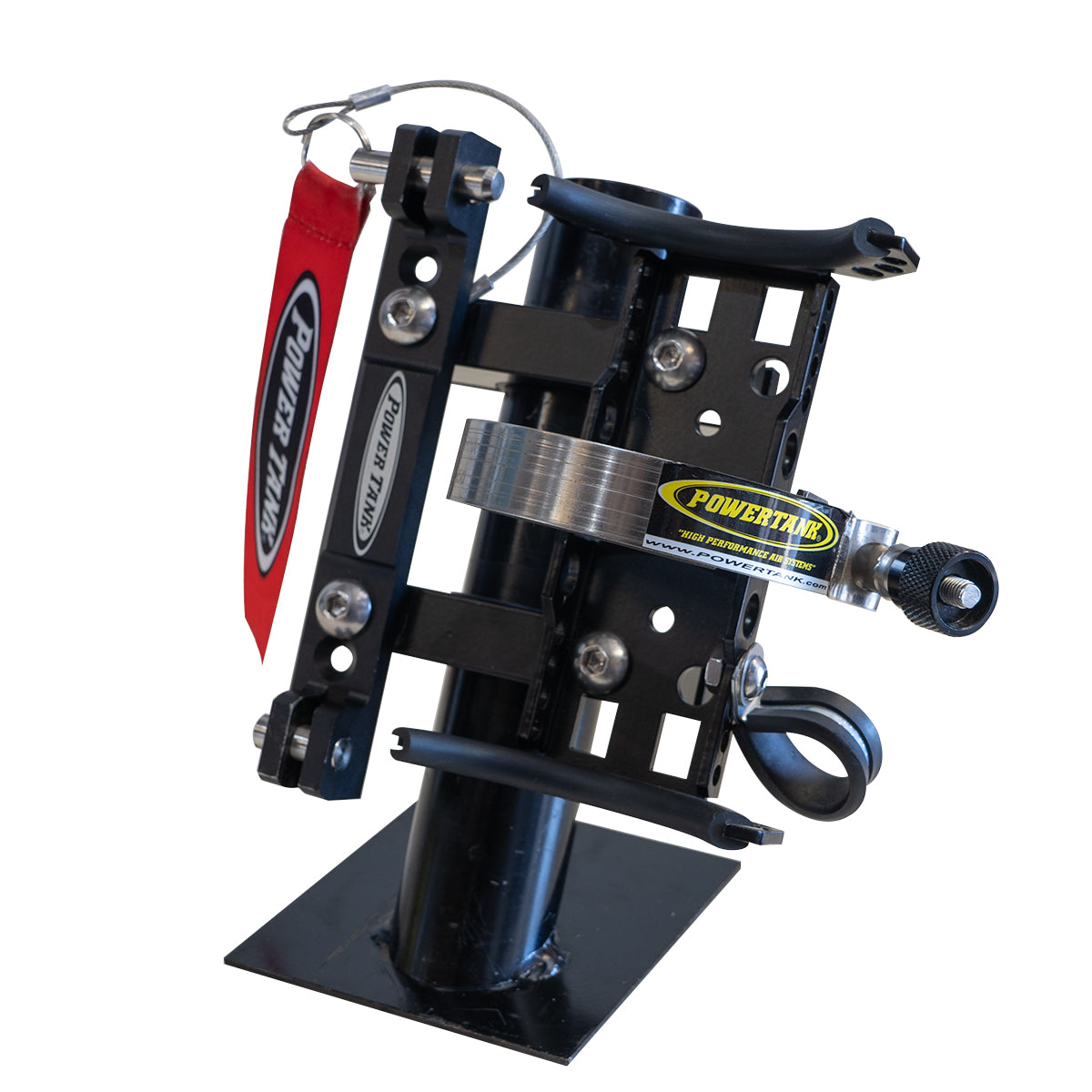

The Quick Release Bracket uses a bright red fabric pull and a stainless steel pin on a steel lanyard, so there is no searching for a release point or risk of dropping the pin in the dirt under pressure. The bracket operates with one hand. Two sets of hose clamps are included for riders who prefer to carry a 2.5 lb. fire extinguisher alongside the Power Shot Trigger instead of a jack adapter; the clamps fit fire extinguishers from 2 1/16" to 3 1/2" in diameter. The Pro Eagle Phoenix CO2 Jack and any fire extinguisher are sold separately.

Features

• Roll-bar dual mount: billet clamps position the Power Shot Trigger and Quick Release Bracket on a single assembly, fitting round tubing 1.5"–2.5" in diameter
• Three-function trigger system: Tire Air Chuck, Blow Gun, and Pro Eagle Adapter attachments included via the Power Shot Upgrade Kit
• 20 oz. CO2 bottle capacity: airs up seven 29 in. UTV tires at 10 psi each from one bottle
• Quick Release Bracket: red fabric pull, stainless steel pin on steel lanyard, one-hand operation; fits fire extinguishers 2 1/16"–3 1/2" diameter

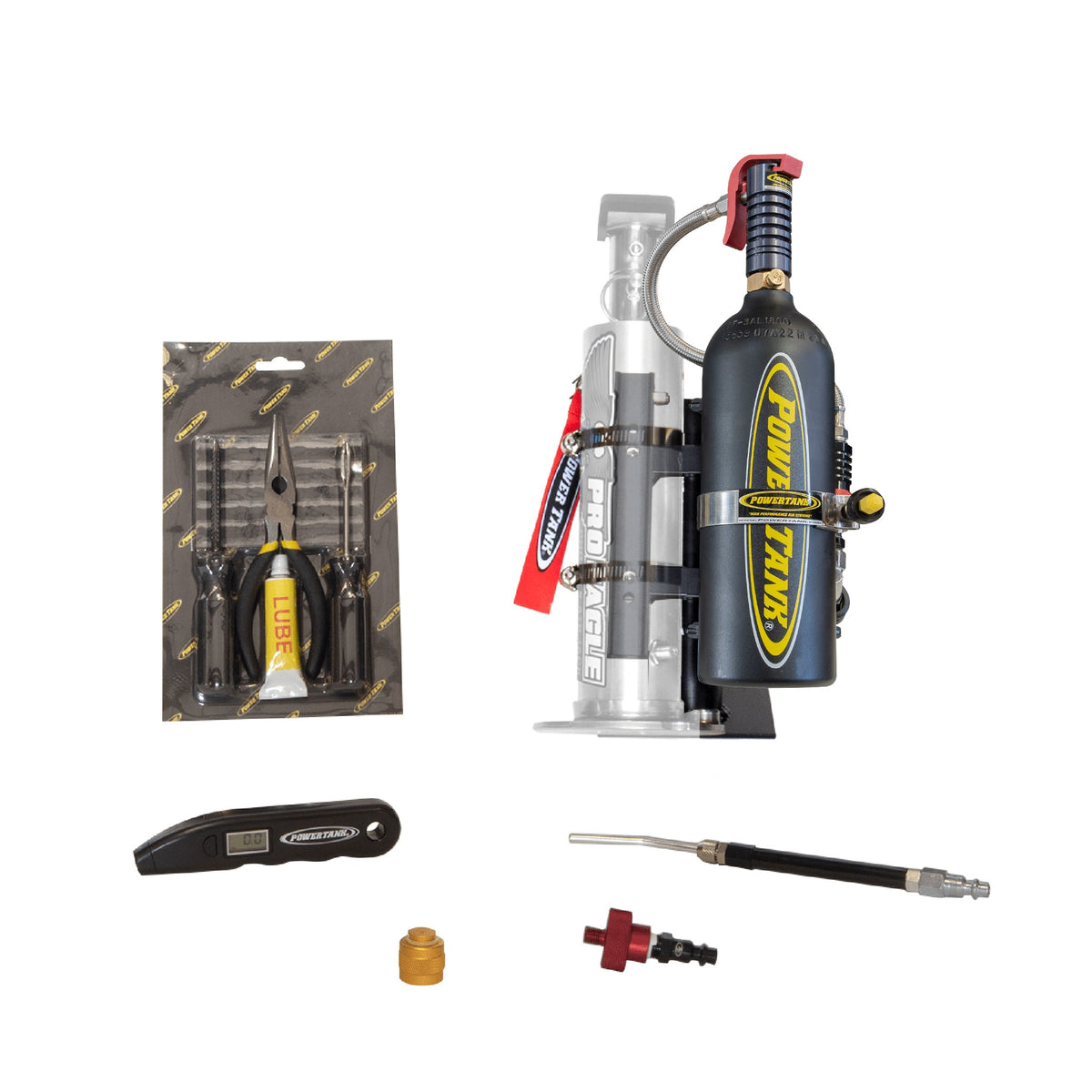

• Tire repair included: Mini Tire Plug Kit and Small Digital Tire Pressure Gauge (0–100 psi) ship with the kit
• Single and dual stage Pro Eagle Jack compatible: the Pro Eagle Adapter works with both single stage and dual stage (DS) Phoenix Jack models

Specifications

Who This Is For and Isn't

The Double Barrel Pro Eagle Edition suits SxS riders who want roll-bar-mounted CO2 inflation and jack-powering capability in one compact assembly, particularly those who already run or plan to run a Pro Eagle Phoenix CO2 Jack and want to eliminate the need for disposable 20 g CO2 cartridges. The kit works for sport, racing, hunting, and property-use SxS applications, and the Quick Release Bracket gives riders the option to carry a 2.5 lb. fire extinguisher in place of a jack.

This kit is not rated for 4x4 vehicles or heavier off-road vehicles. The Trigger Regulator does not supply the pressure those applications require. The Pro Eagle Phoenix CO2 Jack and any fire extinguisher are sold separately and are not included in this kit.

Common Questions

What vehicles is this kit compatible with?

The Double Barrel Pro Eagle Edition Power Shot kit is designed for Side-by-Side (SxS) vehicles only. The Power Trigger Regulator is not rated for the pressure required by 4x4 trucks or heavier off-road vehicles, so the kit should not be used on those platforms.

Is the Pro Eagle Phoenix Jack included?

The Pro Eagle Phoenix CO2 Jack is not included in this kit and is sold separately. The kit does include the Pro Eagle Adapter (via the Power Shot Upgrade Kit) that allows the Power Shot Trigger to run the Phoenix Jack in place of disposable 20 g CO2 cartridges. Both single stage and dual stage (DS) Phoenix Jack models are compatible.

How many tires can one 20 oz. CO2 bottle fill?

One 20 oz. CO2 bottle can air up seven 29 in. UTV tires, adding 10 psi to each. Riders who need more capacity for a group can carry a spare 20 oz. bottle to double the number of tire fills available.

What roll bar sizes does this kit fit?

The Double Barrel kit ships with a pair of billet Roll Bar Clamps that fit round tubing from 1.5" to 2.5" in diameter. The Small clamp option covers 1.5" to 2.0" tubing; the Large option covers 2.25" to 2.5" tubing. Select the correct size at checkout based on the roll bar diameter of the specific SxS.

Can this kit carry a fire extinguisher instead of a jack?

Yes. The Quick Release Bracket included in the kit accepts either a Pro Eagle Phoenix CO2 Jack or a 2.5 lb. fire extinguisher (both sold separately). Two sets of hose clamps are included for the fire extinguisher mounting option; the clamps fit extinguishers from 2 1/16" to 3 1/2" in diameter.

What does the Quick Release Bracket's release mechanism look like?

The Quick Release Bracket on the Double Barrel kit uses a bright red fabric pull tab and a stainless steel pin attached to a steel lanyard. The design allows one-hand operation and keeps the pin tethered so it cannot be dropped and lost in the dirt during an emergency.
