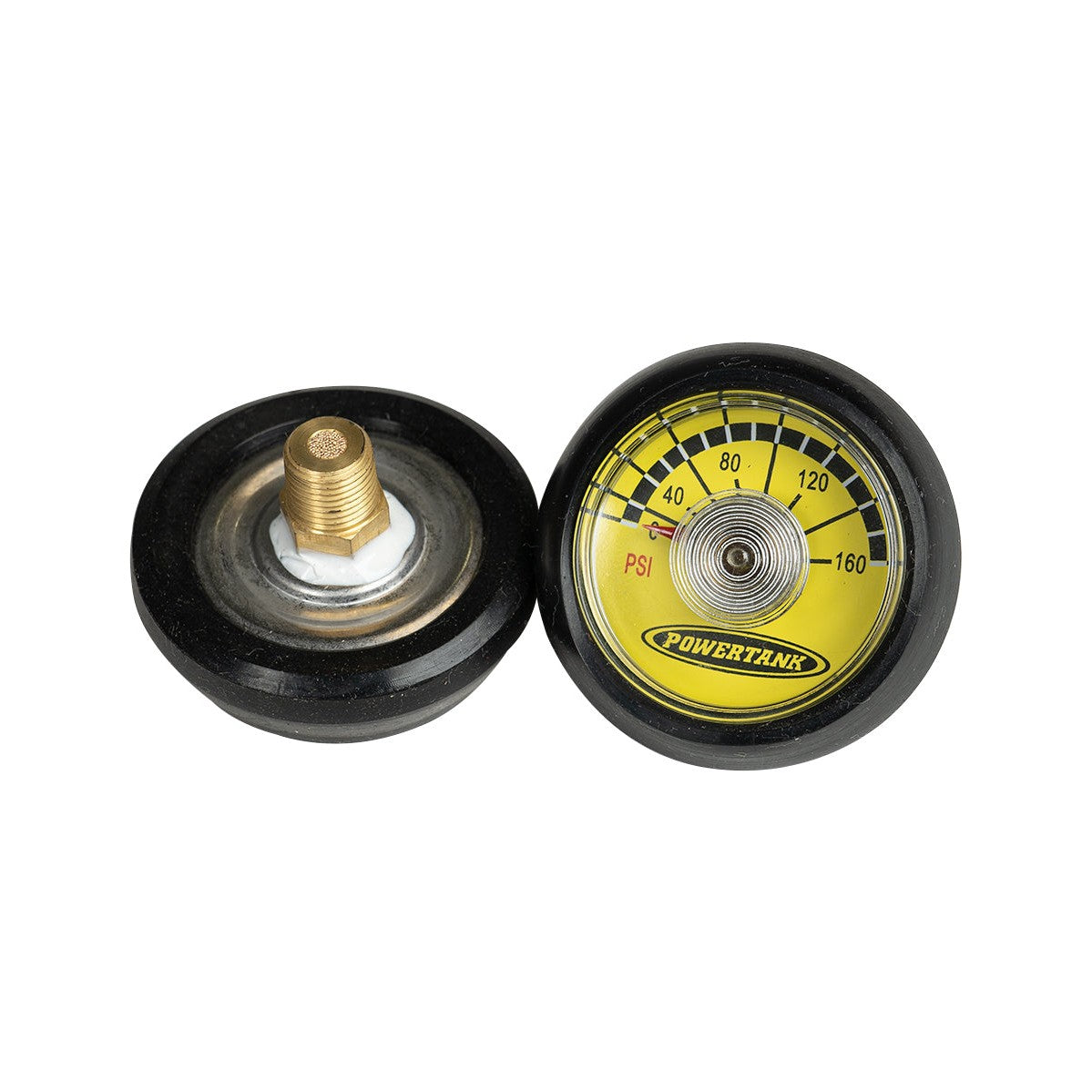

Power Tank 160 psi Spiral Replacement Gauge for Sidearm COMP and ARB Manifold

The Power Tank 160 psi Spiral Gauge is a direct replacement output-pressure gauge for the Power Tank Sidearm COMP regulator and ARB Manifold kit, featuring a stainless steel case, polycarbonate lens, and 1/8" NPT back-stem connection. It is waterproof and rated for impact and vibration resistance, making it suited to the demands of off-road and trail use.

Built to Read Accurately Under Trail Conditions

A regulator gauge on a CO2 inflation system takes real abuse: vibration from rough terrain, exposure to mud and water, and the occasional knock against a bumper or tool bag. The 160 psi spiral gauge uses a stainless steel case and polycarbonate lens to handle that environment without fogging, cracking, or losing accuracy. Waterproofing means a stream crossing or a rainstorm does not put the gauge out of service.

Correct Pressure Range for the Sidearm COMP and ARB Manifold

The 160 psi range matches the output pressure of the Sidearm COMP regulator and the ARB Manifold kit. Using a gauge calibrated to the correct pressure range gives a more readable, accurate display across the pressures you actually set when airing up tires. The 500 psi gauge is the correct output gauge for the Sidearm PRO regulator, and the 3000 psi gauge reads tank pressure on either Sidearm regulator. This 160 psi gauge is not interchangeable with either of those.

Features

• Stainless Steel Case: resists corrosion and physical damage in outdoor use
• Polycarbonate Lens: impact-resistant and clear under field conditions
• 1/8" NPT Back Stem: standard back-stem connection for Sidearm COMP and ARB Manifold ports
• Waterproof: sealed against water intrusion
• Custom Power Tank Face: scale and markings matched to the 160 psi output range

Specifications

Who This Is For and Isn't

This gauge is for Power Tank Sidearm COMP regulator owners and ARB Manifold kit users who need to replace a damaged or worn output-pressure gauge. It suits overlanders and off-road drivers who air up tires with a CO2 system and need a waterproof, vibration-resistant gauge that reads accurately at 160 psi output.

This gauge does not fit the Sidearm PRO regulator's output port, which requires the 500 psi gauge. It does not read tank pressure: the Sidearm COMP and PRO tank-pressure port requires the 3000 psi gauge. It is not a universal gauge and is not designed for use outside the Power Tank Sidearm COMP and ARB Manifold system.

Common Questions

Which Power Tank regulator does this gauge fit?

The 160 psi spiral gauge fits the output port of the Power Tank Sidearm COMP regulator and the ARB Manifold kit. It does not fit the Sidearm PRO output port (which uses a 500 psi gauge) or the tank-pressure port on either Sidearm regulator (which uses a 3000 psi gauge).

What does the 160 psi range indicate?

The 160 psi range corresponds to the output pressure delivered by the Sidearm COMP regulator when airing up tires. A gauge calibrated to this range gives a more precise, readable display at the pressures used for tire inflation than a higher-range gauge would.

Is this gauge waterproof?

Yes. The 160 psi spiral gauge is waterproof, with a stainless steel case and polycarbonate lens that resist water intrusion, impact, and vibration.

How does this gauge connect to the regulator?

The 160 psi spiral gauge uses a 1/8" NPT back-stem connection, which is the standard port size on the Power Tank Sidearm COMP regulator and ARB Manifold kit output ports.
