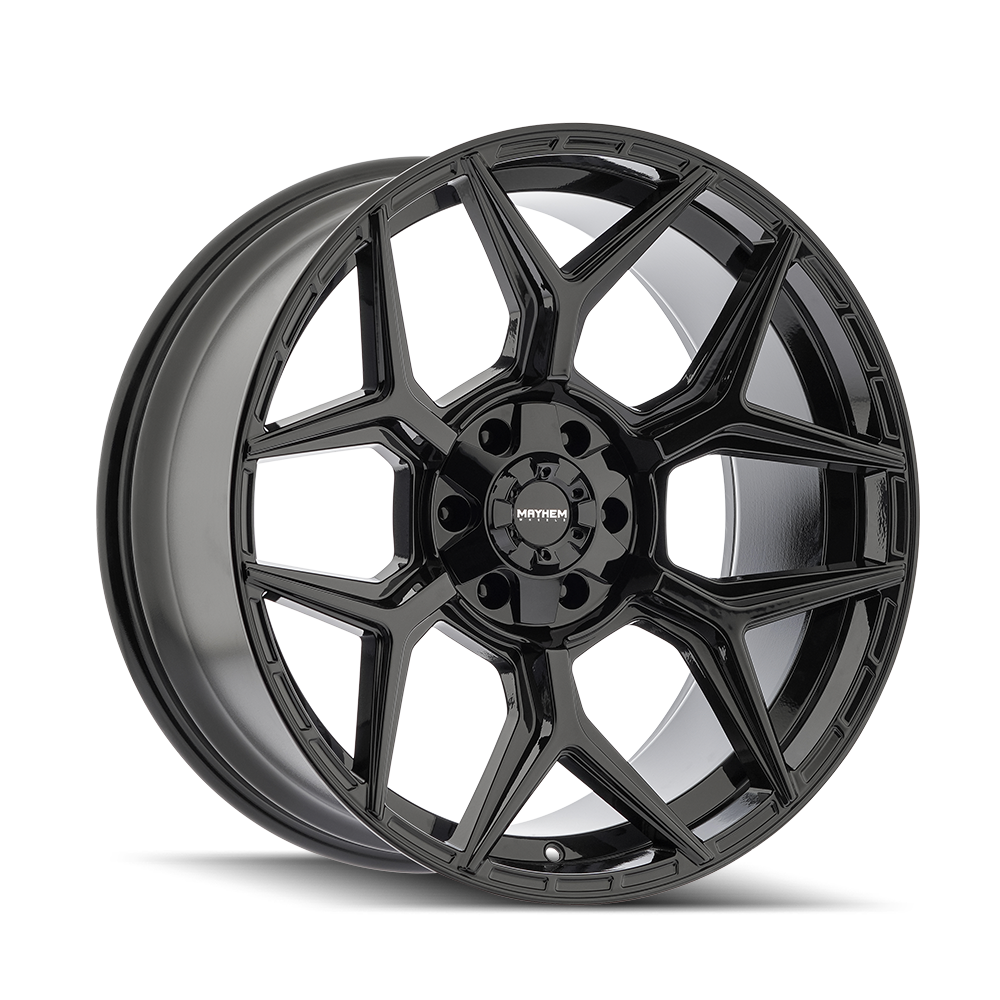

Mayhem Vanquish 8119 20-Inch Aluminum Alloy Wheel
Mayhem Vanquish 8119 20-Inch Aluminum Alloy Wheel
Couldn't load pickup availability
The Mayhem Vanquish 8119 is a 20-inch aluminum alloy wheel for trucks, Jeeps, and SUVs, sold individually (price is per wheel, not per set). Available in two sizes (20x9 and 20x10), two bolt-pattern groups (6-135/6-139.7 and 5-127/5-139.7), and two finishes (Gloss Black and Gloss Black Milled), the Vanquish 8119 carries a load rating up to 3,640 lbs and is backed by a lifetime structural warranty.
Built to Handle Real Loads
The Vanquish 8119 is constructed from high-quality aluminum alloy and rated to carry up to 3,640 lbs, a load rating Mayhem specifies for use with tires up to 40 inches. For a truck or SUV running oversized tires on rough terrain, that margin matters: a wheel that can't keep pace with the tire load is a liability off-road. The aluminum alloy construction keeps weight reasonable while maintaining the structural integrity that a high load rating demands.
TPMS Compatible, No Sensor Workaround Required
The Vanquish 8119 is designed to work with factory tire-pressure monitoring systems. Compatibility means existing sensors can transfer over without modification, keeping the dashboard warning system functional after the swap. TPMS sensors are not included and must be transferred from the existing wheels or purchased separately.
Two Sizes, Three Bolt Patterns, Two Finishes

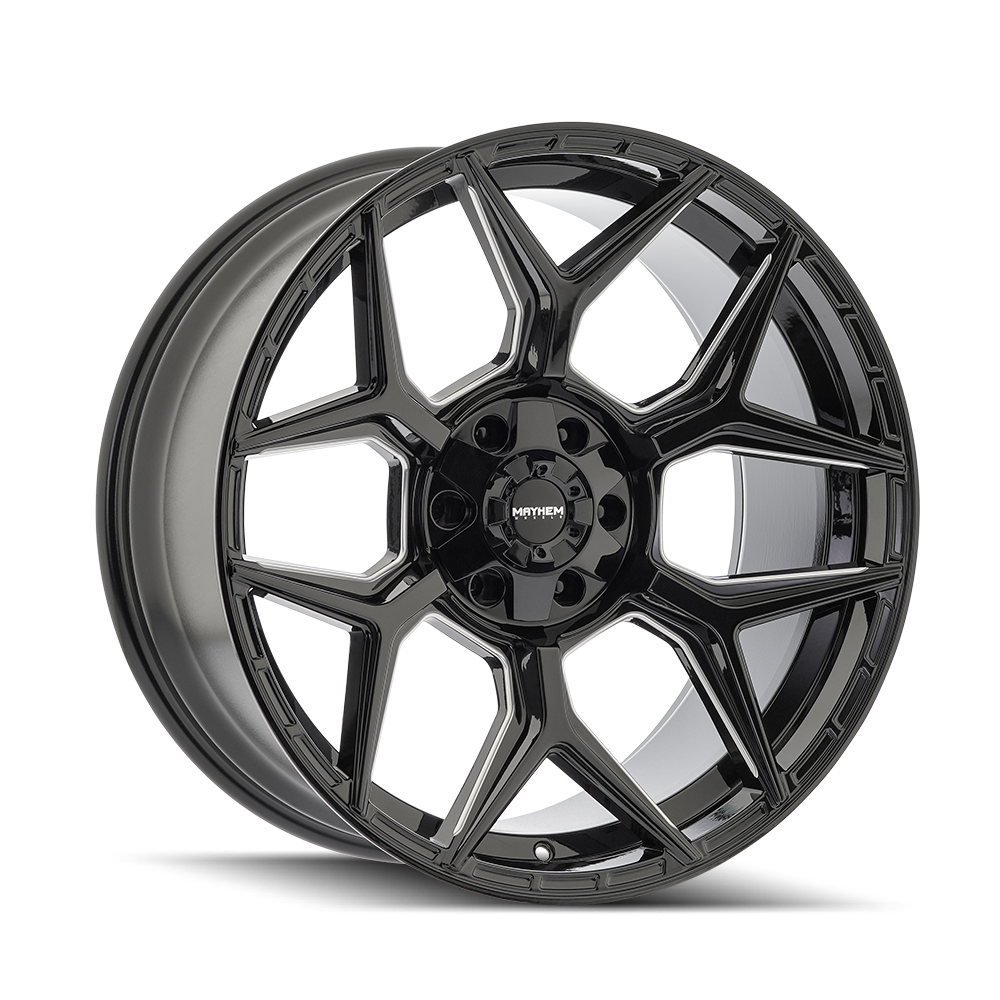

The 20x10 size is offered with a -19 mm offset and fits the 6-135/6-139.7 dual bolt pattern. The 20x9 size is offered at 0 mm offset and covers two bolt-pattern configurations: 6-135/6-139.7 and 5-127/5-139.7. Both sizes are available in Gloss Black and Gloss Black Milled. The milled finish cuts through the gloss face to expose the bare aluminum beneath, adding contrast without a secondary color.
Features
- Aluminum alloy construction: high-quality alloy throughout
- Load rating up to 3,640 lbs: rated for use with tires up to 40 inches
- Dual bolt-pattern options: 6-135/6-139.7 or 5-127/5-139.7 depending on variant
- TPMS compatible: works with factory tire-pressure monitoring sensors
- Lifetime structural warranty: covered by Mayhem's structural warranty
- Two finish options: Gloss Black and Gloss Black Milled
Specifications
| SKU | Size | Bolt Pattern | Offset | Hub Bore | Finish | Wheel Weight |
|---|---|---|---|---|---|---|
| 8119-2137GB-19 | 20x10 | 6-135 / 6-139.7 | -19 mm | 106 mm | Gloss Black | 35 lb |
| 8119-2137M-19 | 20x10 | 6-135 / 6-139.7 | -19 mm | 106 mm | Gloss Black Milled | 35 lb |
| 8119-2937GB | 20x9 | 6-135 / 6-139.7 | 0 mm | 106.1 mm | Gloss Black | 34 lb |
| 8119-2937M | 20x9 | 6-135 / 6-139.7 | 0 mm | 106.1 mm | Gloss Black Milled | 34 lb |
| 8119-2952GB | 20x9 | 5-127 / 5-139.7 | 0 mm | 78.1 mm | Gloss Black | 34 lb |
| 8119-2952M | 20x9 | 5-127 / 5-139.7 | 0 mm | 78.1 mm | Gloss Black Milled | 34 lb |
Country of manufacture: Thailand. Load rating: up to 3,640 lbs (rated for tires up to 40 inches).
Who This Is For and Isn't
The Vanquish 8119 suits truck, Jeep, and SUV owners running a 6-135, 6-139.7, 5-127, or 5-139.7 bolt pattern who want a 20-inch aluminum wheel with a high load rating and TPMS compatibility. The -19 mm offset on the 20x10 and the 0 mm offset on the 20x9 are suited to builds where a moderate outward stance is the goal.
The Vanquish 8119 hub bore varies by variant: the 20x10 and 6-135/6-139.7 20x9 variants have a 106 mm hub bore, while the 5-127/5-139.7 20x9 variants have a 78.1 mm hub bore. Confirm your vehicle's hub bore before ordering. Tires, lug nuts, and TPMS sensors are not included. This wheel is sold individually; a full set requires purchasing four.
Common Questions
Is the price for one wheel or a set of four?
The Mayhem Vanquish 8119 is priced and sold per wheel. Purchasing a full set of four requires adding four units to the cart.
Which bolt patterns does the Vanquish 8119 fit?
The Vanquish 8119 is available in two bolt-pattern groups: 6-135/6-139.7 (dual-drilled, covering both patterns) and 5-127/5-139.7 (also dual-drilled). Select the variant that matches your vehicle's bolt pattern. No specific vehicle makes or models are listed in the fitment data.
What hub bore do these wheels use, and does it matter?
The 20x10 and the 6-135/6-139.7 20x9 variants have a 106 mm hub bore. The 5-127/5-139.7 20x9 variants have a 78.1 mm hub bore. Hub bore must match or exceed your vehicle's hub diameter for a proper hub-centric fit; a hub-centric ring can be used when the wheel bore is larger than the vehicle hub.
Will the Vanquish 8119 work with my factory TPMS sensors?
The Mayhem Vanquish 8119 is TPMS compatible, meaning it is designed to accept factory tire-pressure monitoring sensors. TPMS sensors are not included with the wheel and must be transferred from the existing wheels or purchased separately.
What warranty covers the Vanquish 8119?
The Mayhem Vanquish 8119 carries a lifetime structural warranty. Cosmetic finishes and damage from road hazards, improper installation, or misuse are not covered under a structural warranty; consult Mayhem's warranty terms for full details.
What is the load rating, and what tire size is it rated for?
The Mayhem Vanquish 8119 has a load rating of up to 3,640 lbs. Mayhem specifies this rating in the context of tires up to 40 inches in diameter, making the Vanquish 8119 suitable for builds running large off-road tires on heavy trucks or SUVs.
