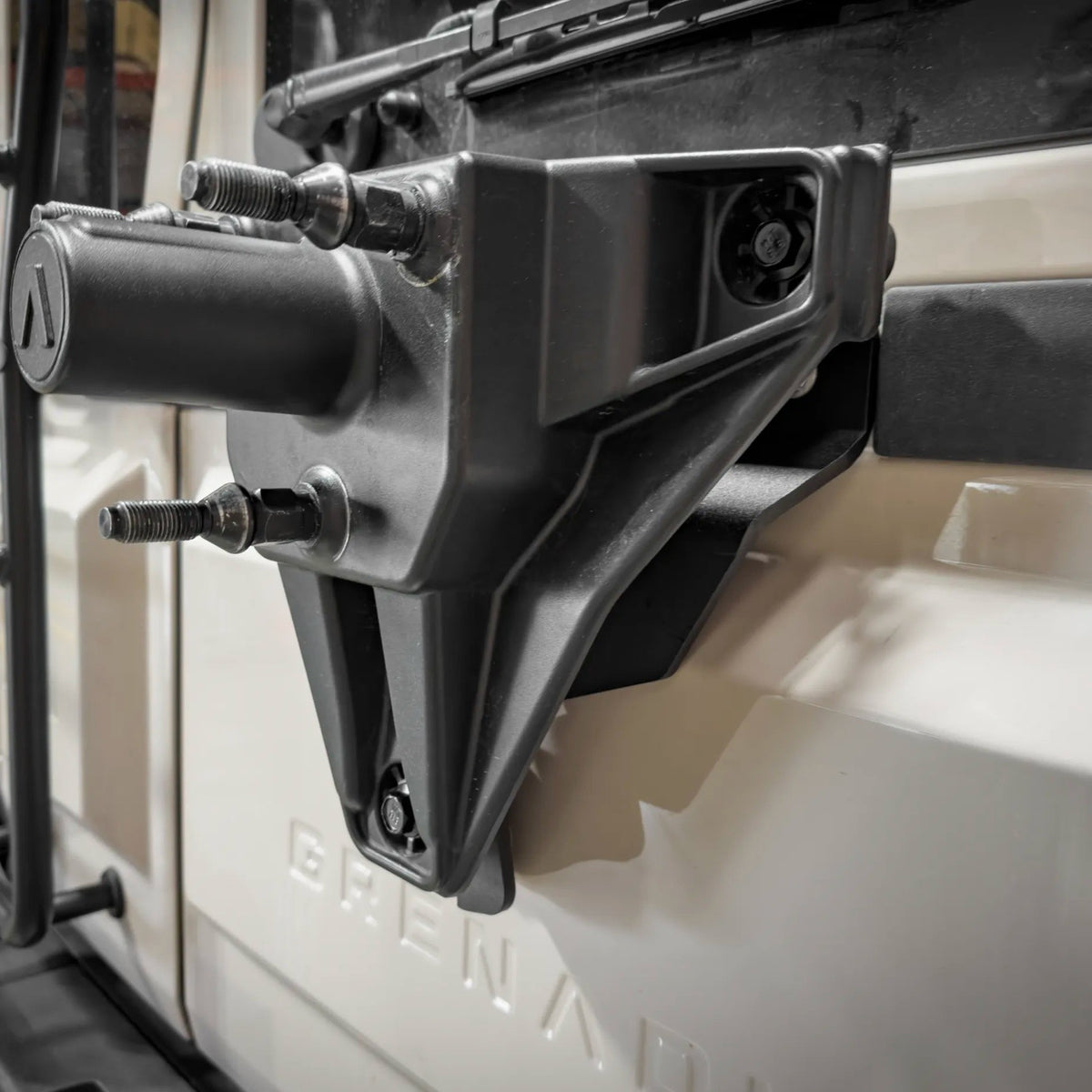

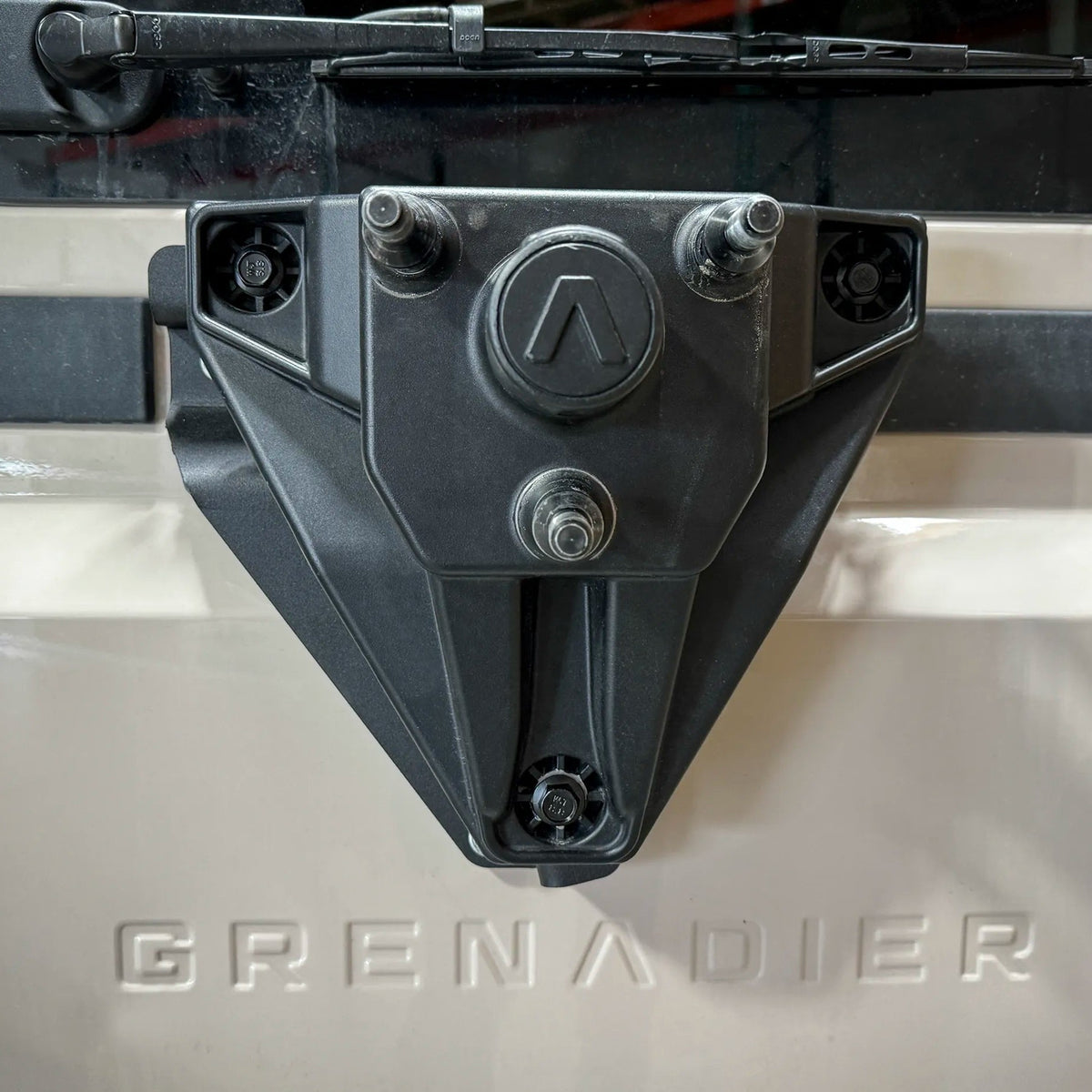

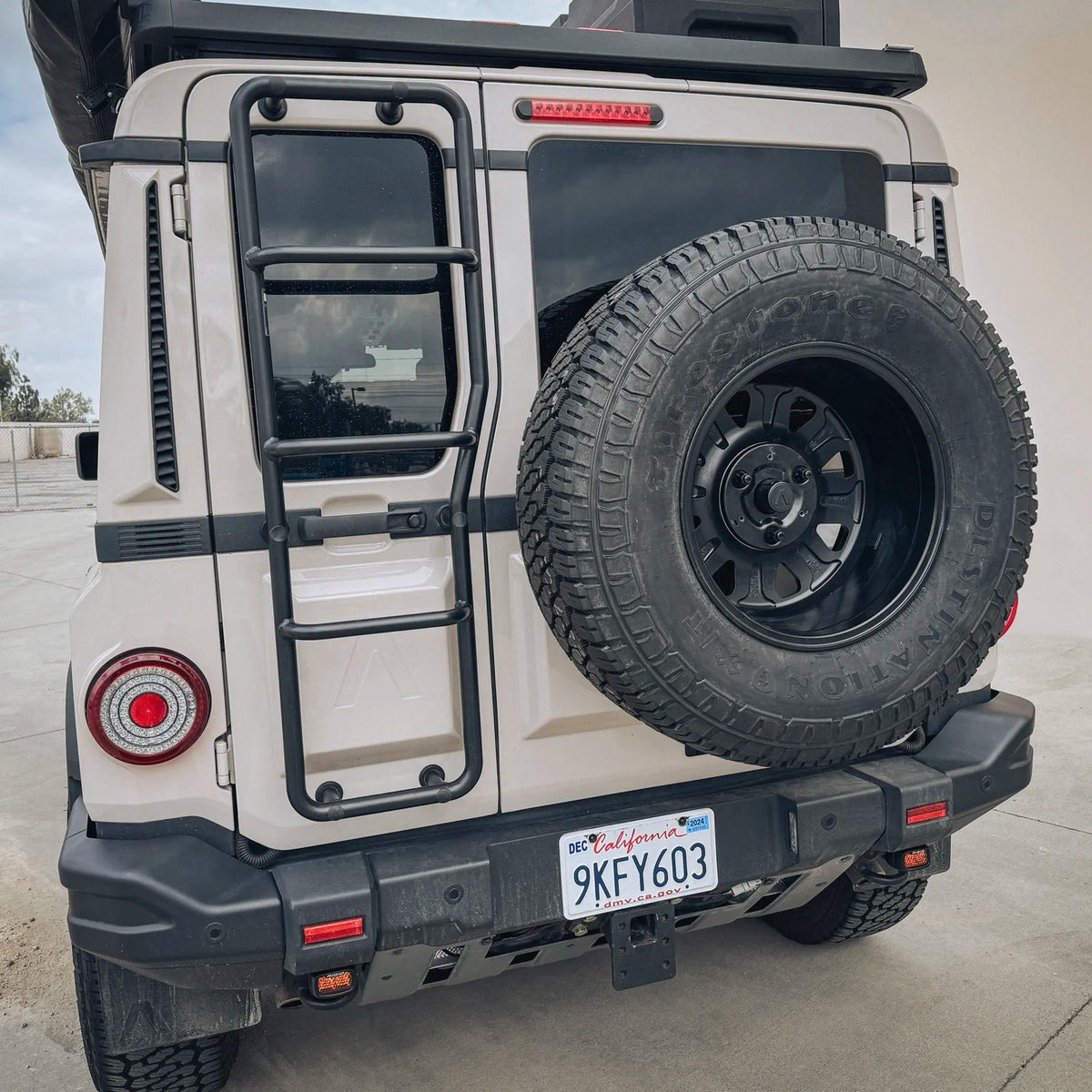

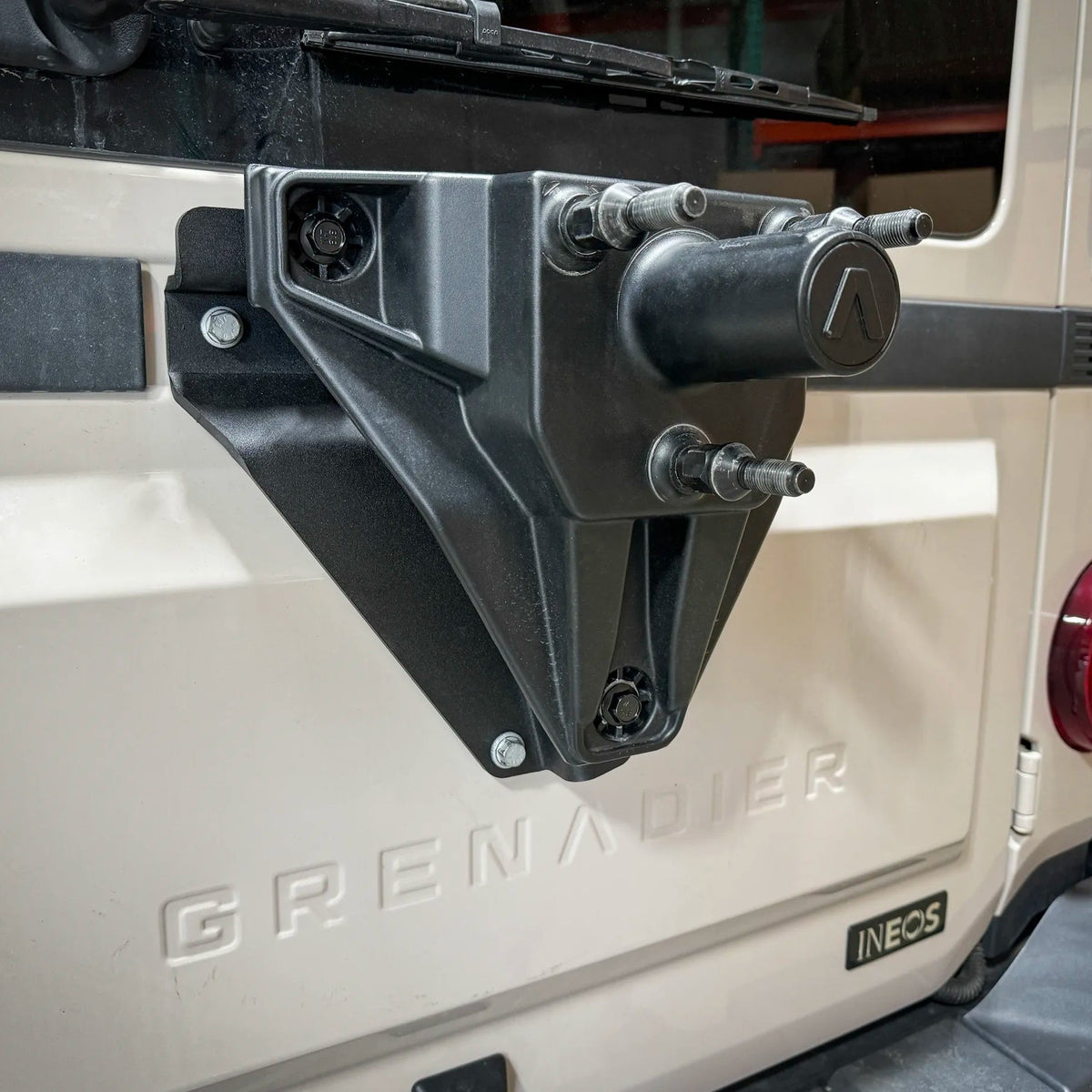

The Leitner Designs INEOS GRENADIER Tire Relocation Bracket is a bolt-on steel plate that moves the GRENADIER's rear spare tire 1¾" up, 1¾" right, and 1¾" outboard. The shift creates enough clearance for tires up to 37" while keeping the back door, rear wiper, and backup camera unobstructed. The wheel stays in its original orientation, so the factory spare tire cover or storage box remains usable. The bracket will not work with wheel and tire combinations with more than a 25mm offset, such as Vossen wheels.
Features

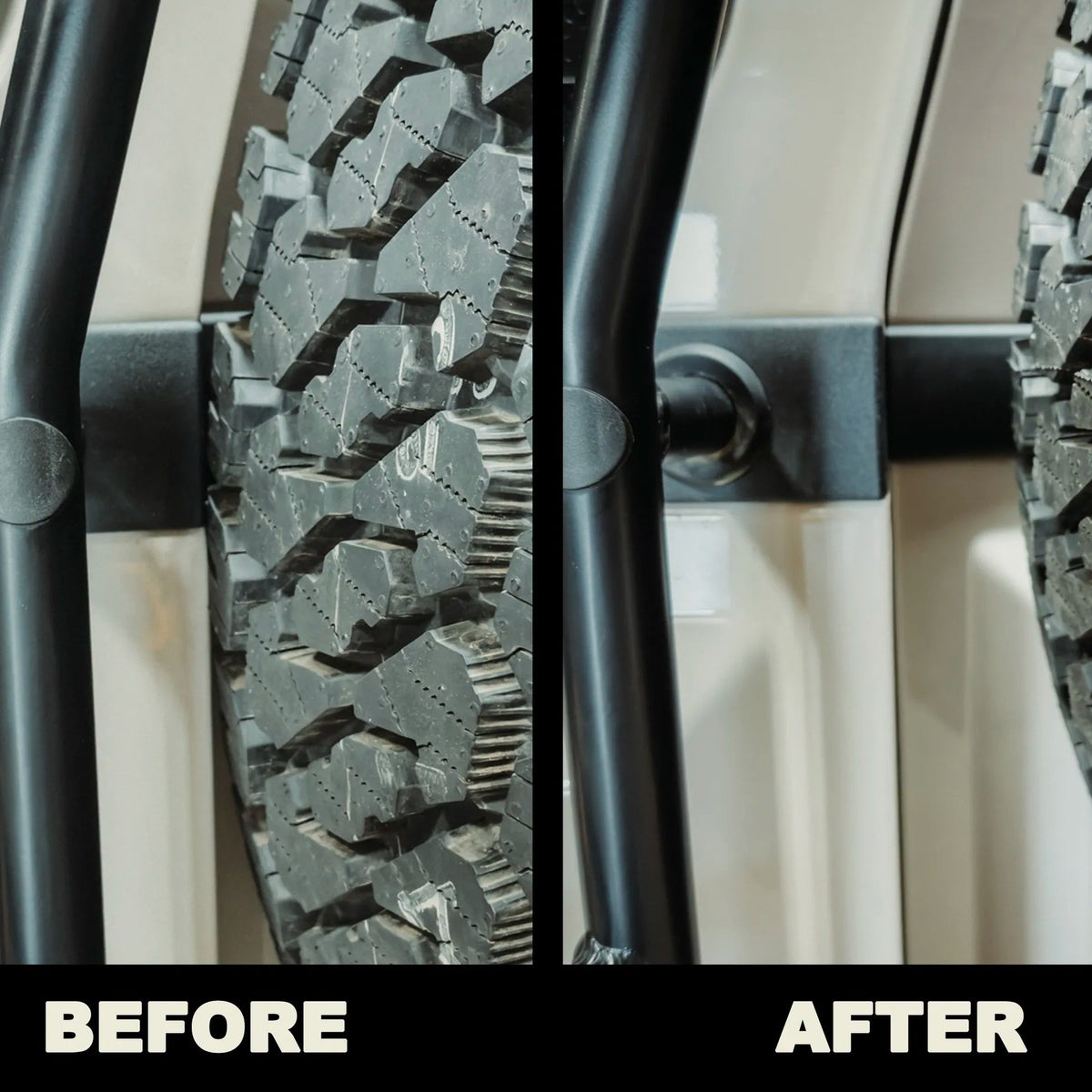

Clears door, wiper, and camera: accommodates tires up to 37" without interfering with the rear door swing, wiper arc, or backup camera view.
Bolt-on installation: mounts as a direct replacement plate with no cutting or welding.
Factory cover compatible: keeps the wheel rim-side in, so the OEM spare tire cover or storage box fits as before.

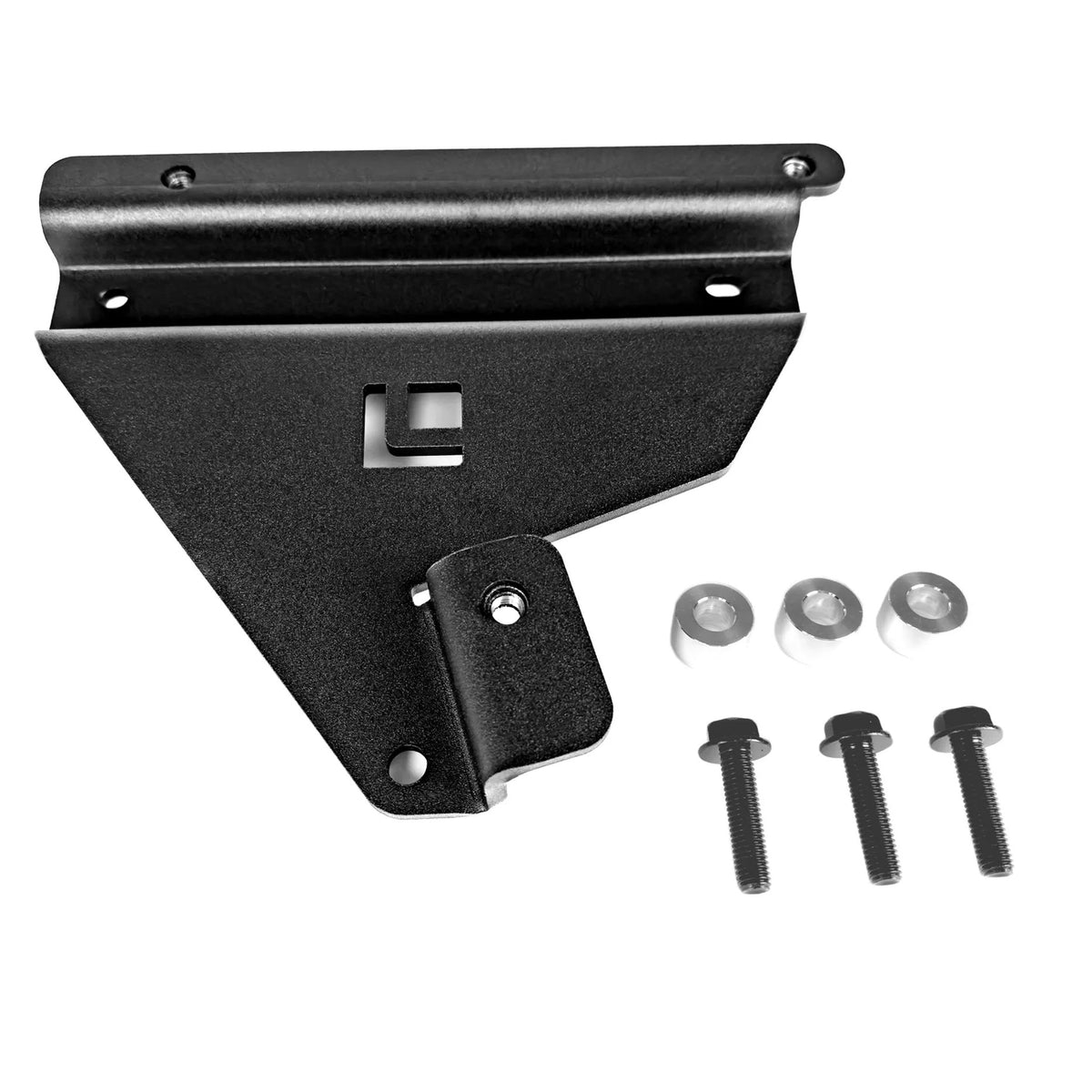

Grade 10.9 fasteners: black Zi-Ni-plated hardware included.
Made in USA: designed, engineered, and manufactured in the United States.
Specifications
Max tire size
37"
Relocation
1¾" up, 1¾" right, 1¾" outboard
Material
4-gauge steel. The product description on the vendor page states 6-gauge zinc-plated, powder-coated steel.
Finish
Gold zinc-plated and powder-coated
Fasteners
Grade 10.9 black Zi-Ni-plated
Weight
10 lbs.
Compatibility limit
Not compatible with wheel and tire combinations over 25mm offset (e.g., Vossen wheels)
