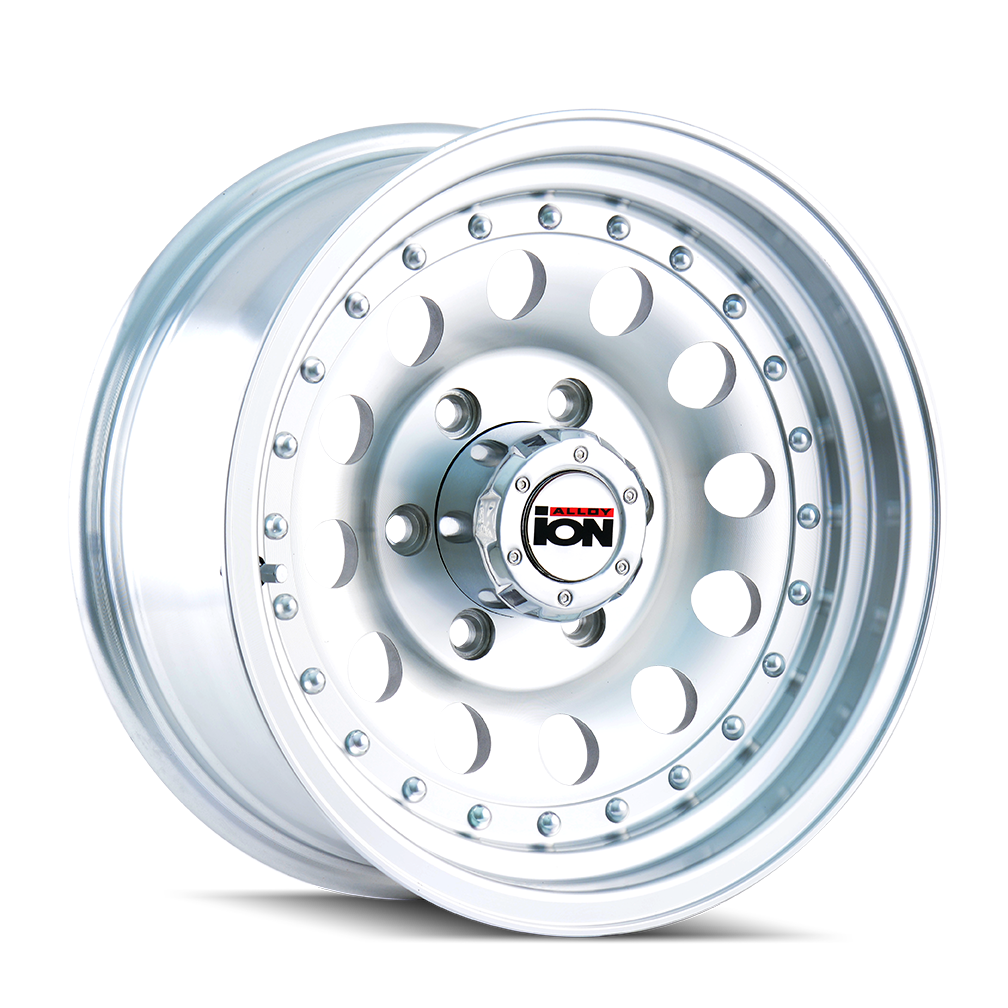

ION 71 Machined Wheel

The ION 71 is an aftermarket wheel available in 15x7, 15x8, and 16x7 sizes with a machined finish. Each wheel is sold individually; the listed price is per wheel, not per set. Nine bolt-pattern and size combinations cover 5-lug, 6-lug, and 8-lug applications across a range of offsets and hub bores. Select the size, bolt pattern, and offset that match your vehicle's specifications before adding to cart.

Consistent Machined Finish

The ION 71 ships in a machined finish, which means the face is cut to expose bare aluminum-bright metal against the surrounding surface. That contrast holds up to the visual demands of lifted trucks, Jeeps, and SUVs without requiring paint maintenance the way a fully painted wheel does. The finish is the same across all nine SKUs, so swapping sizes or bolt patterns later keeps the look consistent across an axle.

Multiple Sizes and Bolt Patterns in One Wheel Line

Sourcing wheels across a single product line rather than mixing brands or generations simplifies matching offsets and hub bores when building out a set. The ION 71 spans three diameters (15 and 16 inch), two widths (7 and 8 inch), and four bolt patterns (5-127, 5-139.7, 6-139.7, and 8-165.1), with offsets ranging from -6 mm to -19 mm. That range of negative offset pushes the wheel face outward relative to the hub centerline, which is a common requirement for lifted applications running larger tires.

Features

• Machined finish: cut face with contrasting surface detail across all variants
• Three diameter options: 15x7, 15x8, and 16x7 sizes available
• Four bolt patterns: 5-127, 5-139.7, 6-139.7, and 8-165.1
• Negative offsets: -6 mm (15x7), -19 mm (15x8), and -8 mm (16x7)
• Sold individually: price is per wheel

Specifications

Who This Is For and Isn't

The ION 71 suits buyers replacing or upgrading wheels on trucks, Jeeps, or SUVs that use 5-127, 5-139.7, 6-139.7, or 8-165.1 bolt patterns and require a 15- or 16-inch wheel with a negative offset. The machined finish works well on lifted builds where the wheel face is prominently visible.

Each ION 71 is sold and priced as a single wheel; buyers who need four should add four units to the cart. Bolt patterns, offsets, and hub bores outside those listed in the specifications table are not available in this wheel. Confirm your vehicle's bolt pattern, offset requirement, and hub bore before ordering; no vehicle-specific fitment guarantee is made beyond the dimensional specs listed above.

Common Questions

Is the price for a single wheel or a full set of four?

The ION 71 is sold as a single wheel; the listed price is for one wheel. Buyers who need a full set of four should add four units to the cart, selecting the same size, bolt pattern, and finish for each.

How do I know which bolt pattern and hub bore to choose?

Bolt pattern and hub bore are determined by the vehicle's axle hubs, not by personal preference. Check your owner's manual, the sticker inside the driver's door jamb, or measure the existing wheel before selecting a variant. The ION 71 is available in 5-127, 5-139.7, 6-139.7, and 8-165.1 bolt patterns with hub bores of 83.06 mm, 107.5 mm, or 130.8 mm depending on the SKU.

What does a negative offset mean for wheel fitment?

Offset is the distance between the wheel's mounting face and its centerline. On the ION 71, offsets of -6 mm, -8 mm, and -19 mm place the mounting face inboard of center, pushing the wheel face outward from the vehicle. This is common on lifted trucks and SUVs running wider tires, but buyers should verify their vehicle's clearance before installing.

What finish is available on the ION 71?

All ION 71 variants listed here are available in Machined finish only. The machined process cuts the wheel face to reveal a bright metallic surface, creating contrast with the surrounding areas.

Where is the ION 71 manufactured?

All ION 71 variants listed here are manufactured in Thailand. ION notes the wheel is designed in the U.S.A., but the country of manufacture for every SKU in this product is Thailand.
