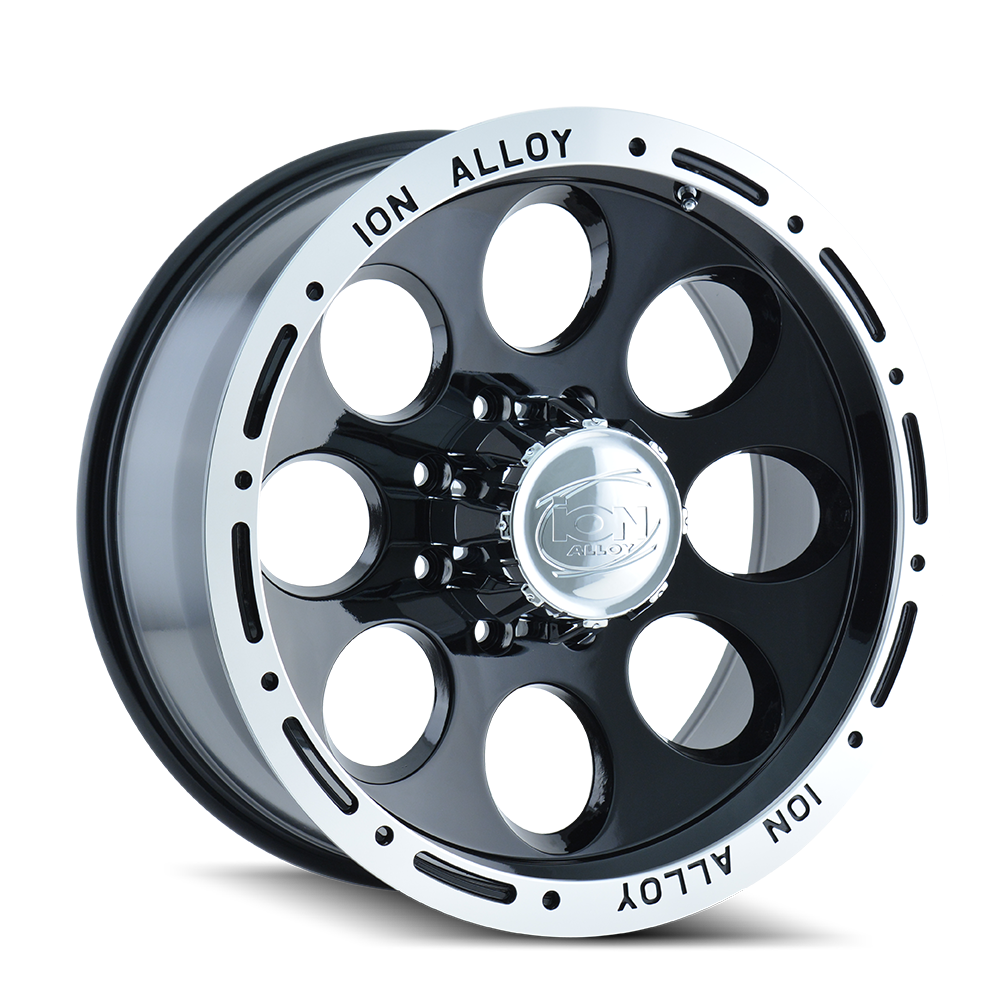

ION 174 Gloss Black Machined Wheel
ION 174 Gloss Black Machined Wheel
Couldn't load pickup availability
The ION 174 is an aftermarket wheel available in 15-, 16-, and 17-inch diameters across 19 size, bolt-pattern, and offset combinations, all finished in Gloss Black Machined. This listing is priced per wheel; purchase the quantity you need. Sizes range from 15x8 to 17x9, with bolt patterns spanning 5-lug and 6-lug 139.7 mm, 5-lug 135 mm, 5-lug 127 mm, 6-lug 135 mm, and 8-lug 165.1 mm and 170 mm applications.
Built Across a Wide Range of Fitments
The ION 174 is offered in a broad matrix of diameters, widths, bolt patterns, and offsets: 19 distinct SKUs in total. That range matters because a wheel that fits one truck's hub and clears its brake caliper may not fit another's, even within the same diameter. Selecting by bolt pattern, offset, and hub bore (all listed in the Specifications table below) gives a buyer the three numbers needed to confirm fitment before ordering, without relying on a vehicle-name lookup that may not account for trim-level or axle differences.
Gloss Black Machined Finish
The Gloss Black Machined finish combines a black base coat with a machined face that cuts through to a bright aluminum-look surface on the spoke faces. The result is a two-tone contrast that holds visual detail without requiring a polished-wheel maintenance routine on the full face. All 19 variants share this single finish.
Negative-Offset and Zero-Offset Options
The 15-inch variants carry offsets of -38 mm and -27 mm; the 16-inch variants run at -38 mm or -5 mm; the 17-inch variants are all at 0 mm. Negative offset pushes the wheel face outward from the hub centerline, widening the track stance and clearing larger brake assemblies or suspension components. Zero offset centers the wheel on the hub. Knowing which offset a specific application requires, and whether the hub bore (ranging from 83.82 mm to 130.8 mm across SKUs) matches the vehicle's hub, is the critical check before purchase.
Features
- 19 size/bolt-pattern combinations: 15x8, 15x10, 16x8, 16x10, and 17x9 diameters with six distinct bolt patterns
- Gloss Black Machined finish: black base with machined spoke faces for two-tone contrast
- Negative and zero offset options: -38 mm, -27 mm, -5 mm, and 0 mm across the lineup
- Designed in the U.S.A.: ION's design process is U.S.-based; wheels are manufactured in Thailand
- Sold individually: price is per wheel
Specifications
| SKU | Size | Bolt Pattern | Offset | Hub Bore | Finish | Product Weight |
|---|---|---|---|---|---|---|
| 174-5185B | 15x10 | 5-139.7 | -38 mm | 108 mm | Gloss Black Machined | 23 lb |
| 174-5883B | 15x8 | 6-139.7 | -27 mm | 106 mm | Gloss Black Machined | 21 lb |
| 174-5885B | 15x8 | 5-139.7 | -27 mm | 108 mm | Gloss Black Machined | 21 lb |
| 174-6170B | 16x10 | 8-170 | -38 mm | 130.8 mm | Gloss Black Machined | 25 lb |
| 174-6181B | 16x10 | 8-165.1 | -38 mm | 130.8 mm | Gloss Black Machined | 25 lb |
| 174-6183B | 16x10 | 6-139.7 | -38 mm | 106 mm | Gloss Black Machined | 25 lb |
| 174-6835B | 16x8 | 5-135 | -5 mm | 87 mm | Gloss Black Machined | 25 lb |
| 174-6870B | 16x8 | 8-170 | -5 mm | 130.8 mm | Gloss Black Machined | 25 lb |
| 174-6873B | 16x8 | 5-127 | -5 mm | 83.82 mm | Gloss Black Machined | 25 lb |
| 174-6881B | 16x8 | 8-165.1 | -5 mm | 130.8 mm | Gloss Black Machined | 25 lb |
| 174-6883B | 16x8 | 6-139.7 | -5 mm | 106 mm | Gloss Black Machined | 25 lb |
| 174-6885B | 16x8 | 5-139.7 | -5 mm | 108 mm | Gloss Black Machined | 25 lb |
| 174-7935B | 17x9 | 5-135 | 0 mm | 87 mm | Gloss Black Machined | 27 lb |
| 174-7936B | 17x9 | 6-135 | 0 mm | 87 mm | Gloss Black Machined | 27 lb |
| 174-7970B | 17x9 | 8-170 | 0 mm | 130.8 mm | Gloss Black Machined | 27 lb |
| 174-7973B | 17x9 | 5-127 | 0 mm | 83.82 mm | Gloss Black Machined | 27 lb |
| 174-7981B | 17x9 | 8-165.1 | 0 mm | 130.8 mm | Gloss Black Machined | 27 lb |
| 174-7983B | 17x9 | 6-139.7 | 0 mm | 106 mm | Gloss Black Machined | 27 lb |
| 174-7985B | 17x9 | 5-139.7 | 0 mm | 108 mm | Gloss Black Machined | 27 lb |
Who This Is For and Isn't
The ION 174 suits buyers replacing or upgrading wheels on trucks, Jeeps, or SUVs whose hub and brake assembly matches one of the 19 bolt-pattern, offset, and hub-bore combinations listed above. The offset range of -38 mm to 0 mm makes the 174 a practical option for builds that need a wider stance or specific caliper clearance.
The ION 174 is sold one wheel at a time; a full set requires purchasing four (or five, if a matching spare is needed). No specific vehicle makes, models, or years are confirmed as compatible: buyers must verify fitment using bolt pattern, offset, and hub bore against their specific vehicle's specifications. Lug nuts are not included.
Common Questions
Is this listing for one wheel or a set of four?
The ION 174 is sold individually. The price shown is for one wheel. Buyers who need a full set should add four to the cart, or five if a matching spare is required.
How do I confirm this wheel fits my vehicle?
Match three numbers from your vehicle's specifications to the SKU table: bolt pattern (number of lugs and bolt-circle diameter in mm), offset (how far the hub mounting face sits from the wheel centerline), and hub bore (the center hole diameter in mm). All three must match or be compatible. Hub bore can be larger than the vehicle hub if a hub-centric ring is used, but bolt pattern and offset must be correct for the application.
Are lug nuts included with the ION 174?
Lug nuts are not included with the ION 174. The correct lug nut seat type (conical, ball, or flat) depends on both the wheel and the vehicle, so lug nuts should be selected and purchased separately to ensure a proper fit.
Where is the ION 174 manufactured?
The ION 174 wheel is manufactured in Thailand. ION's design work is done in the U.S.A., but country of manufacture for all 19 variants in this listing is Thailand.
What does the Gloss Black Machined finish look like?
The Gloss Black Machined finish starts with a black base coat; the spoke faces are then machined to expose a bright contrasting surface, creating a two-tone look. No coating specification or finish warranty term is stated in the available product data.
What is the offset, and which offset should I choose?
Offset is the distance in millimeters between the wheel's hub mounting face and its centerline. A negative offset (such as -38 mm) pushes the wheel outward for a wider stance; zero offset centers the wheel on the hub. The ION 174 is available at -38 mm, -27 mm, -5 mm, and 0 mm depending on the size and bolt pattern selected. Consult a fitment guide or wheel specialist if unsure which offset is correct for a specific vehicle and suspension setup.
