ION 149 20-Inch Aftermarket Wheel
ION 149 20-Inch Aftermarket Wheel
Couldn't load pickup availability
The ION 149 is a 20-inch aftermarket wheel sold individually (price is per wheel, not per set), available in 20x9 and 20x10 widths across seven bolt patterns (5-lug and 8-lug) and two finishes. Negative offsets ranging from -12 mm to -24 mm push the face outward for an aggressive stance on trucks and SUVs. Select your exact size, bolt pattern, and finish using the variant selectors above.
Aggressive Offset Without Sacrificing Fitment Range
Both the 20x9 (-12 mm offset) and 20x10 (-24 mm offset) configurations use a true negative offset, meaning the mounting face sits closer to the inside of the wheel than the centerline. That geometry moves the tire outward relative to the fender, widening the visual track of the vehicle without requiring a body lift or fender modification. The ION 149 is offered in seven distinct bolt patterns (5-127, 5-139.7, 6-135, 6-139.7, 8-165.1, 8-170, and 8-180), so buyers running different axle configurations can find a direct-fit option rather than relying on adapters.
Two Finishes, One Design Language

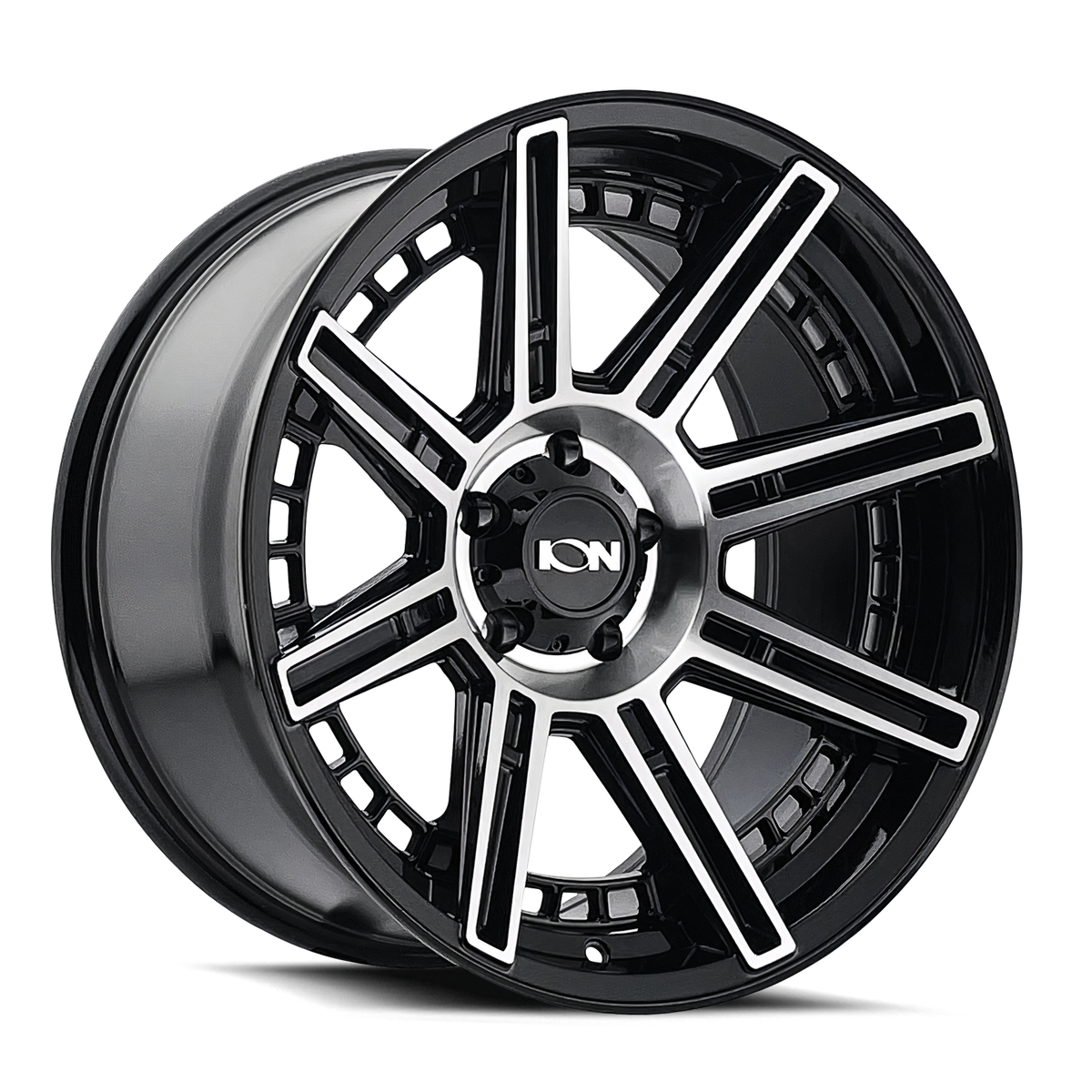

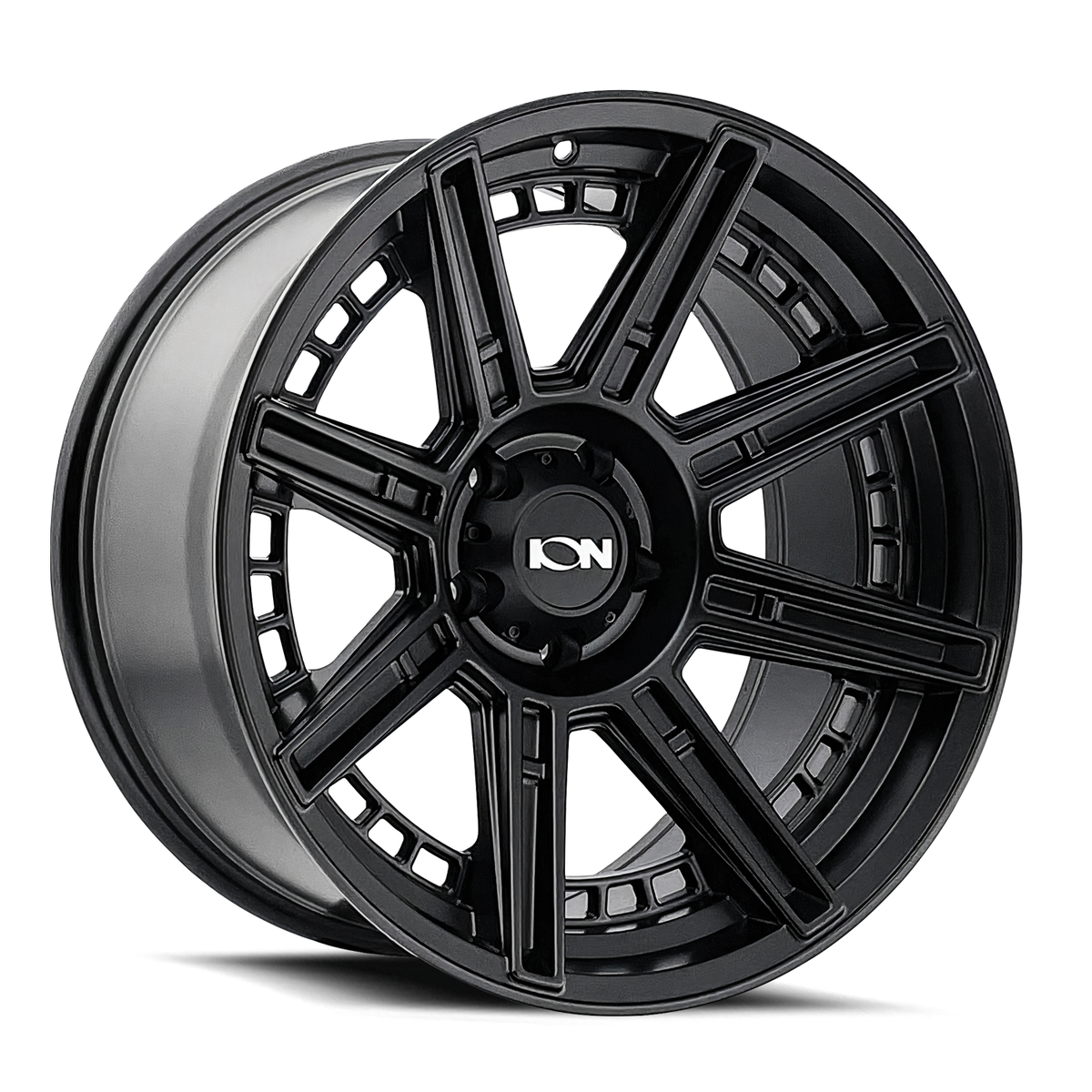

The Gloss Black Machined finish pairs a high-gloss black base with machined face highlights that catch light and contrast against the spoke edges. Matte Black delivers a flat, low-reflectance look that reads as more subdued on the road and tends to show brake dust less prominently. Both finishes are available across the full size and bolt-pattern lineup, so the choice is purely aesthetic rather than a fitment constraint.
Features
- Two sizes: 20x9 with -12 mm offset and 20x10 with -24 mm offset
- Seven bolt patterns: 5-127, 5-139.7, 6-135, 6-139.7, 8-165.1, 8-170, 8-180 across the lineup
- Two finishes: Gloss Black Machined and Matte Black
- Sold individually: price is per single wheel
- Designed in the U.S.A.: manufactured in Thailand
Specifications
| SKU | Size | Bolt Pattern | Offset | Hub Bore | Finish | Product Weight |
|---|---|---|---|---|---|---|
| 149-2136B | 20x10 | 6-135 | -24 mm | 87.1 mm | Gloss Black Machined | 35 lb |
| 149-2136MB | 20x10 | 6-135 | -24 mm | 87.1 mm | Matte Black | 35 lb |
| 149-2170B | 20x10 | 8-170 | -24 mm | 125.2 mm | Gloss Black Machined | 40 lb |
| 149-2170MB | 20x10 | 8-170 | -24 mm | 125.2 mm | Matte Black | 40 lb |
| 149-2173B | 20x10 | 5-127 | -24 mm | 78.1 mm | Gloss Black Machined | 35 lb |
| 149-2173MB | 20x10 | 5-127 | -24 mm | 78.1 mm | Matte Black | 35 lb |
| 149-2181B | 20x10 | 8-165.1 | -24 mm | 125.2 mm | Gloss Black Machined | 40 lb |
| 149-2181MB | 20x10 | 8-165.1 | -24 mm | 125.2 mm | Matte Black | 40 lb |
| 149-2183B | 20x10 | 6-139.7 | -24 mm | 106.1 mm | Gloss Black Machined | 35 lb |
| 149-2183MB | 20x10 | 6-139.7 | -24 mm | 106.1 mm | Matte Black | 35 lb |
| 149-2936B | 20x9 | 6-135 | -12 mm | 87.1 mm | Gloss Black Machined | 35 lb |
| 149-2936MB | 20x9 | 6-135 | -12 mm | 87.1 mm | Matte Black | 35 lb |
| 149-2978B | 20x9 | 8-180 | -12 mm | 124.1 mm | Gloss Black Machined | 40 lb |
| 149-2978MB | 20x9 | 8-180 | -12 mm | 124.1 mm | Matte Black | 40 lb |
| 149-2981B | 20x9 | 8-165.1 | -12 mm | 125.2 mm | Gloss Black Machined | 40 lb |
| 149-2981MB | 20x9 | 8-165.1 | -12 mm | 125.2 mm | Matte Black | 40 lb |
| 149-2983B | 20x9 | 6-139.7 | -12 mm | 106.1 mm | Gloss Black Machined | 35 lb |
| 149-2983MB | 20x9 | 6-139.7 | -12 mm | 106.1 mm | Matte Black | 35 lb |
| 149-2985B | 20x9 | 5-139.7 | -12 mm | 87.1 mm | Gloss Black Machined | 35 lb |
| 149-2985MB | 20x9 | 5-139.7 | -12 mm | 87.1 mm | Matte Black | 35 lb |
Who This Is For and Isn't
The ION 149 suits buyers looking for a 20-inch wheel with a negative offset and a broad bolt-pattern selection, particularly those running 5-lug or 8-lug axle configurations on trucks or SUVs who want an aggressive outward stance without adapters.
The ION 149 is sold as a single wheel; a set of four requires four separate units. Confirm compatibility using your vehicle's bolt pattern, offset range, and hub bore before ordering. Tires, lug nuts, and TPMS sensors are not included.
Common Questions
Is the price for one wheel or a full set?
The ION 149 is priced and sold per wheel. Buyers who need a full set of four should add four units to their cart. The listing price reflects a single wheel in the selected size, bolt pattern, and finish.
How do I confirm this wheel fits my vehicle?
Match your vehicle's bolt pattern, offset tolerance, and hub bore to the values in the Specifications table above. The ION 149 is available in bolt patterns 5-127, 5-139.7, 6-135, 6-139.7, 8-165.1, 8-170, and 8-180. Verify against your vehicle's factory specs or a fitment guide before ordering, as vehicle make, model, and year fitment data are not listed for this wheel.
What does the hub bore measurement affect?
The hub bore is the center hole diameter that seats over the vehicle's hub. Hub bore values for the ION 149 range from 78.1 mm to 125.2 mm depending on the bolt pattern selected. If the hub bore is larger than your vehicle's hub, a hub-centric ring (not included) is typically used to center the wheel properly.
What is the difference between the two finishes?
Gloss Black Machined combines a high-gloss black base with machined highlights on the face for a two-tone contrast look. Matte Black is a flat, non-reflective finish across the entire wheel face. Both finishes are available in every size and bolt-pattern combination offered for the ION 149.
Where is the ION 149 manufactured?
The ION 149 wheel is manufactured in Thailand. ION notes that the design originates in the U.S.A., but the wheel itself is produced in Thailand.
