The ION 146 is a cast aftermarket wheel available in 17-inch and 20-inch diameters, offered in Gloss Black and Matte Black Machined With Dark finishes across fifteen size, bolt-pattern, and offset combinations. Sizes range from 17x9 to 20x10, with bolt patterns spanning 5-lug and 6-lug and 8-lug configurations. This listing is priced per wheel; a full set requires purchasing four.
Built Around Fitment Flexibility
The ION 146 is offered in five distinct bolt patterns: 5-127, 6-135, 6-139.7, 8-165.1, and 8-170, with offsets ranging from -19 mm to +18 mm and hub bores from 78.1 mm to 125.2 mm. That range means a single wheel line can serve meaningfully different truck and SUV platforms without requiring adapters. Matching the correct bolt pattern, offset, and hub bore to your specific vehicle is the most important step before ordering; the SKU table on this page lists every combination available.
Two Finishes, One Design Language

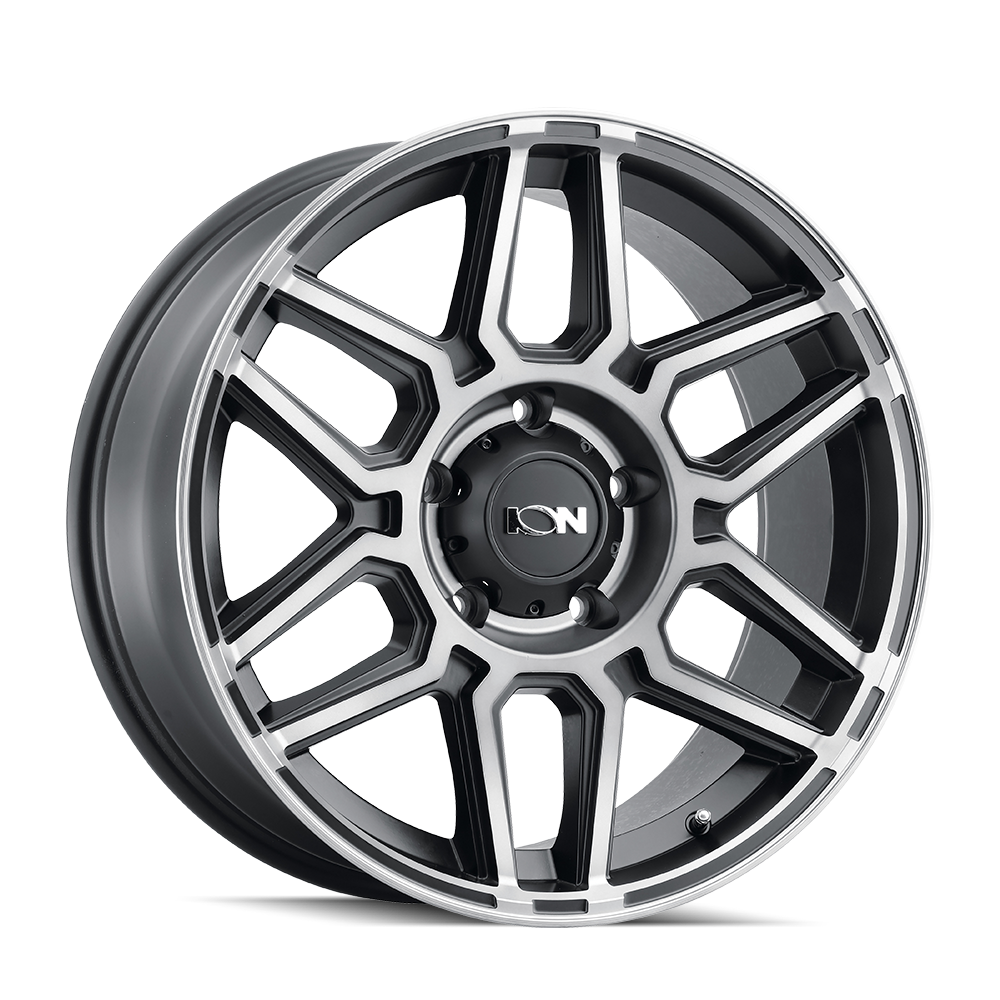

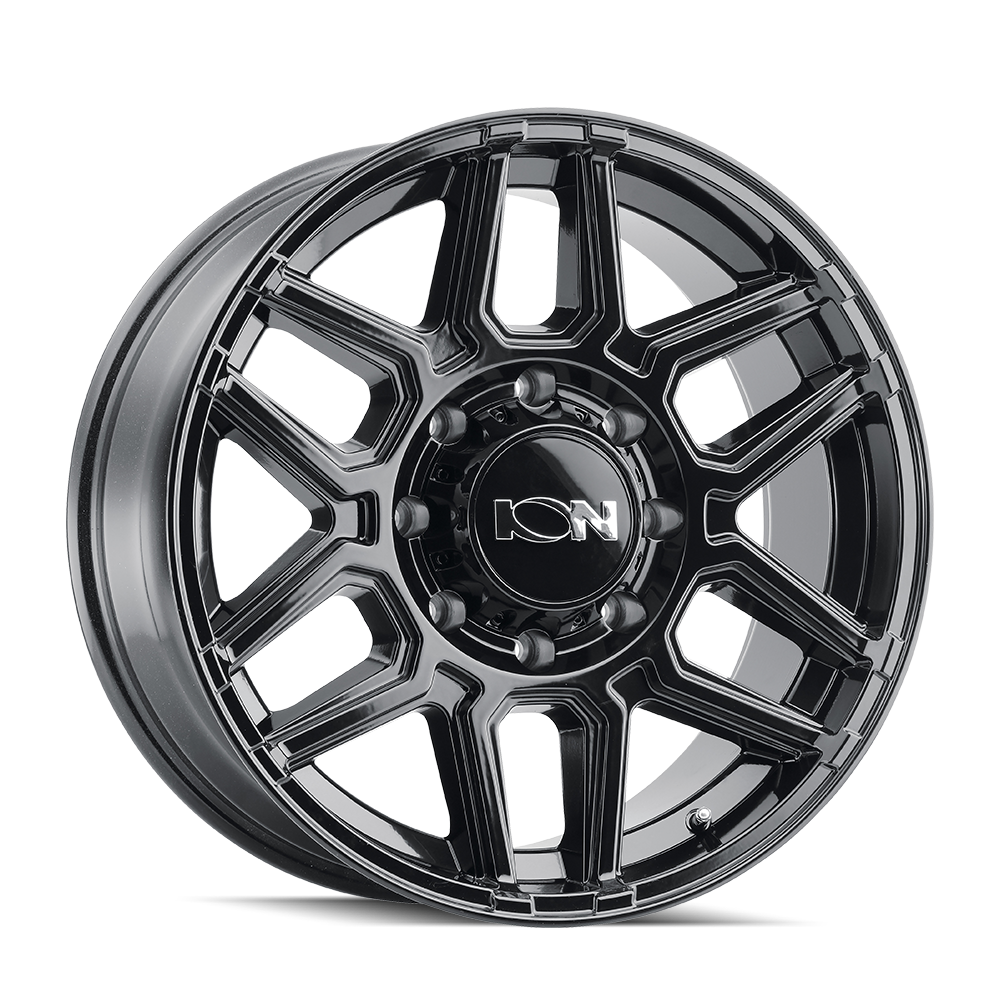

The Gloss Black finish delivers a clean, high-contrast look that reads well against both lifted and stock-height builds. The Matte Black Machined With Dark finish adds a machined face detail for buyers who want visual depth without a polished or chrome appearance. Both finishes are available across multiple sizes and bolt patterns, so finish choice does not limit fitment options in most configurations.
Size and Weight Matched to the Application
The 17x9 option weighs 33 lb per wheel, making it the lightest variant in the lineup and a reasonable choice where unsprung weight is a consideration. The 20x9 variants run 37–44 lb depending on bolt pattern, and the 20x10 variants run 38–39 lb. The 20x9 variants in 8-165.1 and 8-170 bolt patterns weigh 44 lb per wheel; the additional material required for the larger bolt circle accounts for the difference, compared to 37 lb for the 6-lug and 5-lug 20x9 variants. Weights listed here are product weights; shipping weights may differ slightly by SKU.
Features
- Fifteen SKU combinations: 17x9 and 20x9 and 20x10 diameters across five bolt patterns and three offset values
- Two finish options: Gloss Black and Matte Black Machined With Dark
- Bolt patterns available: 5-127, 6-135, 6-139.7, 8-165.1, 8-170
- Offset range: -19 mm to +18 mm depending on size and bolt pattern
- Designed in the U.S.A.
Specifications
| SKU | Size | Bolt Pattern | Offset | Hub Bore | Finish | Product Weight | Made In |
|---|---|---|---|---|---|---|---|
| 146-2136GB19 | 20x10 | 6-135 | -19 mm | 87.1 mm | Gloss Black | 39 lb | Thailand |
| 146-2173GB19 | 20x10 | 5-127 | -19 mm | 78.1 mm | Gloss Black | 39 lb | Thailand |
| 146-2173TM19 | 20x10 | 5-127 | -19 mm | 78.1 mm | Matte Black Machined With Dark | 38 lb | Thailand |
| 146-2183GB19 | 20x10 | 6-139.7 | -19 mm | 106 mm | Gloss Black | 39 lb | Thailand |
| 146-2936GB | 20x9 | 6-135 | 0 mm | 87.1 mm | Gloss Black | 37 lb | Thailand |
| 146-2936GB18 | 20x9 | 6-135 | +18 mm | 87.1 mm | Gloss Black | 37 lb | Thailand |
| 146-2970GB18 | 20x9 | 8-170 | +18 mm | 125.2 mm | Gloss Black | 44 lb | Thailand |
| 146-2973GB | 20x9 | 5-127 | 0 mm | 78.1 mm | Gloss Black | 37 lb | Thailand |
| 146-2981GB | 20x9 | 8-165.1 | 0 mm | 125.2 mm | Gloss Black | 44 lb | Thailand |
| 146-2981GB18 | 20x9 | 8-165.1 | +18 mm | 125.2 mm | Gloss Black | 44 lb | Thailand |
| 146-2983GB | 20x9 | 6-139.7 | 0 mm | 106 mm | Gloss Black | 37 lb | Thailand |
| 146-2983GB18 | 20x9 | 6-139.7 | +18 mm | 106 mm | Gloss Black | 37 lb | Thailand |
| 146-2983TM | 20x9 | 6-139.7 | 0 mm | 106 mm | Matte Black Machined With Dark | 37 lb | China |
| 146-2983TM18 | 20x9 | 6-139.7 | +18 mm | 106 mm | Matte Black Machined With Dark | 37 lb | China |
| 146-7970TM | 17x9 | 8-170 | 0 mm | 125.2 mm | Matte Black Machined With Dark | 33 lb | Thailand |
Who This Is For and Isn't
The ION 146 suits truck and SUV owners replacing or upgrading to an aftermarket wheel in a 17-inch or 20-inch diameter, where the vehicle's bolt pattern, offset requirement, and hub bore match one of the fifteen available SKU combinations listed above.
The ION 146 is not sold as a set; each purchase covers one wheel. No tires, lug nuts, or TPMS sensors are included. Bolt patterns, offsets, and hub bores outside those listed are not available in this model. Vehicle fitment by make, model, or year is not listed for this wheel; buyers should confirm compatibility using the bolt pattern, offset, and hub bore values in the SKU table above.
Common Questions
Is this listing for one wheel or a full set?
This listing is priced per wheel. Purchasing four ION 146 wheels requires adding four units to your cart. No set discount or bundle is included in this listing.
How do I confirm this wheel fits my vehicle?
Match your vehicle's bolt pattern, offset requirement, and hub bore to the SKU table on this page. The ION 146 is available in bolt patterns 5-127, 6-135, 6-139.7, 8-165.1, and 8-170, with hub bores from 78.1 mm to 125.2 mm and offsets from -19 mm to +18 mm. Vehicle fitment by make, model, or year is not listed for this wheel; confirming compatibility is the buyer's responsibility.
Do the wheels come with tires, lug nuts, or TPMS sensors?
No. The ION 146 is sold as a bare wheel only. Tires, lug nuts, and TPMS sensors are not included and must be sourced separately.
Why do some SKUs weigh more than others at the same diameter?
The ION 146 20x9 variants in 8-165.1 and 8-170 bolt patterns weigh 44 lb per wheel, compared to 37 lb for the 6-lug and 5-lug 20x9 variants. The additional material required for the larger bolt circle accounts for the difference. The 17x9 variant is the lightest in the lineup at 33 lb.
Where are ION 146 wheels manufactured?
Most ION 146 SKUs are manufactured in Thailand. The two Matte Black Machined With Dark variants in 20x9 with 6-139.7 bolt pattern (SKUs 146-2983TM and 146-2983TM18) are manufactured in China. The wheel is designed in the U.S.A.
