ION 141 8-Spoke Aftermarket Wheel

The ION 141 is an aftermarket eight-spoke wheel sold individually (price is per wheel, not per set), available in 17x9, 18x9, 20x9, 20x10, and 20x12 sizes across bolt patterns ranging from 5-lug to 8-lug configurations, with offsets spanning -44 mm to +18 mm. The 141's integrated cap design accommodates dual-drill bolt pattern fitments on select variants, and the line carries a stated load rating of up to 3,640 lbs per wheel when paired with 40-inch tires. Finishes include Gloss Black Milled, Satin Black, and Chrome across 59 variants.

Eight Spokes Built to Fill the Wheel Well

The ION 141's stout eight-spoke design features chamfered edges that catch light and add visual definition without relying on a busy pattern. The deep-lip construction adds genuine dimension to the profile, a detail that matters on lifted trucks and SUVs where the wheel well is fully exposed. For buyers who want a wheel that reads as substantial at a glance, the 141's proportions deliver that without overstyling.

Dual-Drill Fitment Expands Your Options

Several ION 141 variants use an integrated cap design that allows a single wheel to accept two different bolt patterns: for example, 6-135 and 6-139.7 on the same wheel, or 5-127 and 5-139.7. This dual-drill approach means the same wheel can cross over between platforms that share a lug count but differ slightly in bolt circle diameter, which is useful when a buyer is switching trucks or wants flexibility at resale. Fitment is determined by bolt pattern, offset, and hub bore. All three values are listed per SKU in the specifications table below, and all three must match your vehicle before ordering.

Load Rating Sized for Large-Format Tires

The ION 141 carries a stated load rating of up to 3,640 lbs per wheel when running 40-inch tires, a figure that matters on a heavily loaded overland rig or a truck that sees real work. A wheel that can't keep pace with the tire and load combination is a liability off-road; the 141's rating is sized for the large-format rubber that typically accompanies a lift in this size range. Buyers running 37s or 35s on a daily driver will find the rating more than adequate for that use as well.

Features

• Eight-spoke design with chamfered edges: stout spoke profile with beveled edges for visual definition
• Deep-lip construction: adds dimension and depth to the wheel profile
• Integrated cap / dual-drill fitment: select variants accept two bolt patterns on one wheel
• Load rating up to 3,640 lbs per wheel: rated with 40-inch tires

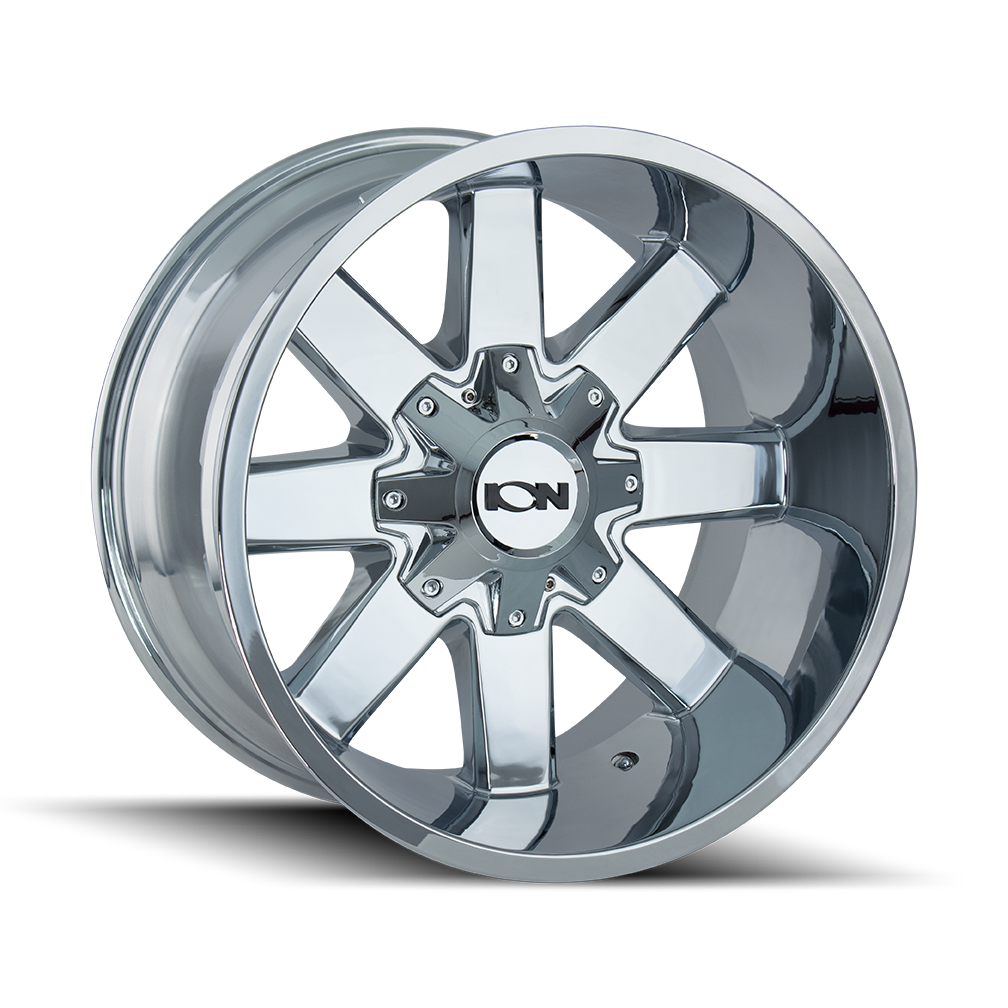

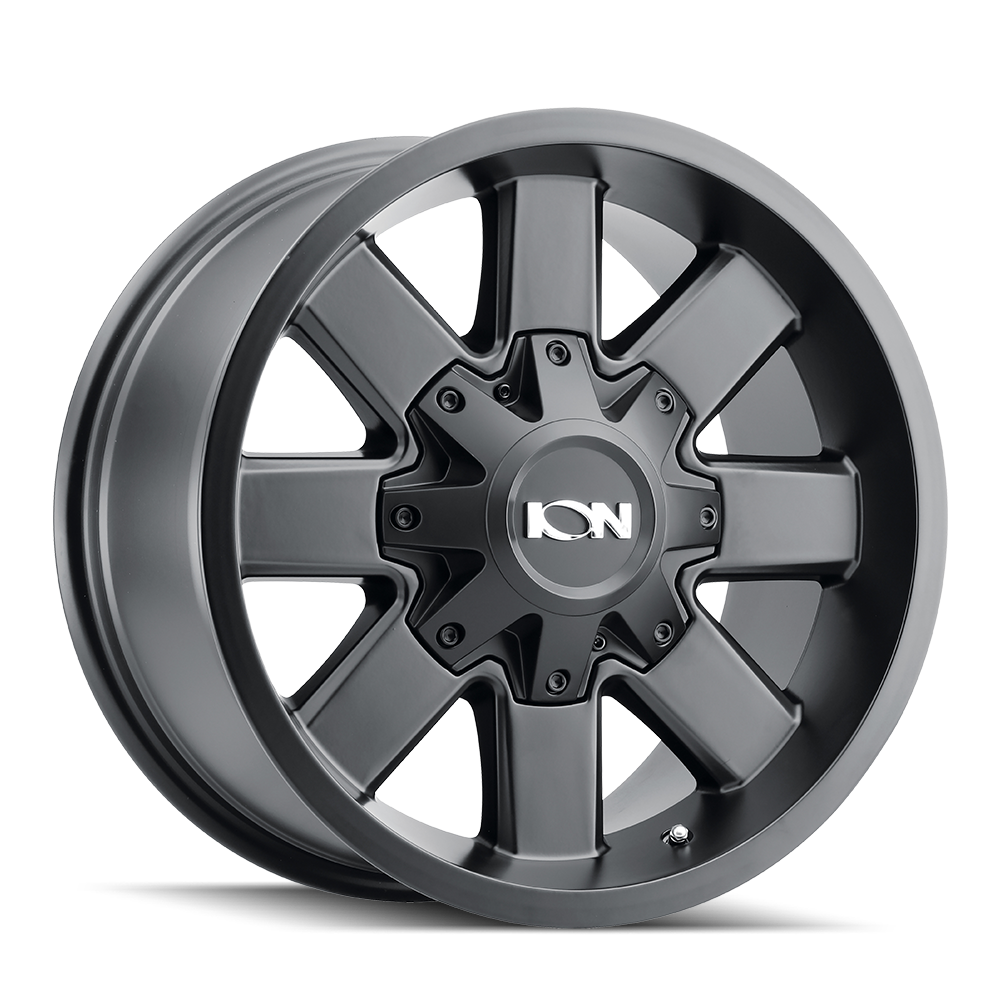

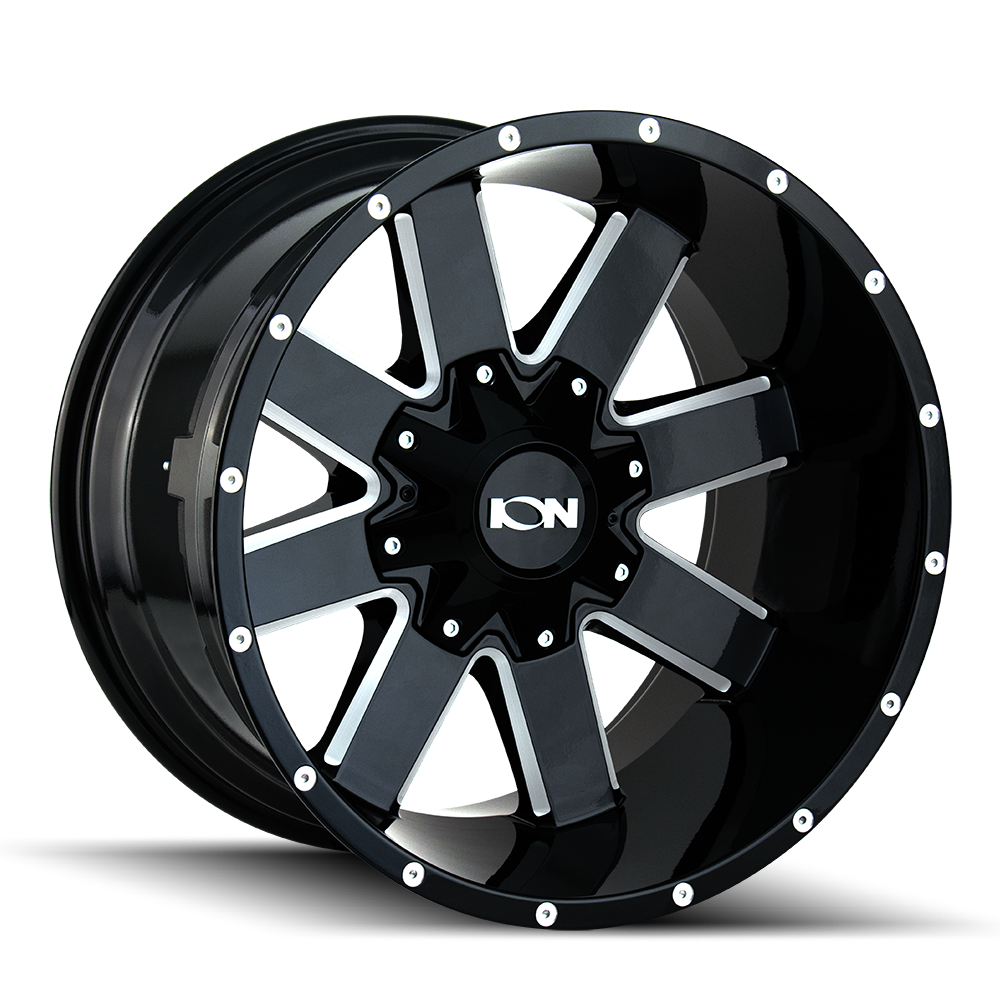

• Three finish options: Gloss Black Milled, Satin Black, and Chrome
• Five diameter/width combinations: 17x9, 18x9, 20x9, 20x10, and 20x12

Specifications

Who This Is For and Isn't

The ION 141 suits truck and SUV owners who want a large-diameter aftermarket wheel with a bold eight-spoke profile, a deep lip, and a load rating sized for 40-inch tires. The wide bolt-pattern selection, including dual-drill variants covering 6-135/6-139.7, 5-127/5-139.7, and multiple 8-lug patterns, makes the 141 a practical choice for buyers running common full-size truck and SUV platforms. Select variants carry a winter-approved designation.

The ION 141 does not cover every bolt pattern or hub bore; confirm your vehicle's exact bolt pattern, offset requirement, and hub bore against the SKU table before ordering. No vehicle makes, models, or years are listed for this wheel; fitment verification is the buyer's responsibility. This listing is for one wheel; a full set of four requires four units. Lug nuts and center caps are not listed as included and should be confirmed separately.

Common Questions

Is the price for a set of four wheels or a single wheel?

The ION 141 is sold individually; the price shown is for one wheel. Buyers completing a full four-wheel swap will need to add four units to their cart. Confirm the correct SKU (size, bolt pattern, and finish) before ordering multiples.

How do I know which bolt pattern and offset to choose?

The ION 141 is available across a wide range of bolt patterns and offsets. Bolt pattern, offset, and hub bore must all match your vehicle's specifications; all three values are listed per SKU in the specifications table above. No vehicle-fitment lookup by make, model, or year is provided for this wheel; consult your vehicle's owner manual or a fitment guide before selecting a variant.

What does "dual-drill" mean on this wheel?

Dual-drill ION 141 variants use an integrated cap design that allows the wheel to accept two different bolt patterns, for example both 6-135 and 6-139.7. This means a single wheel can fit vehicles with either of those two bolt circles. Not every ION 141 variant is dual-drill; single-pattern variants (such as 8-170, 8-180, and 8-165.1) are also available in this line.

What is the load rating, and does it apply to all sizes?

The ION 141 carries a stated load rating of up to 3,640 lbs per wheel when paired with 40-inch tires. This figure is stated as a line-level rating; individual SKU load ratings are not broken out separately in the available product data. Buyers with specific load requirements should verify with ION directly.

Are any ION 141 variants winter approved?

A number of ION 141 variants carry a winter-approved designation in the product data, primarily Satin Black variants across the 17x9, 18x9, and 20x9 sizes. Not all variants are winter approved; the SKU-level detail indicates which ones carry this designation. Confirm the specific SKU before purchasing for winter use.

Where are ION 141 wheels manufactured?

Most ION 141 variants are manufactured in Thailand. Select variants, primarily Chrome-finish and 20x12 SKUs, are manufactured in China. The country of manufacture is listed per SKU in the product data and can be confirmed by referencing the specific SKU number.
