ICON Vehicle Dynamics XD Forged Tie Rod Kit for 2021-2026 Ford Bronco

The ICON Vehicle Dynamics XD Forged Tie Rod Kit replaces the factory steering tie rods on 2021–2026 Ford Bronco (excluding Bronco Raptor) with CNC-machined 4140 chromoly inner tie rods and forged steel outer tie rods sized 30% larger in diameter than the OE units. It is designed for Bronco owners running larger tires on technical terrain where the strength limits of the stock tie rods become a real-world liability.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Built Where OE Tie Rods Break

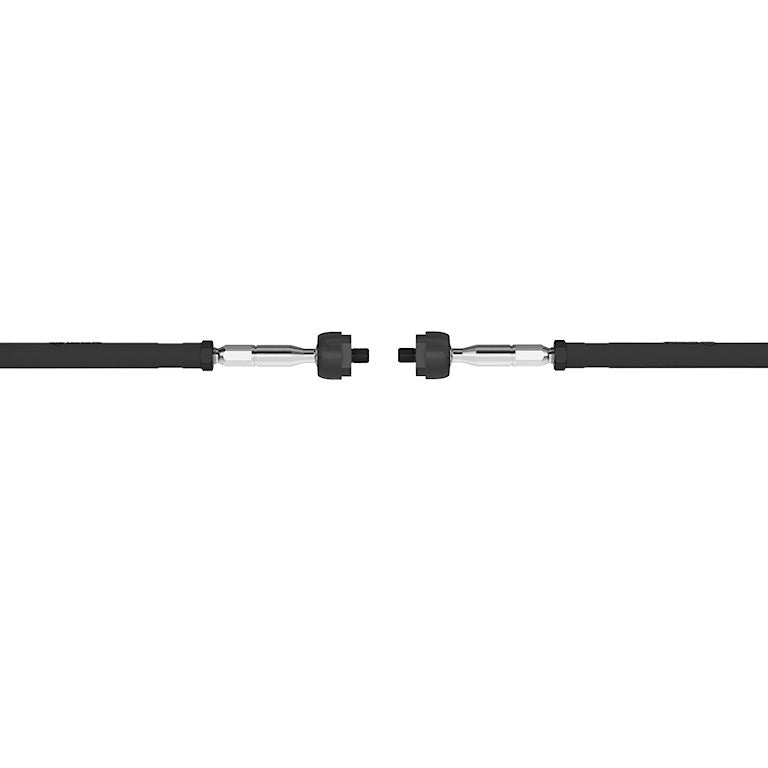

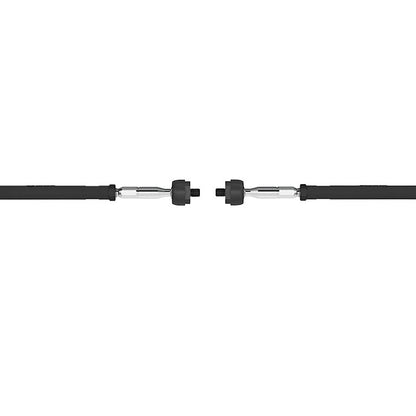

The adjustment threads on factory Bronco tie rods measure 14mm, the section most prone to bending and failure under lateral load from large tires on rocks. The ICON XD Forged Tie Rod Kit uses 18mm adjustment threads at that same location, a meaningful increase in cross-section that resists the bending moment that breaks stock units. The inner tie rod and ball stud are CNC machined from 4140 chromoly, a steel alloy chosen for its combination of tensile strength and toughness under impact.

Fits Factory and Aftermarket Wheels Without Modification

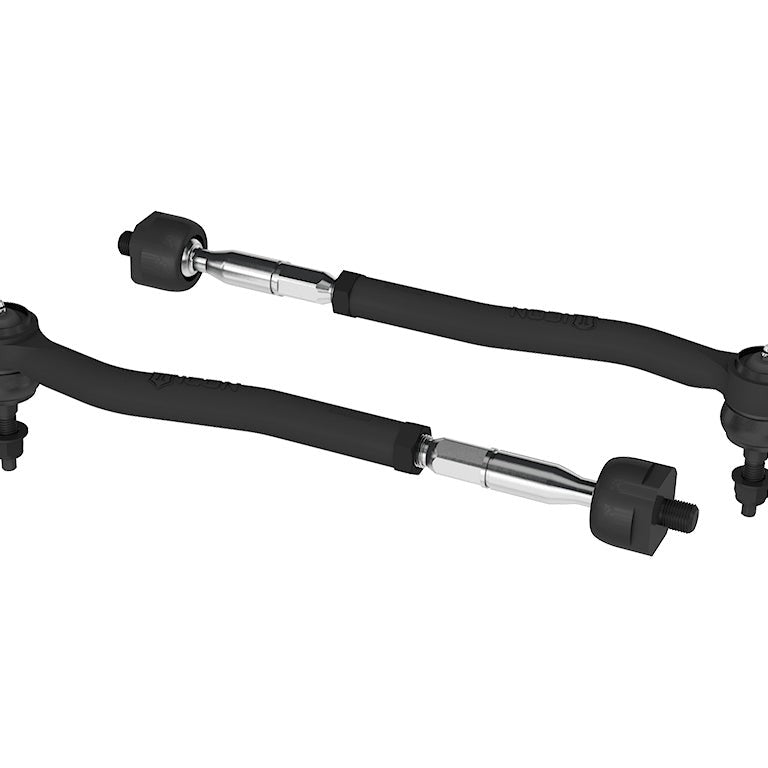

The forged steel outer tie rod carries the same bend geometry as the stock Bronco tie rod, so it clears the factory wheel diameters and offsets without spacers or trimming, and fits most aftermarket wheels as well. The tie rod end uses a metal-on-metal ball joint design with grease zerks, replacing the maintenance-free but wear-limited OE joint with one that can be regreased for extended service life. Operating angle matches the stock tie rod ends, so steering feel and lock-to-lock travel are unchanged.

Rack Protection Included

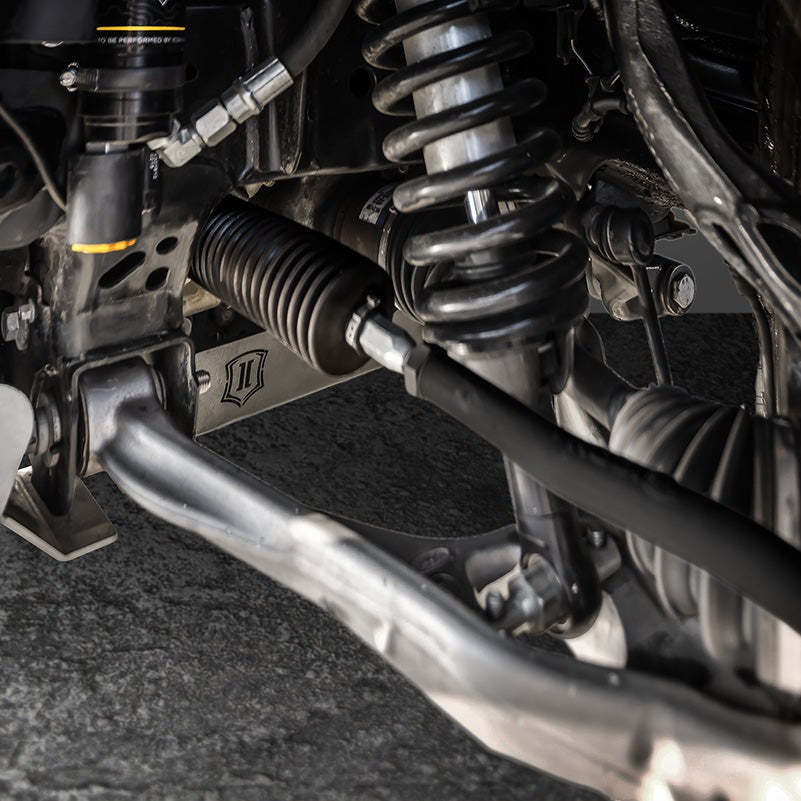

The kit includes inner tie rod boots that seal the steering rack against dirt and debris, a detail that matters on a vehicle used in the conditions that justify this upgrade. Keeping abrasive material out of the rack extends its service life alongside the new tie rods.

Features

• 30% larger diameter than OE: increased cross-section throughout for greater resistance to bending under load
• 4140 chromoly inner tie rod and ball stud: CNC machined from high-strength chromoly steel
• 18mm adjustment threads: versus 14mm on stock Bronco tie rods, at the section most prone to failure
• Forged steel outer tie rod: same bend as OE for compatibility with factory and most aftermarket wheels
• Metal-on-metal greaseable tie rod ends: grease zerks allow regreasing for extended service life
• Inner tie rod boots included: protect the steering rack from dirt and debris

Specifications

Who This Is For and Isn't

The ICON XD Forged Tie Rod Kit suits 2021–2026 Ford Bronco owners (excluding Bronco Raptor) who run larger tires and use the vehicle on technical rock terrain where the factory tie rods have proven inadequate. It fits Broncos equipped with OE HOSS 1.0, HOSS 2.0, and HOSS 3.0 steering racks, and works with factory wheel diameters and offsets as well as most aftermarket wheels.

This kit does not fit the Ford Bronco Raptor and is not compatible with aftermarket tie rod braces. On HOSS 3.0-equipped Broncos, the dust boot must be stretched to fit over the rack housing. This kit is a steering component, not a complete suspension system, and is recommended as part of a broader steering upgrade rather than a standalone fix.

Common Questions

Does this kit fit the Ford Bronco Raptor?

The ICON XD Forged Tie Rod Kit does not fit the Ford Bronco Raptor. It is designed specifically for the standard 2021–2026 Ford Bronco and is not compatible with the Raptor variant's steering geometry or components.

Is this kit compatible with the HOSS 3.0 steering rack?

The ICON XD Forged Tie Rod Kit is compatible with the HOSS 3.0 steering rack, but the dust boot must be stretched to fit over the rack housing during installation. It fits the HOSS 1.0 and HOSS 2.0 racks without modification.

Can I use this kit with aftermarket tie rod braces?

The ICON XD Forged Tie Rod Kit is not compatible with aftermarket tie rod braces. Buyers running a tie rod brace on their Bronco should confirm compatibility before purchasing, as the kit is designed to work without one.

What is included in the kit?

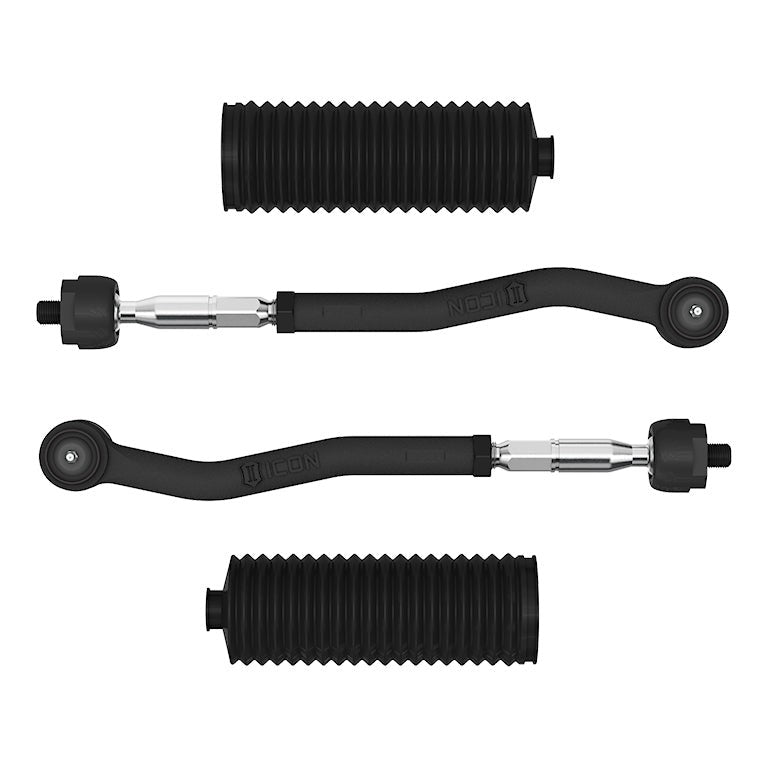

The ICON XD Forged Tie Rod Kit includes the inner and outer tie rods and inner tie rod boots that protect the steering rack from dirt and debris. An installation guide is also provided.

Will this kit work with my aftermarket wheels?

The ICON XD Forged Tie Rod Kit's outer tie rod uses the same bend geometry as the factory Bronco tie rod, so it is designed to clear factory wheel diameters and offsets and fit most aftermarket wheels without modification or spacers.
