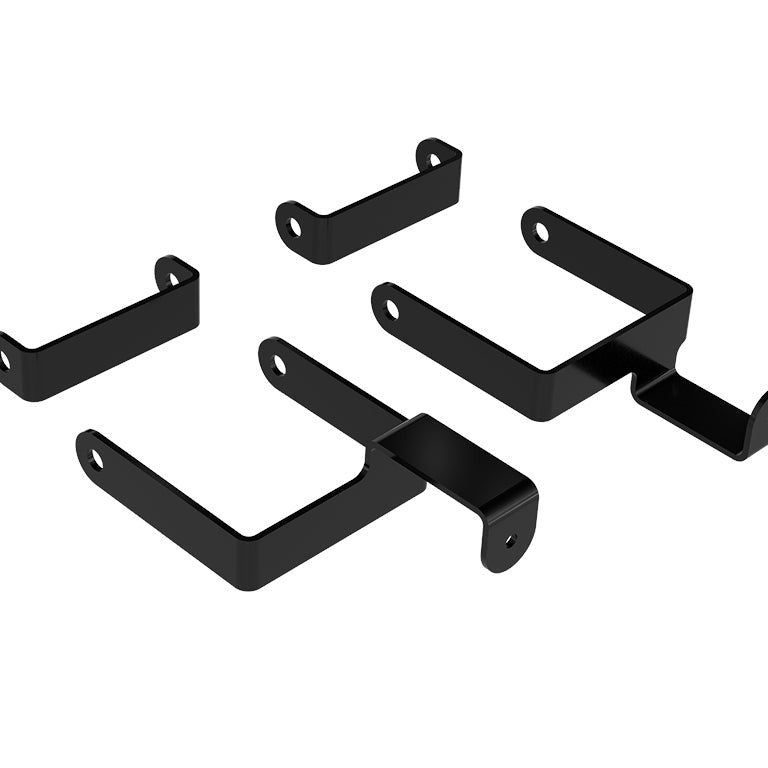

ICON Vehicle Dynamics OnBoard Scales Sensor Bracket Kit for Ford Super Duty Radius Arms

The ICON Vehicle Dynamics OnBoard Scales Sensor Bracket Kit is a direct bolt-on adapter for 2023–2026 Ford Super Duty 4WD trucks equipped with the factory OnBoard Scales system and the ICON Fabricated Radius Arm System, correcting the front ride-height sensor linkage position for 2.5–3.5 inches of front lift on non-Tremor models and 1.5–2.5 inches of front lift on Tremor-equipped models.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Restores OnBoard Scales Function After Lift

Lifting a 2023–2026 Ford Super Duty changes the geometry of the front suspension enough to move the factory ride-height sensor linkage out of its designed operating range. Without a corrected mounting position, the OnBoard Scales system receives inaccurate input and cannot report payload accurately. This bracket clamps to the outside of the ICON radius arms and repositions the sensor linkage so the system reads correctly at the installed lift height. No guesswork, no workarounds.

Built to Match ICON Radius Arm Quality

The bracket is fabricated from CNC laser-cut and brake-formed steel plate, the same construction method used in ICON's radius arm system itself. A multi-stage powder coat in semi-gloss black provides corrosion resistance and a finish consistent with the surrounding hardware. All mounting hardware needed for installation is included.

Features

• Sensor linkage correction: repositions the front ride-height sensor for proper OnBoard Scales function at lifted ride height
• Lift range compatibility: designed for 2.5–3.5 inches of front lift (non-Tremor) or 1.5–2.5 inches of front lift (Tremor models)
• CNC laser-cut steel construction: brake-formed steel plate for precise fit and structural rigidity
• Semi-gloss black powder coat: multi-stage finish for corrosion resistance
• Hardware included: all mounting hardware for direct bolt-on installation

Specifications

Who This Is For and Isn't

This bracket is for owners of 2023–2026 Ford Super Duty 4WD trucks equipped with the factory OnBoard Scales system who have installed or are installing the ICON Fabricated Radius Arm System and need to restore accurate sensor function at a lifted ride height.

This bracket does not fit 2WD Super Duty models, Super Duty trucks without the factory OnBoard Scales system, or any radius arm kit other than the ICON Fabricated Radius Arm System.

Common Questions

Will this bracket work with a non-ICON radius arm kit?

No. The OnBoard Scales Sensor Bracket Kit is designed specifically to clamp to ICON Fabricated Radius Arms and is not compatible with other aftermarket radius arm kits. Fitment to any other radius arm system is not supported.

Does my truck need the factory OnBoard Scales system for this bracket to apply?

Yes. The OnBoard Scales Sensor Bracket Kit exists solely to correct the front ride-height sensor linkage position for the OnBoard Scales system. It serves no function on Super Duty trucks not equipped with the factory OnBoard Scales feature.

What lift heights is this bracket designed for?

On non-Tremor Super Duty models, the bracket is designed for 2.5–3.5 inches of front lift over stock. On Tremor-equipped models, the compatible range is 1.5–2.5 inches of front lift over stock.

Is mounting hardware included?

Yes. The OnBoard Scales Sensor Bracket Kit ships with all mounting hardware required for installation onto the ICON Fabricated Radius Arms.
