ICON Vehicle Dynamics Jeep Gladiator Mojave Front 2.5 Shock Heim Spacer Kit

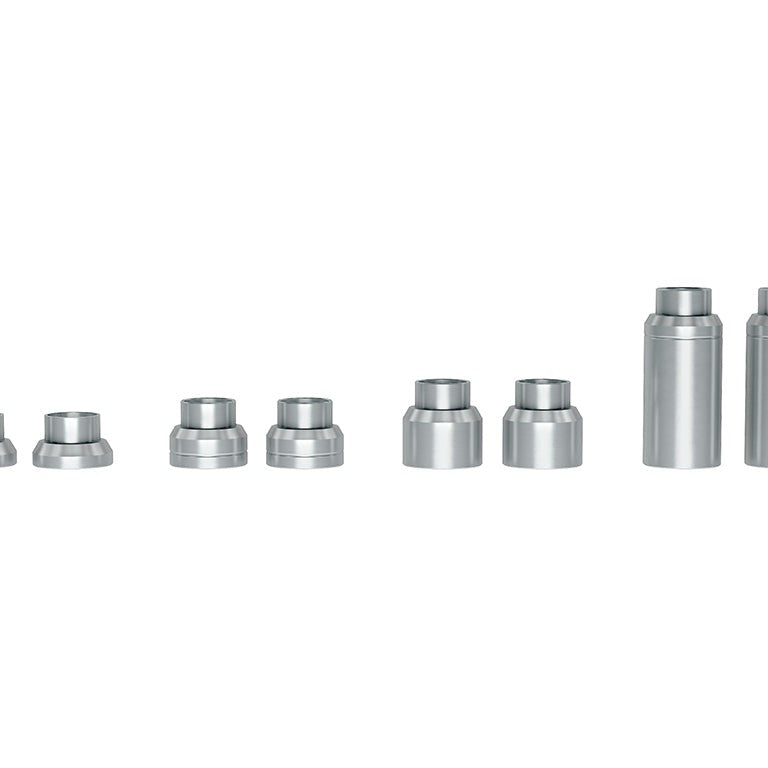

The ICON Vehicle Dynamics 2020-and-up Jeep Gladiator Mojave Front 2.5 Shock Heim Spacer Kit is a CNC-machined misalignment spacer set that allows ICON 2.5 Aluminum Series front shocks to mount correctly on Gladiator Mojave trim models, which use larger factory front-shock bolts than other Gladiator trims. The kit includes upper and lower spacers for both front shocks and replaces the spacers shipped with ICON's front shock kits.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Mojave-Specific Bolt Fitment

The Gladiator Mojave uses a 14mm inner-diameter factory front-shock bolt, larger than the hardware found on non-Mojave Gladiator trims. The spacers in this kit are bored to that 14mm inner diameter so the factory bolt passes through cleanly without modification, giving the shock mount the correct geometry and clamping surface it needs.

CNC Machined and Zinc Plated

Each spacer is CNC machined to exact tolerances, which keeps the shock eye centered and eliminates the slop that an imprecise fit would introduce into the front suspension. A zinc-plated finish protects the steel from corrosion in the mud, water and road salt that Gladiator Mojave owners routinely encounter.

Features

• Mojave-specific fitment: designed for 2020-and-up Jeep Gladiator Mojave trim front shock positions
• 14mm inner diameter: sized for the Mojave's larger factory front-shock bolts
• Complete set: includes upper and lower spacers for a pair of ICON 2.5 Aluminum Series front shocks
• CNC machined: held to exact tolerances for precise shock-eye alignment
• Zinc plated: corrosion-resistant finish for off-road and all-weather use

Specifications

Who This Is For and Isn't

This spacer kit is for owners of a 2020-or-newer Jeep Gladiator in Mojave trim who are installing ICON 2.5 Aluminum Series front shocks and need the correct misalignment spacers for the Mojave's larger factory front-shock bolts.

These spacers are not compatible with non-Mojave Gladiator trims, Jeep Wrangler models, or ICON shock series other than the 2.5 Aluminum Series front shocks. The kit does not include shocks, mounting hardware, or any other suspension components.

Common Questions

Why do Gladiator Mojave models need a different spacer than other Gladiator trims?

The Jeep Gladiator Mojave uses a larger factory front-shock bolt with a 14mm diameter. Standard ICON shock kits ship with spacers sized for non-Mojave hardware; this kit's 14mm inner diameter matches the Mojave's bolt so the shock mounts correctly without modification.

Does this kit replace or supplement the spacers that come with ICON shock kits?

This Heim Spacer Kit replaces the misalignment spacers included with ICON 2.5 Aluminum Series front shock kits when those shocks are installed on a Gladiator Mojave. The standard spacers in the shock kit are not used on Mojave models.

What is included in the kit?

The kit includes upper and lower misalignment spacers for a pair of ICON 2.5 Aluminum Series front shocks, covering both front shock positions on one vehicle (four spacers total).
