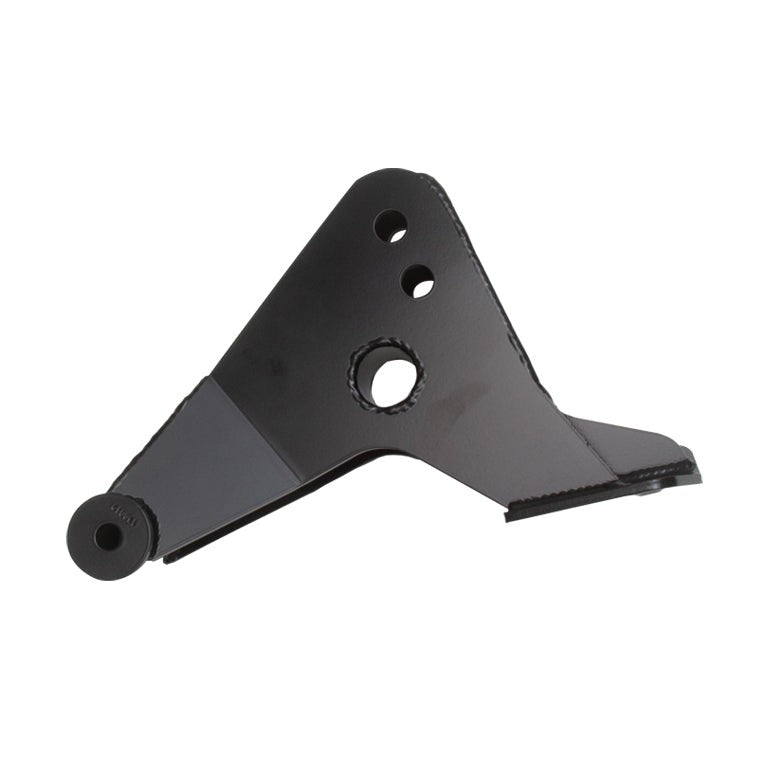

ICON Vehicle Dynamics Front Track Bar Drop Bracket for 1999-2004 Ford F-250/F-350 Super Duty and 2000-2005 Ford Excursion 4WD, 4-8" Lift

The ICON Vehicle Dynamics Front Track Bar Drop Bracket (SKU 33500) restores proper front suspension geometry on 1999–2004 Ford F-250 and F-350 Super Duty 4WD trucks and 2000–2005 Ford Excursion 4WD models running 4–8 inches of front lift. Relocating the track bar mounting point lower on the frame reduces track bar angle, a geometry problem that worsens steering feel and suspension performance as lift height increases. Fitment is limited to 4WD models only and does not include early 1999 production vehicles.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Geometry Restored at Taller Lift Heights

When a solid-axle truck is lifted, the track bar runs at a steeper angle than stock, pulling the front axle off-center and introducing bump steer and vague steering response. The ICON track bar drop bracket lowers the frame-side mounting location to bring the track bar back toward its factory angle. Two mounting positions on the bracket let the installer dial in the correction across the full 4–8 inch lift range rather than compromising at a single fixed point.

Works with Stock or Upgraded Track Bars

The bracket accepts both the factory Ford track bar and the ICON Adjustable Front Track Bar, fitting trucks at any stage of the build. Owners correcting geometry on an existing lift and those planning a future track bar upgrade can use the same bracket. Installation is bolt-on with no permanent frame modifications required.

CNC-Cut Steel Construction with Powder Coat Finish

The bracket is fabricated from precision CNC laser-cut steel plate and tubing for consistent dimensions and weld-ready fitment. A semi-gloss black powder coat finish provides corrosion resistance suited to on- and off-road use.

Features

• Dual mounting positions: accommodates 4–8 inches of front lift over stock
• Reduced track bar angle: corrects front axle centering and steering geometry on lifted applications
• Broad track bar compatibility: fits factory Ford track bar and ICON Adjustable Front Track Bar
• CNC laser-cut steel: plate and tubing construction for strength and dimensional accuracy
• Semi-gloss black powder coat: corrosion-resistant finish
• Bolt-on installation: no permanent frame modifications

Specifications

Who This Is For and Isn't

This bracket suits owners of 1999–2004 Ford F-250 or F-350 Super Duty 4WD trucks and 2000–2005 Ford Excursion 4WD models running 4–8 inches of front lift who need to correct track bar angle and restore proper front suspension geometry. It works with both the factory track bar and the ICON Adjustable Front Track Bar.

This bracket does not fit 2WD models, early 1999 production vehicles, or any lift height outside the 4–8 inch range. Installation also requires a drop pitman arm (ICON part number 191001, sold separately); the bracket alone does not complete the geometry correction.

Common Questions

Which vehicles does this track bar drop bracket fit?

The ICON Front Track Bar Drop Bracket (SKU 33500) fits 1999–2004 Ford F-250 Super Duty 4WD, 1999–2004 Ford F-350 Super Duty 4WD, and 2000–2005 Ford Excursion 4WD models. It does not fit 2WD variants or early 1999 production vehicles.

What lift height range does this bracket support?

The ICON track bar drop bracket is designed for 4–8 inches of front lift over stock. Two mounting positions on the bracket allow the installer to optimize the track bar angle across that full range rather than setting a single fixed correction point.

Is a drop pitman arm required alongside this bracket?

Yes. Installation of this track bar drop bracket also requires a drop pitman arm, ICON part number 191001, which is sold separately. The bracket alone does not complete the front geometry correction on these lifted Super Duty and Excursion applications.

Will this bracket work with my factory Ford track bar?

The ICON Front Track Bar Drop Bracket is compatible with both the factory Ford track bar and the ICON Adjustable Front Track Bar, giving owners the option to retain the stock bar or upgrade to an adjustable unit without needing a different bracket.

Does installation require cutting or welding the frame?

The ICON track bar drop bracket uses a bolt-on design that requires no permanent frame modifications. The bracket mounts to existing frame locations, making installation reversible.
