ICON Vehicle Dynamics Front Differential Drop Kit for Toyota Tundra, Sequoia and Lexus GX550

The ICON Vehicle Dynamics Front Differential Drop Kit is a bolt-on steel bracket assembly designed for 2022-2026 Toyota Tundra (4WD), 2023-2026 Toyota Sequoia (4WD), and 2024-2026 Lexus GX550, lowering the front differential to improve CV joint operating angles at full suspension droop.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Better CV Angles Where It Counts

When a lifted suspension reaches full droop, steeper CV joint angles accelerate wear and can cause vibration under load. The ICON Differential Drop Kit repositions the front differential downward, keeping CV angles within a healthier operating range at the extremes of suspension travel. The result is smoother driveline behavior and reduced stress on CV joints during off-road use.

Upgraded Bushings, Reduced Differential Movement

Polyurethane mounting bushings replace the factory rubber units, which deflect under load and allow the differential to shift position. The stiffer polyurethane material limits that movement, keeping the differential where the geometry expects it to be whether the vehicle is crawling over rocks or accelerating on a trail exit.

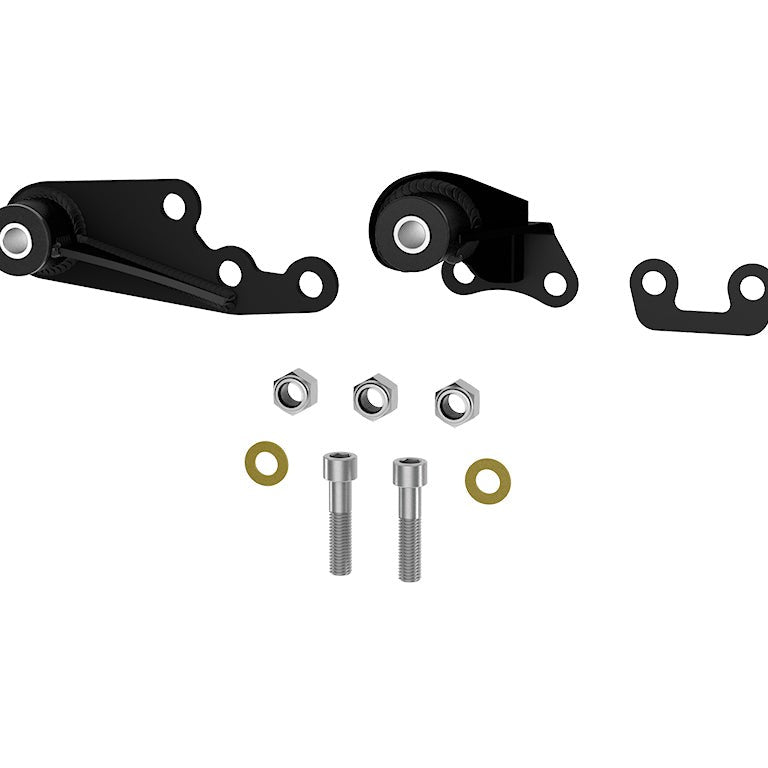

CNC-Cut Steel, Bolt-On Installation

The brackets are CNC laser-cut and precision brake-formed from steel, then finished in a semi-gloss black powder coat for corrosion resistance. Every mounting point uses existing hardware locations, so installation requires no cutting or welding.

Features

• Vehicle-specific fitment: engineered for 2022-2026 Toyota Tundra (4WD), 2023-2026 Toyota Sequoia (4WD), and 2024-2026 Lexus GX550
• Improved CV geometry: lowers the front differential to reduce joint angle at full suspension droop
• Polyurethane bushings: limit differential deflection under load compared to OE rubber
• CNC laser-cut steel bracketry: precision brake-formed with semi-gloss black powder coat finish
• 100% bolt-on: no cutting or welding required for installation

Specifications

Who This Is For and Isn't

This differential drop kit suits owners of 2022-2026 Toyota Tundra (4WD), 2023-2026 Toyota Sequoia (4WD), or 2024-2026 Lexus GX550 who are installing a lifted suspension, particularly those adding ICON coilover kits, and need to restore proper CV joint geometry at increased ride height. It is required for ICON coilover kit installation on 4WD Tundra and Sequoia models without the TRD Off-Road Suspension Package, and required for ICON coilover kit installation on the GX550.

This kit does not fit 2WD Tundra or 2WD Sequoia models. It is not compatible with Tundra or Sequoia vehicles equipped with the TRD Off-Road Suspension Package when used alongside ICON coilover kits (a different application note applies to those vehicles). It is not a complete suspension system and does not include shocks, springs, or coilovers.

Common Questions

Does this kit fit both 2WD and 4WD Tundra and Sequoia models?

The ICON Front Differential Drop Kit fits 4WD models only. Two-wheel-drive Tundra and Sequoia variants do not have a front differential and are not compatible with this kit.

Is this kit required when installing ICON coilovers on a 4WD Tundra or Sequoia?

The differential drop kit is required for ICON coilover kit installation on 4WD Tundra and Sequoia models that do not have the TRD Off-Road Suspension Package. Vehicles with that factory package follow a different installation path.

Does the GX550 also require this kit for ICON coilover installation?

Yes. The ICON Front Differential Drop Kit is required for ICON coilover kit installation on the 2024-2026 Lexus GX550.

Does installation require cutting or welding?

No. The differential drop kit is a 100% bolt-on assembly that uses existing mounting locations. No cutting, welding, or fabrication is required during installation.

What replaces the factory differential bushings?

The kit includes polyurethane mounting bushings that replace the soft OE rubber units. Polyurethane is stiffer than the factory material, which limits differential movement and deflection under load.
