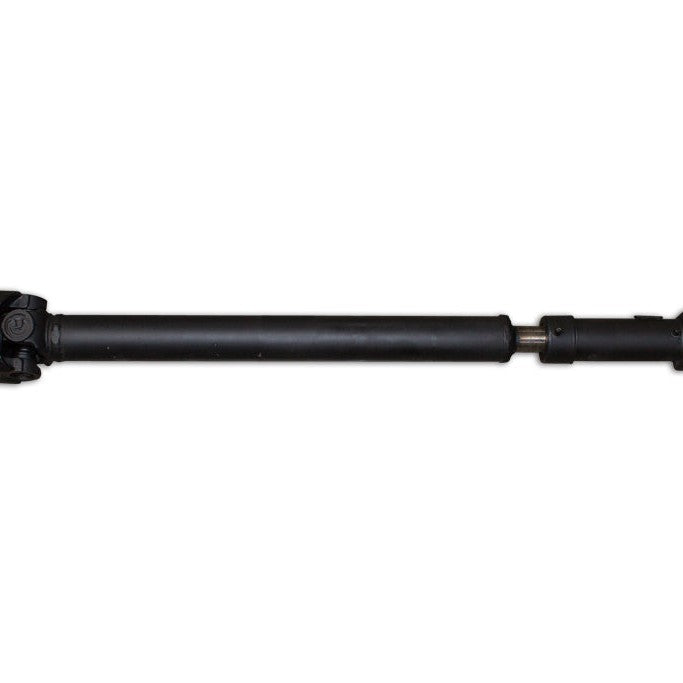

ICON Vehicle Dynamics Double Cardan Front Driveshaft for 2007-2011 Jeep Wrangler JK 4WD

The ICON Vehicle Dynamics Double Cardan Front Driveshaft is a conversion-style replacement unit built for 2007–2011 Jeep Wrangler JK 4WD models running 0–6 inches of front lift. It replaces the factory joint design with a true double cardan joint using 1310 U-joints and genuine Spicer components, and ships as a dynamically balanced, ready-to-install assembly that includes a transfer case yoke adapter.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Engineered Angularity Where Stock Falls Short

A lifted JK places the front driveshaft at steeper operating angles than the factory joint was designed to handle. The double cardan joint at the transfer case end cancels the velocity variation that a single Cardan joint produces at high angles, which is the root cause of the vibration and binding that appear in lifted JKs at highway speed and during hard articulation. Replacing the factory shaft with this unit directly addresses that failure mode rather than working around it.

Smaller Diameter, More Clearance on the Trail

The ICON driveshaft runs a smaller outside diameter than the stock unit. That additional clearance between the shaft and surrounding drivetrain and suspension components reduces the chance of contact damage when the front axle cycles through full droop or when the undercarriage contacts rocks on the trail. The benefit compounds with lift height: the more travel the suspension sees, the more that clearance margin matters.

Bolt-On Installation with Included Yoke Adapter

The assembly includes a transfer case yoke adapter sized for the JK's transfer case output, so no additional adapters or machining are required. The shaft ships dynamically balanced as a complete unit, meaning it does not need to be balanced after installation the way a field-assembled shaft would.

Features

• Double cardan joint with 1310 U-joints: increases operating angularity beyond stock for lifted applications
• Genuine Spicer components: industry-standard driveline parts used throughout the assembly
• Smaller-than-stock diameter: improves clearance from surrounding components and reduces trail-damage risk
• Transfer case yoke adapter included: direct bolt-on installation, no additional hardware required
• Dynamically balanced assembly: ships ready to install without post-installation balancing

Specifications

Who This Is For and Isn't

This driveshaft suits 2007–2011 Jeep Wrangler JK 4WD owners running between 0 and 6 inches of front lift who are experiencing vibration, binding, or drivetrain noise attributable to the factory driveshaft's angularity limits.

This shaft does not fit Wrangler JK two-wheel-drive models, JK years outside the 2007–2011 range, or any other Jeep platform. It is a front driveshaft only and does not address the rear driveline.

Common Questions

Does this driveshaft fit a two-wheel-drive Wrangler JK?

No. The ICON double cardan front driveshaft is engineered for 2007–2011 Jeep Wrangler JK 4WD models only. Two-wheel-drive JK variants do not use a front driveshaft in the same configuration and are not a compatible application.

What lift height range does this driveshaft support?

The ICON front driveshaft is designed for JK 4WD models running 0 to 6 inches of front lift. It is engineered to handle the increased operating angles that lift heights within that range place on the front driveline.

Is any additional hardware needed for installation?

A transfer case yoke adapter is included with the ICON front driveshaft, making it a direct bolt-on installation for compatible 2007–2011 JK 4WD models. No additional adapters or machining are required.

Does the shaft need to be balanced after installation?

No. The ICON front driveshaft ships dynamically balanced as a complete, ready-to-install assembly. Unlike a field-assembled shaft, it does not require a separate balancing step after fitment.

Is there a California Proposition 65 warning for this product?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. This warning applies to California residents under Proposition 65.
