ICON Vehicle Dynamics Coilover Bump Stop Spacer Kit 7/8" Shaft 3/8"

The ICON Vehicle Dynamics Coilover Bump Stop Spacer Kit is a CNC-machined 6061 aluminum spacer set designed for ICON coilover kits with 7/8" diameter shafts and integrated foam shaft bump stops, reducing compression travel by 3/8" (0.375") to prevent tire rub at full compression or coil bind when the coilover is adjusted past its maximum recommended setting.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

More Clearance Without Compromising the Setup

Running larger tires on a lifted vehicle often brings the tire dangerously close to the fender or frame at full compression. By shortening available compression travel by 3/8", this spacer kit creates a reliable mechanical limit before contact occurs, without requiring a full coilover rebuild or spring swap. The result is a straightforward way to gain tire clearance that would otherwise demand more invasive changes to the suspension system.

Prevents Coil Bind When Pushing Adjustment Limits

When a coilover is adjusted beyond its maximum recommended ride-height setting, the coil spring can reach a fully compressed (bound) state before the shock shaft bottoms out, which can damage the spring or shock body. The bump stop spacer kit introduces a travel stop that prevents the coilover from reaching that point, allowing adjustment flexibility that would otherwise risk component damage.

Machined to Match ICON Coilovers

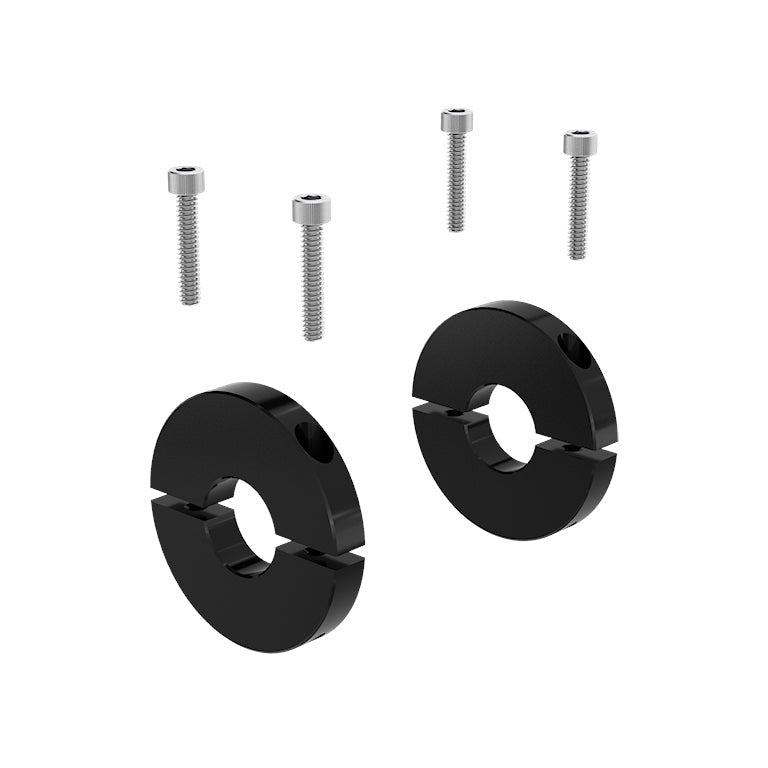

The spacers are CNC-machined from 6061 aircraft-grade aluminum and finished with a black anodized coating that resists corrosion over time. The finish and construction are matched to ICON's own coilover hardware. All hardware necessary for installation is included in the kit.

Features

• 3/8" travel reduction: limits compression travel by exactly 0.375" to create clearance for larger tires or prevent coil bind
• 7/8" shaft compatibility: fits any ICON coilover kit with a 7/8" diameter shaft and integrated foam shaft bump stop
• 6061 aircraft-grade aluminum: CNC-machined for precise fit and long-term durability
• Black anodized finish: corrosion-resistant coating matched to ICON coilover hardware
• Hardware included: all necessary installation hardware is in the kit

Specifications

Who This Is For and Isn't

This spacer kit suits ICON coilover owners running larger-than-stock tires who are experiencing rubbing at full compression, or those who need to adjust ride height past the coilover's maximum recommended setting without risking coil bind. It is compatible only with ICON coilover kits that have 7/8" diameter shafts and integrated foam shaft bump stops.

This kit is not compatible with ICON coilovers that use frame-mounted bump stops rather than integrated shaft bump stops. It is also not compatible with coilovers that have a shaft diameter other than 7/8" or that lack an integrated foam shaft bump stop.

Common Questions

Which ICON coilovers does this spacer kit fit?

The ICON Coilover Bump Stop Spacer Kit is compatible with any ICON Vehicle Dynamics coilover kit that has a 7/8" diameter shaft and an integrated foam shaft bump stop. It is not compatible with ICON coilovers that rely on frame-mounted bump stops, or with coilovers that have a different shaft diameter.

How much compression travel does the spacer remove?

The spacer kit reduces compression travel by exactly 3/8" (0.375"). This fixed reduction creates a mechanical stop before the coilover reaches full compression, which is the mechanism that prevents tire-to-fender contact or coil bind.

Does this kit include everything needed for installation?

The ICON Coilover Bump Stop Spacer Kit includes all hardware necessary for installation. An installation guide is also available for reference during the install process.

Will this spacer kit work if my vehicle has frame-mounted bump stops?

No. The ICON Coilover Bump Stop Spacer Kit is designed specifically for coilovers with integrated foam shaft bump stops. Vehicles whose bump stop function is handled by a separate frame-mounted stop rather than one built into the coilover shaft are not compatible with this kit.
