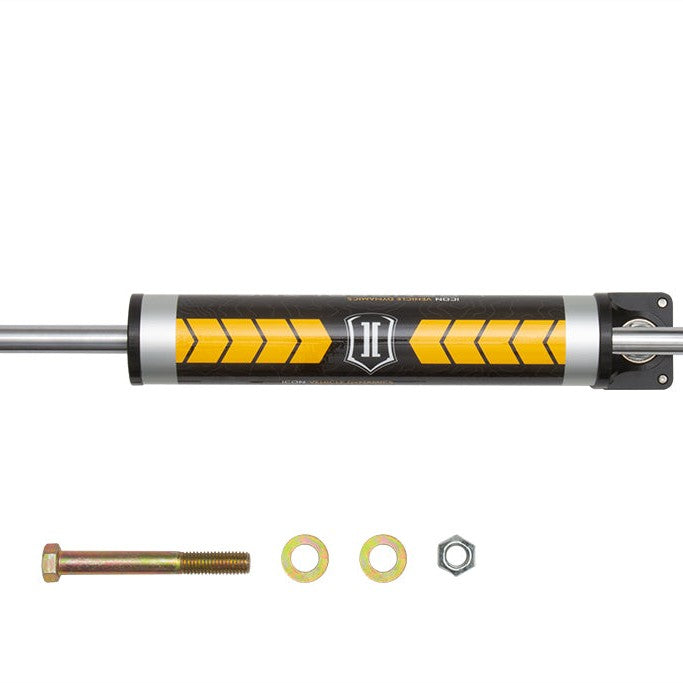

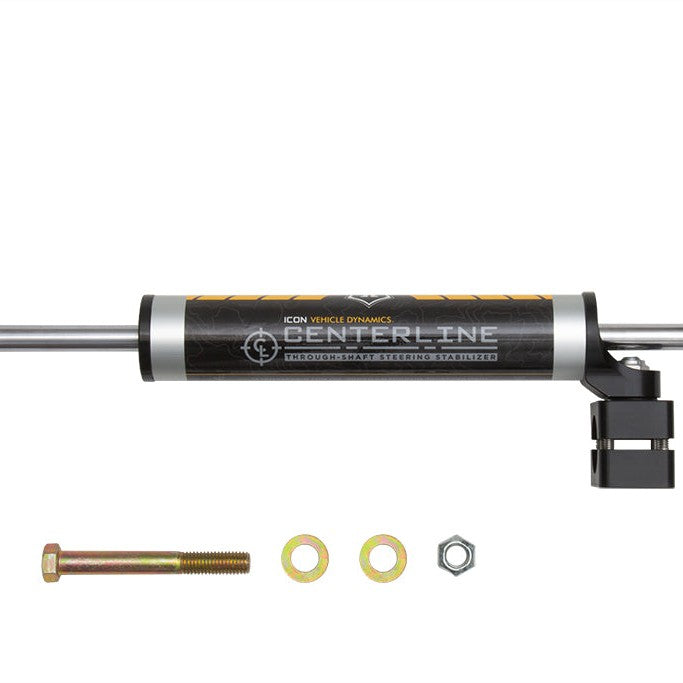

ICON Vehicle Dynamics Centerline Steering Stabilizer for 2007-2018 Jeep JK Wrangler

The ICON Vehicle Dynamics Centerline Steering Stabilizer is a bolt-on steering damper for 2007–2018 Jeep JK Wranglers that uses a through-shaft design to eliminate the push/pull sensation common to traditional single-ended stabilizers. Built on the same platform as ICON's 2.0 Aluminum Series shocks, it fits all ICON suspension systems and mounts directly to the factory 1-3/8" tie rod without modification.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Through-Shaft Design, Symmetrical Feel

Traditional steering stabilizers apply damping force from one end, which creates an uneven resistance that drivers feel as a push in one direction and a pull in the other. The Centerline Stabilizer's through-shaft design applies damping symmetrically across the full range of steering input, so the wheel returns to center with the same resistance in both directions. For JK Wrangler owners running larger tires or aftermarket steering components, that consistency translates to less fatigue on long trail runs and more confidence at highway speeds.

2.0 Aluminum Series Construction

The stabilizer body is machined from 6063 aluminum and clear anodized for corrosion resistance and heat dissipation, the same specification used across ICON's 2.0 shock lineup. The 5/8" chrome-plated hardened steel shaft resists bending and surface wear, while 5WT shock oil maintains consistent damping across a wide operating temperature range. A high-temperature long-wear seal pack keeps the oil where it belongs under the heat cycles and contamination that off-road use generates. The unit is fully serviceable, so it can be rebuilt rather than replaced when wear eventually occurs.

Precise Mounting, Aftermarket-Ready Clearance

CNC machined billet aluminum clamps grip the factory 1-3/8" tie rod securely, and the rod end uses FK spherical bearings for precise, low-friction articulation. The high-clearance body geometry is designed to clear the full range of ICON suspension systems without trimming or bracket fabrication. Jeep JK owners running heavy-duty aftermarket tie rods with a 1-5/8" diameter can add the optional ICON Universal Tube Clamp Kit (PN 614525), sold separately, for a correct fit.

Features

• Through-shaft design: delivers symmetrical damping across the full steering input range, eliminating push/pull sensation
• 6063 clear anodized aluminum body: corrosion-resistant and optimized for heat dissipation
• 5/8" chrome-plated hardened steel shaft: resists bending and surface wear
• 5WT shock oil and high-temp seal pack: consistent damping across a wide temperature range in on- and off-road conditions
• FK spherical rod end bearings: precise, low-friction articulation at the mounting point
• 100% bolt-on to OE 1-3/8" tie rod: no drilling or bracket fabrication required; optional 1-5/8" clamp kit available separately
• Fully serviceable: can be rebuilt when worn

Specifications

Who This Is For and Isn't

The ICON Centerline Steering Stabilizer suits 2007–2018 Jeep JK Wrangler owners who want to reduce steering wander and eliminate the push/pull feel that comes with larger tires or aftermarket steering components. It is designed to clear all ICON suspension systems and installs on the factory 1-3/8" tie rod without modification.

This stabilizer is not compatible with Jeep JL Wrangler, Gladiator, or any non-JK platform. Owners running a heavy-duty 1-5/8" aftermarket tie rod must purchase the optional ICON Universal Tube Clamp Kit (PN 614525) separately, as the 1-5/8" clamps are not included. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Does this steering stabilizer work with lifted JK Wranglers running aftermarket suspension?

The ICON Centerline Steering Stabilizer features a high-clearance body design built to fit all ICON suspension systems on the 2007–2018 Jeep JK Wrangler, so it is compatible with lifted applications running ICON components. Fitment with other aftermarket suspension brands is not specified in the product data.

What size tie rod does this stabilizer clamp to, and what if I have a larger aftermarket tie rod?

The ICON Centerline Steering Stabilizer includes CNC machined billet aluminum clamps sized for the factory 1-3/8" tie rod. Jeep JK owners running a heavy-duty aftermarket tie rod with a 1-5/8" diameter must add the ICON Universal Tube Clamp Kit (PN 614525), which is sold separately.

Is the Centerline Steering Stabilizer serviceable, or does it need to be replaced when worn?

The ICON Centerline Steering Stabilizer is fully serviceable. It shares the same construction as ICON's 2.0 Aluminum Series shocks and can be rebuilt when the seal pack or oil reaches the end of its service life, rather than requiring full replacement.

What tools or modifications are required to install this stabilizer?

The ICON Centerline Steering Stabilizer is a 100% bolt-on installation on the 2007–2018 Jeep JK Wrangler's factory tie rod. No drilling, welding, or bracket fabrication is required. An installation guide is available from ICON Vehicle Dynamics.
