ICON Vehicle Dynamics Alignment Cam Kit +2.0° Caster for 2005–2026 Ford F-450/F-550 Super Duty 4WD

The ICON Vehicle Dynamics Alignment Cam Kit adds 2.0 degrees of caster angle over stock to restore proper front-end alignment on 2005–2026 Ford F-450 and F-550 Super Duty 4WD trucks after a suspension lift. Correct caster is essential for straight-line stability and balanced steering feel on lifted Super Duty trucks. This kit fits 4WD F-450 and F-550 models only and is not compatible with F-250 or F-350.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Restoring Caster After a Lift

Lifting a Ford F-450 or F-550 Super Duty changes the front suspension geometry, pulling caster out of the factory specification range. When caster falls short of spec, the truck can feel vague on center, wander at highway speed, and return sluggishly to straight-ahead after a turn. The ICON Alignment Cam Kit adds 2.0 degrees of caster back into the front axle, bringing the truck's alignment back within the factory target range and restoring the predictable, stable steering behavior the platform was engineered to deliver.

Zinc-Plated for Long-Term Durability

The alignment cams are zinc plated to resist corrosion in the harsh undercarriage environment: road salt, mud, and standing water that accumulate on a working Super Duty's front axle over years of use. A corroded or seized cam makes future alignment adjustments difficult and can compromise the integrity of the joint. Zinc plating keeps the hardware serviceable over the long term, which matters on a truck that may see multiple lift configurations or alignment checks across its service life.

Features

• +2.0° Caster Correction: adds two degrees of caster angle over stock to bring a lifted F-450/F-550 back into factory alignment specification
• Zinc-Plated Finish: corrosion-resistant coating protects the cams in demanding undercarriage conditions
• Includes Ball Joint Cotter Pins: new cotter pins are included so the hardware needed to complete the installation is in the box
• 4WD-Specific Fitment: engineered for the 4WD front axle configuration of the F-450 and F-550 Super Duty

Specifications

California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.

Who This Is For and Isn't

This kit is for owners of 2005–2026 Ford F-450 or F-550 Super Duty trucks with 4WD who have installed a suspension lift and need to restore caster to factory specification. It is designed for use in conjunction with compatible suspension lift systems on these specific platforms.

This kit does not fit F-250 or F-350 Super Duty trucks, and it does not fit 2WD F-450/F-550 models. On F-450/F-550 trucks that have a manual locking front hub on the driver side only, the included caster cams are not compatible with that driver-side hub; those trucks must omit the driver-side cam and instead require aftermarket radius arms, a 4-link conversion, or an upgrade to a compatible passenger-side manual locking hub to achieve proper wheel alignment.

Common Questions

Which Ford Super Duty trucks does this alignment cam kit fit?

The ICON Alignment Cam Kit fits 2005–2026 Ford F-450 and F-550 Super Duty trucks equipped with 4WD. It does not fit F-250 or F-350 Super Duty trucks, and it does not fit 2WD variants of the F-450 or F-550.

Why is caster correction needed after lifting a Super Duty?

A suspension lift changes the front-end geometry of the F-450/F-550, reducing caster angle below the factory specification. Insufficient caster causes instability at highway speeds, a vague on-center feel, and poor return-to-center steering. Adding 2.0 degrees of caster with this kit restores the alignment to the factory target range.

What is included in the kit?

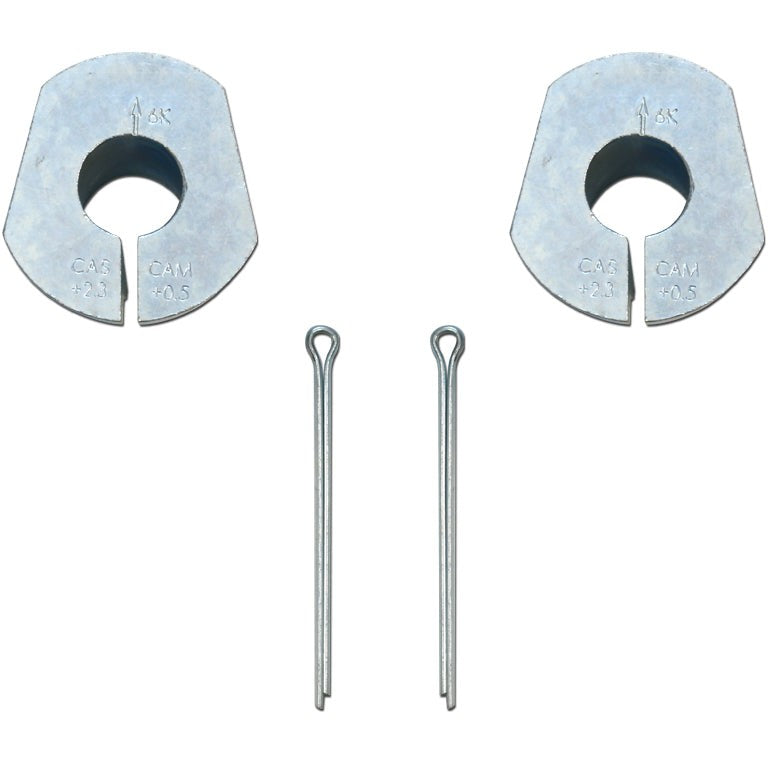

The ICON Alignment Cam Kit includes the alignment cams and new ball joint cotter pins. No additional cotter pins need to be sourced separately to complete the installation.

Is this kit compatible with trucks that have manual locking front hubs?

Compatibility depends on the hub configuration. On F-450/F-550 trucks that have a manual locking hub on the driver side only, the included caster cams are not compatible with that driver-side position. Those trucks must omit the driver-side cam and require aftermarket radius arms, a 4-link conversion, or an upgrade to a compatible passenger-side manual locking hub for proper wheel alignment.

Does this kit work with any suspension lift, or only ICON systems?

The ICON Alignment Cam Kit is designed for use in conjunction with compatible suspension lift systems on the F-450/F-550 Super Duty. Confirm compatibility with your specific lift configuration before ordering.
