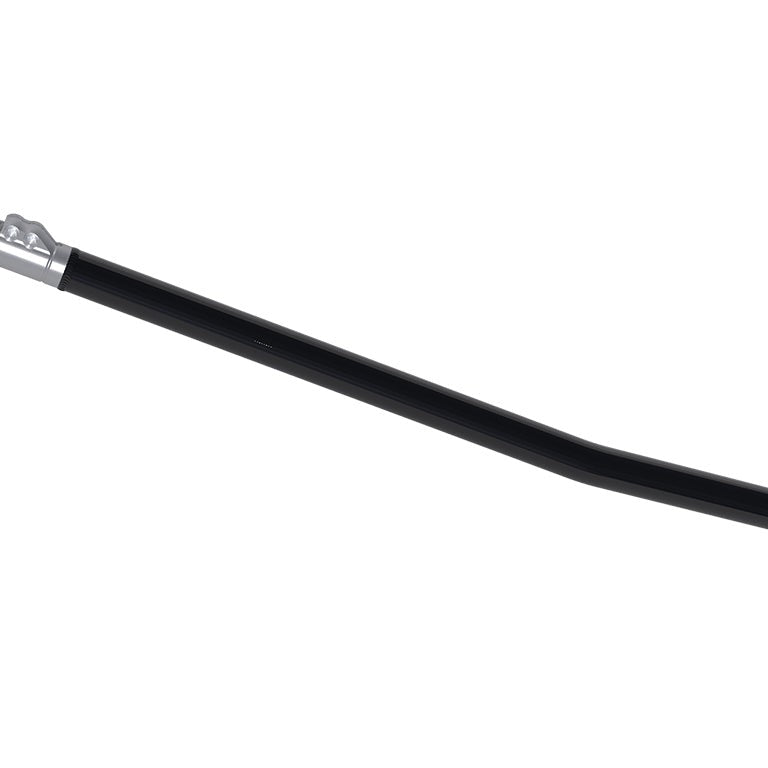

ICON Vehicle Dynamics Adjustable Front Track Bar for 2005-2026 Ford Super Duty

The ICON Vehicle Dynamics Adjustable Front Track Bar restores correct front-end track alignment on 2005-2016 Ford F-250 and F-350 Super Duty trucks and 2005-2026 Ford F-450 and F-550 Super Duty trucks running 0–9 inches of front lift (4WD models only). Built from CNC-machined and bent 1.625-inch x .250-inch wall 1026 DOM tubing with a black powder coat finish, it replaces the factory track bar to eliminate the axle-centering error that lifted trucks develop over the stock setup.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Corrects Track Alignment Without Removing the Bar

The ICON track bar uses a double-adjuster design that lets you dial in precise front track alignment while the bar remains on the vehicle. Eliminating the need to pull the bar for every adjustment saves time during initial setup and makes fine-tuning after a trail run straightforward. Because the bar installs using factory hardware, no additional brackets or fabrication are required for lifts up to 5.5 inches on F-250 and F-350 applications.

FK Rod End Bearing Frees Up Suspension Bind

The ICON track bar ships complete with a heavy-duty PTFE-lined FK rod end bearing and machined rod end spacers. The FK rod end replaces the stock rubber bushing, which deflects under load and restricts articulation. The PTFE lining allows maximum articulation with minimal friction, so the front suspension moves through its full travel without the bind that a worn or misaligned factory bushing introduces on lifted trucks.

Black Powder Coat for Long-Term Corrosion Resistance

The 1026 DOM tubing is CNC-machined and bent to shape, then finished in black powder coat. DOM (drawn over mandrel) tubing offers consistent wall thickness and a clean interior surface, which matters for a structural component subject to the lateral loads a track bar sees. The powder coat finish resists corrosion from road salt, mud, and water exposure encountered in overlanding and daily driving conditions.

Features

• Fitment: 2005-2016 Ford F-250/F-350 Super Duty and 2005-2026 Ford F-450/F-550 Super Duty, 4WD only
• Lift compatibility: 0–9 inches of front lift; lifts above 5.5 inches require a separate drop-down track bar bracket
• On-vehicle adjustment: double-adjuster design allows precise track alignment without removing the bar
• FK rod end bearing: heavy-duty PTFE-lined FK rod end with machined rod end spacers included
• Construction: CNC-machined and bent 1.625-inch x .250-inch wall 1026 DOM tubing
• Finish: black powder coat for corrosion resistance

Specifications

Who This Is For and Isn't

This track bar suits owners of 2005-2016 Ford F-250 or F-350 Super Duty trucks and 2005-2026 Ford F-450 or F-550 Super Duty trucks running 4WD drivetrains with 0–9 inches of front lift who need to restore factory track alignment after a lift install or correct suspension bind during articulation.

This track bar does not fit 2WD Super Duty models. Trucks with more than 5.5 inches of front lift require a separate drop-down track bar bracket (not included); ICON part number 64039 is also recommended to correct bump-steer geometry for lifts between 2.5 and 5.5 inches and is sold separately.

Common Questions

Does this track bar fit both F-250/F-350 and F-450/F-550 Super Duty trucks?

The ICON Adjustable Front Track Bar fits 2005-2016 Ford F-250 and F-350 Super Duty trucks and 2005-2026 Ford F-450 and F-550 Super Duty trucks. All applications require a 4WD drivetrain; 2WD models are not compatible.

What lift heights is this track bar compatible with?

The ICON Adjustable Front Track Bar is compatible with 0–9 inches of front lift. Trucks running 0–5.5 inches of lift can use the OE track bar bracket. Any lift above 5.5 inches requires a separate drop-down track bar bracket, which is not included.

Is a drop bracket required for all lifted trucks?

A drop-down track bar bracket is required only for lifts above 5.5 inches and is sold separately. For trucks running 2.5–5.5 inches of front lift, ICON also recommends part number 64039 to correct bump-steer geometry; that bracket is likewise sold separately.

Does the track bar need to be removed from the truck to make adjustments?

No. The ICON Adjustable Front Track Bar uses a double-adjuster design that allows precise track alignment adjustment while the bar remains installed on the vehicle, without removal.

What hardware is included, and does it install with factory hardware?

The ICON Adjustable Front Track Bar ships with an FK PTFE-lined rod end bearing and machined rod end spacers. It installs using the vehicle's existing factory hardware, with no additional fasteners required for the bar itself.
