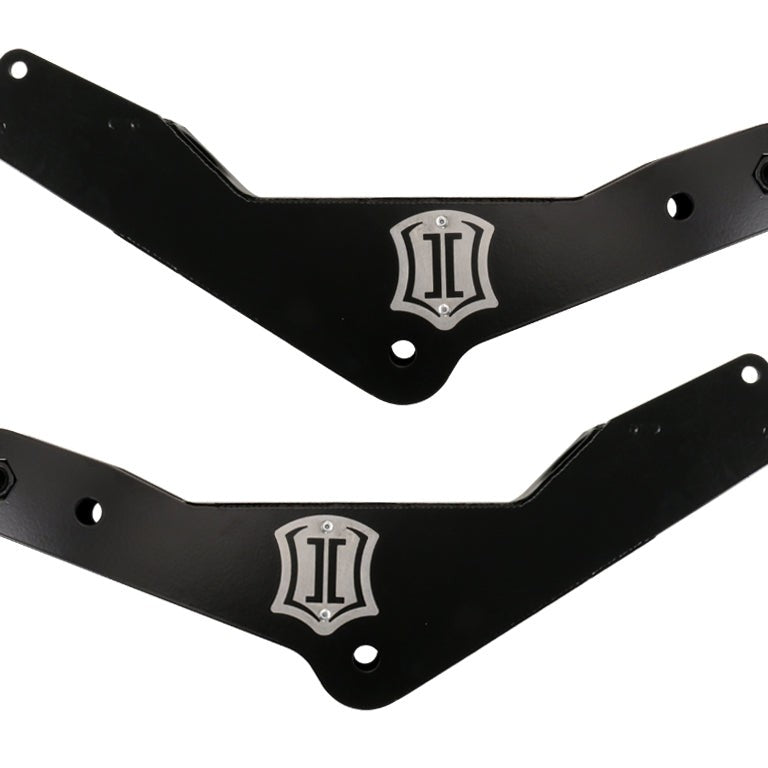

ICON Vehicle Dynamics 4-Link Frame Bracket Kit for 2011-2016 Ford F-250/F-350 Super Duty 4WD

The ICON Vehicle Dynamics 4-Link Frame Bracket Kit is a core structural component of the ICON 4-Link Conversion System for 2011–2016 Ford F-250 and F-350 Super Duty 4WD trucks, compatible with 2.5 to 7 inches of front lift. The brackets are fabricated from CNC laser-cut and brake-formed steel plate and finished in a corrosion-resistant semi-gloss black powder coat. Upper links, lower links, and this bracket kit are each sold separately to allow the system to be configured for the specific model year range.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Consistent Caster Through the Full Travel Range

Stock Super Duty radius arm geometry introduces bushing bind and allows caster angles to shift as the suspension cycles, a compromise that shows up as vague steering feel and unpredictable handling on uneven terrain. The ICON 4-Link system replaces the large deflective radius arm bushings with competition-grade, PTFE-lined spherical bearings at each link. The harder bearing surface minimizes deflection, so the front suspension maintains consistent caster angles through the entirety of its travel range. For a heavily lifted Super Duty used off-road, that consistency translates directly into more predictable steering response at speed and better control on technical terrain.

On-Vehicle Caster Adjustment Without Pulling the Links

ICON double adjusters built into the lower links allow caster angle to be tuned while the links remain installed on the truck. That means a front-end alignment shop can dial in caster without disassembling the suspension, reducing alignment time and making it practical to re-tune after a lift height change or tire size upgrade.

Bolt-On Installation, No Cutting or Welding

The 4-Link Frame Bracket Kit is a fully bolt-on system: no cutting or welding is required for installation. The fabricated bracket components are covered under ICON's Limited Lifetime Warranty.

Features

• CNC laser-cut and brake-formed steel plate: precision fabrication for consistent fitment and structural integrity
• PTFE-lined spherical bearings: replace stock radius arm bushings to eliminate bushing bind and reduce deflection
• ICON double adjusters in lower links: enable on-vehicle caster tuning without removing the links
• Semi-gloss black powder coat: corrosion-resistant finish
• 100% bolt-on installation: no cutting or welding required

Specifications

Who This Is For and Isn't

This bracket kit suits owners of 2011–2016 Ford F-250 or F-350 Super Duty 4WD trucks running between 2.5 and 7 inches of front lift who want to eliminate radius arm bushing bind, improve front-end articulation, and gain on-vehicle caster adjustability as part of a full 4-Link conversion.

This kit does not fit 2WD Super Duty models, Super Duty trucks outside the 2011–2016 model year range, or any lift height below 2.5 inches or above 7 inches. The bracket kit does not complete the 4-Link conversion on its own: ICON 4-Link Arms (Part Numbers 164501 and 164502) are required and sold separately.

Common Questions

Does this bracket kit include everything needed to complete the 4-Link conversion?

The ICON 4-Link Frame Bracket Kit does not complete the conversion on its own. The upper links and lower links (ICON 4-Link Arms, Part Numbers 164501 and 164502) are required to finish the system and are sold separately. All three components must be purchased to complete the installation.

What lift heights is this kit compatible with?

The ICON 4-Link Frame Bracket Kit is compatible with 2.5 to 7 inches of front lift on 2011–2016 Ford F-250 and F-350 Super Duty 4WD trucks. It is not rated for use outside that lift range.

Does installation require cutting or welding?

No cutting or welding is required. The ICON 4-Link Frame Bracket Kit is a fully bolt-on system designed to install using existing mounting points on 2011–2016 Ford Super Duty 4WD trucks.

What are the bearings made of, and why does it matter?

The ICON 4-Link system replaces the stock radius arm bushings with competition-grade, PTFE-lined spherical bearings. The harder bearing surface minimizes deflection compared to rubber bushings, which helps the front suspension maintain consistent caster angles through the full range of travel and improves steering predictability.
