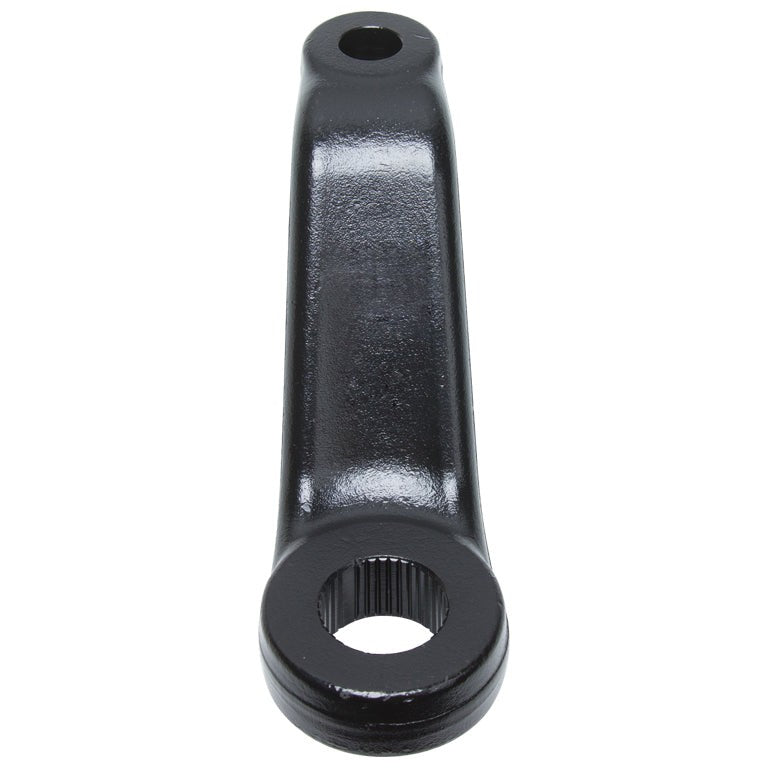

ICON Vehicle Dynamics 4-Inch Drop Pitman Arm for 2005-2022 Ford F-250 F-350 Super Duty

The ICON Vehicle Dynamics 4-Inch Drop Pitman Arm is a forged high-strength steel steering component designed for 2005–2022 Ford F-250 and F-350 Super Duty trucks running a lifted suspension, correcting steering geometry to reduce bump steer and vibration.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Steering Geometry Restored After a Lift

Lifting a Super Duty changes the angle of the drag link relative to the track bar, introducing bump steer, an unwanted steering input every time the suspension cycles. The ICON drop pitman arm lowers the steering box output by 4 inches, bringing the drag link back toward parallel with the track bar. The result is a truck that tracks straight and responds predictably on and off pavement, rather than darting or wandering over bumps.

Direct Replacement, No Fabrication Required

The drop pitman arm installs directly onto the OE steering box as a direct replacement for the factory unit, using the same mounting interface. No drilling, welding, or custom fabrication is needed. A black powder coat finish provides corrosion resistance for long-term durability in the conditions lifted trucks typically see.

Part of a Complete Geometry Correction

For full steering geometry correction, ICON recommends pairing this pitman arm with a compatible track bar drop bracket (sold separately). Together, the two components maintain a parallel relationship between the drag link and track bar across the full range of suspension travel, which is what eliminates bump steer rather than merely reducing it.

Features

• 4-inch drop: corrects drag link angle on lifted F-250 and F-350 Super Duty trucks
• Forged high-strength steel construction: direct replacement onto the OE steering box
• Black powder coat finish: corrosion resistance for off-road and all-weather use
• Reduces bump steer and vibration: maintains parallel drag link and track bar relationship
• ICON Limited Lifetime Warranty: covered under ICON's standard warranty program

Specifications

Who This Is For and Isn't

This pitman arm is designed for 2005–2022 Ford F-250 and F-350 Super Duty owners who have installed a lift kit and are experiencing bump steer, steering wander, or vibration caused by a misaligned drag link angle.

This pitman arm does not fit any vehicle outside the 2005–2022 Ford F-250 and F-350 Super Duty platform. A compatible track bar drop bracket is required for complete geometry correction and is not included with this part.

Common Questions

What does a drop pitman arm actually fix on a lifted truck?

On a lifted Super Duty, the factory pitman arm holds the drag link at a downward angle rather than level, which causes the steering to pull or dart when the suspension compresses or rebounds. The ICON 4-Inch Drop Pitman Arm lowers the drag link attachment point to restore a more parallel relationship between the drag link and track bar, reducing or eliminating that unwanted steering input.

Does this pitman arm replace the factory unit directly?

Yes. The ICON Drop Pitman Arm is a direct replacement for the OE steering box pitman arm on 2005–2022 Ford F-250 and F-350 Super Duty trucks. It uses the same mounting interface as the factory part, so no custom fabrication or additional adapters are required for installation.

Is a track bar drop bracket included?

No. A track bar drop bracket is not included with the ICON Drop Pitman Arm. ICON recommends pairing this pitman arm with a compatible track bar drop bracket to fully correct steering geometry on a lifted Super Duty. The bracket must be purchased separately.

Is there a Proposition 65 warning for this product?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. This warning applies to California residents under Proposition 65.
