ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 6 Billet 2-3" Lift Suspension System

The ICON Vehicle Dynamics Stage 6 Billet Suspension System is a complete, 100% bolt-on lift kit engineered for 2019–2026 Ram 1500 trucks (excluding Classic, TRX, and RHO), delivering 2–3" of front lift and 1.5" of rear lift over stock through a matched set of 2.5" remote-reservoir coilovers, billet Delta Joint upper control arms, dual-rate rear coil springs, 2.5 Aluminum Series piggyback reservoir rear shocks, billet adjustable rear lower links, and an adjustable rear track bar.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

More Wheel Travel, Better Damping Front and Rear

The 2.5" front coilovers are vehicle-specifically valved and feature remote reservoirs that dissipate heat during sustained off-road use, keeping damping consistent when stock shocks would begin to fade. Their longer-than-stock length increases front wheel travel beyond what a simple spacer lift provides, so the suspension can absorb larger impacts without running out of stroke. Height adjustability across the 2–3" range lets the owner dial in stance without swapping springs.

At the rear, 2.5 Aluminum Series piggyback reservoir shocks are valved to balance front-to-rear performance. The dual-rate rear coil springs use a softer rate at ride height for daily-driving comfort and a firmer overload rate that resists bottoming under load or off-road impacts. Together, the front and rear damping components are tuned as a system rather than as independent upgrades.

Billet Delta Joint Upper Control Arms

The billet aluminum upper control arms use ICON's patented Delta Joint, a high-angle ball joint that combines the articulation range of a uniball with the sealed, greaseable construction of a conventional ball joint. A zinc-plated housing and a grease seal protect the joint from corrosion and contamination, addressing the primary durability weakness of an open uniball in daily-driven applications. On-vehicle caster and camber adjustability means alignment can be set correctly at the lifted ride height without removing the arms, and the arms are designed to keep factory alignment specs achievable within the lift range this system provides.

Rear Geometry Correction Included

An adjustable rear track bar, using ICON's Double Adjuster design, corrects axle centering after the lift and eliminates the bushing deflection that stock rubber track bar bushings introduce. Billet aluminum rear lower links with PTFE-lined FK rod ends and multi-durometer bushings improve suspension articulation, reduce deflection under load, and remain adjustable while installed on the vehicle, allowing ride height and driveline angle fine-tuning without a full teardown.

Features

• 2.5" Remote-Reservoir Front Coilovers: vehicle-specific valving, CAD-plated bodies, 7/8" shafts, 2–3" height-adjustable front lift
• Patented Delta Joint UCAs: billet aluminum, zinc-plated housing, greaseable, on-vehicle caster/camber adjustment
• Dual-Rate Rear Coil Springs: softer ride-height rate with firmer overload rate; 1.5" rear lift over stock
• 2.5 Aluminum Series Piggyback Rear Shocks: 7/8" polished shafts, vehicle-specific valving
• Adjustable Rear Track Bar and Billet Lower Links: PTFE-lined FK rod ends, multi-durometer bushings, on-vehicle adjustability
• 100% Bolt-On Installation: no drilling, cutting, or welding required

Specifications

Who This Is For and Isn't

This system suits 2019–2026 Ram 1500 owners who want a complete, bolt-on suspension upgrade that increases front wheel travel, corrects rear geometry at lift height, and balances on-road ride quality with off-road capability. The Rebel variant is supported with a reduced lift range of 1.25–2.25" front and 1" rear.

This system does not fit 2019–2024 Ram 1500 Classic models, the Ram 1500 TRX, or the Ram 1500 RHO. It is not compatible with Ram 1500 trucks equipped with factory rear air ride suspension or the EcoDiesel engine (rear springs are not rated for EcoDiesel). Performance rear springs may reduce ride height while towing. ADAS recalibration is required after installation. Coil bucket clearance should be verified during install; sanding may be required.

Common Questions

Does this system fit the Ram 1500 TRX or Ram 1500 Classic?

The ICON Stage 6 Billet system does not fit the Ram 1500 TRX, Ram 1500 RHO, or 2019–2024 Ram 1500 Classic. It is designed for the standard 2019–2026 Ram 1500 lineup, including the Rebel, which sees a reduced lift range of 1.25–2.25" front and 1" rear compared to other variants.

What lift height does this system provide?

The ICON Stage 6 Billet system provides 2–3" of front lift and 1.5" of rear lift over stock on standard 2019–2026 Ram 1500 trucks. On the Ram 1500 Rebel, front lift is 1.25–2.25" and rear lift is 1". Lift figures are for a stock-equipped vehicle; actual height may vary with added accessories or loads.

Is any cutting, drilling, or welding required to install this system?

The ICON Stage 6 Billet system is 100% bolt-on; no cutting, drilling, or welding is required. An installation guide is included. Coil bucket clearance should be verified by cycling the suspension during install, and light sanding of the coil bucket may be needed for clearance on some vehicles.

Does this system affect towing capacity or require recalibration of driver-assistance systems?

ICON states that this Stage 6 system installs with no change to towing capacity. However, the performance rear springs may cause reduced ride height while towing. Advanced Driver Assistance Systems (ADAS) require recalibration after installation of this suspension system.

What components are included in the Stage 6 Billet system?

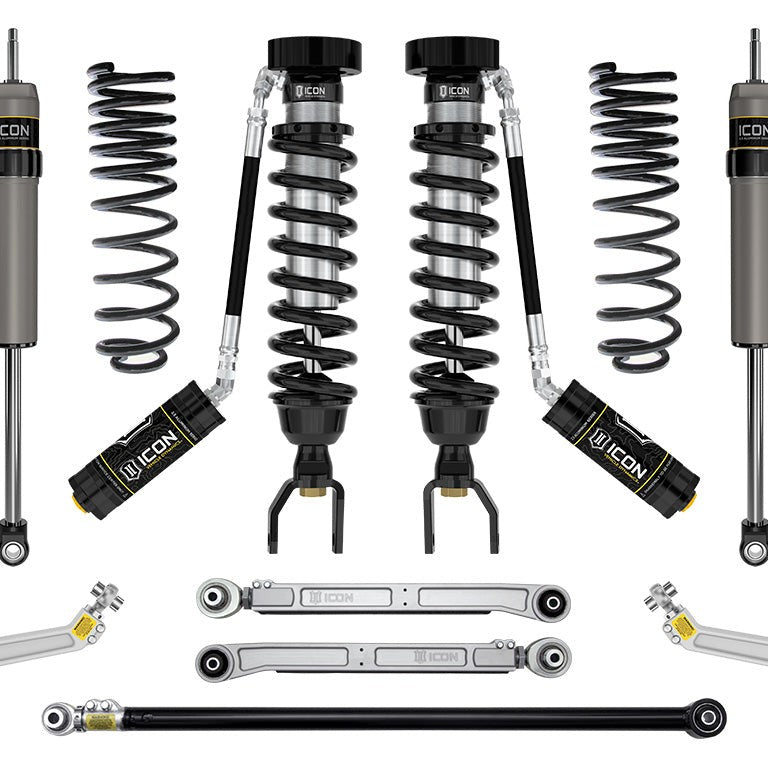

The Stage 6 Billet system includes: a 2.5" VS remote-reservoir front coilover kit, billet Delta Joint upper control arms, a dual-rate rear coil spring kit, 2.5 Aluminum Series piggyback reservoir rear shocks (pair), billet adjustable rear lower links, and an adjustable rear track bar kit.
