ICON Vehicle Dynamics 2019-2023 Ford Ranger Multi Rate Leaf Spring Hardware Kit

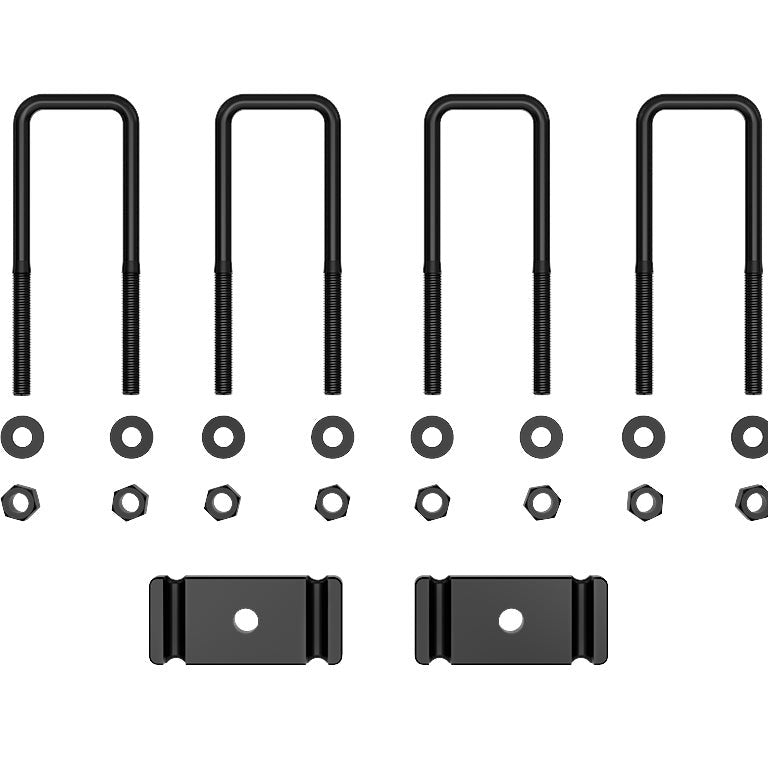

The ICON Vehicle Dynamics Multi Rate Leaf Spring Hardware Kit is a fitment-specific hardware set for 2019–2023 Ford Ranger rear leaf spring installations, supplying the E-coated U-bolts, nuts, washers, and black anodized billet aluminum bump stop plates needed to complete a rear leaf spring swap. The kit is required for use with ICON leaf springs (part number 198520A) and is also compatible with OE and other aftermarket leaf springs on the same application.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Corrosion-Resistant Hardware Where It Counts

The U-bolts, nuts, and washers in this kit are E-coated, an electrodeposition primer process that bonds a protective layer uniformly across complex metal geometry, including threads and tight inside corners that spray coatings miss. For a component that lives under a truck and takes road spray, mud, and seasonal salt, that coverage matters more than surface-level rust protection. The coating is applied before the hardware ships, so there is no prep work required on install day.

Bump Stop Plates That Protect the Rear Suspension

The kit includes application-specific black anodized billet aluminum bump stop plates. Their job is to limit rear compression travel at the correct point for the 2019–2023 Ranger's geometry, preventing a full bottom-out event from contacting and damaging the rear shock absorbers or surrounding components. Billet aluminum construction keeps the plates rigid under repeated impact loads while resisting corrosion without paint or coating that can chip away over time.

Features

• E-coated U-bolts, nuts, and washers: electrodeposition coating for superior corrosion resistance across all hardware surfaces including threads
• Black anodized billet aluminum bump stop plates: application-specific plates that limit rear compression travel and protect shock absorbers at full bottom-out
• Direct fitment: designed specifically for 2019–2023 Ford Ranger rear leaf spring applications
• Broad compatibility: required for ICON leaf springs (p/n 198520A); also compatible with OE and other aftermarket leaf springs on the same platform

Specifications

Who This Is For and Isn't

This hardware kit is for 2019–2023 Ford Ranger owners installing ICON rear leaf springs (p/n 198520A) or replacing worn or missing OE and aftermarket leaf spring hardware on the same platform. It supplies all the corrosion-resistant fasteners and bump stop plates needed to complete the rear leaf spring installation correctly.

This kit does not fit Ford Ranger model years outside the 2019–2023 range, and it does not include leaf springs. Leaf springs are sold separately. It is not a front suspension component and does not include shocks, coilovers, or any other suspension parts beyond the hardware and bump stop plates described.

Common Questions

Do I need this kit if I already have hardware from my old leaf springs?

ICON designates this hardware kit as required for use with ICON leaf springs (p/n 198520A) on 2019–2023 Ford Rangers. Reusing old U-bolts is generally not advised after a leaf spring swap because U-bolts stretch under torque and may not clamp correctly when retorqued. The kit provides new, correctly spec'd hardware for the application.

What does the bump stop plate actually do?

The black anodized billet aluminum bump stop plates in this kit limit how far the rear suspension can compress before bottoming out. On a 2019–2023 Ford Ranger, reaching a full bottom-out without the correct plate in place can allow the axle to contact and damage the rear shock absorbers or surrounding components. The plates are application-specific, meaning they are sized for the Ranger's geometry rather than being a generic spacer.

Is this kit compatible with leaf springs other than ICON's?

Yes. This hardware kit is required for ICON leaf springs (part number 198520A) on the 2019–2023 Ford Ranger and is also compatible with OE and other aftermarket leaf springs on the same application.

Does this kit include leaf springs or shocks?

No. The ICON Multi Rate Leaf Spring Hardware Kit for the 2019–2023 Ford Ranger contains U-bolts, nuts, washers, and billet aluminum bump stop plates only. Leaf springs, rear shocks, and all other suspension components are sold separately.
