ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Rear 9-Inch U-Bolt Kit

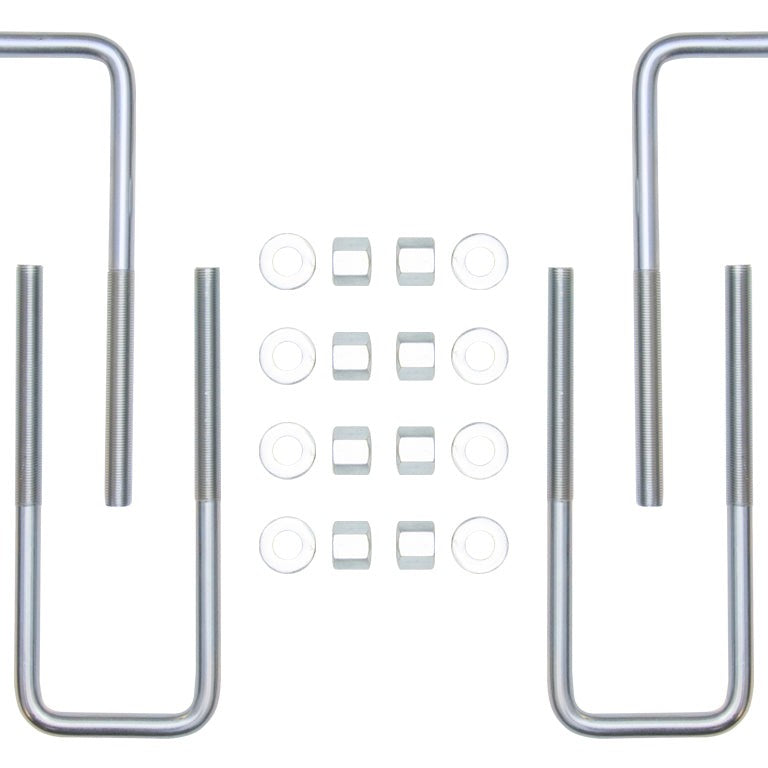

The ICON Vehicle Dynamics Rear 9-Inch U-Bolt Kit is a square-design replacement hardware set for the 2016–2023 Nissan Titan XD rear axle, compatible with both stock leaf spring packs and aftermarket setups. Each kit covers one axle and includes U-bolts, nuts, and washers.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

High-Strength Steel with Corrosion Protection

The U-bolts are formed from high-strength steel and zinc-plated to resist rust and corrosion. Zinc plating extends service life without requiring additional treatment after installation, a meaningful advantage for a component that lives under the vehicle and takes road spray, mud, and seasonal moisture continuously.

Square Design for Stock and Aftermarket Leaf Packs

The square U-bolt profile seats consistently against the axle housing and spring pack, reducing the movement that can loosen hardware over time. At 9 inches in length, this kit fits the Titan XD rear axle whether the truck is running the factory leaf spring pack or an upgraded aftermarket pack. No separate hardware sourcing is required when changing springs.

Features

• Square U-bolt design: consistent seating against axle housing and spring pack
• 9-inch length: sized for the 2016–2023 Nissan Titan XD rear axle
• High-strength steel construction: rated for the load demands of a full-size truck rear suspension
• Zinc-plated finish: corrosion resistance without additional treatment
• Complete hardware kit: U-bolts, nuts, and washers included for one axle

Specifications

Who This Is For and Isn't

This kit suits 2016–2023 Nissan Titan XD owners replacing worn or damaged rear U-bolts, or those installing an aftermarket rear leaf spring pack who need correctly sized hardware for one axle.

This kit covers one rear axle only and is not a front U-bolt kit. It is not listed as compatible with any Nissan Titan model outside the 2016–2023 Titan XD. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Does this kit include everything needed to install the U-bolts on one axle?

The ICON Rear 9-Inch U-Bolt Kit includes U-bolts, nuts, and washers, the hardware required for one rear axle installation. No additional fasteners are listed as included; any tools needed for the job are not part of the kit.

Will this kit work if I've already installed an aftermarket leaf spring pack?

Yes. The 9-inch ICON U-bolts are designed to work with both the factory Nissan Titan XD leaf spring pack and aftermarket leaf spring packs, so they do not need to be swapped out again if the springs are upgraded.

How does the zinc plating protect the U-bolts?

Zinc plating on the ICON U-bolts creates a barrier between the high-strength steel and moisture, road salt, and mud that accumulate under the rear axle. This helps resist surface rust and corrosion over the life of the component without requiring additional coatings after installation.
