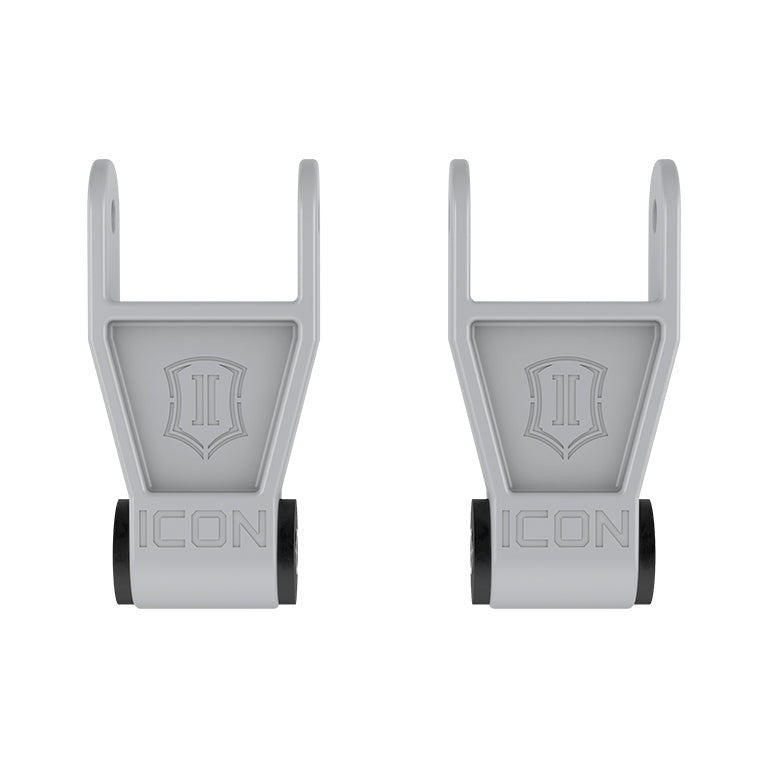

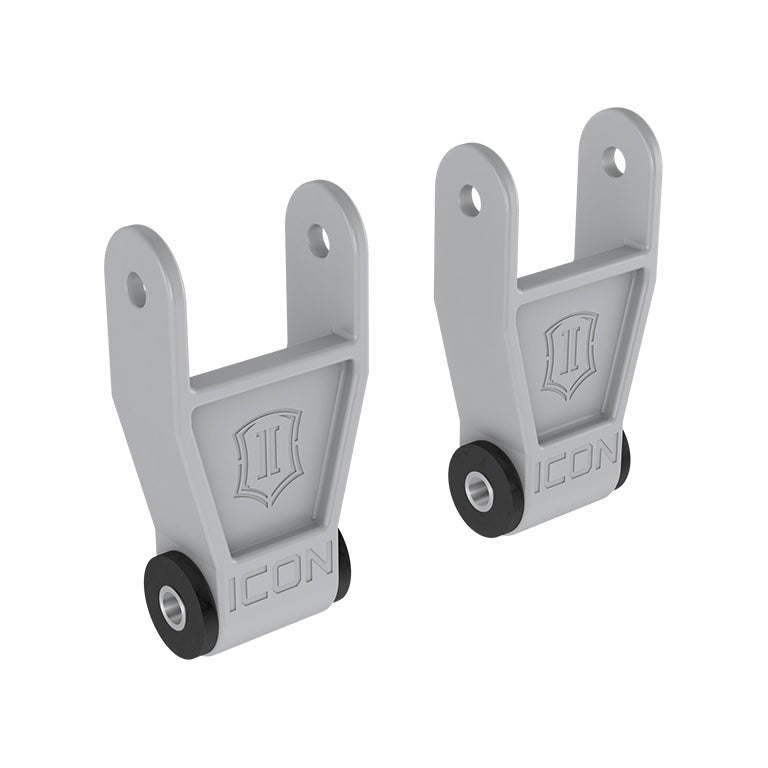

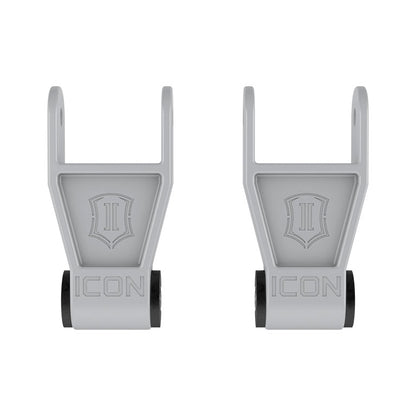

ICON Vehicle Dynamics 2010-2026 Ford F-150 1-Inch Lowering Shackle Kit

The ICON Vehicle Dynamics 1-Inch Lowering Shackle Kit is a bolt-on rear ride-height correction for 2010–2026 Ford F-150 trucks (excluding 2021–2026 Raptor), CNC machined from 6061 aircraft-grade aluminum to drop the rear of the truck by 1 inch. The kit is compatible with stock leaf springs, ICON F-150 Multi-Rate Leaf Springs, and most other aftermarket spring packs.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Stronger Than Stock Where It Counts

Stock F-150 shackles are stamped from thin steel, adequate for factory use but a weak point under the added stress of aggressive off-road driving or heavier aftermarket spring packs. The ICON shackles are CNC machined from 6061 aircraft-grade aluminum, a material that delivers greater strength-to-weight performance than the factory steel units. A gusseted design reinforces the shackle body at the bushing seats, maintaining proper clearance so the shackles cycle through full suspension travel without binding against stock or aftermarket leaf springs.

1-Inch Drop, Broad Spring Compatibility

Adding 1 inch of rear drop reduces the amount of front lift needed to bring the F-150 to a level stance, which simplifies front suspension tuning and can reduce the aggressive nose-up rake that often accompanies a front lift alone. The gusseted geometry is sized to clear stock leaf springs, ICON's own F-150 Multi-Rate Leaf Springs, and most other aftermarket spring packs, so the shackles work within a wide range of suspension configurations rather than locking the owner into a single setup.

Maintenance-Free Bushings, Finished to Last

Each shackle ships with pre-installed, press-in OE Ford bonded bushings. The bonded design requires no periodic greasing and operates without noise through the full range of suspension travel. Bushings are replaceable when worn. The satin gray anodized finish resists corrosion and holds up to the same off-road conditions the aluminum construction is built for.

Features

• 1-Inch Rear Drop: lowers rear ride height to reduce front-lift requirement for a level stance
• 6061 Aircraft-Grade Aluminum: CNC machined for greater strength than factory steel shackles
• Gusseted Design: ensures proper bushing clearance for stock and most aftermarket leaf springs
• Pre-Installed OE Ford Bonded Bushings: maintenance-free, no greasing required, replaceable
• Satin Gray Anodized Finish: corrosion-resistant surface treatment

Specifications

Who This Is For and Isn't

This kit suits 2010–2026 Ford F-150 owners who want to correct rear ride height, whether leveling the truck after a front lift, fine-tuning stance with aftermarket leaf springs, or reducing factory rake for a cleaner look on and off road.

This kit does not fit the 2021–2026 Ford F-150 Raptor. It is a rear shackle kit only and does not include front suspension components, leaf springs, or any other hardware beyond the shackles and their pre-installed bushings.

Common Questions

Will these shackles fit the F-150 Raptor?

The ICON 1-Inch Lowering Shackle Kit does not fit the 2021–2026 Ford F-150 Raptor. It is confirmed for 2010–2026 F-150 trucks outside the Raptor trim for those years.

Do the bushings need to be greased or serviced regularly?

No periodic greasing is required. The pre-installed OE Ford bonded bushings in the ICON lowering shackles are maintenance-free by design and operate quietly through full suspension travel. The bushings are replaceable when they eventually wear.

Will these shackles work with my aftermarket leaf springs?

The ICON lowering shackles are designed to fit stock leaf springs, ICON F-150 Multi-Rate Leaf Springs, and most other aftermarket spring packs. The gusseted design provides bushing clearance across a wide range of spring configurations, though compatibility with every aftermarket spring cannot be guaranteed.

What is included in the kit?

The kit includes the CNC-machined 6061 aluminum lowering shackles with OE Ford bonded bushings pre-installed. No leaf springs, front suspension components, or additional mounting hardware beyond the shackles themselves are included.
