ICON Vehicle Dynamics 2007-2021 Toyota Tundra 1-3" Lift Stage 3 Suspension System

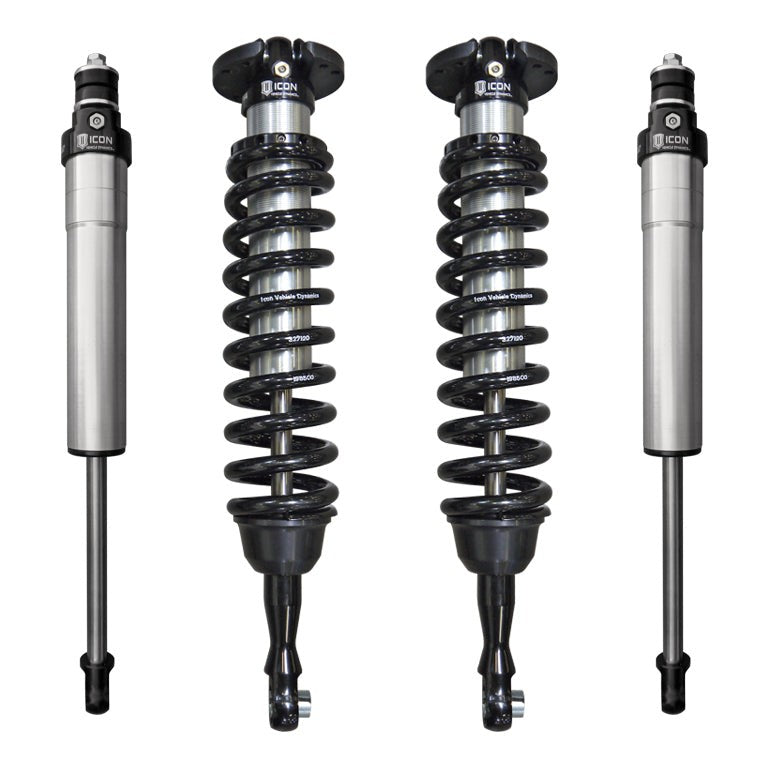

The ICON Vehicle Dynamics Stage 3 Suspension System is a complete bolt-on lift and performance upgrade for 2007–2021 Toyota Tundra trucks, delivering 1–3 inches of adjustable lift height through vehicle-specific-tuned 2.5-inch coilover shocks with internal reservoirs front and rear. The system ships as three matched sub-assemblies (a front 2.5 VS IR coilover kit, a rear expansion pack, and a rear 2.5 VS IR shock pair) engineered together so front and rear damping characteristics are balanced from the factory.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Tuned for Wheel Travel and Damping, Not Just Lift

ICON's engineering focus for this system is increasing wheel travel and damping ability rather than lift height alone. The 2.5-inch front coilovers feature internal reservoirs that dissipate heat during sustained off-road use, maintaining consistent damping when stock shocks would begin to fade. Vehicle-specific valving means the front and rear shocks are calibrated as a matched set, so the Tundra's handling balance is preserved whether the truck is loaded or running light on a trail.

Adjustable Height, Aircraft-Grade Construction

Coilover height is adjustable across the full 1–3-inch lift range without removing the shock from the vehicle, allowing fitment of larger wheel and tire combinations as needs change. Shock bodies are CAD-plated for corrosion resistance and machined from 6061 aircraft-grade aluminum with 7/8-inch shafts. FK rod end bearings are used at mounting points to extend service life and reduce deflection under load. The rear 2.5 Aluminum Series shocks use one-piece impact-extruded aluminum cylinders for consistent finish and corrosion resistance.

Bolt-On Installation, No Fabrication Required

The Stage 3 system is 100% bolt-on: no drilling, cutting, or welding is required. The rear expansion pack adds 1.5 inches of lift and improved ride quality at the rear axle. ICON states that towing capacity is not reduced by this system. All shocks are fully serviceable after installation.

Features

• 2.5-inch front coilovers with internal reservoirs: vehicle-specific valving and heat management for sustained off-road use
• 1–3-inch adjustable lift: height set at the coilover without removing the shock
• 6061 aircraft-grade aluminum components: CNC machined, CAD-plated shock bodies, 7/8-inch shafts
• FK rod end bearings: extended longevity and minimal deflection at mounting points
• Rear expansion pack included: adds 1.5 inches of lift and improved rear ride quality
• Fully serviceable shocks: all units can be rebuilt after installation

Specifications

Who This Is For and Isn't

The Stage 3 system suits 2007–2021 Toyota Tundra owners who want a matched, bolt-on suspension upgrade for mixed on-road and off-road use, with the ability to run larger wheel and tire combinations up to 35x12.50 inches (with trimming) and to adjust lift height without additional parts.

This system is not compatible with the rear TRD sway bar kit. Factory upper control arms will not align properly above 2.5 inches of lift, and an aftermarket UCA is required for lifts above that height. The recommended 35-inch tire size requires fender trimming. This system does not fit the 2008–2022 Toyota Sequoia on its own (the front coilover kit 58650 is shared, but Sequoia-specific rear fitment is not included in this system).

Common Questions

What vehicles does this system fit?

The ICON Stage 3 Suspension System (K53023) is designed for 2007–2021 Toyota Tundra trucks. It is not a universal fitment and is not listed for any other make or model in this configuration.

Do I need new upper control arms to run the full 3-inch lift?

Factory upper control arms will not align properly above 2.5 inches of lift on the 2007–2021 Tundra. For lifts between 2.5 and 3 inches, an aftermarket upper control arm is required. The Stage 3 system itself does not include upper control arms.

Is any cutting, welding, or drilling required to install this system?

The ICON Stage 3 system is a 100% bolt-on installation: no cutting, drilling, or welding is required. An installation guide is included. Note that running the recommended 35-inch tire size does require fender trimming regardless of installation method.

Will this system work with the rear TRD sway bar kit?

No. The Stage 3 system is not compatible with the rear TRD sway bar kit. Remove or do not install the rear TRD sway bar kit when running this suspension system.

What is included in the Stage 3 system?

The Stage 3 system ships as three sub-assemblies: a front 2.5 VS IR coilover kit (part 58650), a rear expansion pack kit (part 51200), and a rear 2.5 VS IR shock pair (part 57620P). The system ships in multiple boxes. Optional accessories such as coil spring wraps and spanner wrenches are sold separately.
