ICON Vehicle Dynamics 2005-2011 Toyota Hilux 0-3" Lift Stage 3 Suspension System with Billet UCA

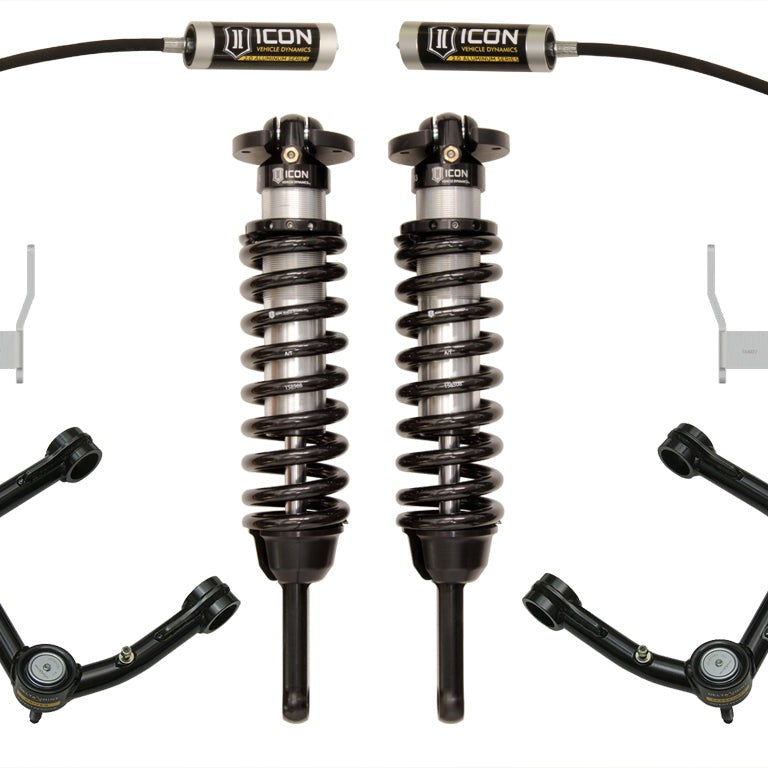

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2005–2011 Toyota Hilux delivers 0–3" of front lift height through vehicle-specific-tuned 2.5" internal-reservoir coilovers paired with tubular uniball billet upper control arms, a 1" rear shackle kit, and 2.0 Aluminum Series remote-reservoir rear shocks, all as a 100% bolt-on system requiring no drilling, cutting, or welding.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Tuned for the Hilux Chassis

The Hilux carries a stiffer chassis than most trucks in its class, and ICON's engineers developed a more robust shock tune specifically to handle that characteristic across varying terrains and vehicle payloads. The 2.5" coilovers feature an internal reservoir that aids cooling during extended off-road use, and ICON-engineered Eibach coil springs are included to deliver consistent feel throughout the full range of travel. The result is meaningfully improved ride quality both on and off road compared to the factory setup.

Front-to-Rear Balance with Rear Shackle Lift

The two 2.0 Aluminum Series remote-reservoir rear shocks keep damping consistent by maintaining lower operating temperatures during sustained off-road use, balancing the performance of the front coilovers. When the front is set to the full 3" lift, the included 1" rear shackle kit raises the rear of the Hilux while retaining the factory payload rating and allowing more suspension up-travel, a meaningful advantage for a truck used as a working vehicle. Optional rear springs (not included) can add up to 2" of additional rear lift height to match a full 3" front adjustment.

Billet Upper Control Arms and Alignment Retention

The tubular uniball billet upper control arms add strength and durability over the factory arms and help retain the factory alignment specification range while increasing caster over stock. FK rod end bearings are used throughout for extended longevity and minimal deflection. All structural components are CNC-machined from 6061 aircraft-grade aluminum, and the coilover shock body carries a corrosion-resistant CAD plating with a 7/8" shaft. The rear shocks use a 5/8" shaft.

Features

• 0–3" adjustable front lift: 2.5" internal-reservoir coilovers with ICON-engineered Eibach coil springs
• Remote-reservoir rear shocks: 2.0 Aluminum Series, qty 2, for sustained damping performance
• Tubular uniball billet UCA: increases caster over stock, retains factory alignment spec range
• 1" rear shackle kit: retains factory payload rating when front is set to 3" lift
• 100% bolt-on installation: no drilling, cutting, or welding required
• Fully serviceable shocks: all shocks in this system are field-serviceable

Specifications

Who This Is For and Isn't

This system suits 2005–2011 Toyota Hilux owners who want 0–3" of front lift with a bolt-on install, improved on- and off-road ride quality, and the ability to run larger wheel and tire combinations without sacrificing factory payload rating.

This system fits only the 2005–2011 Toyota Hilux. Rear lift springs are not included; rear lift beyond the 1" shackle requires separately purchased rear springs. Tires larger than 33" x 11.25" may require fender trimming and additional modifications. California residents: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm (Proposition 65).

Common Questions

Does this system work with the factory Hilux wheels and tires?

Yes, the ICON Stage 3 Hilux system is confirmed compatible with OEM wheels and tires. Aftermarket fitments up to 33" x 11.25" are also supported; tires larger than that may require fender trimming or additional modifications.

How much rear lift does this system provide?

The included 1" rear shackle kit provides 1" of rear lift. Optional rear springs, sold separately, can add up to 2" of additional rear lift height to match the full 3" front adjustment available through the coilovers.

Does adding lift with this system affect the Hilux's payload rating?

When the front coilovers are set to 3" and the rear shackle kit is used, the factory payload rating is retained. The shackle-based rear lift method was chosen specifically to preserve payload capacity.

Is any cutting, drilling, or welding required to install this system?

No. The ICON Stage 3 Hilux system is a 100% bolt-on design. No cutting, drilling, or welding is required for installation.

Are the shocks in this system serviceable?

Yes. All shocks in the ICON Stage 3 Hilux system are fully serviceable, which means they can be rebuilt or revalved rather than replaced outright if they require maintenance after extended use.
