ICON V.S. 2.5 Series Piggyback Front Shocks for 2001-2010 GM 2500/3500 HD, Pair

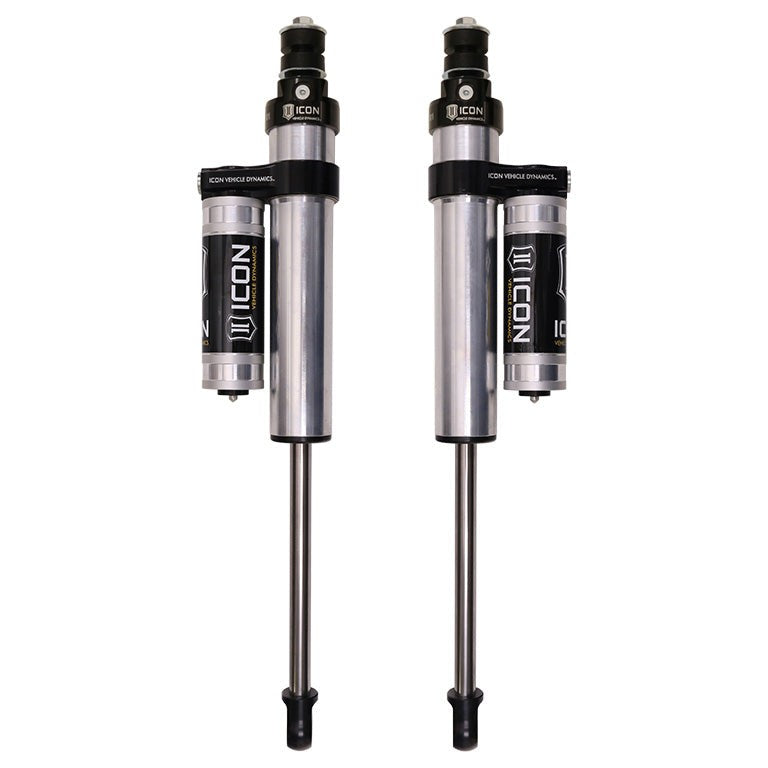

The ICON V.S. 2.5 Series Piggyback Reservoir Front Shocks (SKU 77725P) are a vehicle-specific pair built for 2001–2010 GM 2500/3500 HD trucks running 0–2.5 inches of front lift. Each shock is tuned in both length and damping specifically for this application, combining a nitrogen-charged monotube body with a piggyback reservoir for sustained off-road performance and a composed street ride.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Internal Bump Zone Control

A 6061 billet aluminum manifold positioned a few inches below the top cap creates what ICON calls an internal Bump Zone. When the shock approaches full compression, this zone adds 20% more damping force. For a heavy-duty truck pushing through whoops or landing hard off a ledge, that extra resistance is the difference between a controlled compression and a harsh bottom-out that transfers directly to the frame and cab.

Heat Management Through the Piggyback Reservoir

Prolonged off-road use generates heat in the shock fluid, and heat causes fade: the gradual loss of damping consistency that makes a truck feel loose and unpredictable after extended hard use. The piggyback reservoir increases fluid volume and surface area, dissipating heat faster and keeping damping behavior consistent across a full day of trail driving. Premium-grade 5WT shock oil maintains that consistency across a wide temperature range, from cold desert mornings to sustained high-speed running.

Built to Last and Be Serviced

The shock body is precision-machined 1026 DOM steel with a CAD plating finish for corrosion resistance. The shaft is 7/8-inch diameter, induction hardened and chrome plated. PTFE-lined spherical bearings handle articulation without binding. Every V.S. 2.5 Series shock is 100% rebuildable and 100% revalveable, so the investment in this pair can be maintained and retuned rather than replaced when the time comes.

Features

• Vehicle-Specific Tune: length and damping valved specifically for 2001–2010 GM 2500/3500 HD at 0–2.5" front lift
• Internal Bump Zone: 6061 billet aluminum manifold adds 20% damping force near full compression to resist bottom-outs
• Piggyback Reservoir: nitrogen-charged monotube with reservoir for improved heat dissipation and reduced shock fade
• 7/8" Hardened Shaft: induction hardened, chrome-plated shaft with PTFE-lined spherical bearings
• 1026 DOM Steel Body: CAD-plated, precision-machined for durability and corrosion resistance
• Rebuildable and Revalveable: 100% serviceable for long-term use and future retuning

Specifications

Who This Is For and Isn't

These shocks suit 2001–2010 GM 2500/3500 HD owners running 0–2.5 inches of front lift who want a significant damping upgrade over factory shocks for mixed on-road and off-road use, including high-speed dirt running where heat buildup and bottom-out resistance matter.

These shocks do not fit GM 2500/3500 HD trucks outside the 2001–2010 model years, do not cover rear positions, and are not intended for lift heights above 2.5 inches on this application. Application-specific mounting hardware is included; upper control arms, coil springs, and other suspension components are not part of this listing.

Common Questions

What trucks do these shocks fit?

These ICON V.S. 2.5 Series front shocks are built specifically for 2001–2010 GM 2500/3500 HD trucks with 0–2.5 inches of front lift. They are not a universal fitment and are not compatible with other model years or GM half-ton platforms.

What does the piggyback reservoir do?

The piggyback reservoir on these ICON 2.5 Series shocks increases fluid volume and heat-dissipation surface area compared to a standard monotube. During extended off-road use, this helps maintain consistent damping and reduces the fade that occurs when shock fluid overheats.

What is the internal Bump Zone?

The internal Bump Zone is created by a 6061 billet aluminum manifold positioned just below the top cap of each shock. As the shock nears full compression, this zone generates an additional 20% of damping force, helping prevent harsh bottom-outs under high-velocity compression.

Can these shocks be rebuilt or revalved?

Yes. Every ICON V.S. 2.5 Series shock is 100% rebuildable and 100% revalveable. That means the shocks can be serviced and retuned over time rather than replaced outright, which extends the usable life of the pair.

Does this listing include mounting hardware?

Application-specific mounting hardware is included with these ICON V.S. 2.5 Series front shocks. Upper control arms, coil springs, and other suspension components are not part of this listing and would need to be sourced separately if required for your build.
