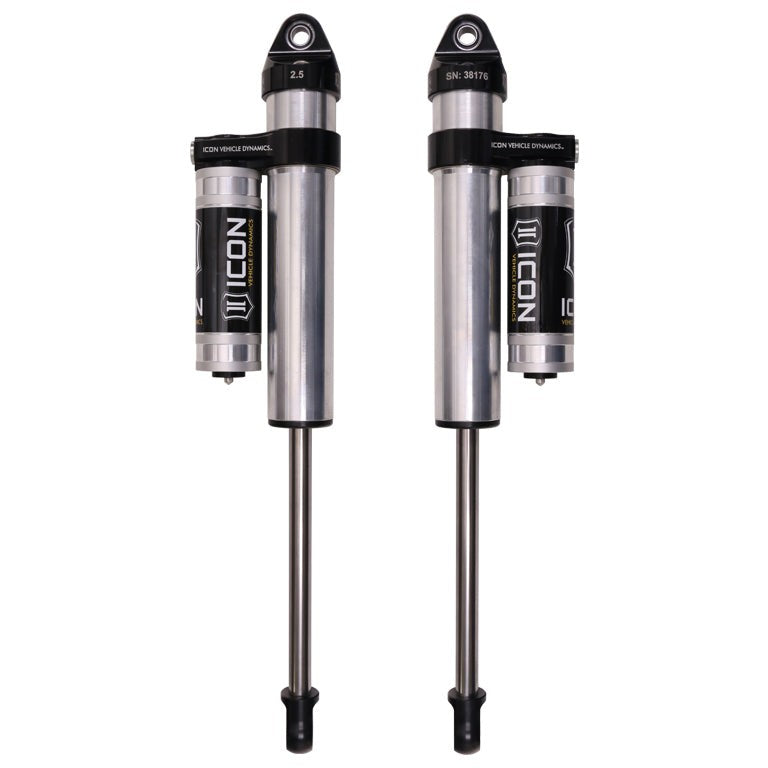

ICON V.S. 2.5 Series Front Secondary Piggyback Shocks for 2007-2021 Toyota Tundra 6" Lift, Pair

The ICON V.S. 2.5 Series Front Secondary Piggyback Shocks are a sold-as-pair front shock upgrade for 2007–2021 Toyota Tundra builds running 6 inches of lift. Each shock is length- and valving-tuned specifically for this Tundra application, built around a nitrogen-charged monotube body with a piggyback reservoir, and is fully rebuildable and revalveable.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Vehicle-Specific Valving, Not a Generic Tune

ICON's V.S. (Vehicle Specific) designation means the damping tune and shock length are set for the 2007–2021 Tundra at 6 inches of lift, not adapted from a universal shock and shimmed to fit. The one-piece digressive piston works with that application-specific valving to deliver controlled compression and rebound across a wide range of speeds, whether the truck is loaded on a highway or unloaded on a rocky trail. Premium-grade 5WT shock oil maintains consistent damping across a broad temperature range, so performance does not degrade between a cold morning start and a long afternoon run.

Bump Zone: 20% More Damping Where It Counts

A 6061 billet aluminum manifold positioned a few inches below the top cap creates ICON's internal Bump Zone. As the shock approaches full compression, this zone increases damping force by 20%, reducing harsh bottom-outs and keeping the suspension composed during high-velocity compression events. The piggyback reservoir improves heat dissipation during sustained off-road use, helping resist shock fade on extended runs where a standard shock would begin to lose consistency.

Built to Last and Built to Be Serviced

The shock body is CAD-plated, precision-machined 1026 DOM steel. The shaft is 7/8-inch diameter, induction-hardened, and chrome-plated for corrosion and wear resistance. CNC-machined 6061 aircraft-grade aluminum components are used throughout. PTFE-lined spherical bearings and application-specific mounting hardware are included. Every V.S. 2.5 Series shock is 100% rebuildable and 100% revalveable, meaning the shock can be serviced and retuned rather than replaced when it eventually needs attention. These shocks can also be upgraded to ICON's Compression Damping Control Valve (CDCV) for a more user-adjustable tune.

Features

• Vehicle-specific valving: length and damping tune set for 2007–2021 Toyota Tundra at 6" lift
• Internal Bump Zone: 6061 billet aluminum manifold increases damping by 20% near full compression
• Piggyback reservoir: nitrogen-charged monotube design with reservoir for improved heat dissipation and fade resistance
• 1026 DOM steel body: CAD-plated, precision-machined; 7/8" induction-hardened, chrome-plated shaft
• PTFE-lined spherical bearings: included with application-specific mounting hardware
• 100% rebuildable and revalveable: CDCV upgrade compatible

Specifications

Who This Is For and Isn't

These shocks suit 2007–2021 Toyota Tundra owners running a 6-inch lift who want a front secondary shock with vehicle-specific damping tuning, piggyback reservoir heat management, and a body built for long-term serviceability on and off-road.

These shocks are not compatible with Tundra builds at lift heights other than 6 inches, and they are not a fit for any other make, model, or year. They are secondary shocks only and do not include coil springs, a complete coilover, or any other suspension component.

Common Questions

What years and lift height do these shocks fit?

These ICON V.S. 2.5 Series front secondary piggyback shocks are fitment-specific to 2007–2021 Toyota Tundra trucks running exactly 6 inches of lift. They are not designed for other lift heights or other vehicle applications.

Are these shocks sold as a pair or individually?

These ICON V.S. 2.5 Series front shocks are sold as a pair (SKU 59705P-CB), covering both front positions on the 2007–2021 Toyota Tundra.

What does the internal Bump Zone do?

The Bump Zone is created by a 6061 billet aluminum manifold positioned just below the shock's top cap. As the shock nears full compression, it increases damping force by 20%, which helps prevent harsh bottom-outs and keeps the suspension controlled during high-speed compression events.

Can these shocks be rebuilt or retuned?

Yes. Every ICON V.S. 2.5 Series shock is 100% rebuildable and 100% revalveable. They are also compatible with ICON's Compression Damping Control Valve (CDCV) upgrade for owners who want a more user-adjustable compression tune.

Does this listing include a California Proposition 65 warning?

Yes. These ICON V.S. 2.5 Series shocks carry a California Proposition 65 warning: this product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
