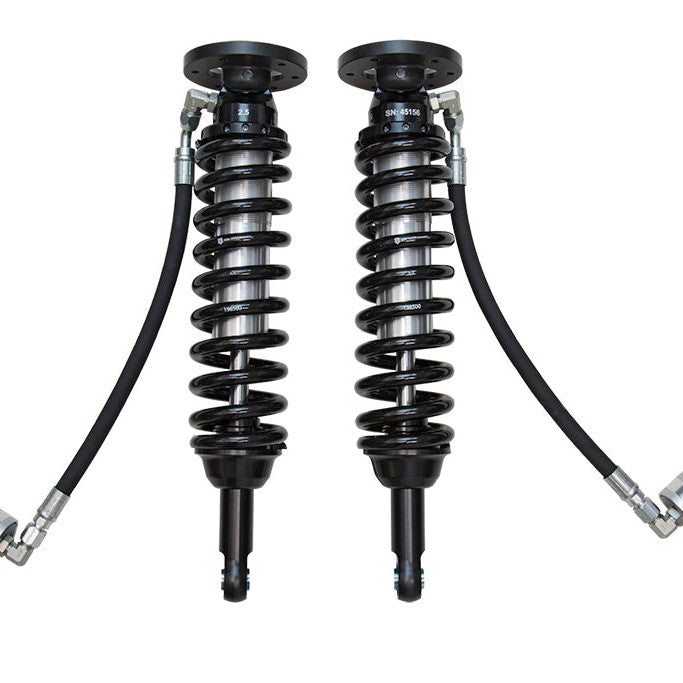

ICON V.S. 2.5 Series Front Coilover Kit with Remote Reservoir for 2009-2013 Ford F-150 4WD

The ICON V.S. 2.5 Series Front Coilover Kit with Remote Reservoir is a bolt-on front suspension upgrade for 2009–2013 Ford F-150 4WD trucks, providing 1.75–2.63 inches of adjustable lift height and a 2.5-inch shock body with vehicle-specific valving tuned for on- and off-road performance.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Larger Shock Body, Better Damping

The 2.5-inch shock body delivers increased piston area compared to stock components, which translates directly into improved damping capacity across varying terrain. Whether the road surface changes from pavement to washboard to loose trail, the coilover maintains consistent control rather than hunting for a compromise setting. The 7/8-inch diameter shaft and FK rod end bearings reduce deflection under load and extend service life beyond what stock hardware typically offers.

Remote Reservoirs for Sustained Performance

Remote reservoirs separate additional fluid volume from the main shock body, which keeps operating temperatures lower during extended hard use. Cooler fluid means damping characteristics stay consistent on long off-road runs rather than fading as heat builds. The CAD-plated corrosion-resistant shock body adds durability for trucks that see mud, water crossings, and road salt regularly.

Adjustable Lift and Bolt-On Installation

Lift height is adjustable between 1.75 and 2.63 inches, allowing fitment of larger wheel and tire combinations without committing to a fixed ride height. ICON-engineered Eibach springs and 6061 aircraft-grade aluminum CNC-machined components are included. Installation requires no cutting or welding. OEM wheels and tires fit at the supported lift range. For aftermarket fitments, ICON's own data recommends 17x8.5-inch wheels with 5.00-inch backspace, 18x9-inch wheels with 5.25-inch backspace, or 20x9-inch wheels with 5.625-inch backspace; tires up to 33x11.50 inches are noted as fitting, with larger sizes potentially requiring fender trimming or modifications.

Features

• 2.5-inch shock body: increased piston area over stock for improved damping ability
• Remote reservoir: maintains cooler operating temperatures and consistent damping during extended off-road use
• Adjustable lift: 1.75–2.63 inches of lift height adjustability
• ICON-engineered Eibach springs: included, vehicle-specific spring rate tuning
• 6061 aircraft-grade aluminum CNC components: corrosion-resistant CAD-plated shock body with 7/8-inch shaft
• 100% bolt-on: no cutting or welding required for installation

Specifications

Who This Is For and Isn't

This coilover kit suits 2009–2013 Ford F-150 4WD owners who want a bolt-on front suspension upgrade with adjustable lift between 1.75 and 2.63 inches, improved off-road damping, and compatibility with larger aftermarket wheel and tire combinations up to 33x11.50 inches.

This kit does not fit 2WD F-150 variants, F-150 model years outside 2009–2013, or any other vehicle. Rear shocks are not included; ICON rear 2.0 Aluminum Series or 2.5 Series shocks are sold separately. Tires larger than 33x11.50 inches may require fender trimming or other modifications.

Common Questions

Does this kit fit a 2WD Ford F-150?

No. The ICON V.S. 2.5 Series Front Coilover Kit with Remote Reservoir (SKU 91800) is designed specifically for 2009–2013 Ford F-150 4WD trucks. It does not fit 2WD variants of the F-150.

What lift height does this coilover kit provide?

The ICON V.S. 2.5 Series front coilover kit offers adjustable lift between 1.75 and 2.63 inches, allowing the owner to dial in ride height within that range to suit wheel, tire, and clearance requirements.

Are rear shocks included in this kit?

Rear shocks are not included. This kit covers the front suspension only. ICON recommends pairing it with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, which are sold separately, to balance vehicle control front to rear.

Does installation require cutting or welding?

No cutting or welding is required. The ICON V.S. 2.5 Series Front Coilover Kit is a 100% bolt-on installation for 2009–2013 Ford F-150 4WD trucks. An installation guide is available from ICON Vehicle Dynamics.

What tire size fits with this lift kit installed?

OEM wheels and tires fit within the supported lift range. Aftermarket tires up to 33x11.50 inches are noted as fitting. Larger tires may fit but could require fender trimming or other modifications according to ICON's fitment data.
