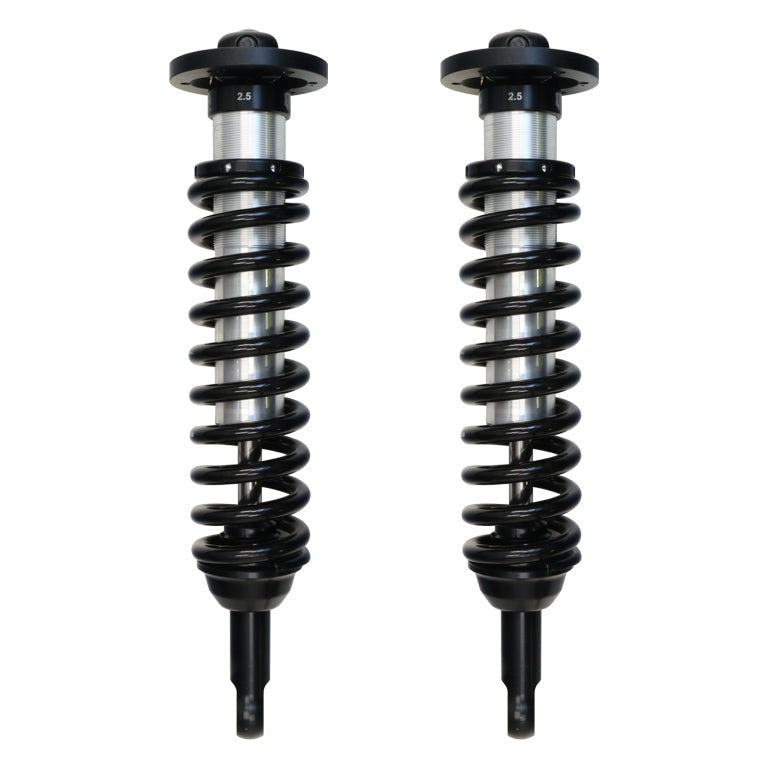

ICON V.S. 2.5 Series Front Coilover Kit for 2004-2008 Ford F-150 2WD

The ICON V.S. 2.5 Series Front Coilover Kit is a bolt-on front suspension upgrade for 2004–2008 Ford F-150 2WD trucks, delivering vehicle-specific damping tuning and 0–2.63 inches of adjustable lift height through a 2.5-inch shock body with an internal reservoir.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Larger Shock Body, More Damping Headroom

The 2.5-inch shock body provides greater piston area than stock front shocks, which translates directly into improved damping capacity across a wider range of terrain and load conditions. A 7/8-inch polished nitro steel shaft and a corrosion-resistant CAD-plated shock body are built to hold up to repeated off-road use without the surface degradation that shortens the service life of uncoated components. FK rod end bearings reduce deflection under lateral load and extend longevity compared to standard rubber bushings.

Vehicle-Specific Valving for On- and Off-Road Balance

ICON engineers the valving for this kit specifically for the 2004–2008 F-150 2WD platform rather than applying a generic tune. That means the damping curve is calibrated for the truck's actual sprung weight and suspension geometry, producing a sport-tuned feel on pavement without sacrificing composure on dirt, gravel, or washboard. ICON-engineered Eibach springs are included and matched to the same application-specific criteria.

Adjustable Lift and Bolt-On Installation

The 0–2.63-inch lift range lets owners dial in ride height to clear larger tires without committing to a fixed lift. Factory wheels and tires are compatible at the lower end of the range. For owners moving to aftermarket wheels, ICON's own technical notes identify specific wheel sizes and backspacing figures that work within the lift range. Recommended tire size is 33×11.50 inches; larger tires may fit but can require fender trimming or other modifications. Installation requires no drilling, cutting, or welding, as all mounting points use existing factory locations.

Features

• 2.5-inch shock body: increased piston area over stock for improved damping ability
• Adjustable lift: 0–2.63 inches of ride-height adjustability
• Vehicle-specific valving: tuned for the 2004–2008 Ford F-150 2WD platform
• ICON-engineered Eibach springs: application-matched coil springs included
• 6061 aircraft-grade aluminum: CNC-machined components throughout
• 100% bolt-on: no drilling, cutting, or welding required

Specifications

Who This Is For and Isn't

This kit is built for owners of 2004–2008 Ford F-150 2WD trucks who want improved front damping performance, the ability to run tires up to 33×11.50 inches, and up to 2.63 inches of adjustable lift without cutting or drilling.

This kit does not fit F-150 4WD configurations, any F-150 model year outside 2004–2008, or any other vehicle. It covers the front suspension only; rear shock upgrades are sold separately. Tires larger than 33×11.50 inches may require fender trimming or additional modifications not included with this kit.

Common Questions

Does this kit work with the factory wheels and tires?

The ICON V.S. 2.5 Series Front Coilover Kit for 2004–2008 Ford F-150 2WD is confirmed compatible with factory wheels and tires across its 0–2.63-inch lift range, so owners who are not changing wheel or tire size can install it without additional clearance considerations.

What is the largest recommended tire size?

ICON's technical notes for this front coilover kit recommend a maximum tire size of 33×11.50 inches. Larger tires may physically fit depending on specific wheel offset and backspacing, but fender trimming or other modifications would be required and are not part of this kit.

Does installation require any cutting, drilling, or welding?

No. The ICON V.S. 2.5 Series Front Coilover Kit is a 100% bolt-on installation that uses existing factory mounting locations on the 2004–2008 Ford F-150 2WD. No cutting, drilling, or welding is necessary.

What rear shocks pair with this front kit?

ICON recommends pairing this front coilover kit with ICON's own rear 2.0 Aluminum Series or 2.5 Series shocks to balance vehicle control front to rear. Rear shocks are sold separately and are not included with this front kit.

Is there a California Proposition 65 warning for this product?

Yes. This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm. This warning applies to the ICON V.S. 2.5 Series Front Coilover Kit as sold.
