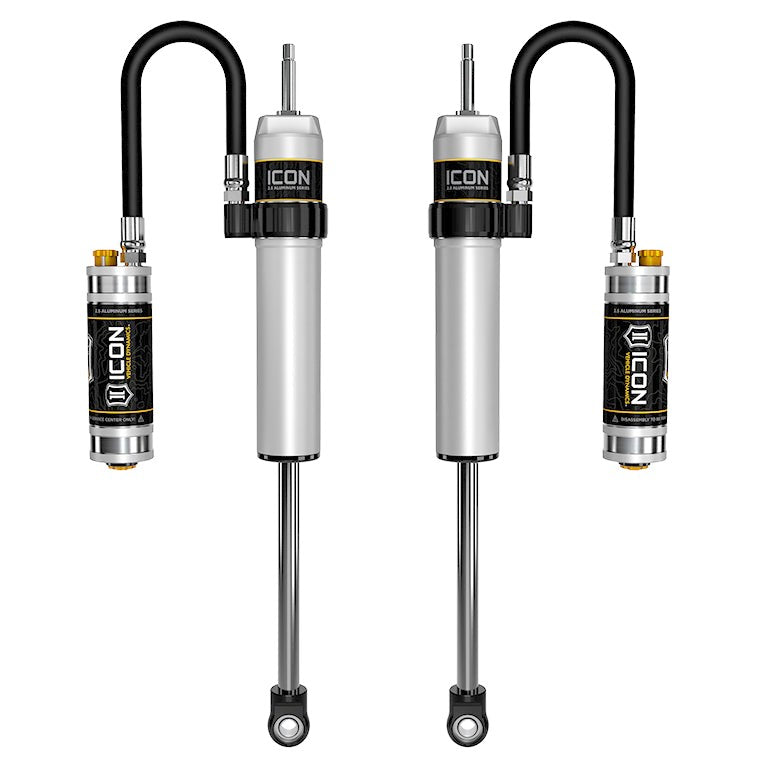

ICON V.S. 2.5 Remote CDCV Front Shocks for 2007-2018 Jeep JK Wrangler 4.5" Lift

The ICON Vehicle Dynamics V.S. 2.5 Aluminum Series Remote/CDCV Front Shocks are a vehicle-specific pair engineered for 2007–2018 Jeep JK Wrangler builds running 4.5 inches of lift, combining a remote reservoir monotube design with an externally adjustable CDC Valve for tunable on-road comfort and off-road control.

Shipping: ICON parts ship direct from ICON Vehicle Dynamics, mostly by UPS Ground. Lead times vary by part and some items are built to order, so please allow extra time. We email tracking as soon as your order ships.

Tunable Compression Damping on the Trail

The CDC (Compression Damping Control) Valve lets a driver dial in one of 10 compression damping levels with a simple knob turn, without tools and without removing the shock. That range matters on a Wrangler that sees both highway miles and technical terrain: softer settings absorb freeway expansion joints quietly, while firmer settings resist body roll and nose-dive on descents. Because the adjustment is external and repeatable, a driver can return to a known setting after experimenting rather than guessing.

Internal Bump Zone Prevents Harsh Bottom-Outs

A 6061 billet aluminum manifold positioned below the top cap creates an internal Bump Zone that adds 20% of damping force as the shock approaches full compression. On a loaded Wrangler hitting a ledge or water crossing at speed, that progressive resistance absorbs the final stroke energy before the suspension contacts a bump stop, reducing the jarring impact transferred to the chassis and occupants. The remote reservoir extends the oil volume available during that same high-velocity compression, helping maintain consistent damping when the shock cycles repeatedly on rough terrain.

Built to Last and Be Serviced

The shock body is a one-piece impact-extruded aluminum cylinder; all machined components are CNC-cut from 6061 aircraft-grade aluminum, which resists corrosion in the mud, salt, and water exposure a trail Wrangler accumulates. The 7/8-inch induction-hardened, chrome-plated shaft resists bending and surface wear. Premium 5WT shock oil maintains consistent damping across a wide temperature range, from cold desert mornings to sustained summer wheeling. Every unit is 100% rebuildable and 100% revalveable, so a shock that has logged years of hard use can be restored to spec rather than replaced outright.

Features

• CDC Valve: 10 levels of external compression damping adjustment, no tools required
• Internal Bump Zone: 6061 billet aluminum manifold adds 20% damping force near full compression
• Remote Reservoir: nitrogen-charged monotube with separate reservoir for improved heat dissipation and fade resistance
• 7/8" Shock Shaft: induction-hardened, chrome-plated for durability and corrosion resistance
• PTFE Spherical Bearings: application-specific mounting hardware included
• Fully Serviceable: 100% rebuildable and 100% revalveable

Specifications

Who This Is For and Isn't

These shocks suit 2007–2018 Jeep JK Wrangler owners running a 4.5-inch lift who want externally adjustable compression damping and a remote reservoir shock capable of handling both daily driving and demanding off-road use.

These shocks are not compatible with JK Wrangler builds at lift heights other than 4.5 inches, and they do not fit any other Jeep generation or vehicle platform. They cover the front axle only; rear shocks are a separate purchase. Coil springs are not included.

Common Questions

What Jeep models and years do these shocks fit?

These ICON V.S. 2.5 Remote/CDCV front shocks are application-specific to the 2007–2018 Jeep JK Wrangler with a 4.5-inch lift. They are not interchangeable with other Jeep generations, other lift heights, or other vehicle platforms.

How does the CDC Valve adjustment work?

The CDC (Compression Damping Control) Valve is an external knob on the remote reservoir that restricts oil flow into the reservoir. Turning it cycles through 10 discrete compression damping levels, allowing the driver to firm up or soften the shock's compression response without removing the shock or using tools.

Are rear shocks or coil springs included with this pair?

This listing is for a pair of front shocks only. Rear shocks and coil springs are not included and are sold separately. Buyers completing a full front suspension upgrade will need to source those components independently.

Can these shocks be rebuilt or revalved after heavy use?

Yes. The ICON V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. A shock that has accumulated significant trail use can be disassembled, inspected, and restored to its original specification rather than replaced as a unit.
